• FLOODLIGHTS

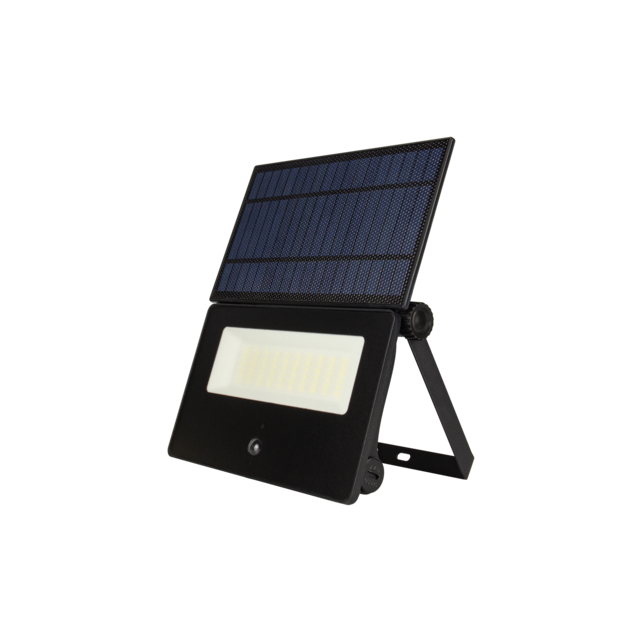

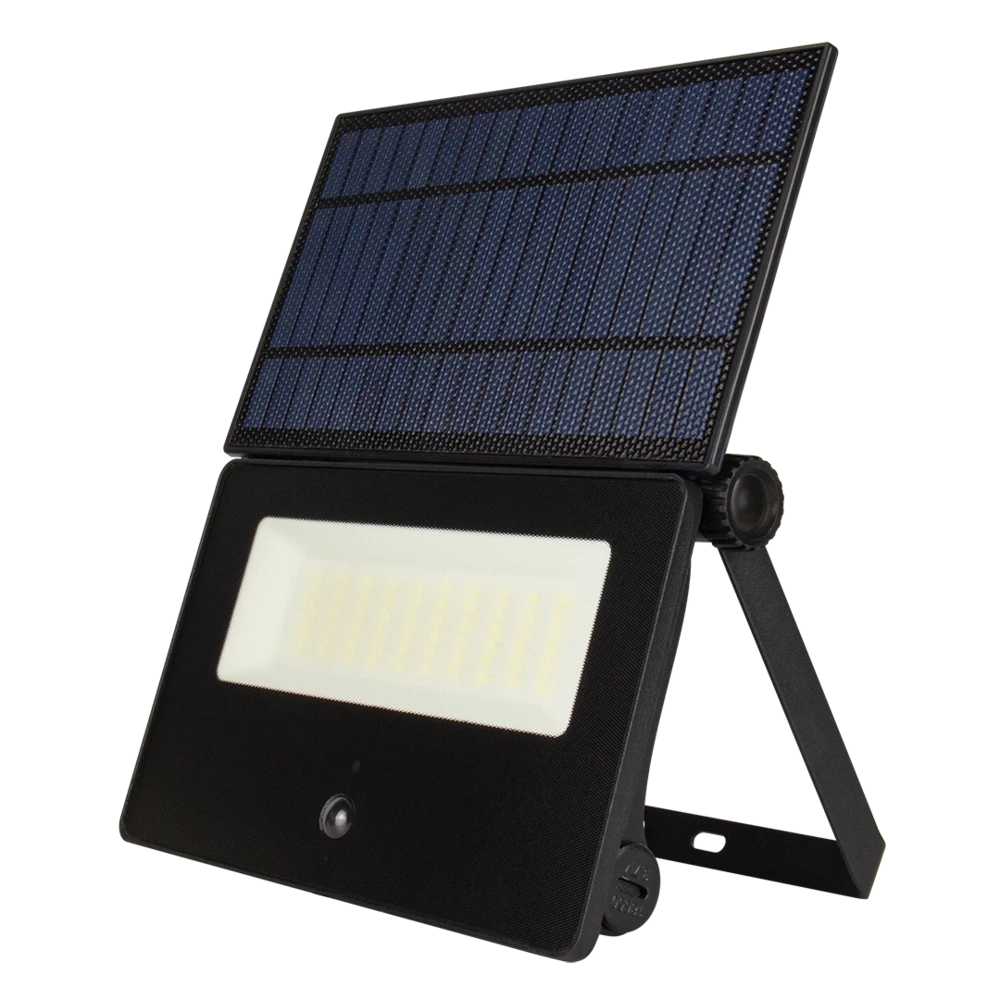

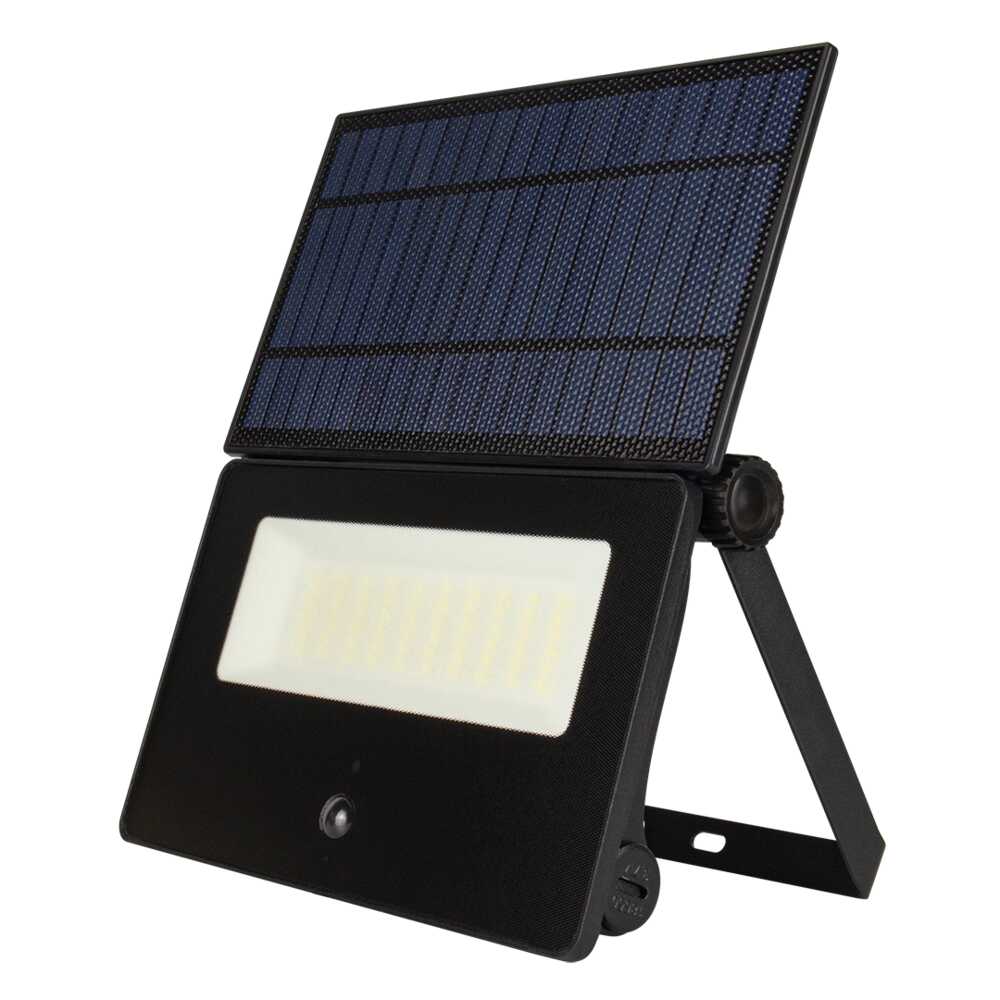

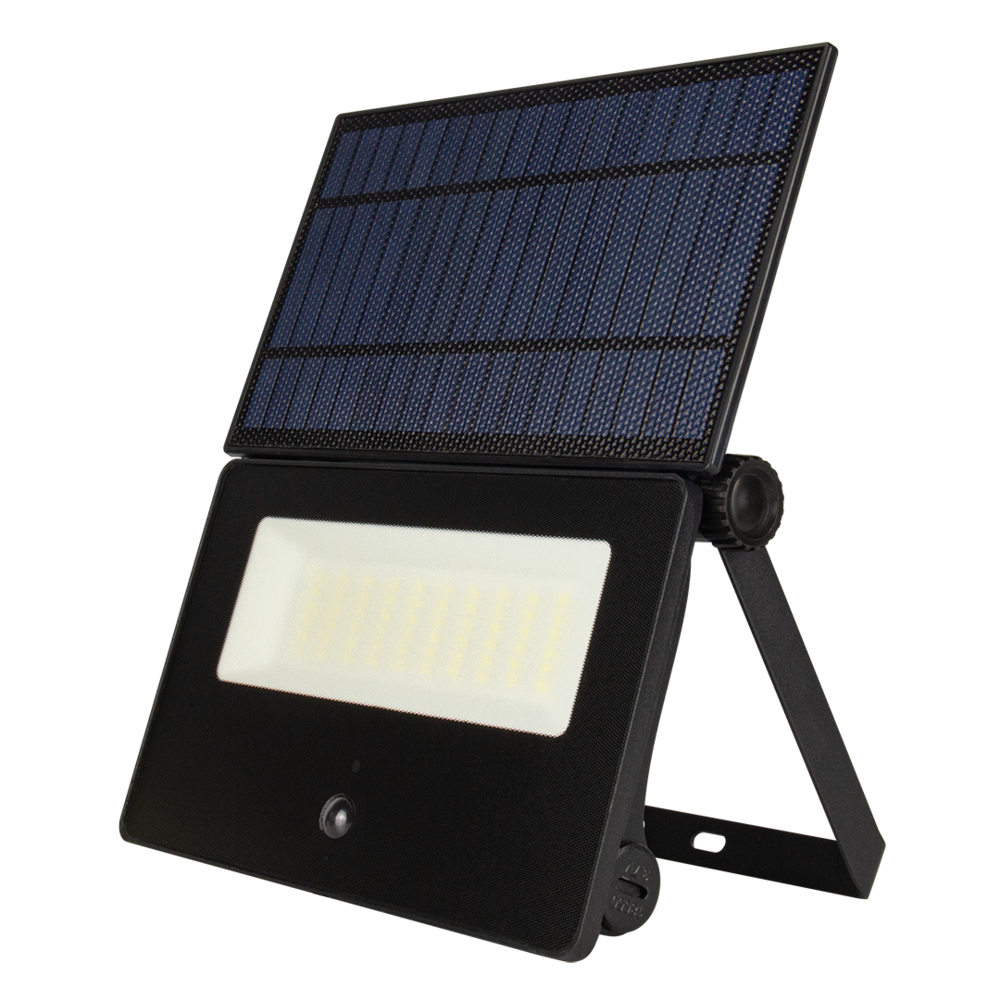

SALRAY 3000 - SSIF3000

IP65 LED SOLAR floodlight - 3000 lumens

Application

A sustainable floodlight solution for residential exterior spaces

Design Specifications

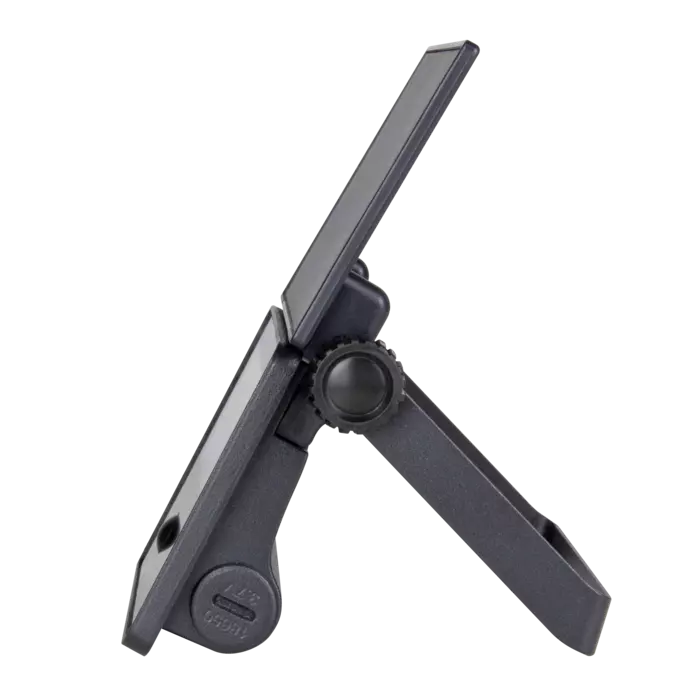

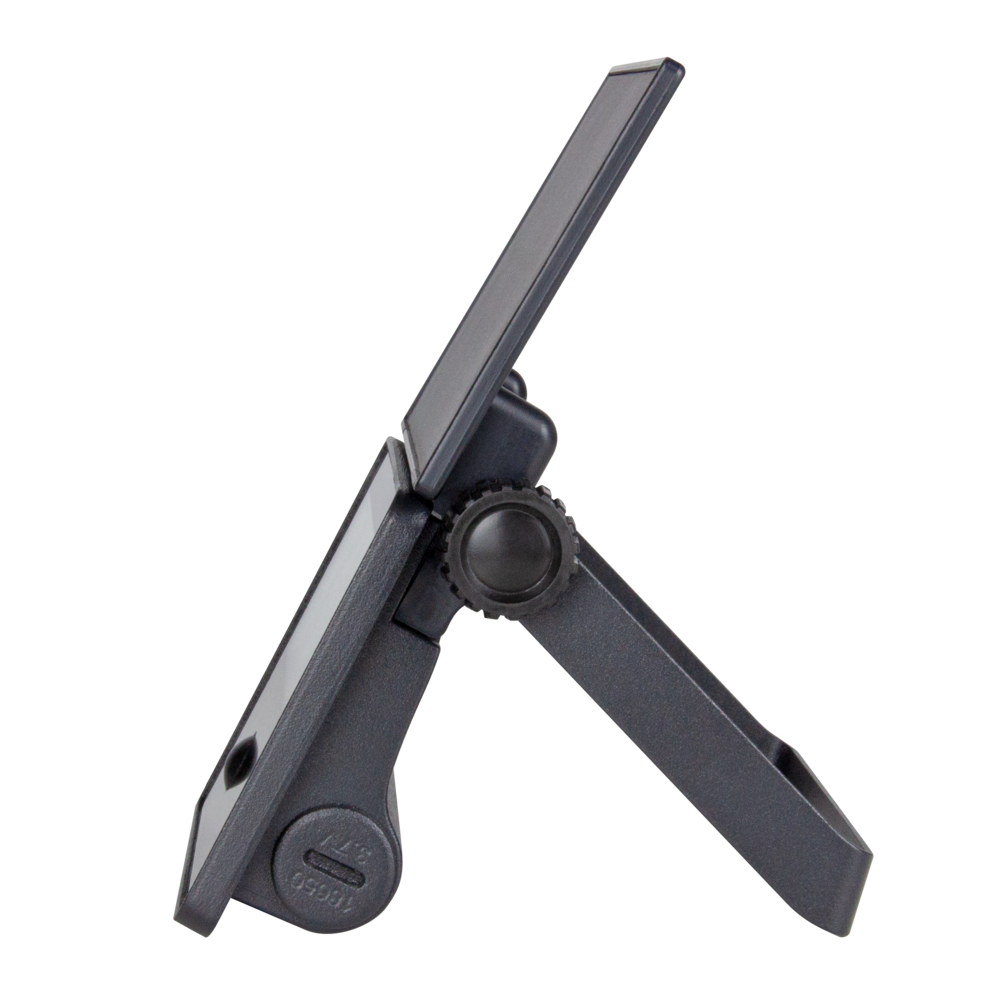

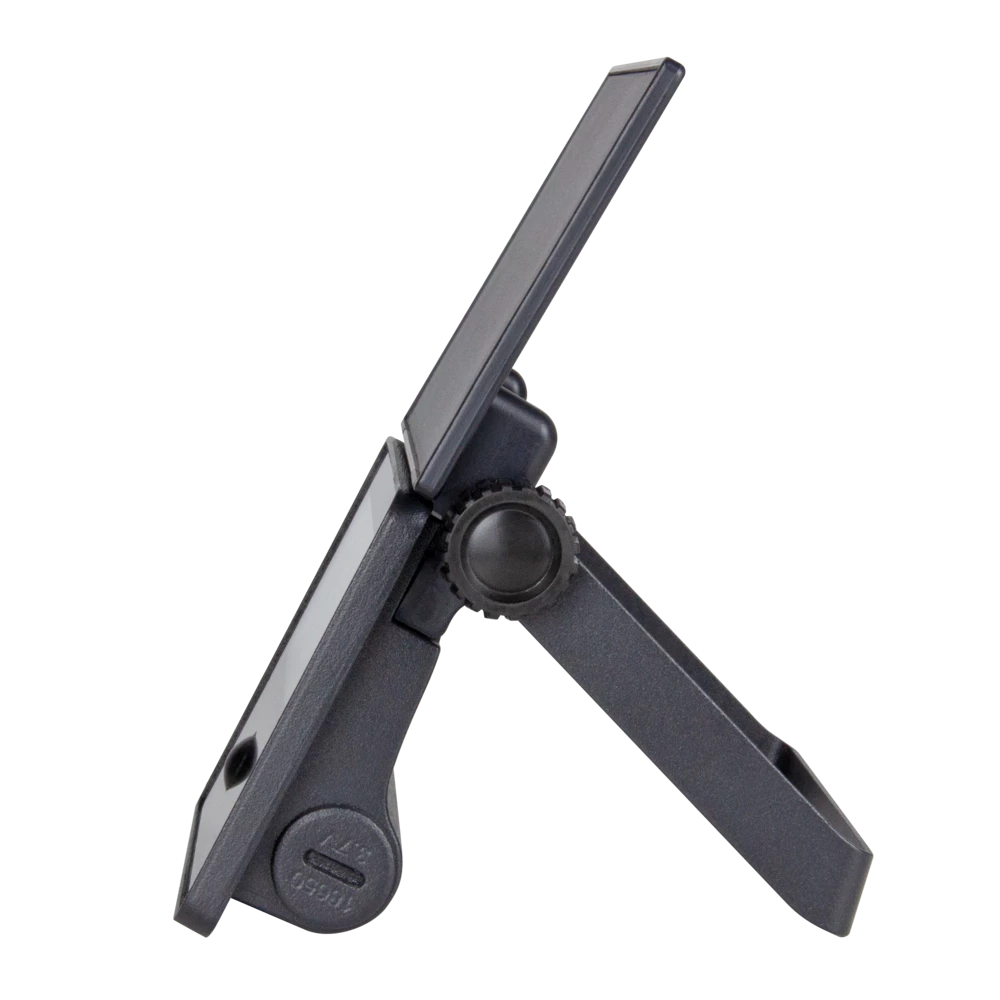

  • Robust black die-cast aluminium body, tempered glass diffuse and a versatile angled bracket for easy installation

  • High efficiency LED optics, 3000 lumens, CRI 80, CCT 6500K, non-dimmable integral driver, beam distribution 120°

  • Replaceable, lithium battery technology, with overcharge, over-discharge, load short circuit protection

  • PIR and dusk to dawn control

  • Detection range 110°, max 4-6m, installation height max 2.5hm, hold time 25 sec, daylight threshold 20-30 lux, charge time 9 hours

  • Optional remote sensor control - The default factory sensor MODE 1 setting, is dusk to dawn with 100% PIR sensor control. If other MODE settings are required, the optional remote controller is required which is sold separately, refer installation instructions for settings.

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - PIR DUSK TO DAWN
  • DAYLIGHT6500K

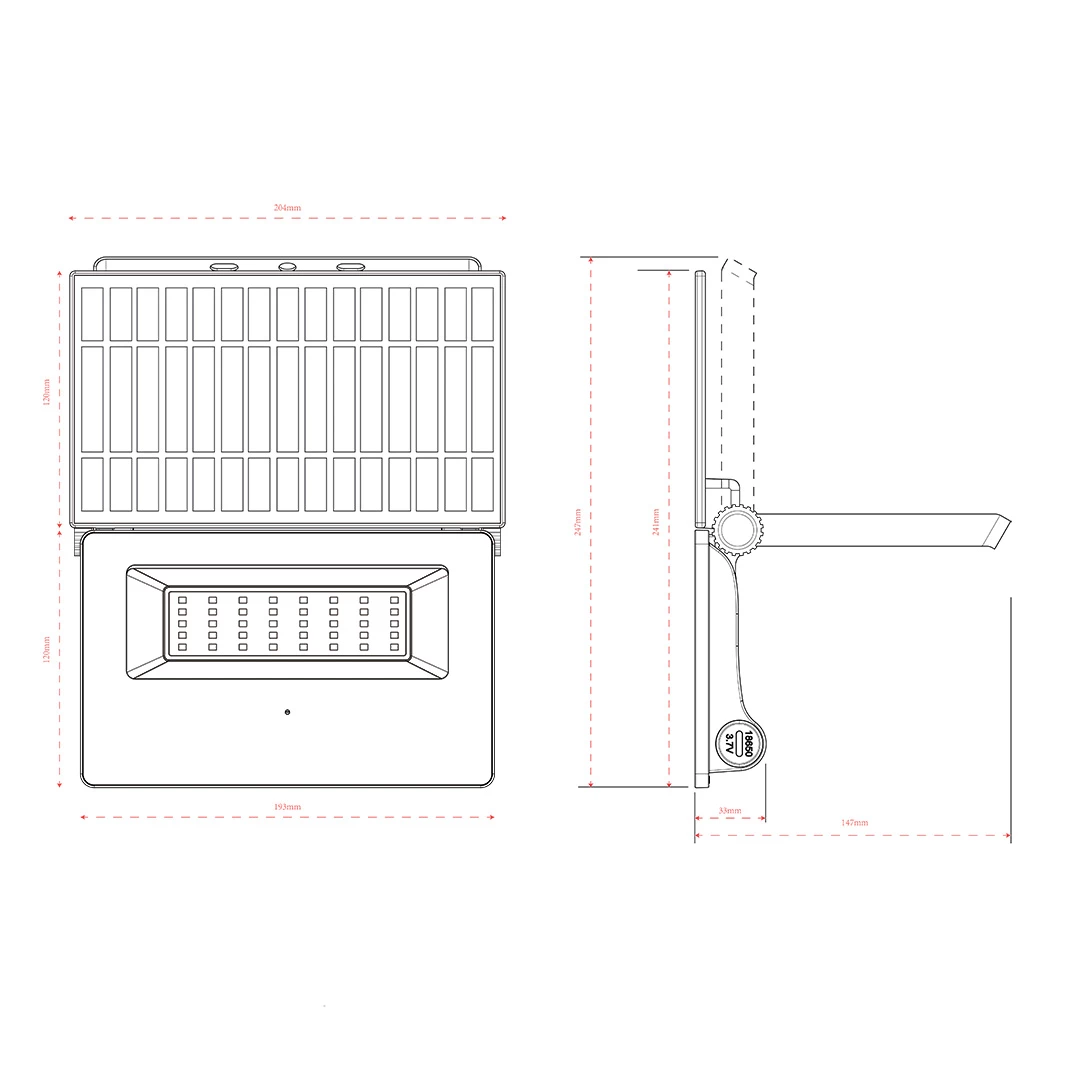

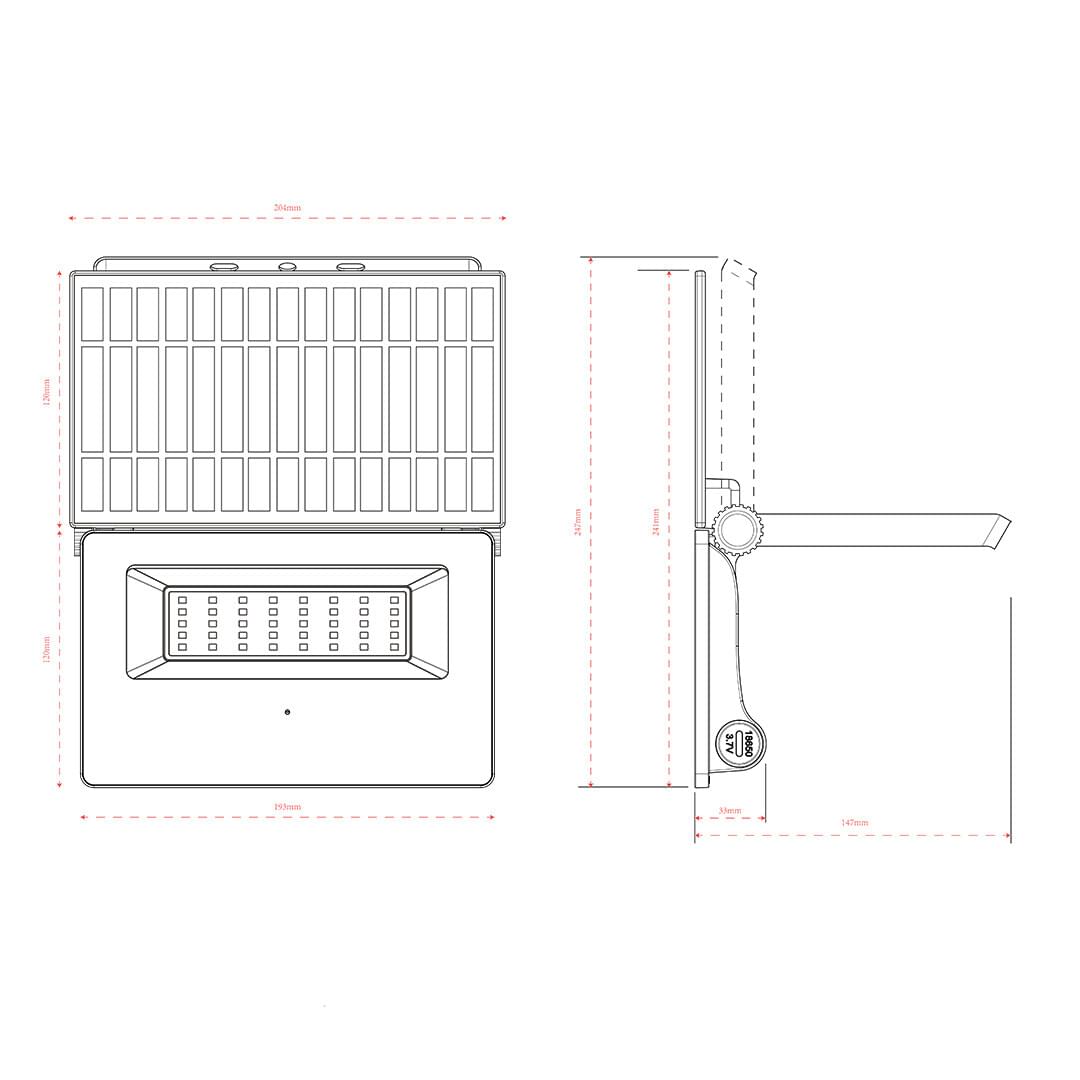

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.

    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.


    • Is aiming orientation important for exterior products?

      Is aiming orientation important for exterior products?

      Absolutely, careful attention is required when installing exterior products to ensure the designated aiming orientation is correct and allows for the natural cleaning of debris/dust from the glass visor surface, in particular when aimed in an upward direction. Products aimed in an upward direction can result in a build-up of dirt on the glass visor, which in turn can thermally stress the product if it is not routinely cleaned. Any aiming restrictions can be found with the installation instructions located in the product carton and or on the relevant product web page.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Power Lumens CCT CRI Beam Angle Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SSIF3000 Power17.5 Lumens3000 CCT6500 CRI80 Beam Angle120 Body ColourBLACK Dim193(W) x 240(H) x 32(D) Mass0.7 Add to Enquiry Add Remove Remove
    Model No.SSIF/RC Power Lumens CCT CRI Beam Angle Body ColourWHITE Dim85(L) x 40(W) x 5(D) Mass0.01 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
