• EMERGENCY

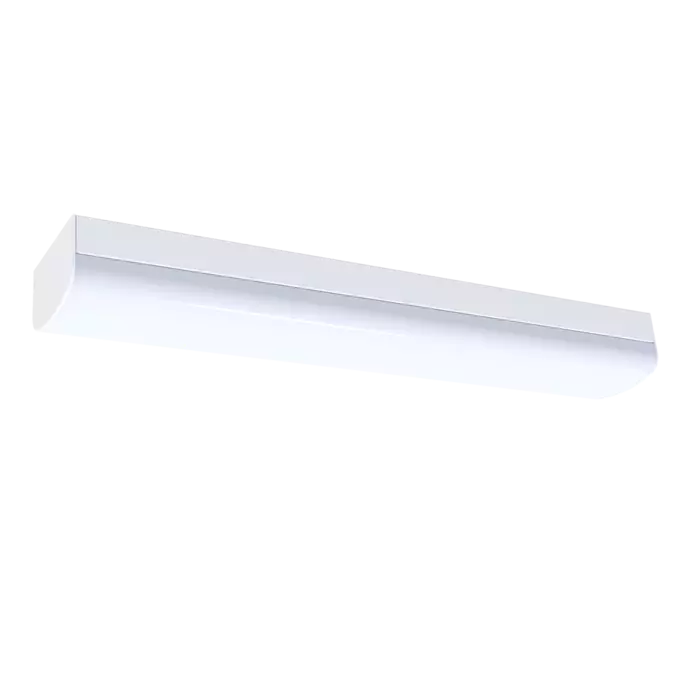

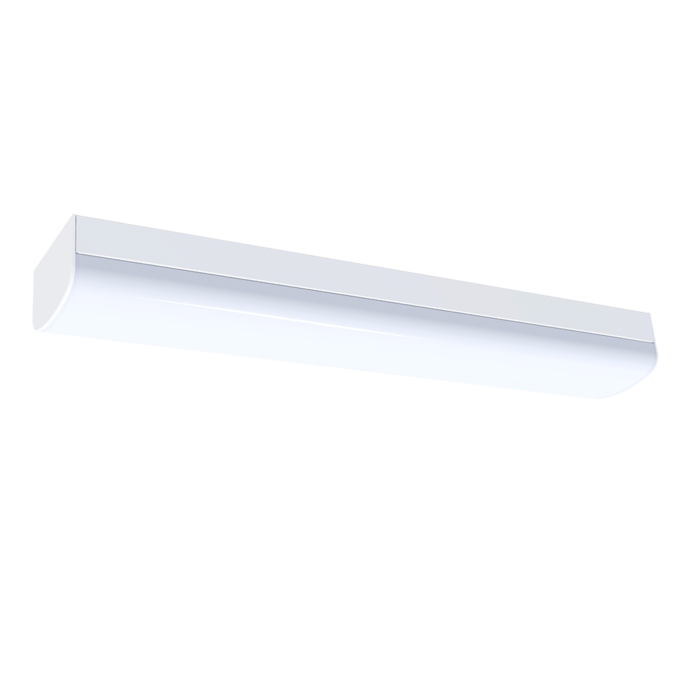

ECOLINE WIDE EMERGENCY SL9738TC/DP2EM - 10/40W

MAINTAINED OR NON-MAINTAINED - Compliant to AS/NZS 2293, wide body batten profile

Application

Perfect for interior commercial emergency lighting installations

Design Specifications

  • Wide steel body (110mm) body profile, white powder coat finish

  • LiFePO4 battery technology for long life

  • Designed for both maintained and non maintained system

  • Selectable CCT 3000K/4000K/5700K

  • Selectable maintained power

  • LED charge status display and test switch, guaranteed 90 minutes emergency function

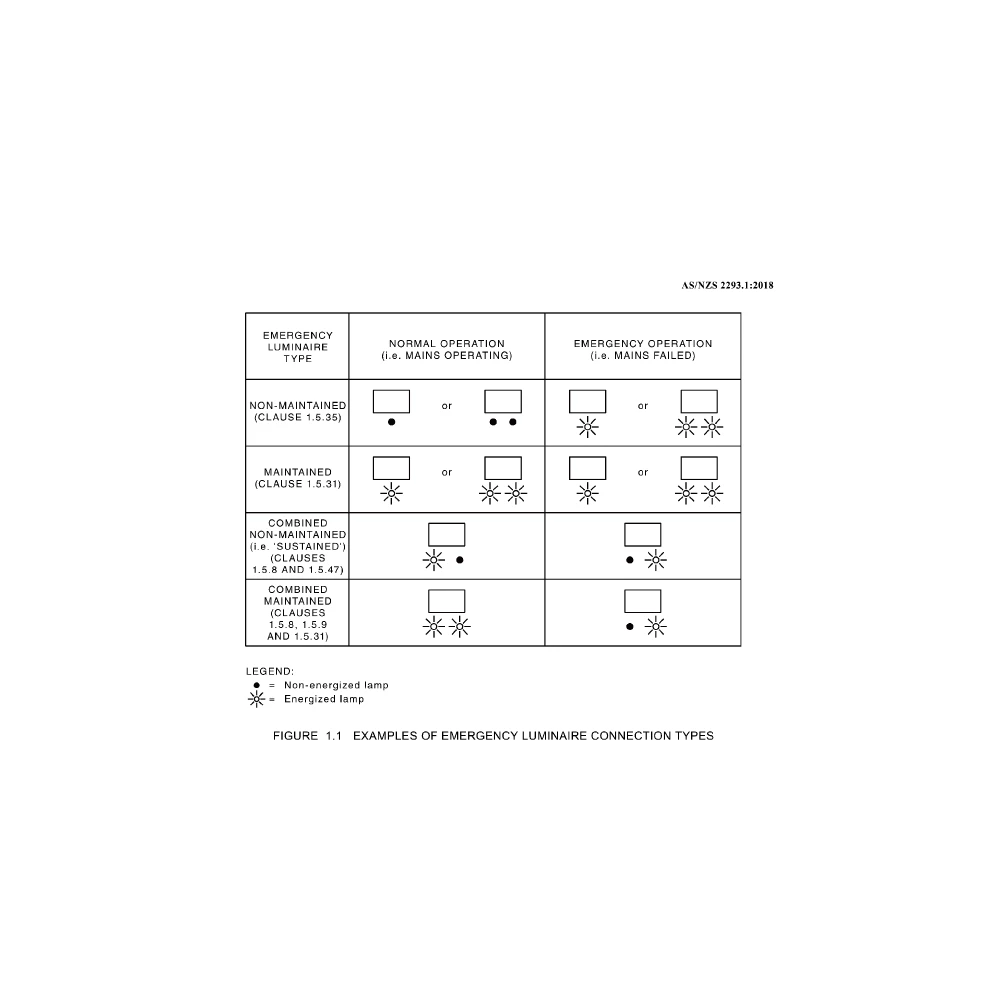

    Emergency classification both models - D50@C0, D32@C90

ECOLINE WIDE EMERGENCY SL9738TC/DP2EM -
ECOLINE WIDE EMERGENCY SL9738TC/DP2EM -
ECOLINE WIDE EMERGENCY SL9738TC/DP2EM -
COMING SOON
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9738/20TC/DP2EM Input Voltage240 Multiple Wattage10/20 Lumens2200/2450/2350 CCT3000/4000/5700 CRI80 Body ColourWHITE Dim610(L) x 110(W) x 65(H) Mass1.22 Add to Enquiry Add Remove Remove
    Model No.SL9738/40TC/DP2EM Input Voltage240 Multiple Wattage20/40 Lumens4600/5200/4900 CCT3000/4000/5700 CRI80 Body ColourWHITE Dim1225(L) x 110(W) x 65(H) Mass1.93 Add to Enquiry Add Remove Remove

    IMPORTANT NOTES: Lumens (lm) are displayed at full maintained power, (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
