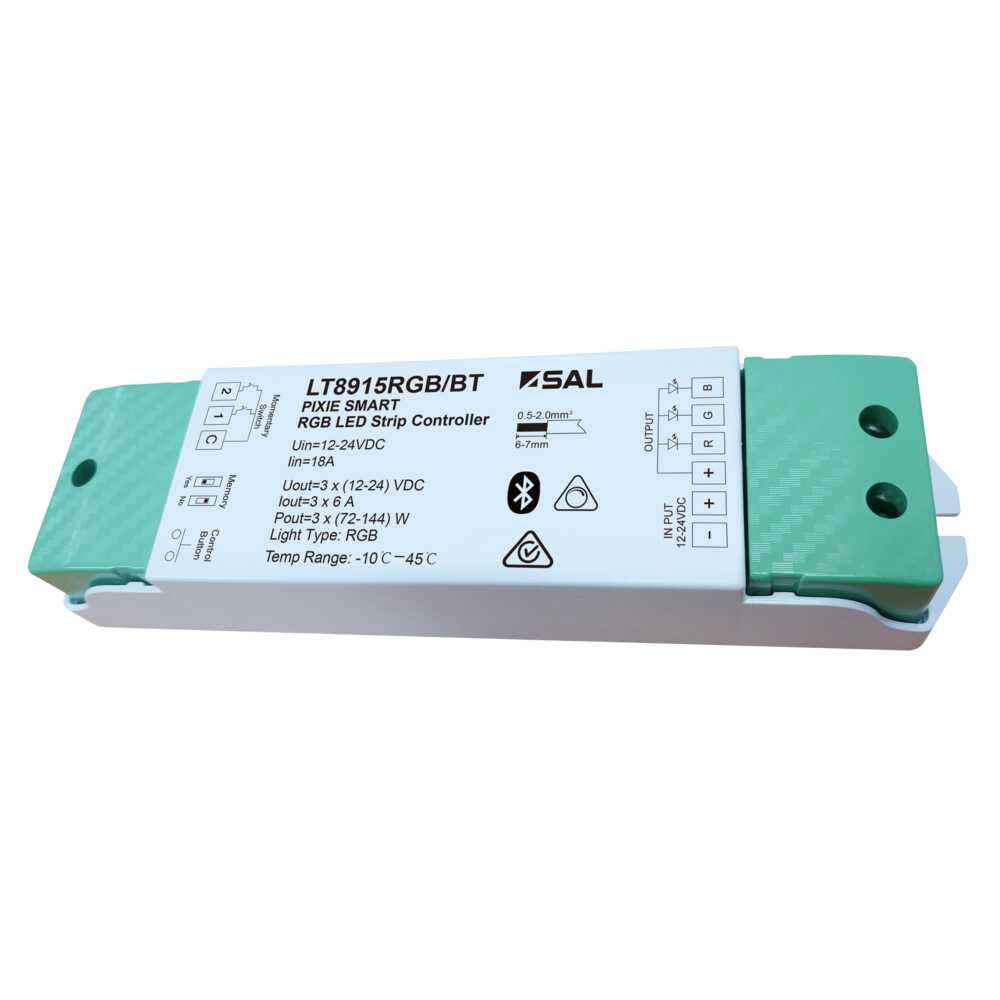

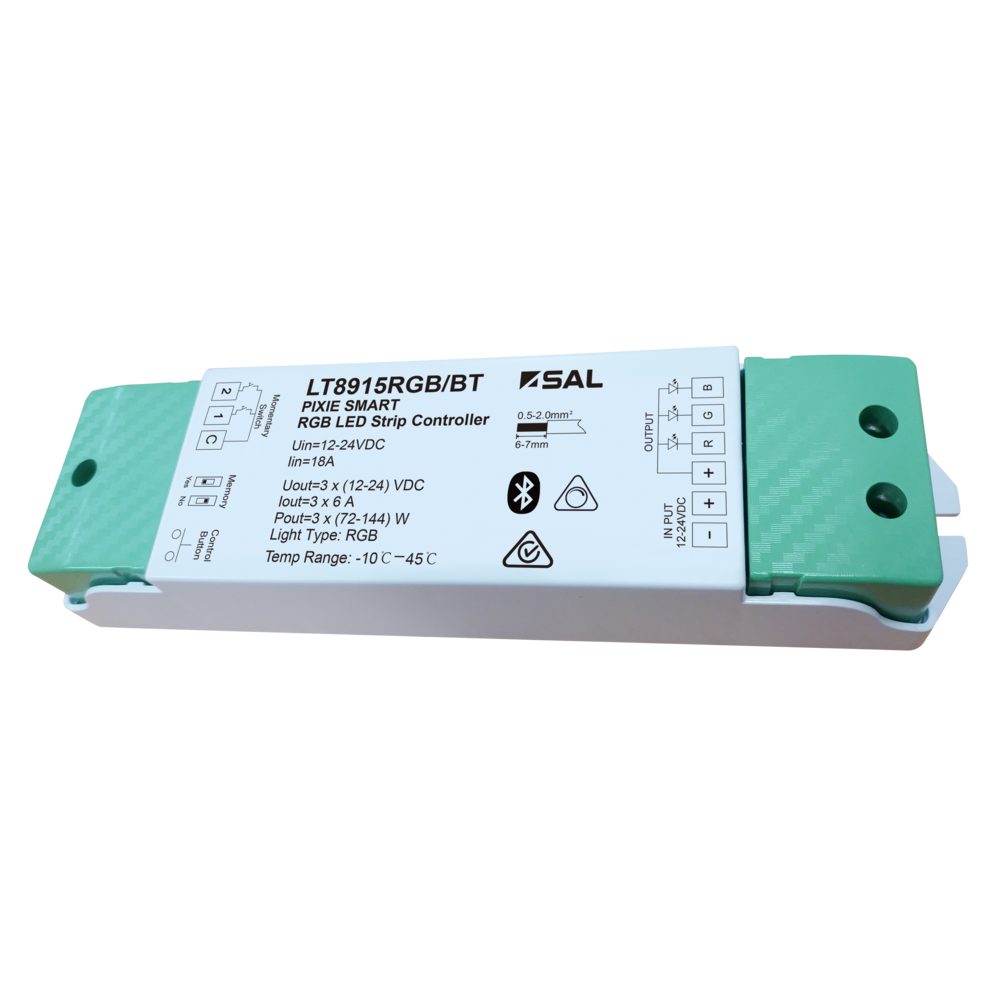

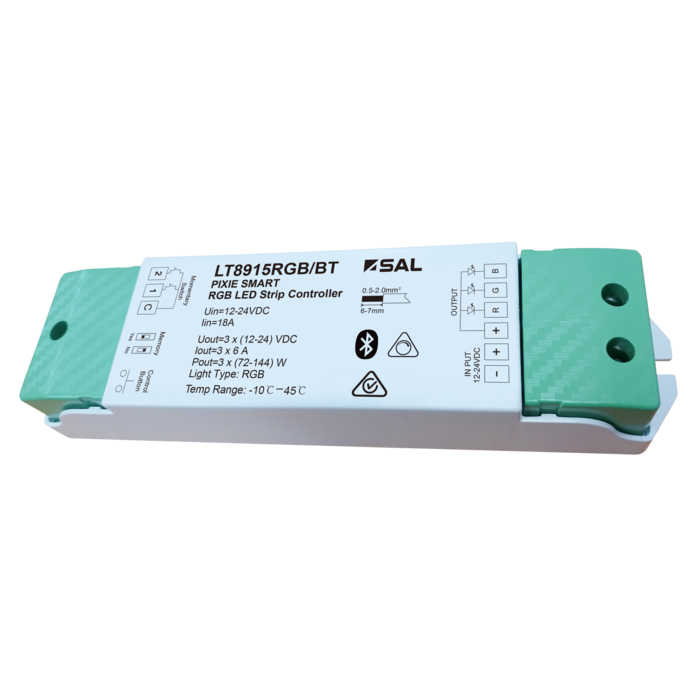

PIXIE RGB STRIP CONTROLLER - LT8915RGB/BT

PIXIE MASTER DEVICE - Smart RGB colour LED strip controller

Application

Home theatre, commercial spaces and decorative feature lighting designs which require smart control

Design Specifications

  • Designed for RGB colour brightness control, smooth 0 - 100% dimming

  • Input voltage range: 12-24V DC

  • Each controller provides three output channels with a maximum current of 6A for each channel, 432W maximum power output at 24V

  • Supports momentary switch (bell press) control on any wall plates

  • Control button for easy commissioning , Four flashing modes and optional memory function

  • Supports both wireless and wired group control

    Dimming is achieved via the PIXIE or PIXIE PLUS app (strip controller if supplied) or via a SAL Multifunction control. Trailing edge dimmers are not suitable

Performance

  • Dimmable - YES
  • Dimmer Type - PIXIE Bluetooth control

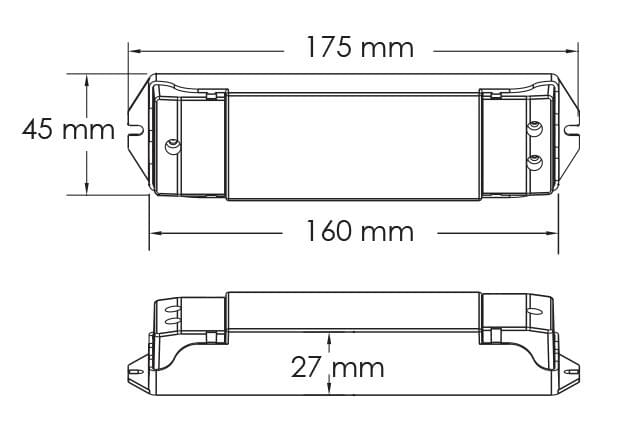

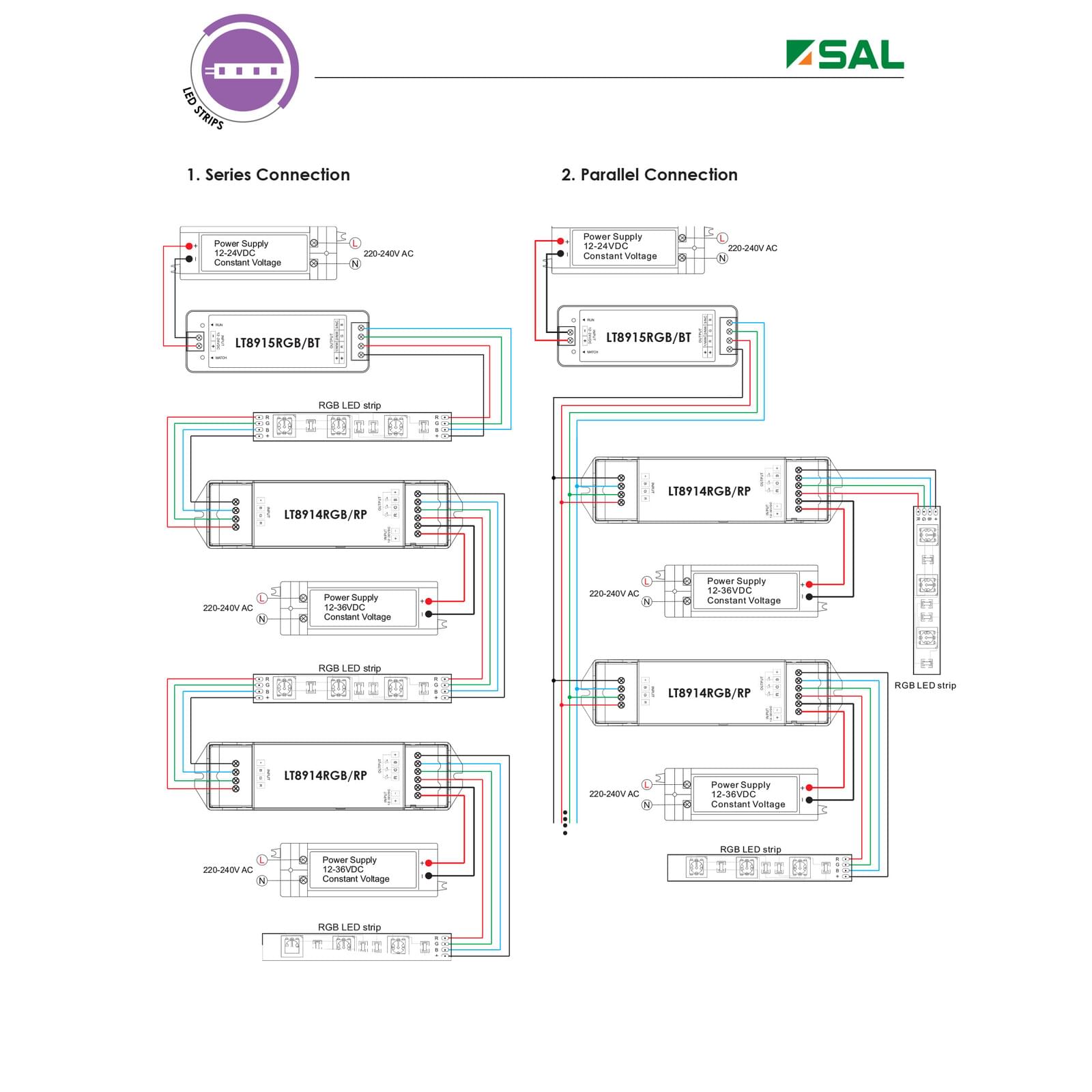

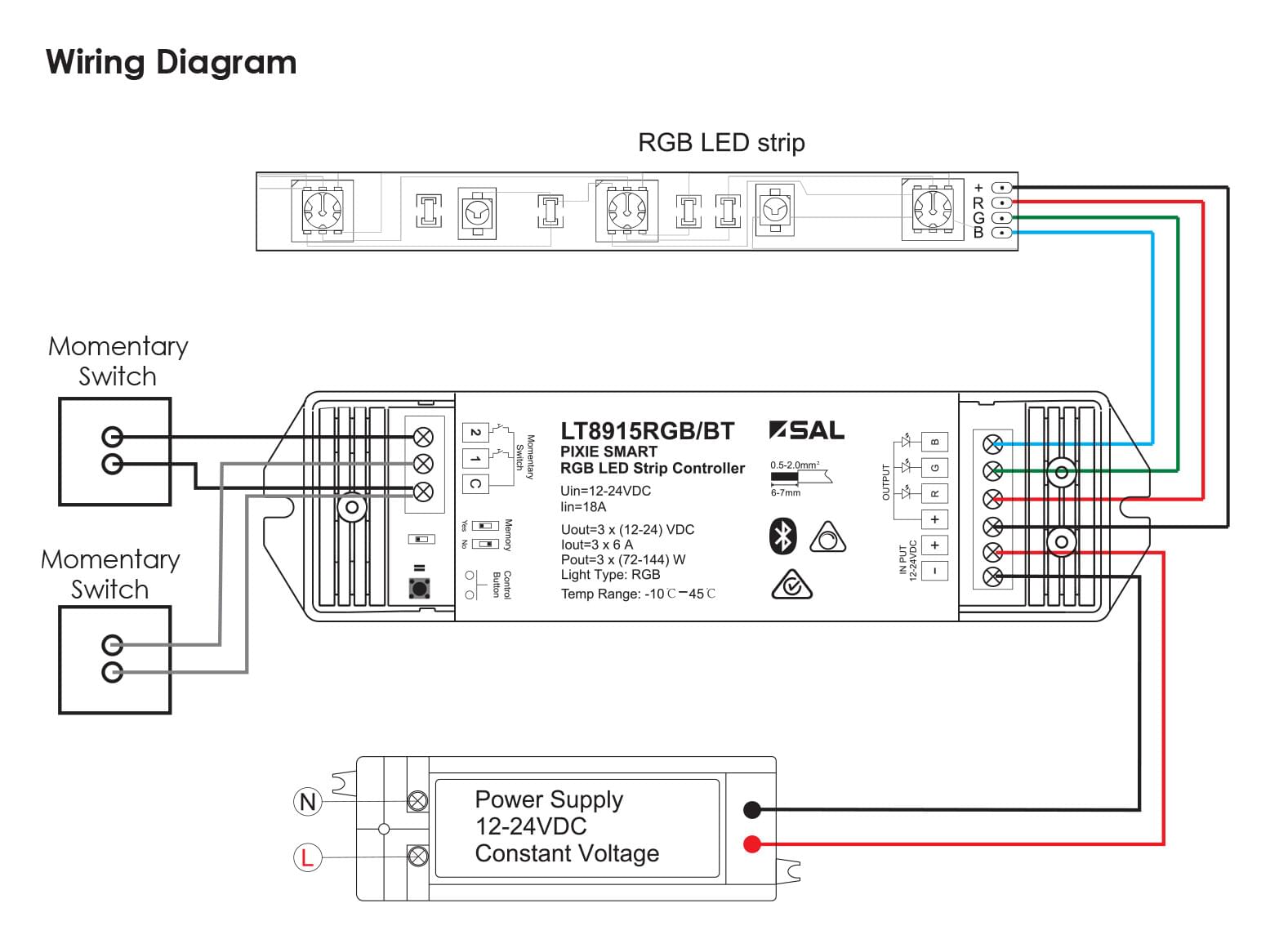

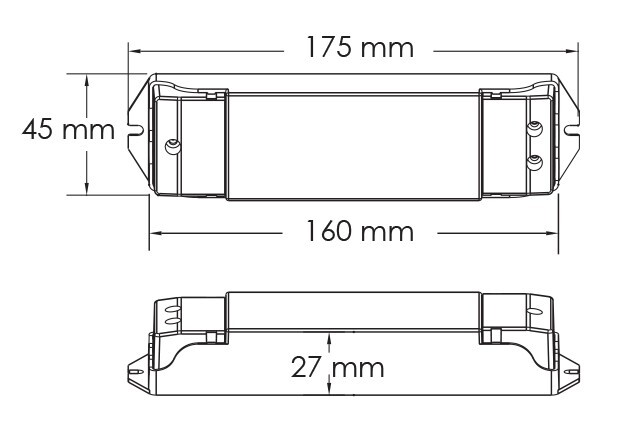

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Dimmable Power Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LT8915RGB/BT Input Voltage24 Dimmable YES Power432 Body ColourWHITE Dim175(L) x 45(W) x 27(H) Add to Enquiry Add Remove Remove
