• BULKHEADS

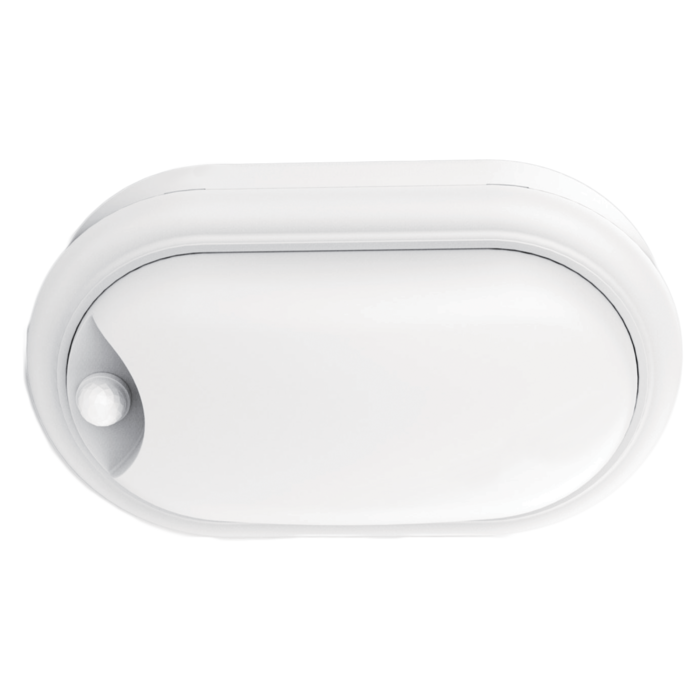

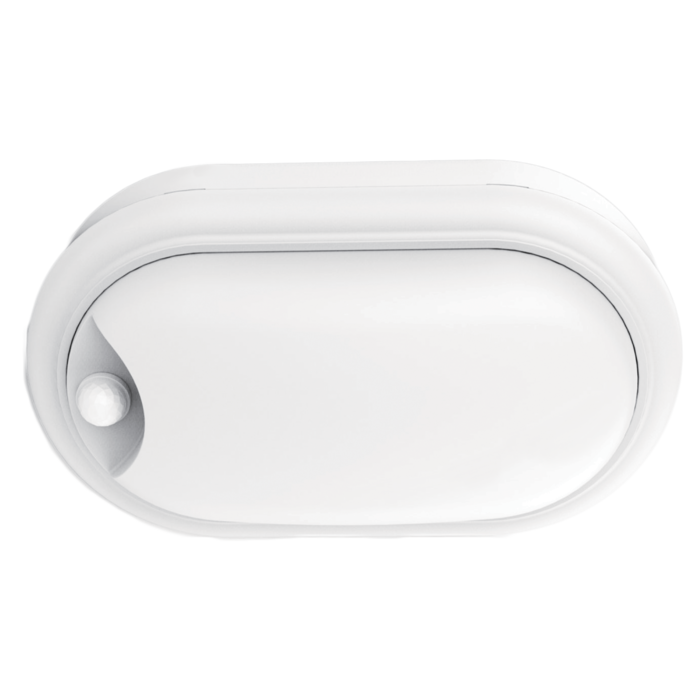

BUNKER 15 OVAL WITH SENSOR SL7271TC - 15W

LED 15 watt surface mount oval shaped bunker, selectable CCT, IP54 with PIR sensor

Application

A robust solution for residential and apartment interior or (covered eave) exterior utility spaces

Design Specifications

  • Durable UV resistant white or black polycarbonate body, opal polycarbonate diffuser

  • Integral control gear, 15 watt with PIR sensor control, fixed 30 seconds ON, 7 metres diameter detection distance at 2.5hm, daylight threshold < 20 lux

  • CCRI >80, 1400/1500/1450lm

  • Selectable CCT 3000/4000/6500K

  • Quick connect installation design

  • Double insulated, robust IK06 protection, wall or ceiling mount

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL7271TC/WH/S Input Voltage240 Power15 Lumens1400/1500/1450 CCT3000/4000/6500 CRI80 Beam Angle110 Body ColourWHITE Dim233(L) x 131(W) x 68(H) Add to Enquiry Add Remove Remove

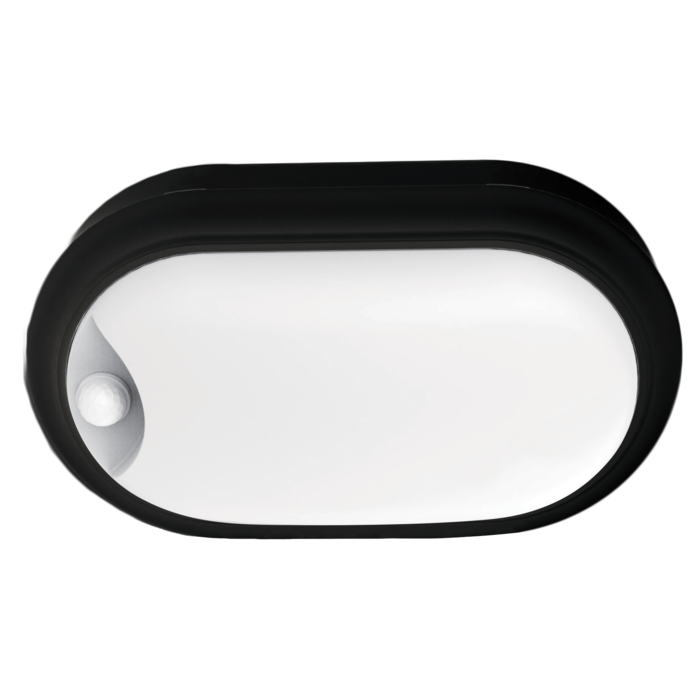

    Model No.SL7271TC/BK/S Input Voltage240 Power15 Lumens1400/1500/1450 CCT3000/4000/6500 CRI80 Beam Angle110 Body ColourBLACK Dim233(L) x 131(W) x 68(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
