• LED BULKHEADS

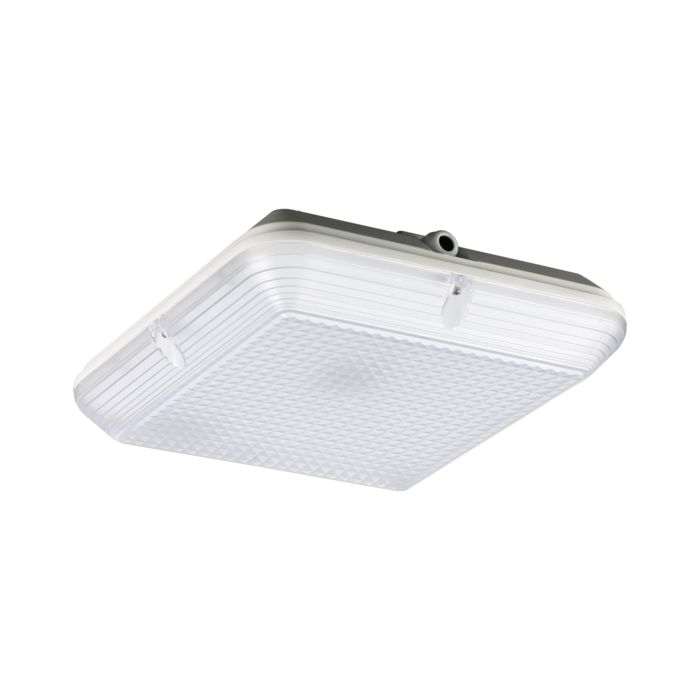

MEMPHIS SQUARE SL9719SQ - 22W

Vandal resistant, LED square profile, wall or ceiling mount luminaire, IK10, IP65

Application

A robust solution for industrial and commercial spaces

Design Specifications

  • Die-cast aluminium body, frosted polycarbonate diffuser, silicone gasket

  • Stainless steel allen screws

  • High efficiency LED optics

  • Integral non-dimmable LED driver

  • Designed with multi access rear or side conduit entry points

  • Optional (non-dim) corridorSTANDBY function available
    Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue



Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI/DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • COOL WHITE4000K

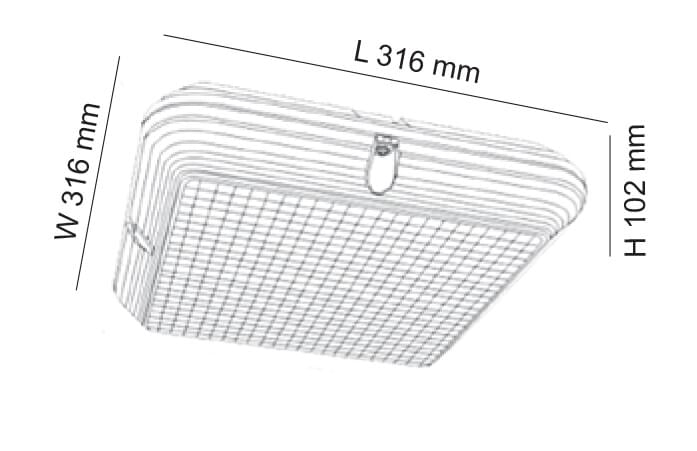

    • Dimensions - Wiring Diagrams
    • Design Options

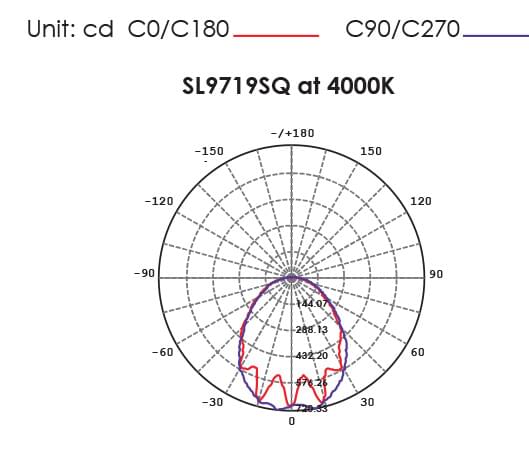

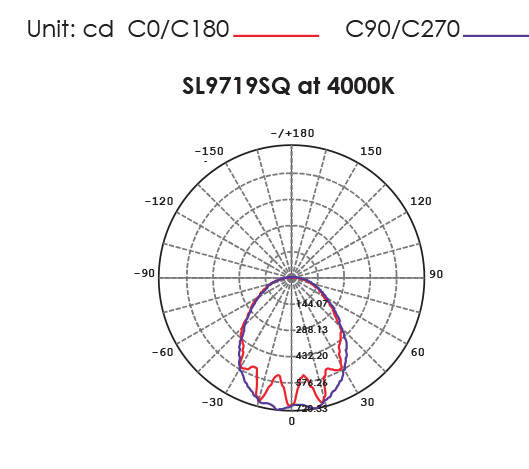

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Input Voltage Power Lumens CCT CRI Body Colour Dim
      Model No. SL9719SQ Add to Enquiry Add Remove Remove Input Voltage 240 Power 22 Lumens 1700 CCT 4000 CRI 80 Body Colour WHITE Dim 316(L) x 316(W) x 102(H)
      Model No. SL9719SQ/C Add to Enquiry Add Remove Remove Input Voltage 240 Power 22 Lumens 1700 CCT 4000 CRI 80 Body Colour WHITE Dim 316(L) x 316(W) x 102(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
