• ARCHITECTURAL

COOPER SE7082TC - 16W

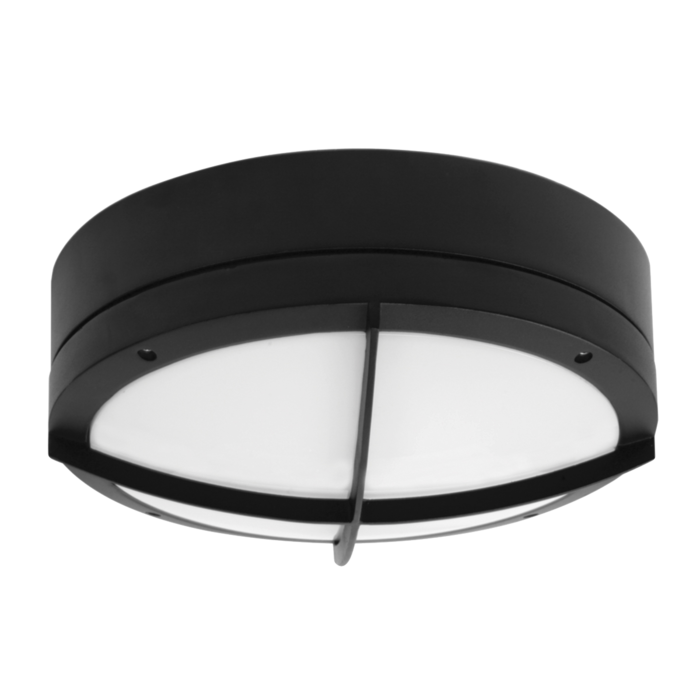

16 watt, IP65 LED commercial bunker (cross frame) luminaire, selectable CCT, IK10 rated, ceiling or wall mount

Application

A decorative architectural solution for commercial exteriors

Design Specifications

  • Robust die-cast aluminium body, durable black or silver powder coat finish

  • Stainless steel allen screws

  • High efficiency LED optics

  • Integral constant current non-dimmable LED driver

  • Selectable CCT 3000 / 4000 / 5700K

  • UV stabilized opal polycarbonate diffuser, IK10, IP65 performance
    Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the exterior emergency section

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - TRAILING EDGE
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE

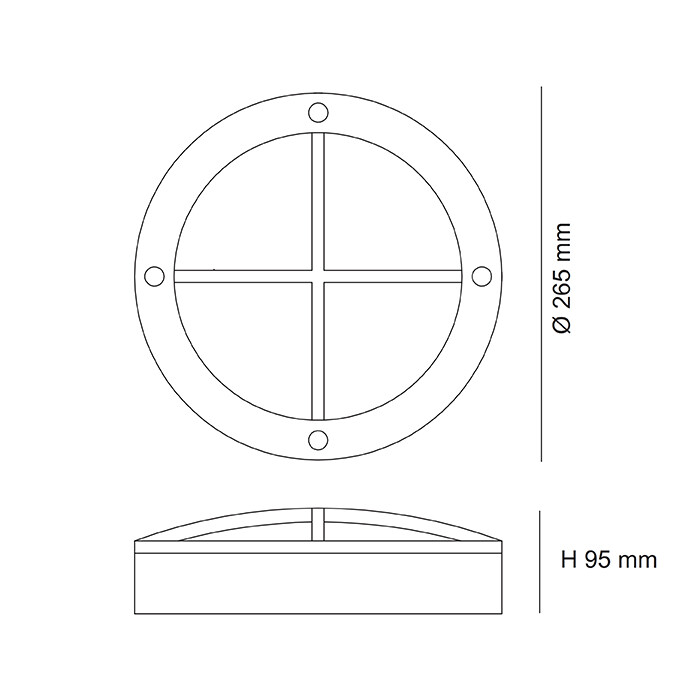

  • Dimensions - Wiring Diagrams
  • Design Options

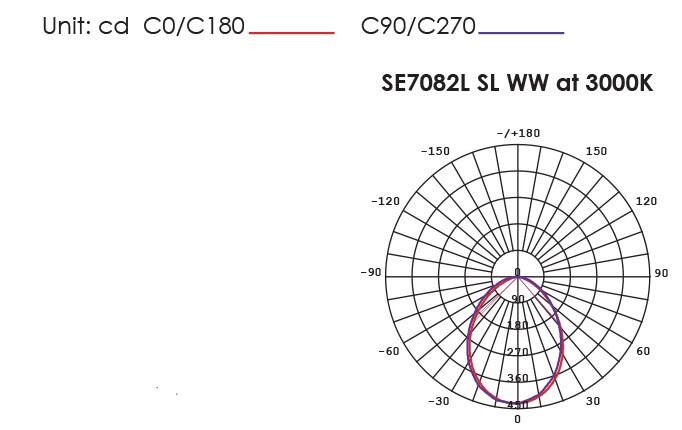

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SE7082TC/BK Input Voltage240 Power16 Lumens1100/1150/1100 CCT3000/4000/5700 CRI80 Beam Angle100 Mass1.66 Diameter265 Dim95(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SE7082TC/SL Input Voltage240 Power16 Lumens1100/1150/1100 CCT3000/4000/5700 CRI80 Beam Angle100 Mass1.66 Diameter265 Dim95(H) Body ColourSILVER Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
