• ARCHITECTURAL

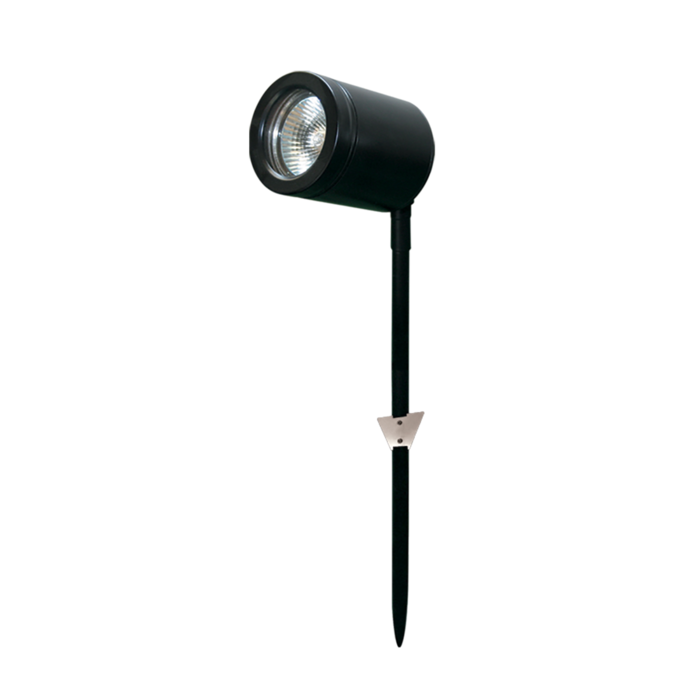

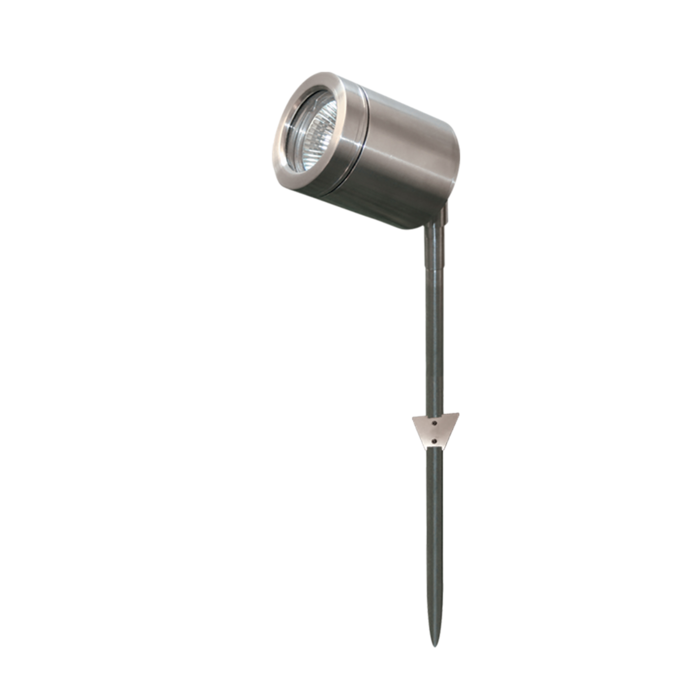

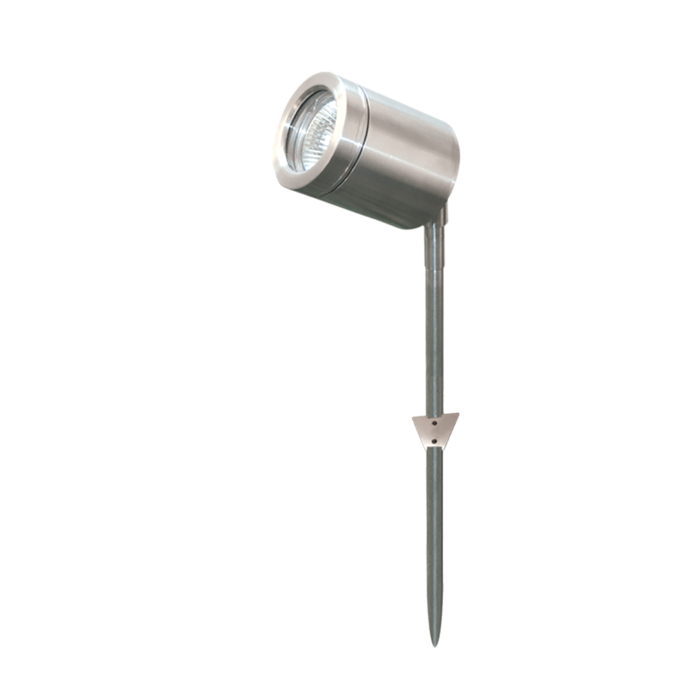

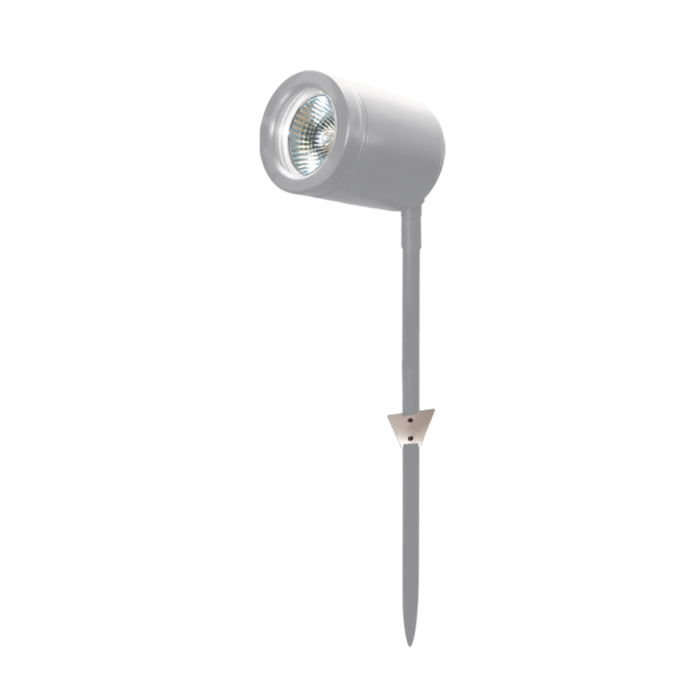

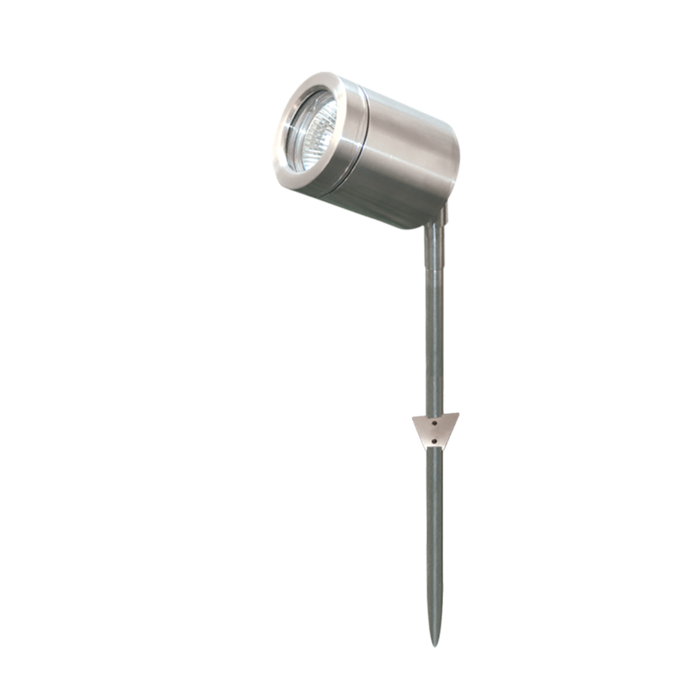

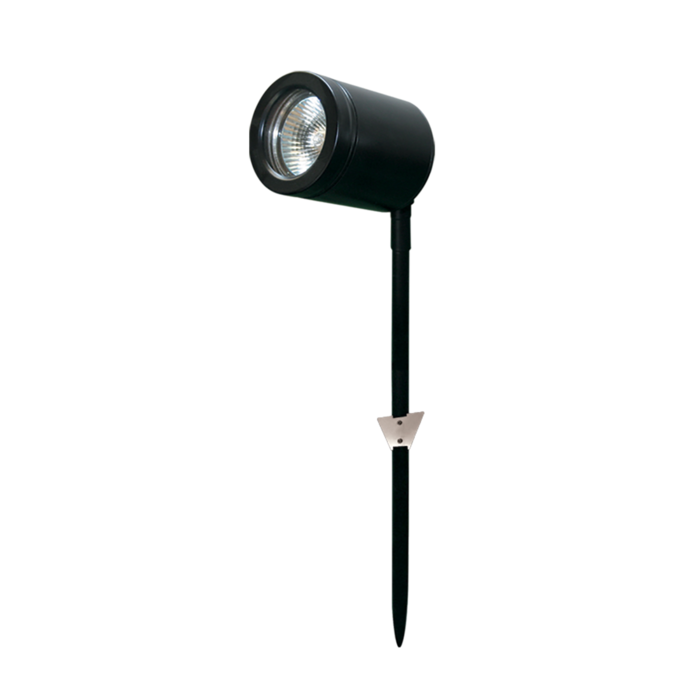

NEWPORT SPIKE SL7261TC - 5W

IP54 MR16 LED lamp base spike luminaire with selectable CCT lamp

Application

Decorative accent solution

Design Specifications

  • Machined 316L stainless steel or extruded aluminium body profile, black or silver or anodized silver finish

  • Clear tempered glass cover

  • GU5.3 lamp base, MR16 5W TC lamp included

  • 600 mm 2 core rubber flex
  • 12V AC or DC driver required

  • SAL lamp options - MR16/7W, MR16DIM9W (excluding Stainless Steel fittings)

Performance

  • Dimmable - NO

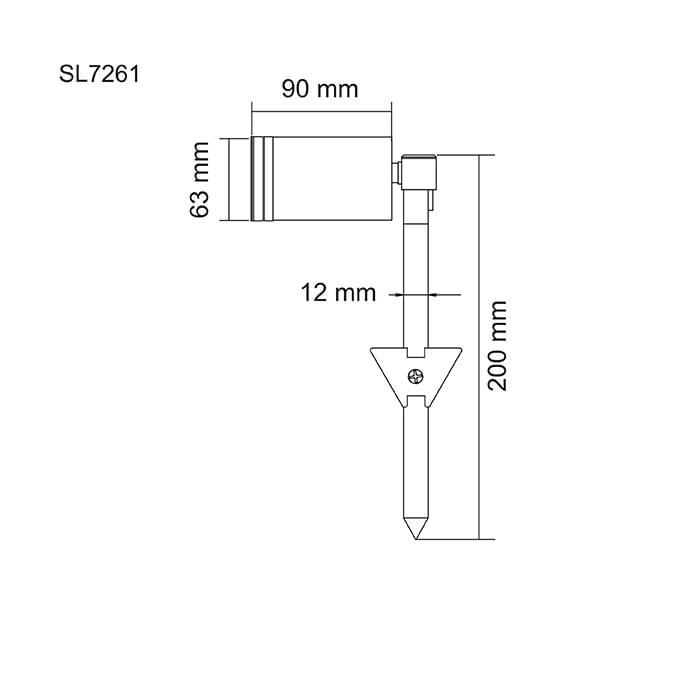

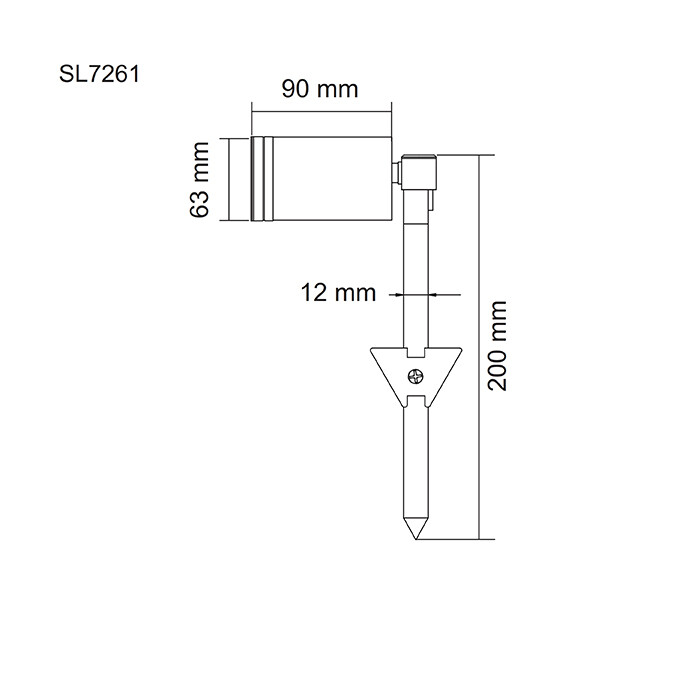

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Base Type Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL7261TC/SLS Input Voltage12 Input Voltage12 Power5 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Mass0.9 Diameter63 Dim200(H) x 90(D) Base TypeGU5.3 Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.SL7261TC/SL Input Voltage12 Input Voltage12 Power5 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Mass0.43 Diameter63 Dim200(H) x 90(D) Base TypeGU5.3 Body ColourSILVER Add to Enquiry Add Remove Remove
    Model No.SL7261TC/BK Input Voltage12 Input Voltage12 Power5 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Mass0.43 Diameter63 Dim200(H) x 90(D) Base TypeGU5.3 Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SL7261TC/AS Input Voltage12 Input Voltage12 Power5 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Mass0.43 Diameter63 Dim200(H) x 90(D) Base TypeGU5.3 Body ColourANODISED SILVER Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
