• ARCHITECTURAL

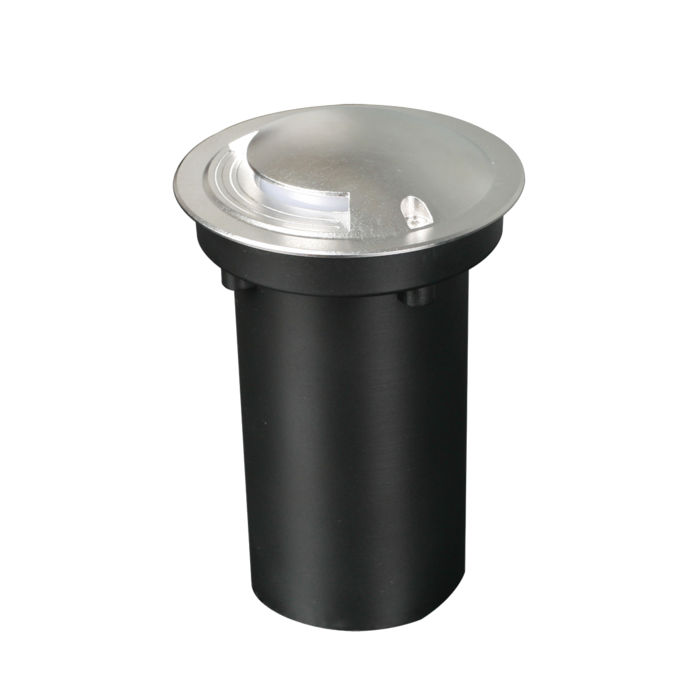

PATHWAY 1 WAY S9351 - 4W

LED inground IP67 luminaire, IK10

Application

Decorative LED solution, ideal for gardens and decorative pathways

Design Specifications

  • 316L stainless steel face cover, die-cast aluminium body

  • Clear tempered glass diffuser, high efficiency LED optics

  • Integral constant current non-dimmable LED driver

  • IP68 PG9 PVC cable gland, PVC installation canister included
  • 450 mm 3 core rubber flex
  • Maximum load capacity 2000 kg

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K

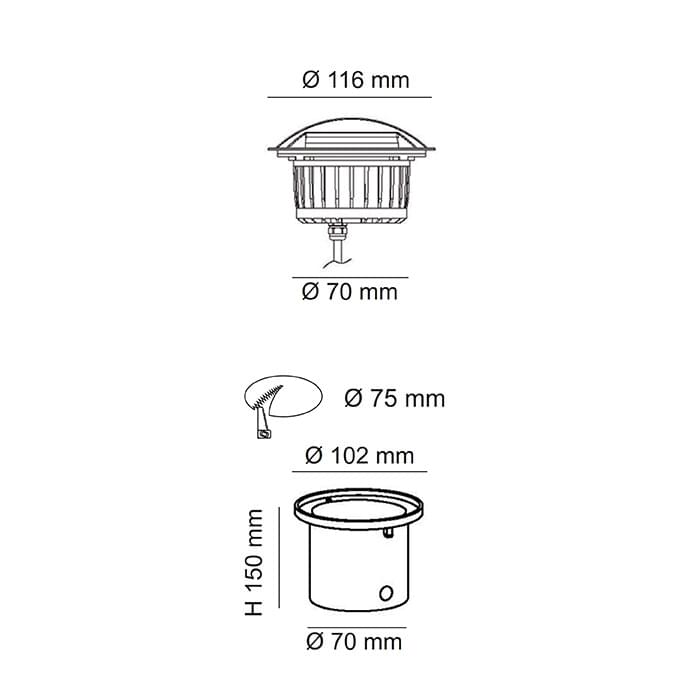

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Mass Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9351WW Input Voltage240 Power4 Lumens40 CCT3000 CRI80 Mass1.21 Diameter116 Dim116(W) x 150(H) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
    Model No.S9351CW Input Voltage240 Power4 Lumens40 CCT4000 CRI80 Mass1.21 Diameter116 Dim116(W) x 150(H) Body ColourSTAINLESS STEEL Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
