• EMERGENCY

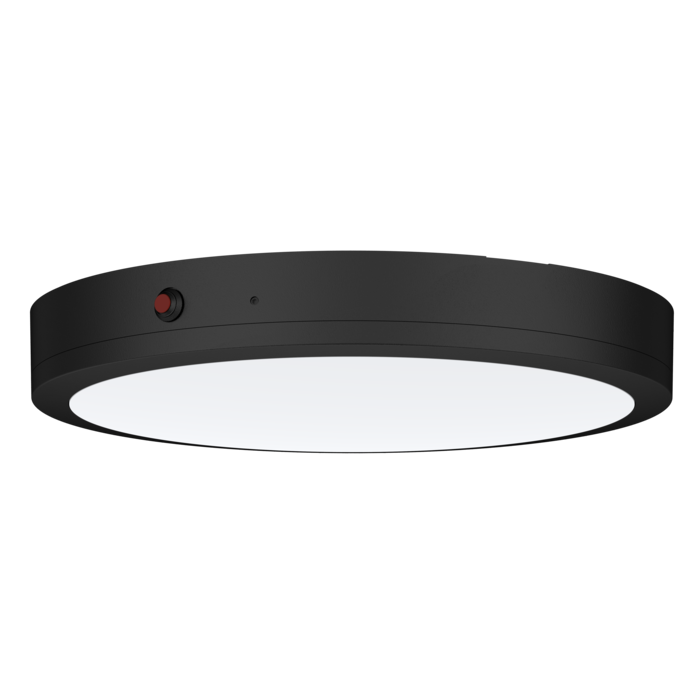

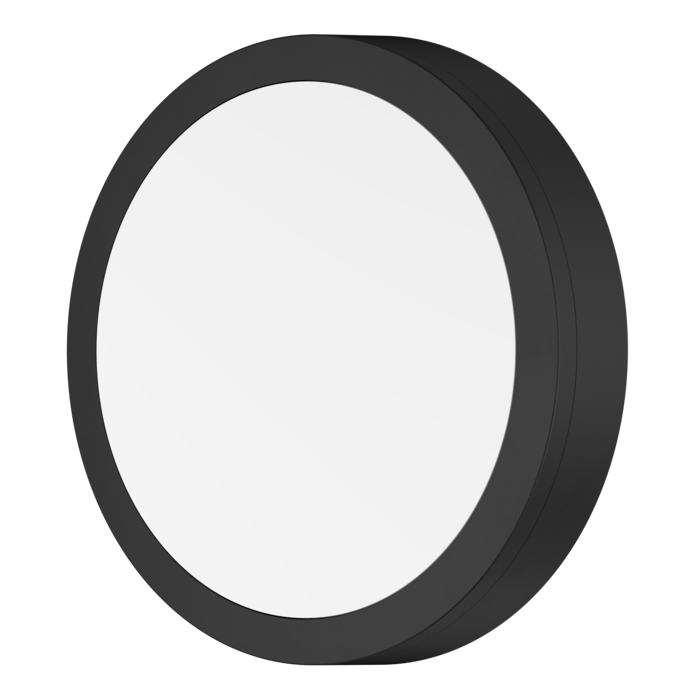

COOPER III SE7192TC/EM - 18W

MAINTAINED OR NON-MAINTAINED, decorative, vandal resistant 18 watt round profile, LED wall or ceiling mount luminaire, IK10 with selectable CCT, IP65

Application

A decorative architectural solution for residential & commercial interior or exterior spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 5700K

  • Stylish black finish

  • Integral non-dimmable control gear, 18 watt

  • Robust PC body and diffuser profile

  • High efficiency LED optics

  • Compliant to AS/NZS 2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology. Emergency spacing classification D20@C0

Performance

  • Dimmable - NO

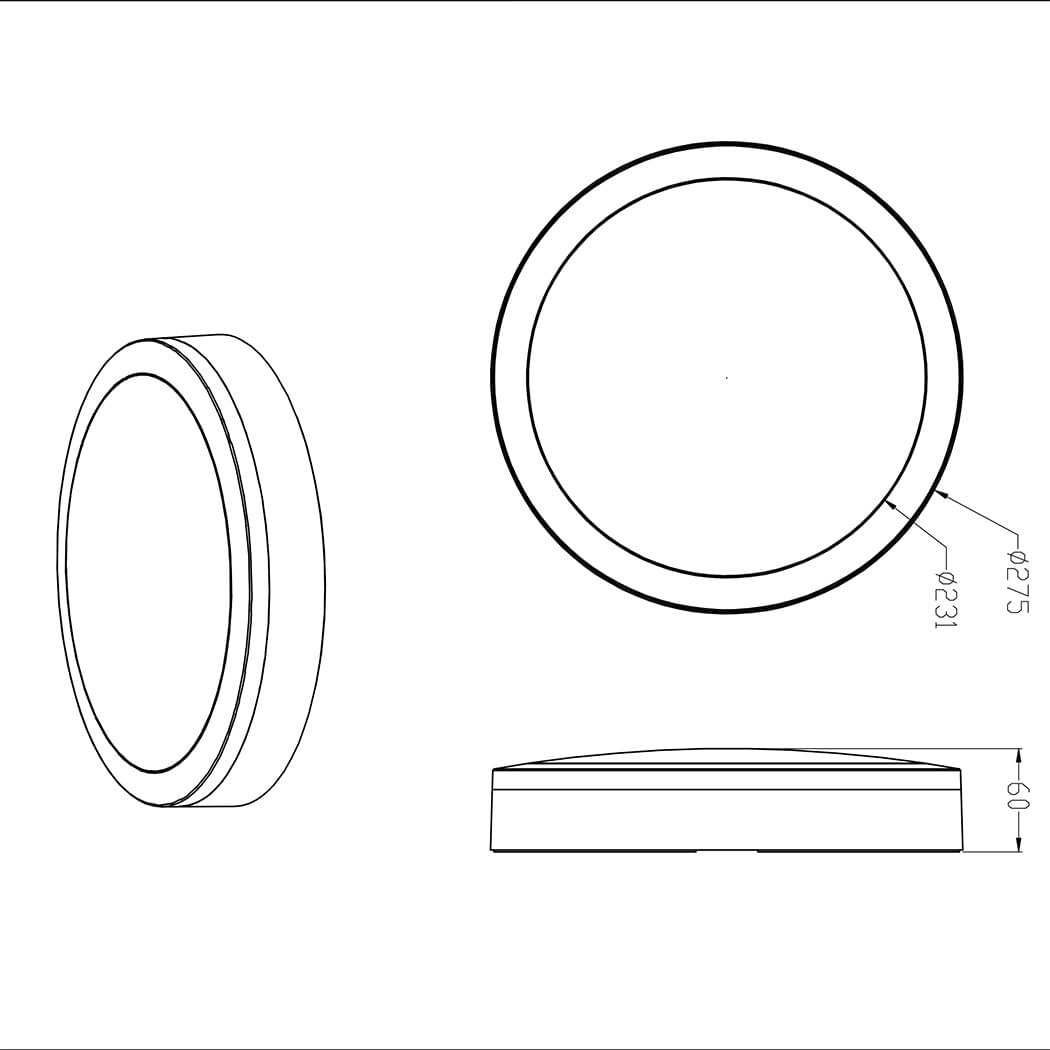

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power CCT Lumens Body Colour Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SE7192TC/BK/EM Input Voltage240 Power18 CCT3000/4000/5700 Lumens1600/1800/1750 Body ColourBlack Diameter275 Dim60(H) Add to Enquiry Add Remove Remove

    Important notes: (1) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (2) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (3) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
