• DOWNLIGHTS

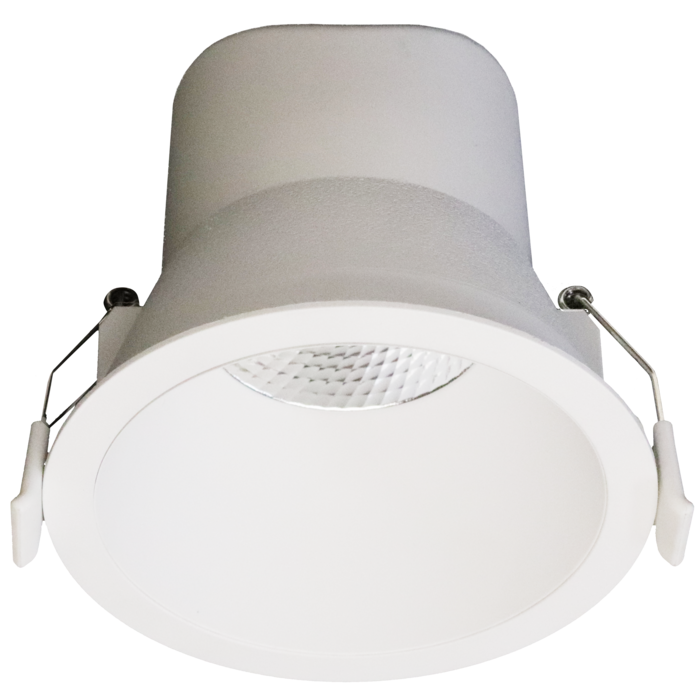

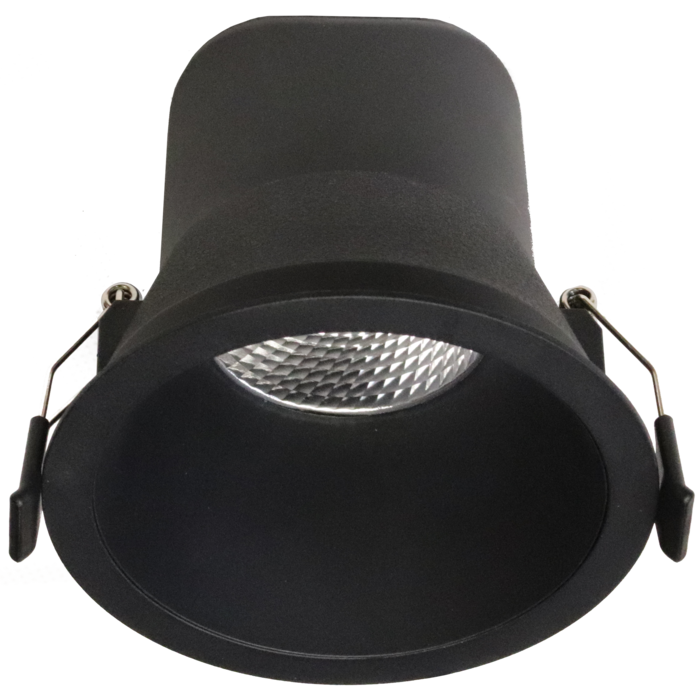

COOLUM PLUS S9068/TC - 9W

9 watt dimmable LED downlight, CRI90, UGR<19, with selectable CCT

Application

Perfect for residential or commercial applications

Design Specifications

  • 9 watt integral flickerCONTROLLED dimmable driver, complete with flex & plug

  • High efficiency LED optics, multi-faceted optical system

  • Selectable CCT 3000K / 4000K / 5700K, CRI>90, 60° beam distribution, UGR<19

  • Polyamide trim and body in white or black

  • IC - 4 rated, double insulated UGR < 19

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE

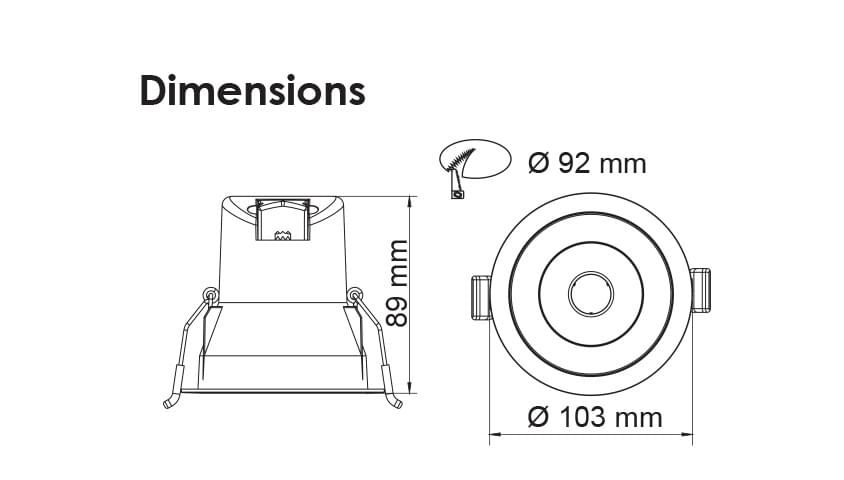

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9068TC/WH Input Voltage240 Power9 Lumens700/780/750 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Cut Out92 Diameter103 Dim89(H) Add to Enquiry Add Remove Remove
    Model No.S9068TC/BK Input Voltage240 Power9 Lumens570/630/610 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Cut Out92 Diameter103 Dim89(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
