• DOWNLIGHTS

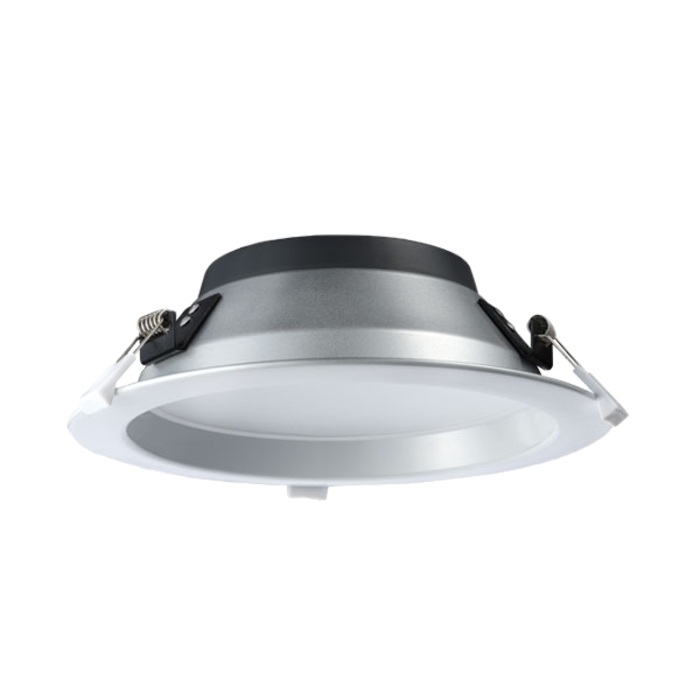

PREMIER S9074TC / HP - 10W

LED downlight with selectable CCT, IP64

Application

Ideal for any residential or commercial interior spaces looking for an economical lighting choice

Design Specifications

  • Premium aluminium body, IC-4 rated

  • Selectable CCT 3000K / 4000K / 5700K

  • Stylish white trim

  • Recessed opal polycarbonate diffuser

  • High efficiency LED optics CRI>90

  • Trailing edge dimmable driver, with flickerCONTROL technology and flex and plug

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

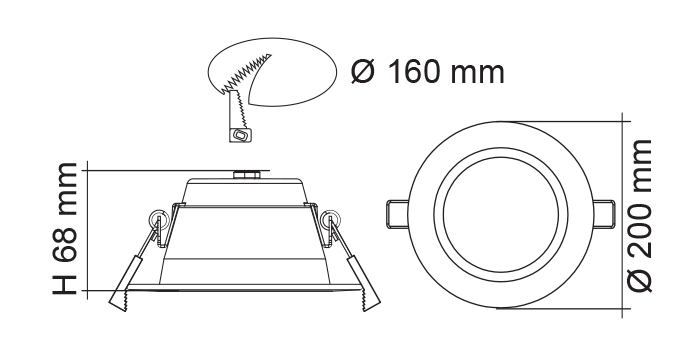

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9074TC/WH/HP Input Voltage240 Power10 Lumens1000/1100/1000 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI90 Body ColourWHITE Cut Out160 Diameter200 Dim68(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
