• DOWNLIGHTS

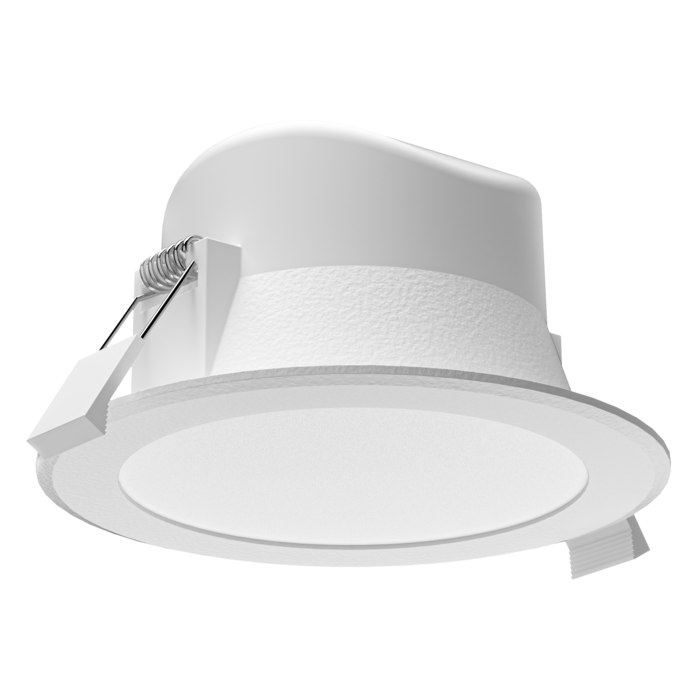

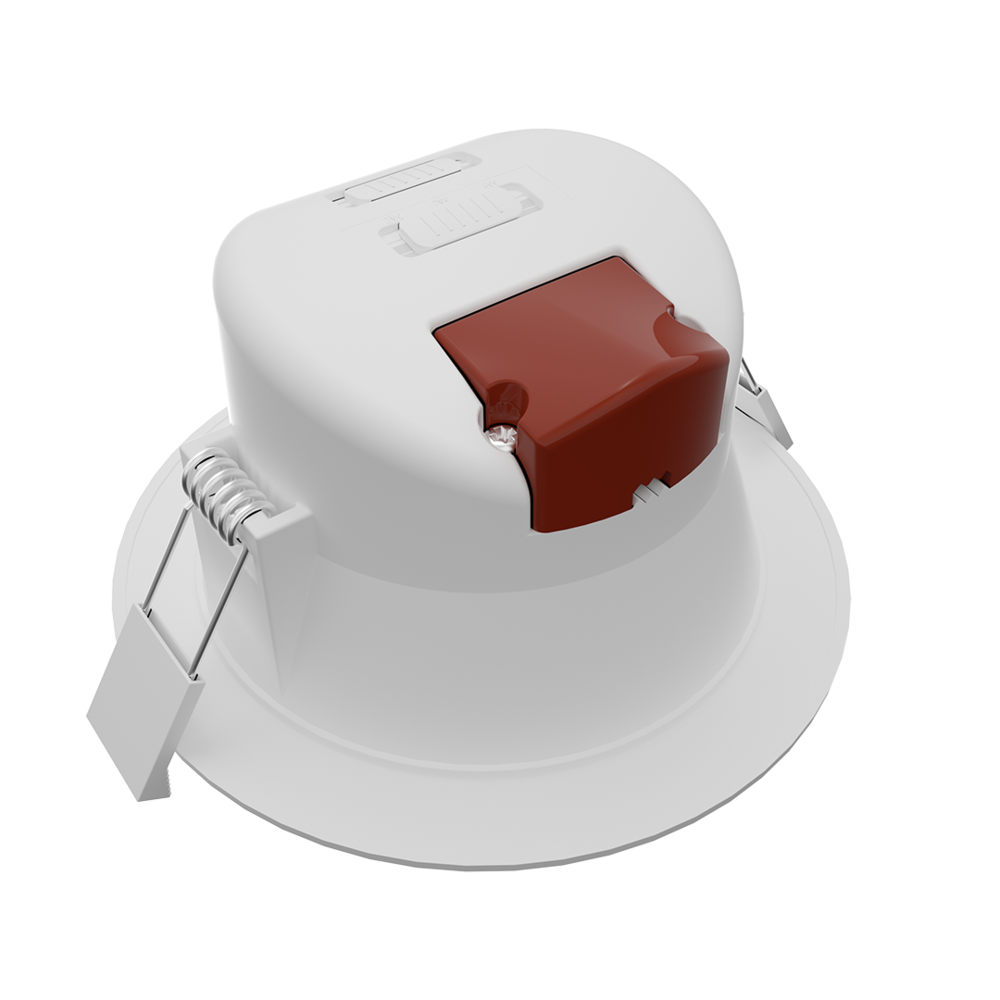

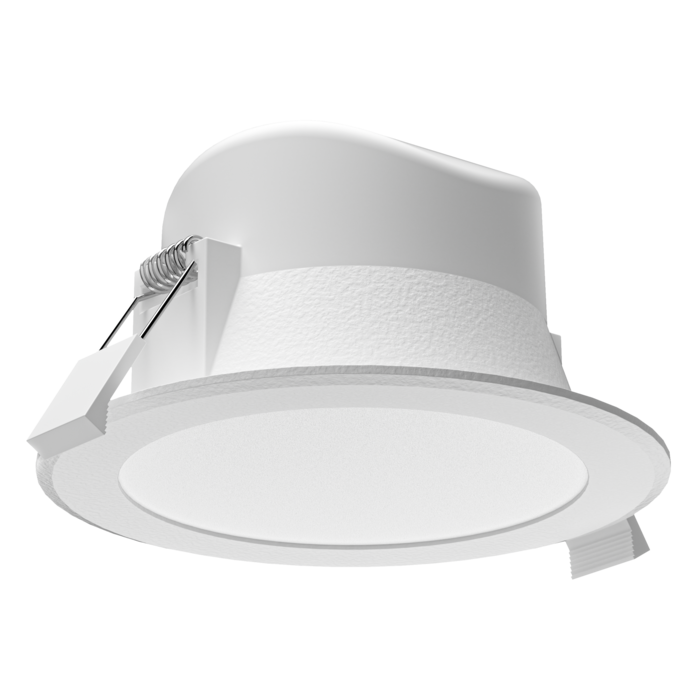

WAVE S9065TC/MP/S - 9W

Recessed 9 watt multi-power LED downlight, with microwave sensor control and selectable CCT

Application

Ideal for any residential or strata common area interior spaces

Design Specifications

  • Selectable power, CCT 3000K/4000K/5700K and integral microwave sensor

  • Poly covered aluminium body

  • Opal polycarbonate diffuser, IP44

  • Integral multi-power (3/6/9 watt) flickerCONTROLLED non-dimmable LED driver, with flex and plug

  • Microwave sensor adjustments - 5sec/90sec/5min/30min, daylight threshold 30 lux , detection distances Ø 8M @ 2.4hm, manual override function

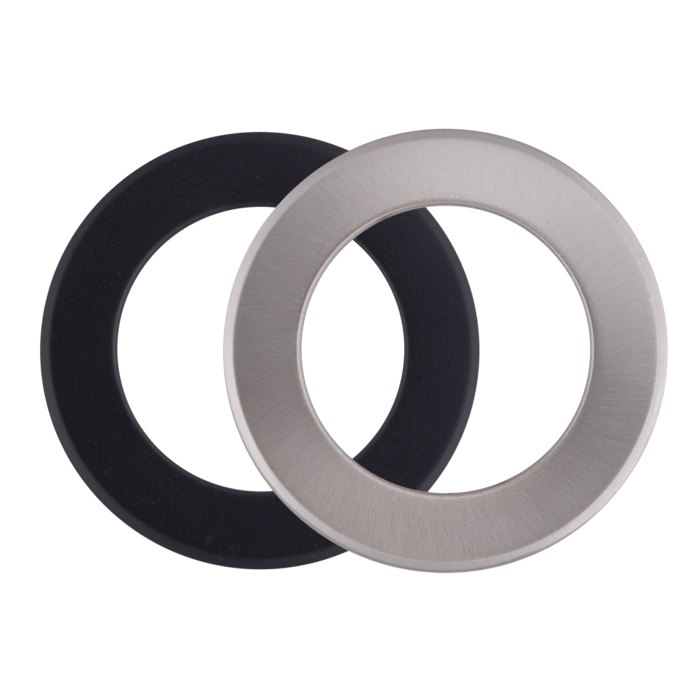

  • Deco ring options - Satin Nickel (S9065SN/RING), Black (S9065BK/RING)
    IC - 4 rated, double insulated

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Satin Nickel (S9065SN/RING)
    Colour 2 Black (S9065BK/RING)
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9065TC/MP/S Input Voltage240 Power9 Lumens700/850/800 CCT3000/4000/5700 Beam Angle120 Dimmable NO CRI90 Body ColourWHITE Cut Out92 Diameter113 Dim59(H) Add to Enquiry Add Remove Remove
    Model No.S9065SN/RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourSATIN NICKEL Cut Out Diameter Dim Add to Enquiry Add Remove Remove
    Model No.S9065BK/RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out Diameter Dim Add to Enquiry Add Remove Remove

    Note: Lumens (lm) displayed are at full power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
