• DOWNLIGHTS

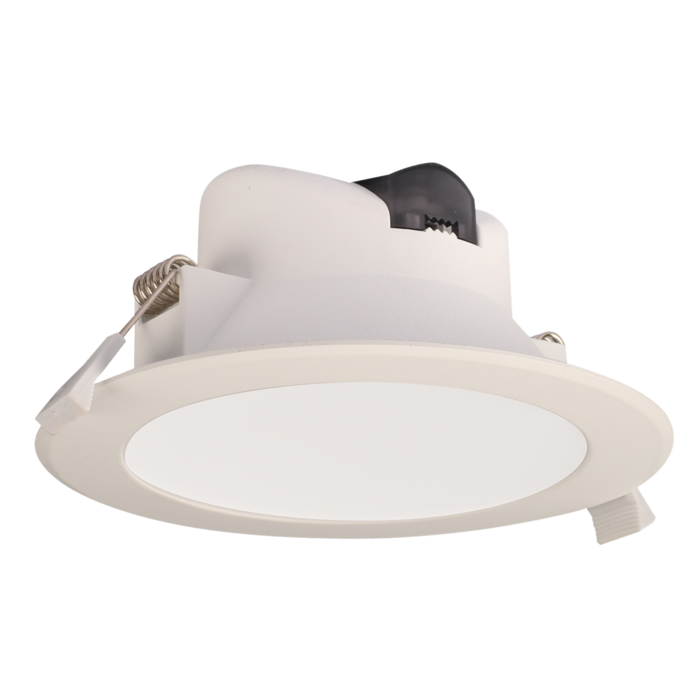

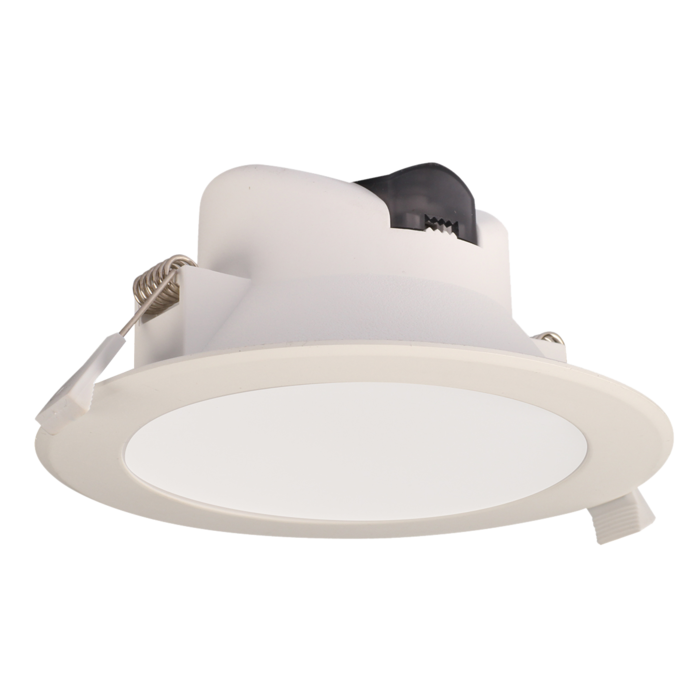

WAVE S9066TC - 12W

Dimmable IP44 LED downlight with selectable CCT

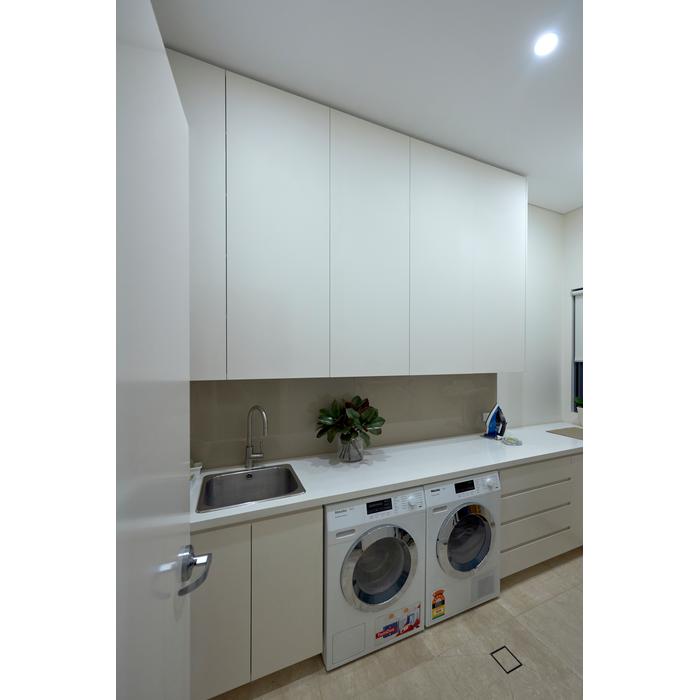

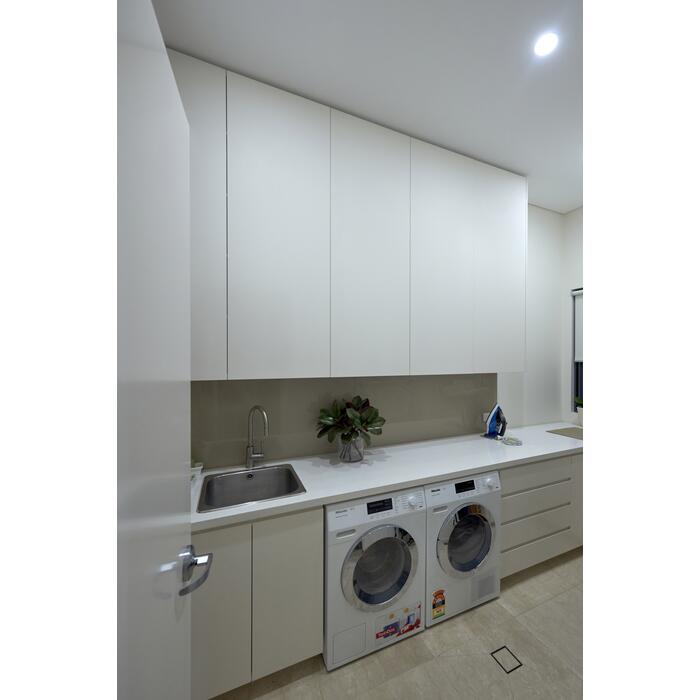

Application

Ideal for any residential interior space

Design Specifications

  • Selectable CCT 3000K/4000K/5700K

  • Poly covered aluminium body, IC - 4 rated, double insulated

  • Opal polycarbonate diffuser

  • Integral, trailing edge dimmable LED driver, with flex and plug

  • High efficiency SMD LED chips

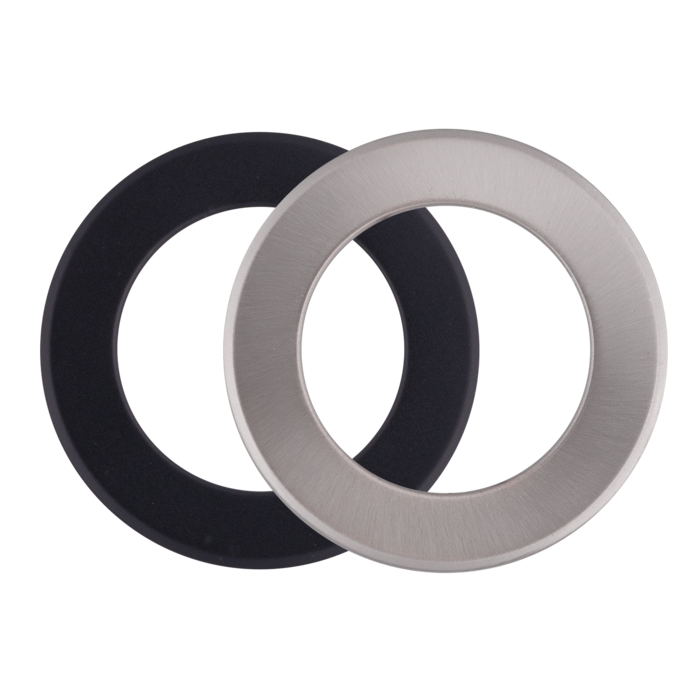

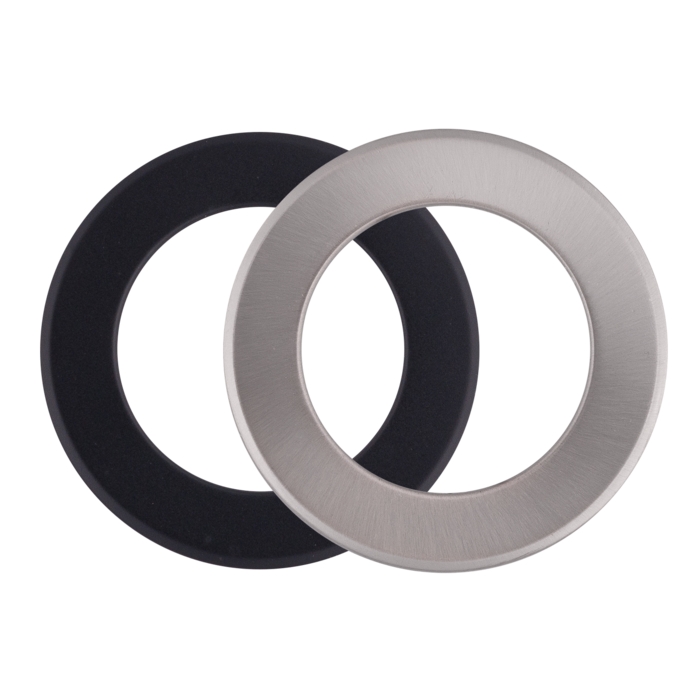

  • Deco ring options: Satin Nickel (S9066SN/RING), Black (S9066BK/RING)

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

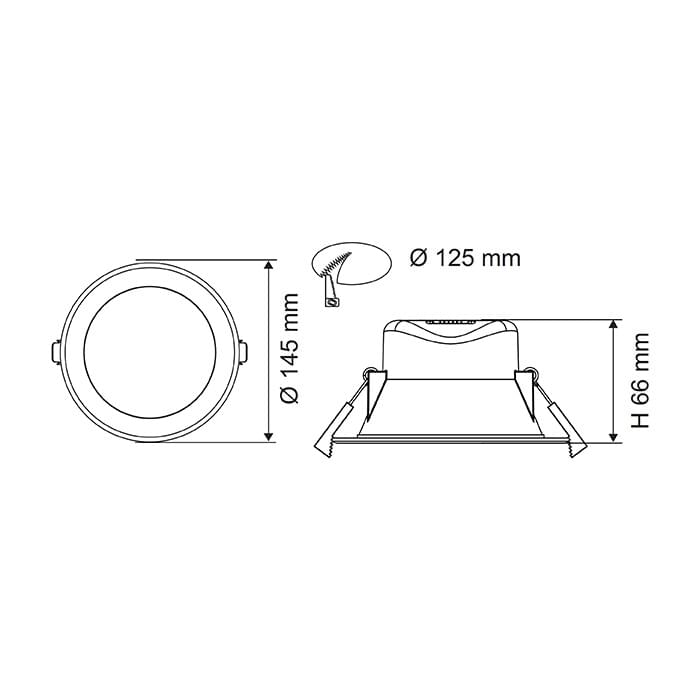

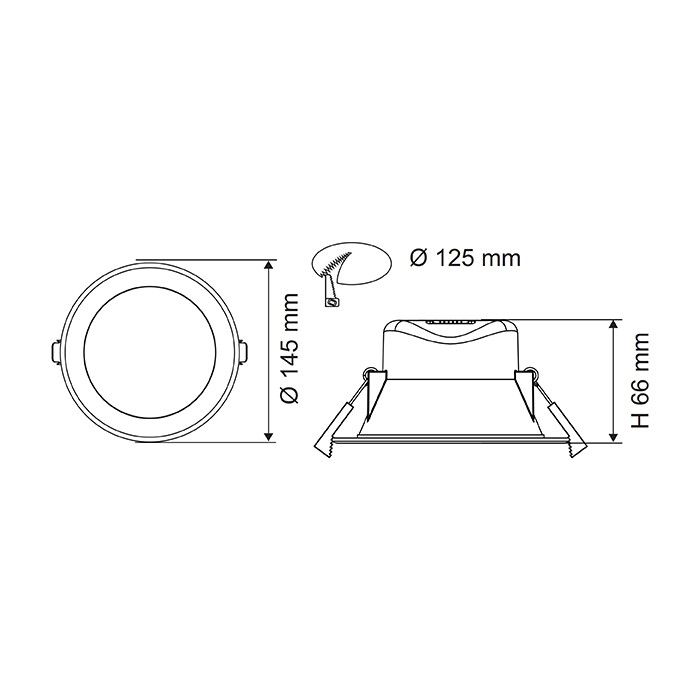

  • Dimensions - Wiring Diagrams
  • Design Options

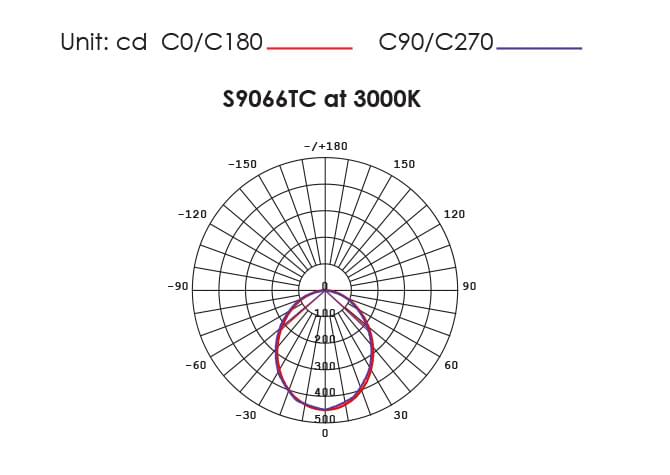

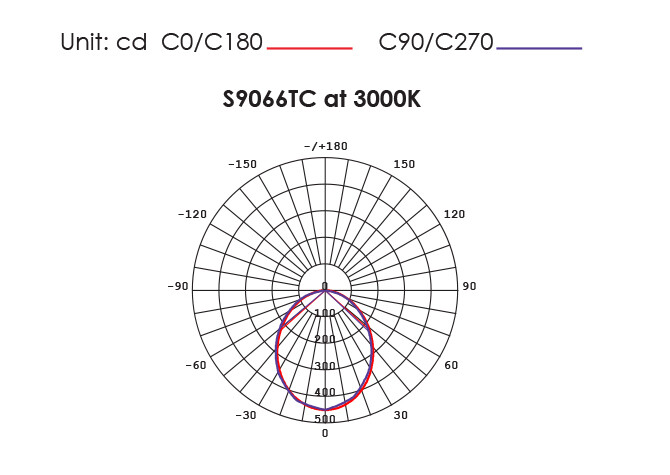

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9066TC WH Input Voltage240 Power12 Lumens1300/1450/1350 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Cut Out125 Diameter145 Dim66(H) IPARTYES REESYES VEETYES Add to Enquiry Add Remove Remove
    Model No.S9066SN/RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourSATIN NICKEL Cut Out Diameter Dim IPART REES VEET Add to Enquiry Add Remove Remove
    Model No.S9066BK/RING Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body ColourBLACK Cut Out Diameter Dim IPART REES VEET Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
