• EMERGENCY

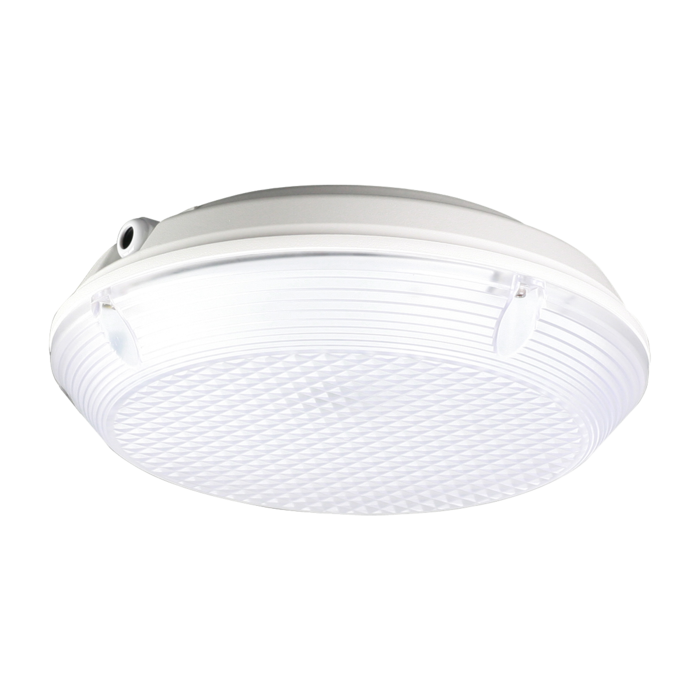

MEMPHIS ROUND EMERGENCY SL9719RD/EM - 22W

MAINTAINED OR NON-MAINTAINED, vandal resistant, LED round profile, wall or ceiling mount luminaire, IK10, IP65

Application

A robust solution for industrial and commercial spaces

Design Specifications

  • Die-cast aluminium body, frosted polycarbonate diffuser, silicone gasket, stainless steel allen screws

  • Stainless steel allen screws

  • High efficiency LED optics

  • Integral non-dimmable LED driver

  • Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology

  • Optional (non-dim) corridorSTANDBY function available, Emergency spacing - D32@C0

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - TRAILING EDGE, 1-10V DALI / DSI
  • COOL WHITE4000K

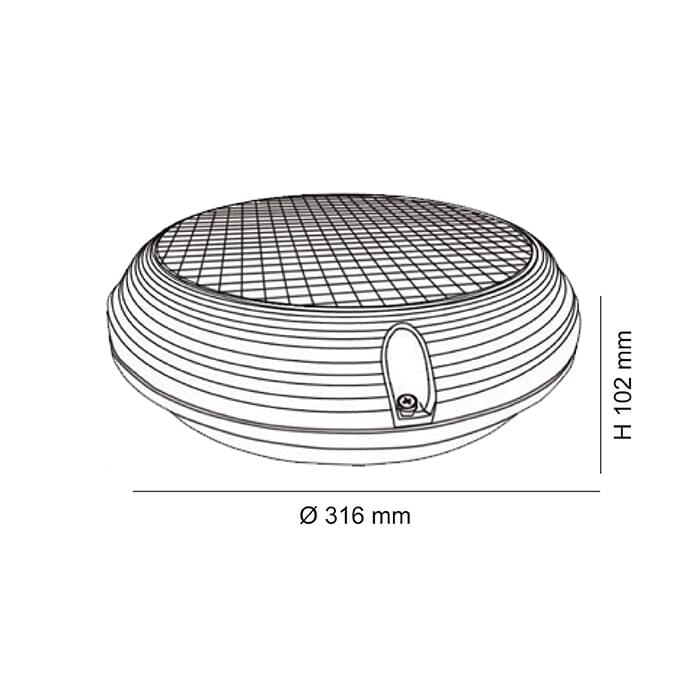

  • Dimensions - Wiring Diagrams
  • Design Options

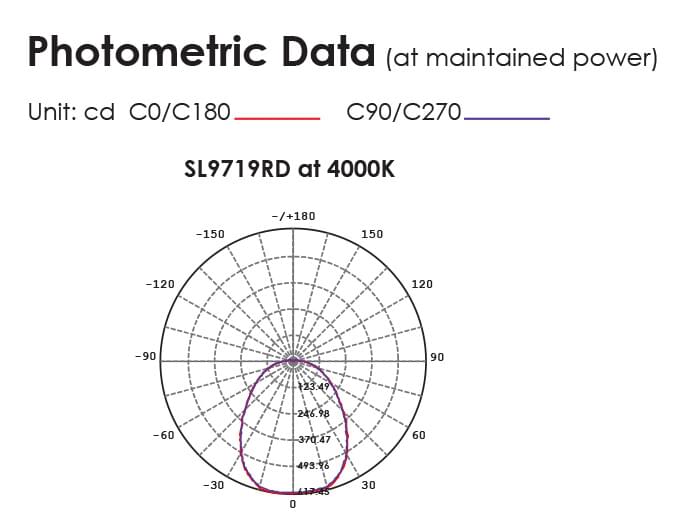

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Body Colour Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9719RD/EM Input Voltage240 Power22 Lumens1700 CCT4000 CRI80 Body ColourWHITE Diameter316 Dim102(H) Add to Enquiry Add Remove Remove

    Important notes: (1) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (2) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (3) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
