• EMERGENCY

S-FIRE R MKII SEL10SF4D63 - 1.6W

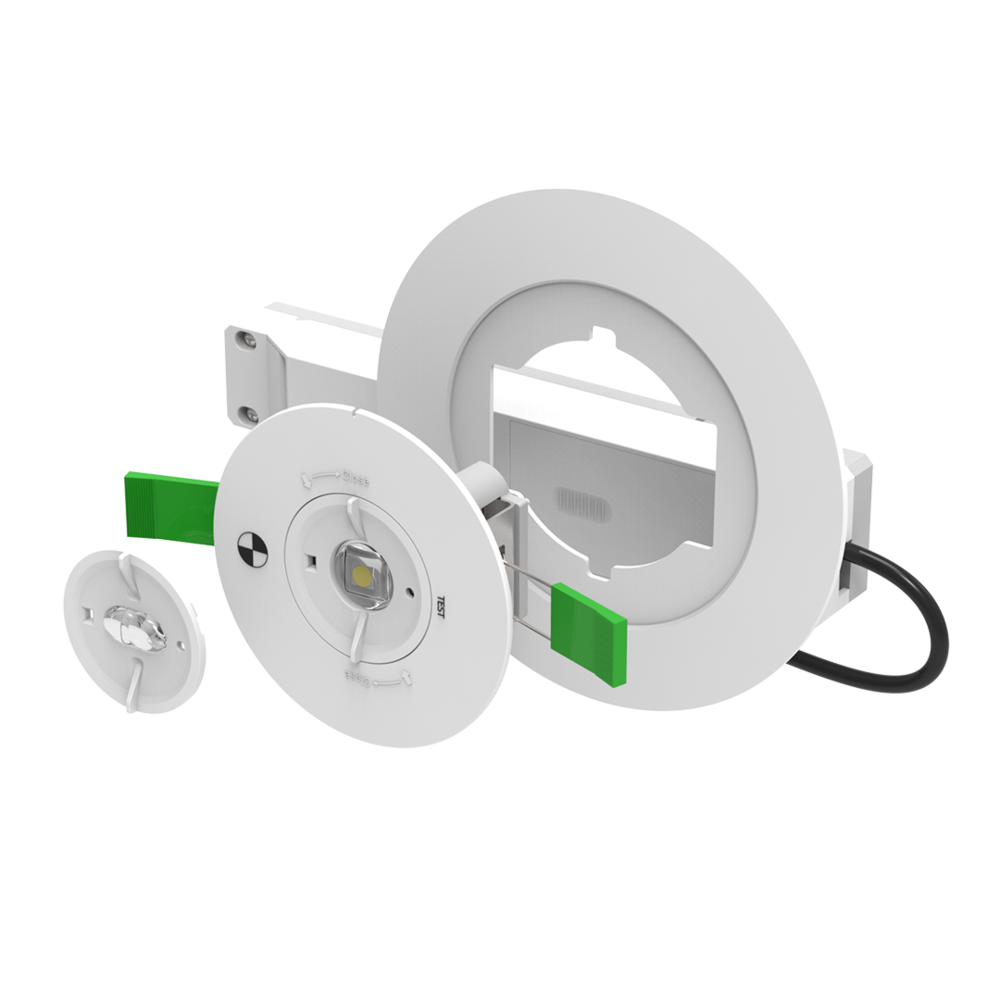

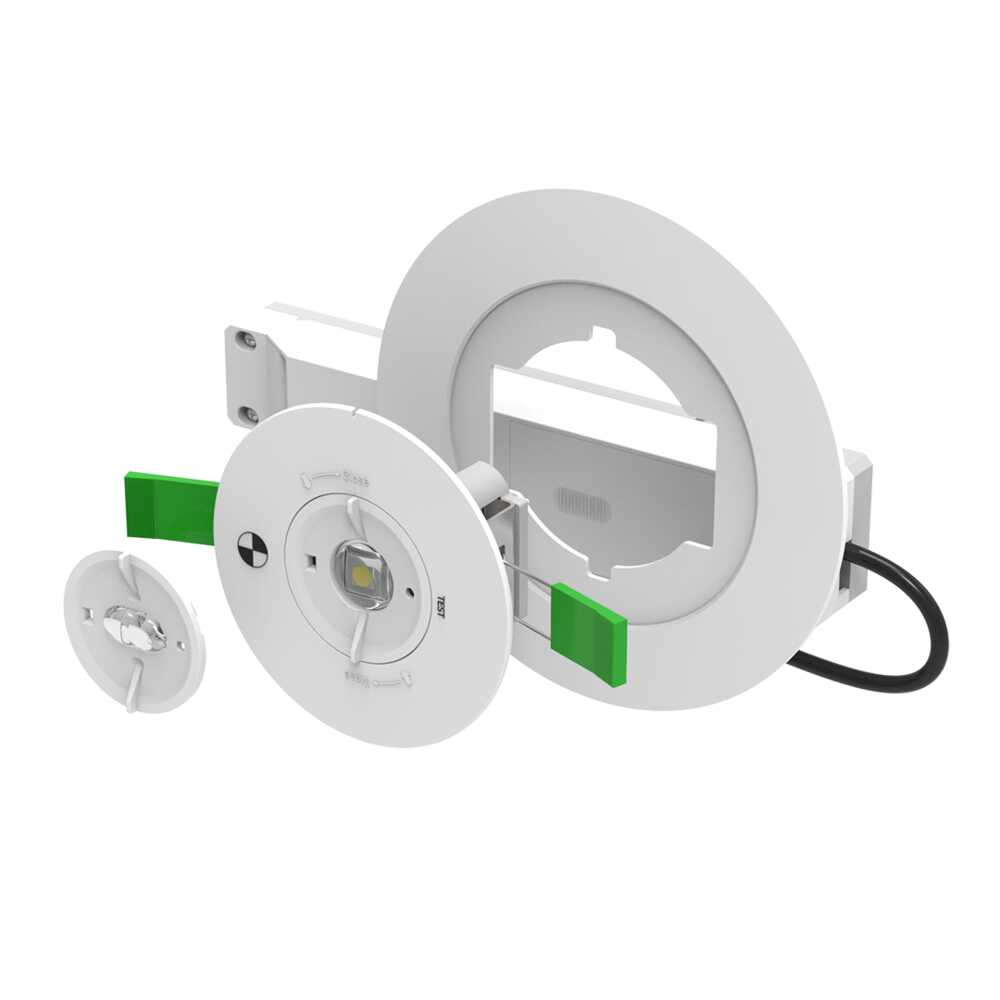

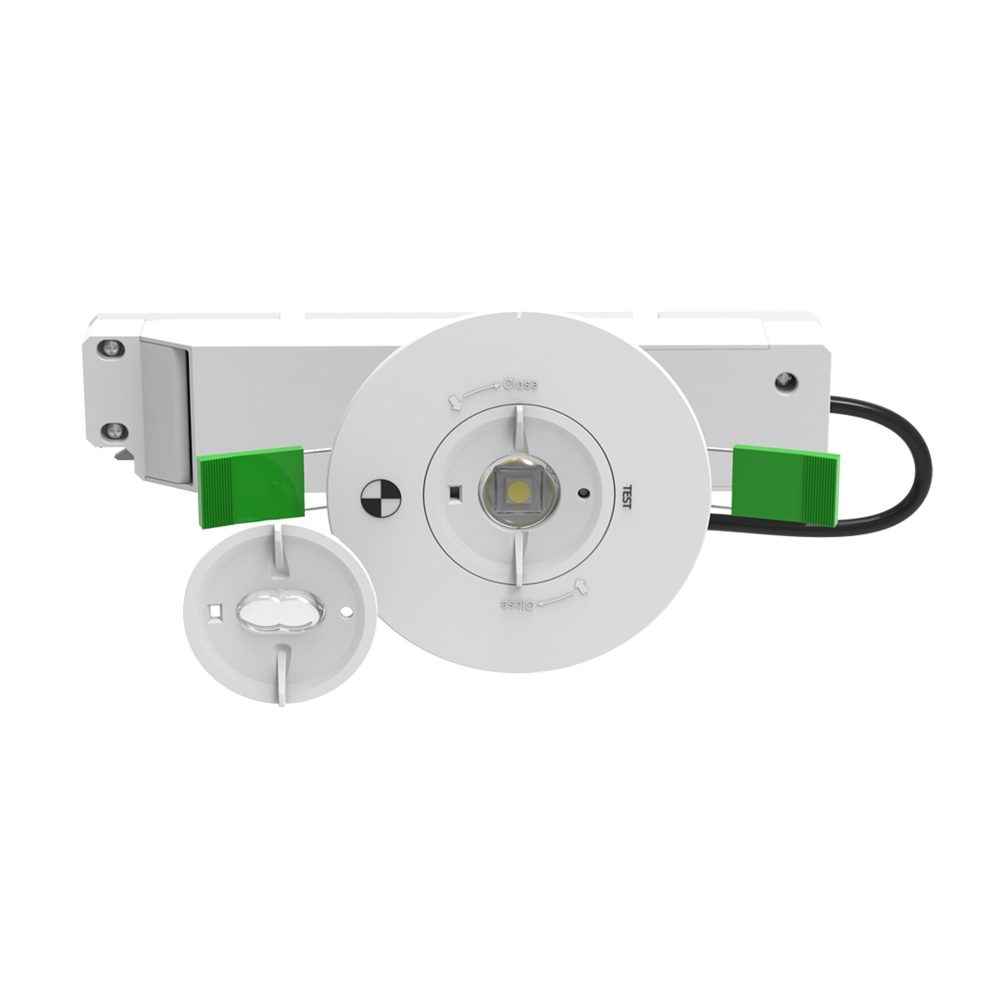

NON-MAINTAINED - LED 1.6 watt emergency luminaire with Corridor Lens and Adaptor Ring accessories

Application

A perfect choice for apartments or commercial spaces


Design Specifications

  • Compliant to AS/NZS2293, with an impressive D63 emergency lighting classification, non-maintained. Corridor lens accessory included: D63@C0, D6.3@C90

  • Polycarbonate body profile, double insulation, standard trim Ø95mm utilising a Ø70mm cut-out and the kit includes a Ø145mm adaptor ring ( Ø130mm cut-out) for retrofit applications.

  • 1.6 watt system, LED charge status display and test switch, with remote flickerCONTROLLED control gear and high performance integral Lithium battery

  • 1.2 m flex & 3 pin plug fitted, IC-4 rated (luminaire head only), trim colour white

  • Guaranteed 90 minutes emergency function.

Performance

  • Dimmable - NO

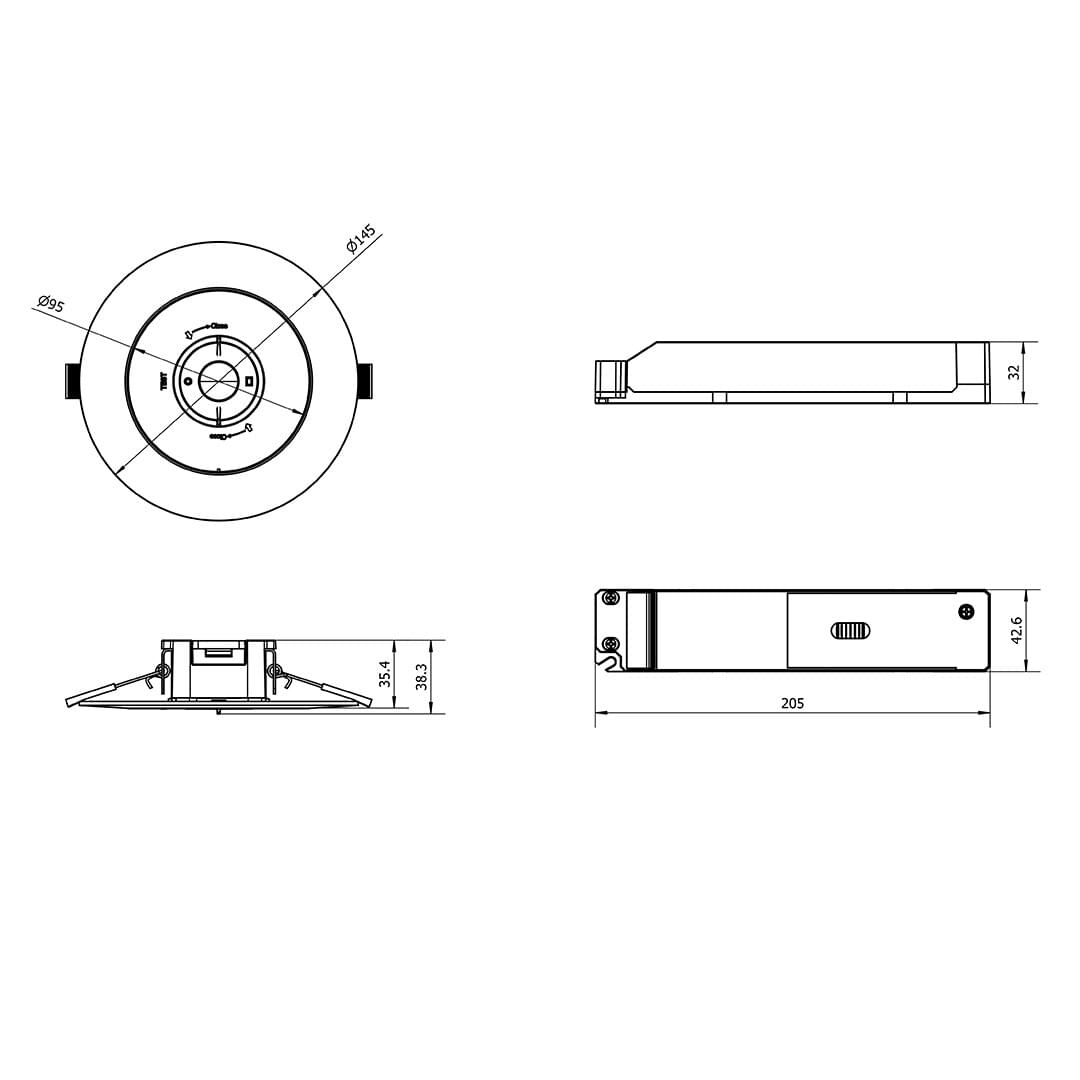

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Dimmable Body Colour Diameter Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SEL10SF4D63 Input Voltage240 Power1.6 Dimmable NO Body ColourWHITE Diameter95 Dim95(W) x 31(H) Mass0.4 Add to Enquiry Add Remove Remove

    Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
