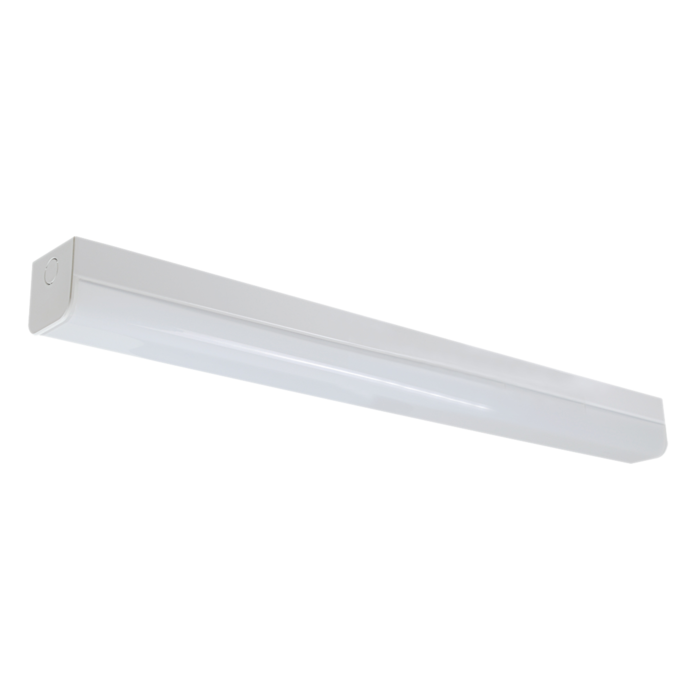

ECOLINE EMERGENCY SL9732TC/DP3EM - 10/50W

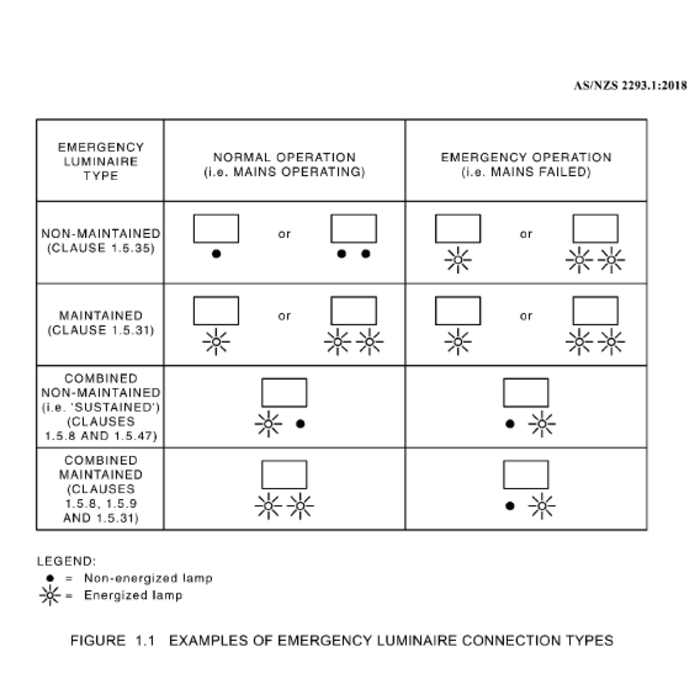

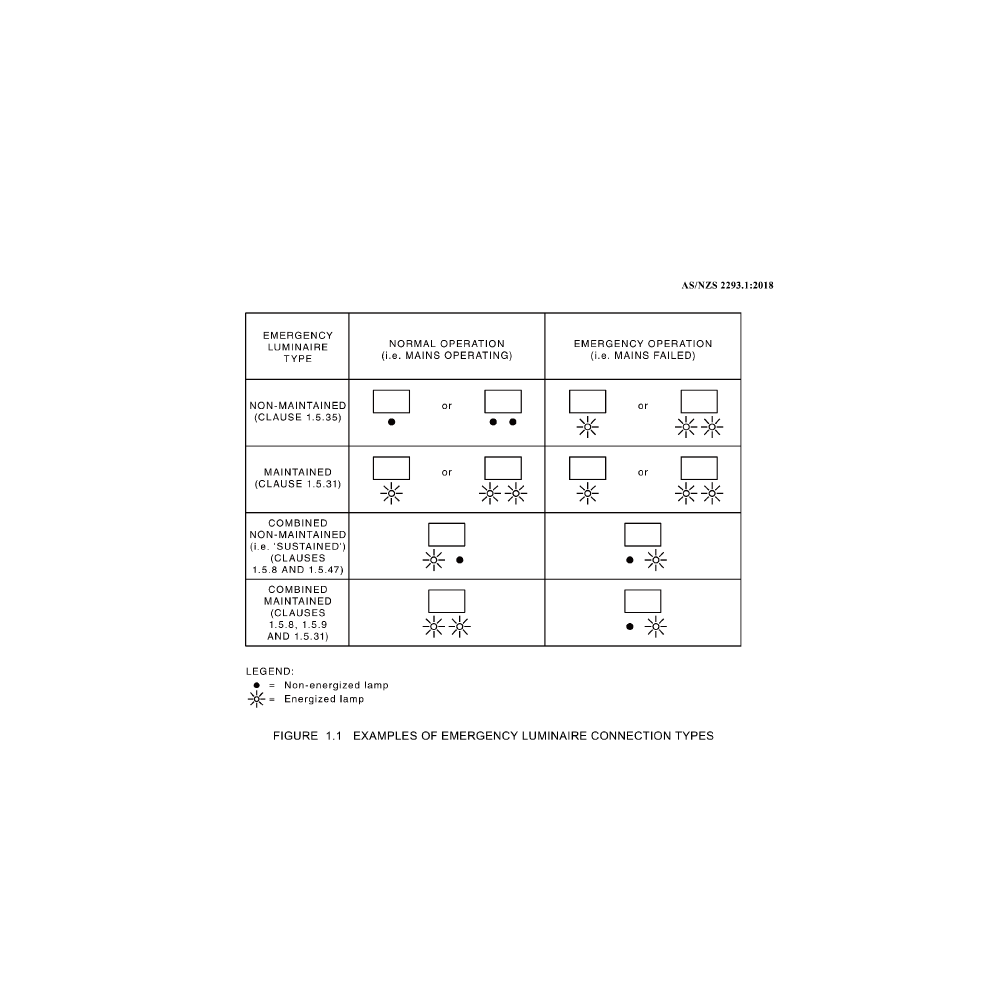

MAINTAINED OR NON-MAINTAINED - Compliant to AS/NZS 2293, narrow body profile

Application

Perfect for interior commercial emergency lighting installations

Design Specifications

  • Narrow steel body (65mm) body profile, white powder coat finish

  • LiFePO4 battery technology for long life

  • Designed for both maintained and non-maintained systems

  • Selectable CCT 3000K / 4000K / 5700K

  • Selectable maintained power

  • LED charge status display and test switch, guaranteed 90 minutes emergency function Note: 20EM = D50C0, D32@C90, 40EM = D50@C0, D32@C90 emergency classification

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Dimmable CRI Beam Angle Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

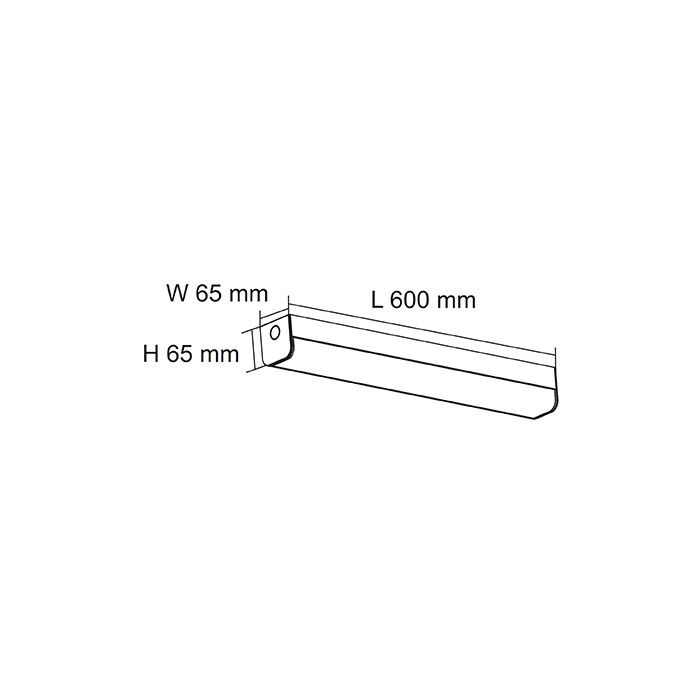

    Model No.SL9732/20TC/DP3EM Input Voltage240 Multiple Wattage10/20 Lumens2370/2600/2460 CCT3000/4000/5700 Dimmable NO CRI80 Beam Angle120 Body ColourWHITE Dim600(L) x 65(W) x 65(H) Mass1 Add to Enquiry Add Remove Remove

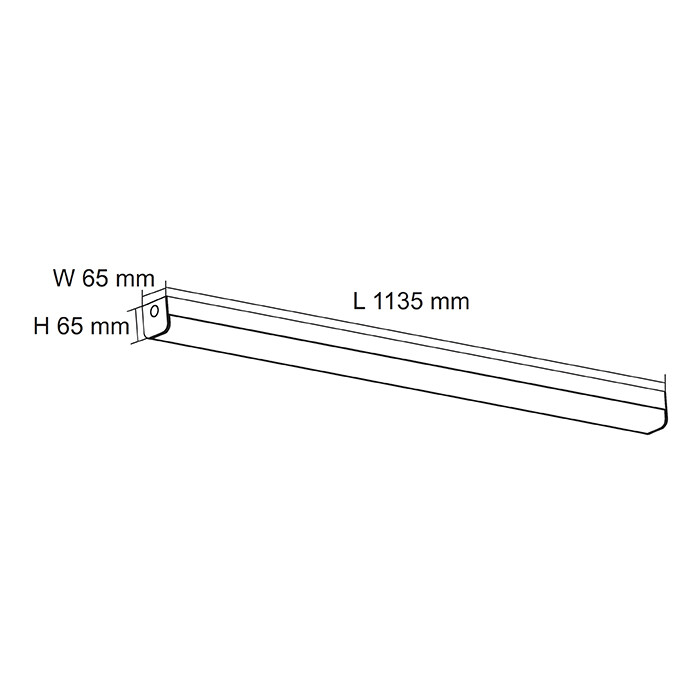

    Model No.SL9732/40TC/DP3EM Input Voltage240 Multiple Wattage20/40 Lumens4600/5100/4860 CCT3000/4000/5700 Dimmable NO CRI80 Beam Angle120 Body ColourWHITE Dim1135(L) x 65(W) x 65(H) Mass1.33 Add to Enquiry Add Remove Remove
    Model No.SL9732/50TC/DP3EM Input Voltage240 Multiple Wattage25/50 Lumens6100/6700/6300 CCT3000/4000/5700 Dimmable NO CRI80 Beam Angle120 Body ColourWHITE Dim1455(L) x 65(W) x 65(H) Mass1.72 Add to Enquiry Add Remove Remove

    Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty (5) Lumens (lm) displayed are at full maintained power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
