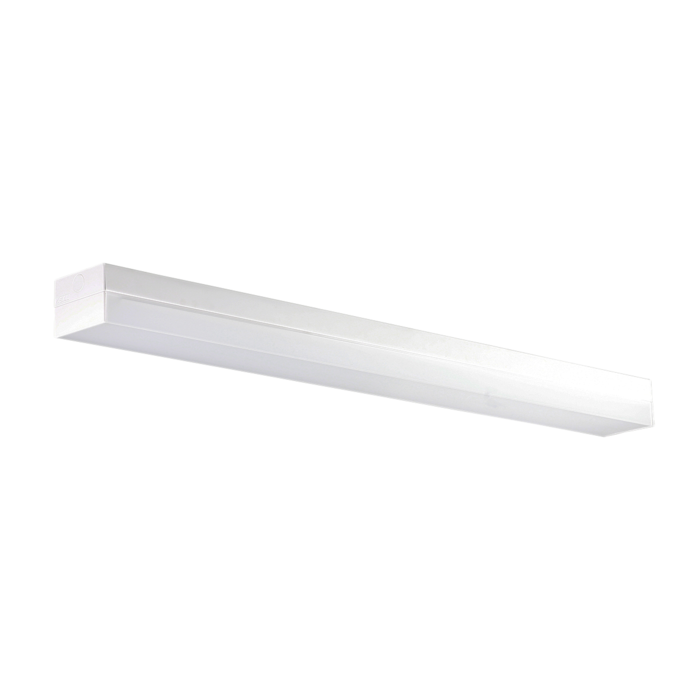

LEDLINE EMERGENCY SLD2000/4000 - 20/40W

MAINTAINED OR NON-MAINTAINED - Linear diffuse batten, compliant to AS/NZS 2293 emergency

Application

Wide body profile, perfect for end to end commercial installations

Design Specifications

  • Pressed steel body profile, powder coat white finish

  • CCT 4000K

  • Designed to enable end to end installation

  • LiFePO4 battery included

  • Designed to enable end to end installation and for both maintained and non-maintained systems

  • LED charge status display and test switch, Guaranteed 90 minutes emergency function, Emergency classification SLD2000CW/EM D40@C0 & C63@C90, SLD4000CW/EM D40@C0 & C80@C90,

  • COOL WHITE4000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage CCT CRI Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

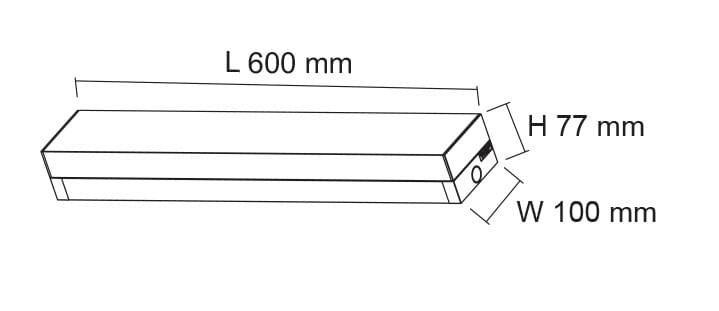

    Model No.SLD2000CW/EM Input Voltage240 CCT4000 CRI80 Dim600(L) x 100(W) x 77(H) Add to Enquiry Add Remove Remove

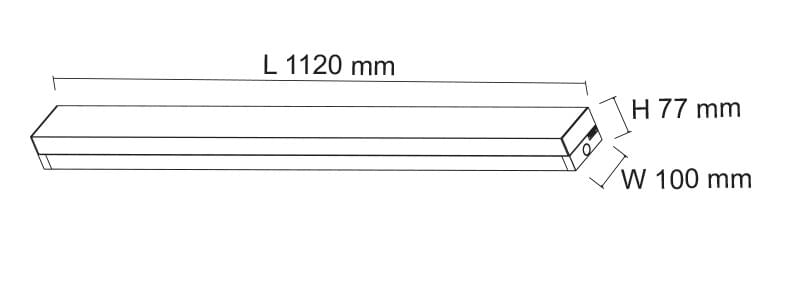

    Model No.SLD4000CW/EM Input Voltage240 CCT4000 CRI80 Dim1120(L) x 100(W) x 77(H) Add to Enquiry Add Remove Remove

    Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
