• HIGHBAYS

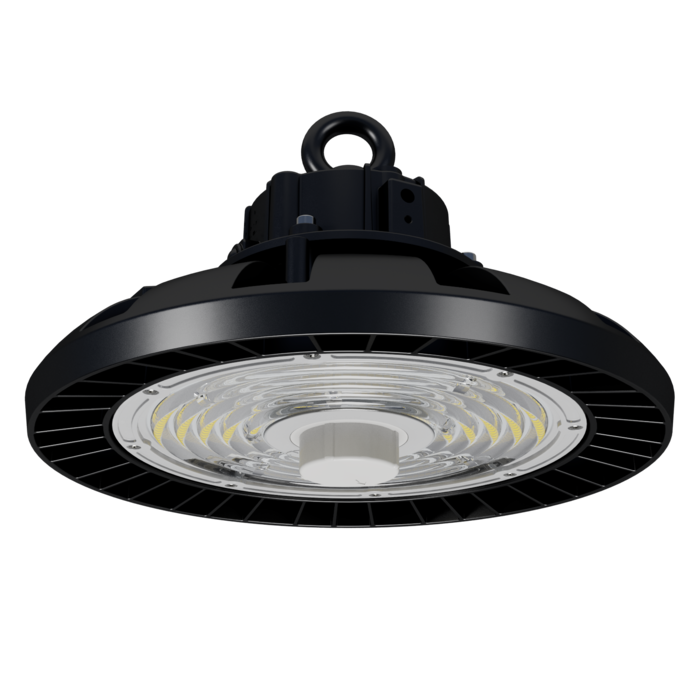

UFO SHB23MP200TC - 100/150/200

Dimmable, IP65 LED UFO highbay with selectable CCT and power.

Application

Super low profile dimmable LED highbay, ideal for commercial or industrial warehouse environments

Design Specifications

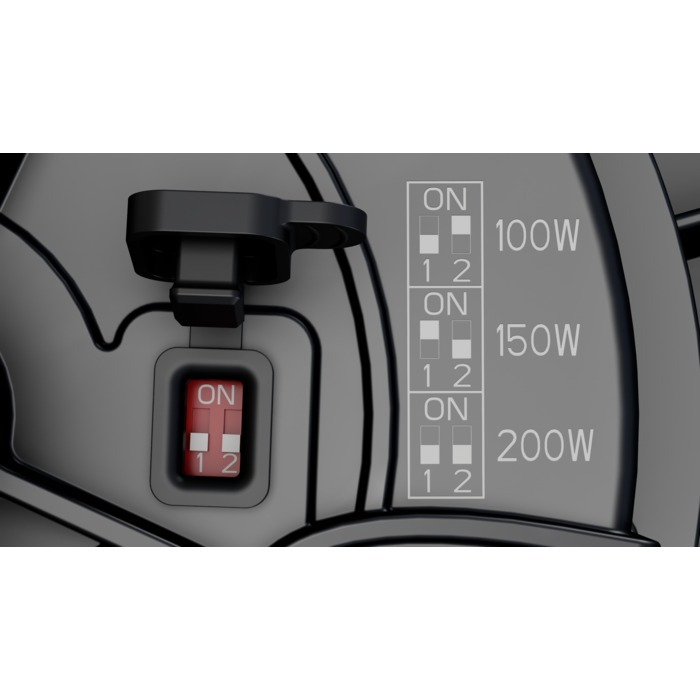

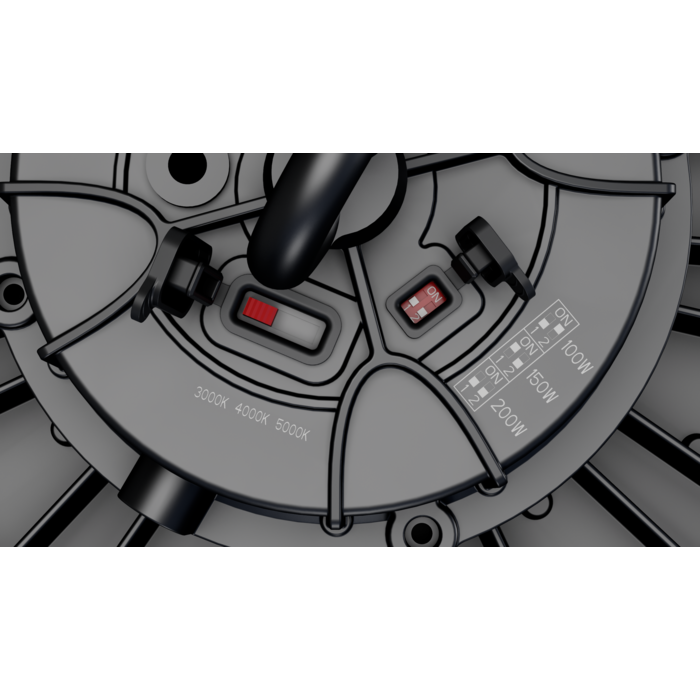

  • Integral selectable power 100 / 150 or 200 watts

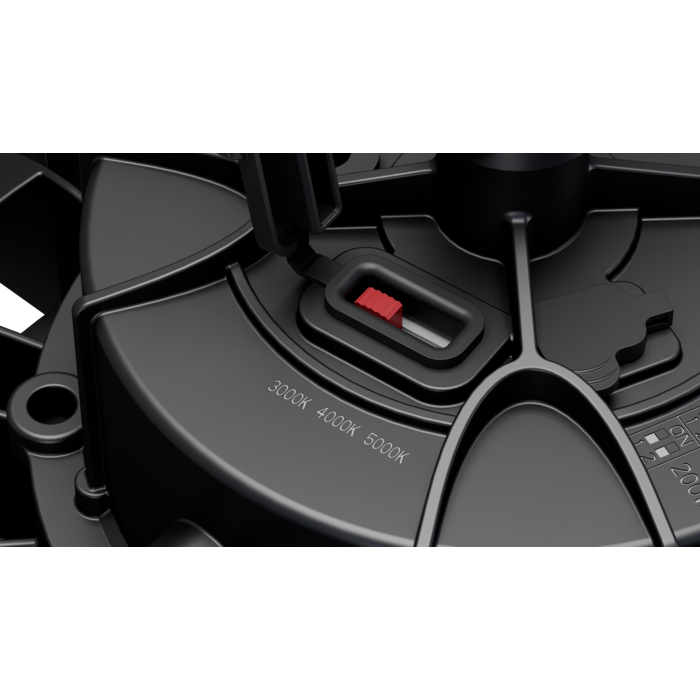

  • Integral selectable CCT 3000, 4000 or 5000K

  • Robust, low profile die-cast aluminium IP65/IK08 body profile.

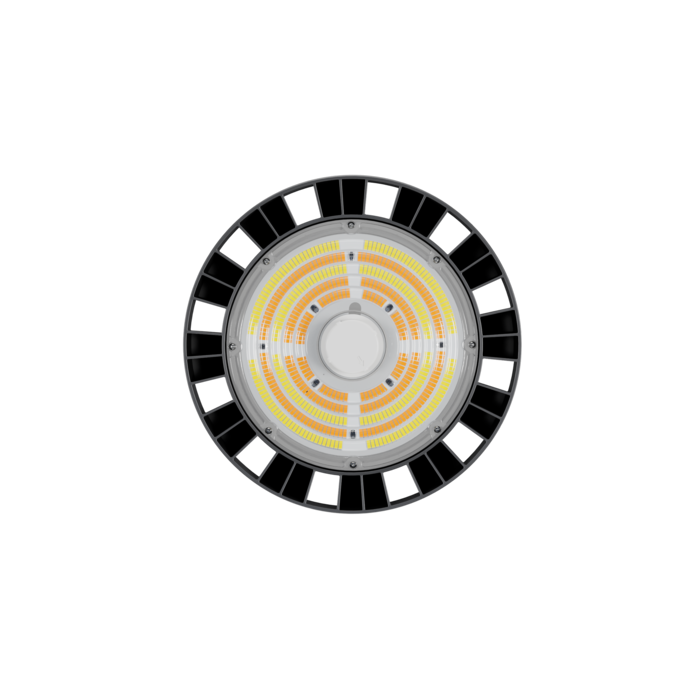

  • High efficiency LED optics, with an impressive > 140lm/W optical performance at 150W/4000K, CRI > 80, 90 degree beam distribution, polycarbonate lens

  • Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI (1) addressable signal converter, optional plug and play corridorSTANDBY sensor

  • Power/lumen settings at;
    3000K : 100W/13000lm, 150W/18000lm, 200W/22000lm,
    4000K     : 100W/14500lm, 150W/21000lm, 200W/26000lm,
    5000K : 100W/14000lm, 150W/19500lm, 200W/24000lm.


Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter

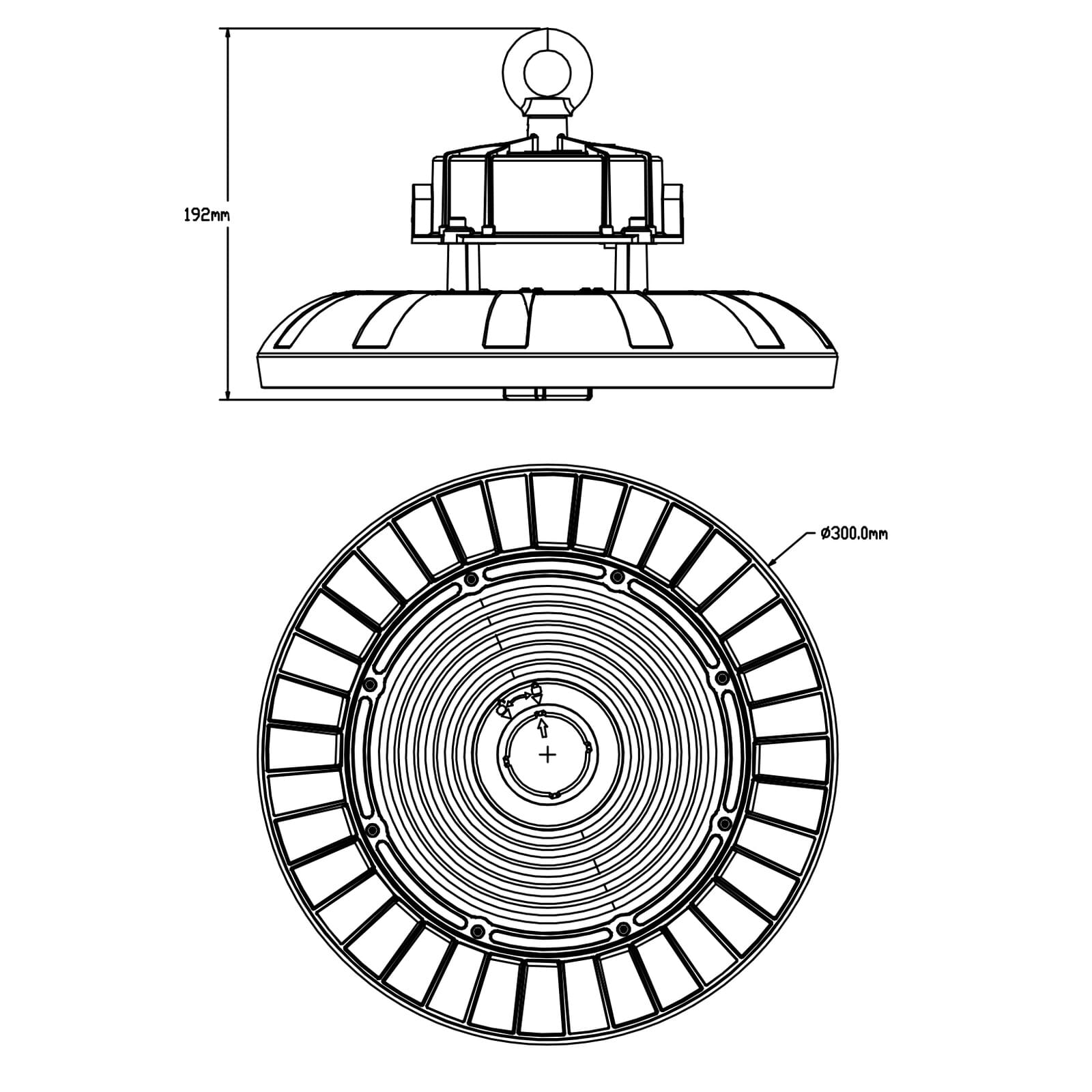

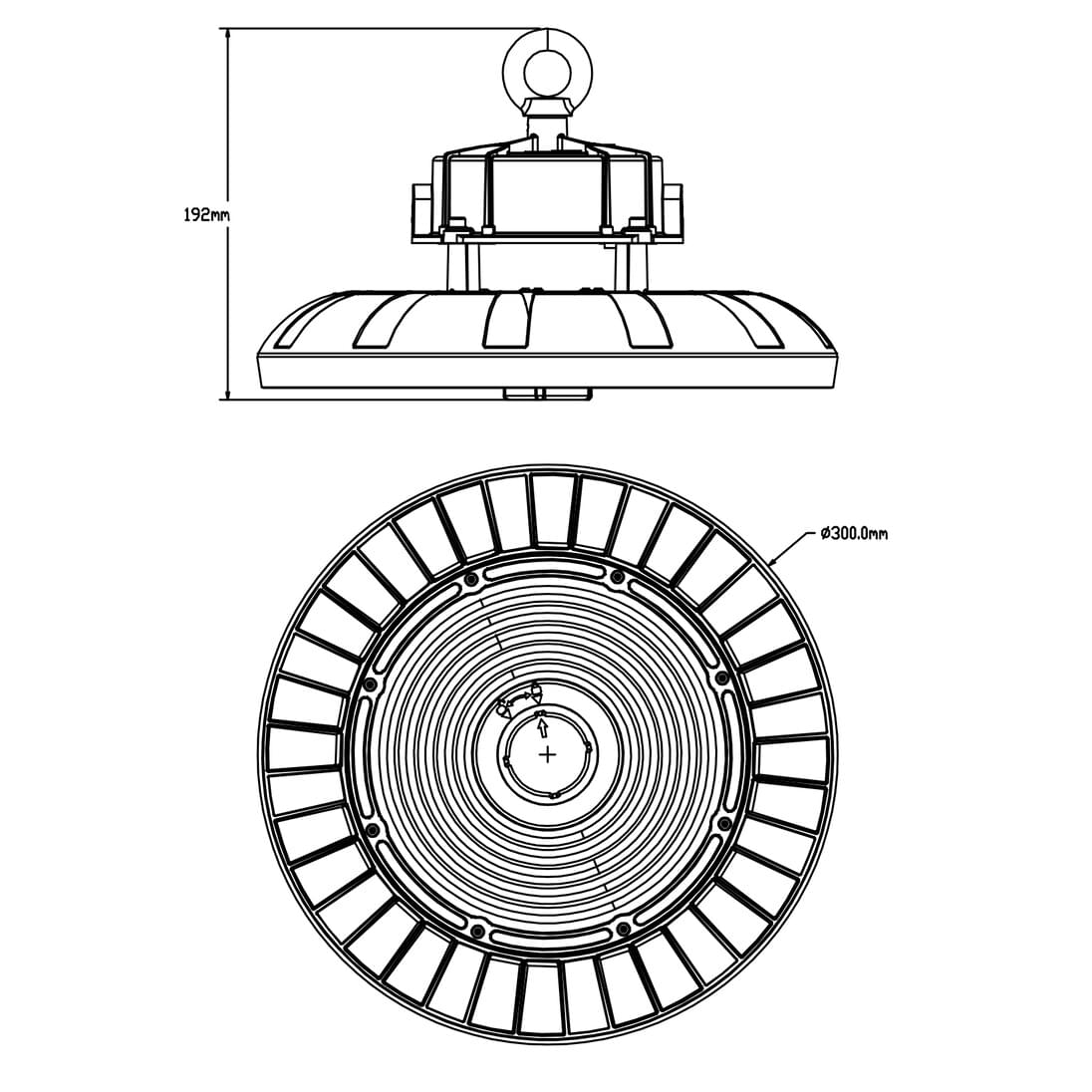

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

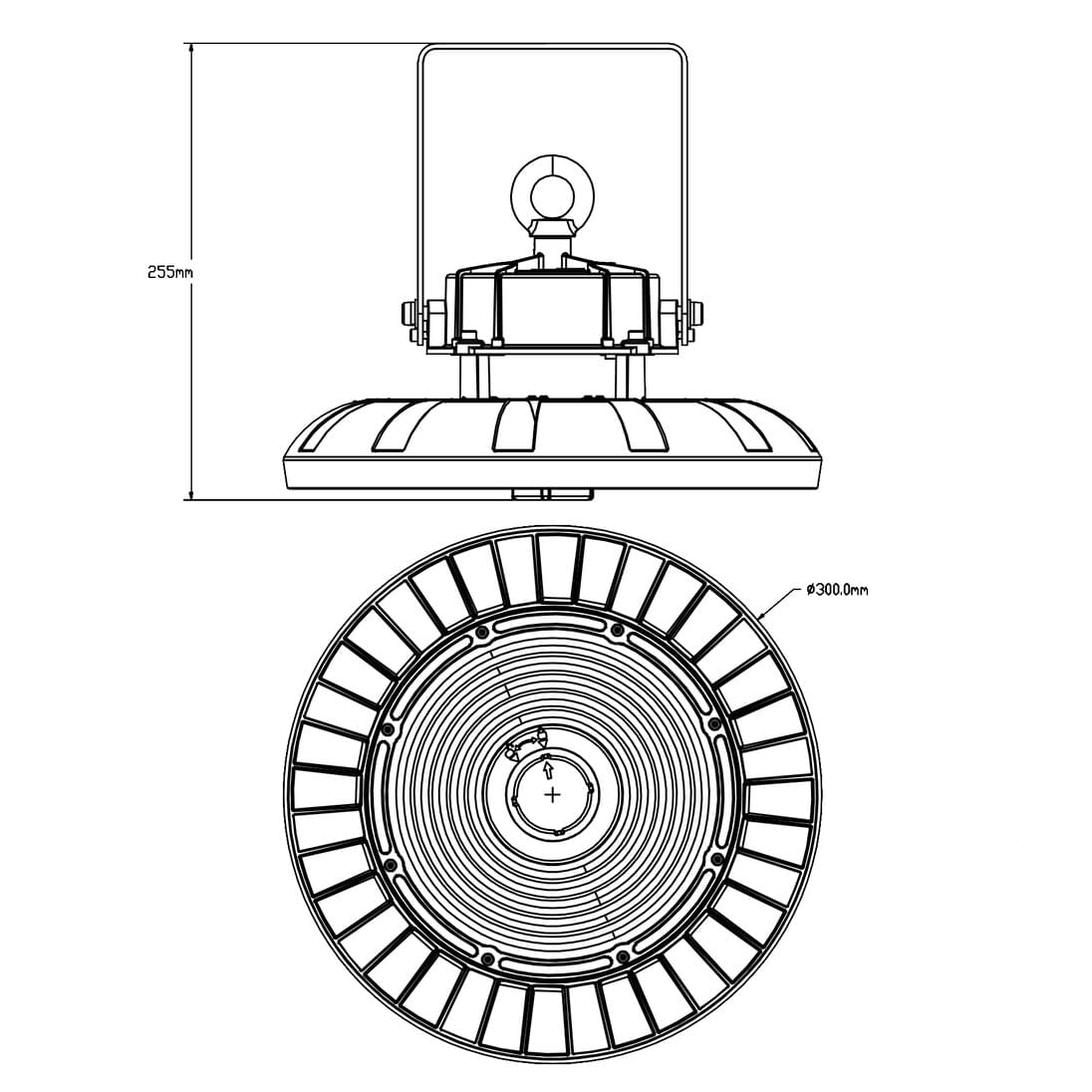

    Model No.SHB23MP200TC Input Voltage240 Multiple Wattage100/150/200 Lumens14500/21000/26000 Beam Angle90 CCT3000/4000/5000 CRI80 Body ColourBLACK Diameter300 Dim300(W) x 192(H) Mass2.78 IPARTYES Add to Enquiry Add Remove Remove

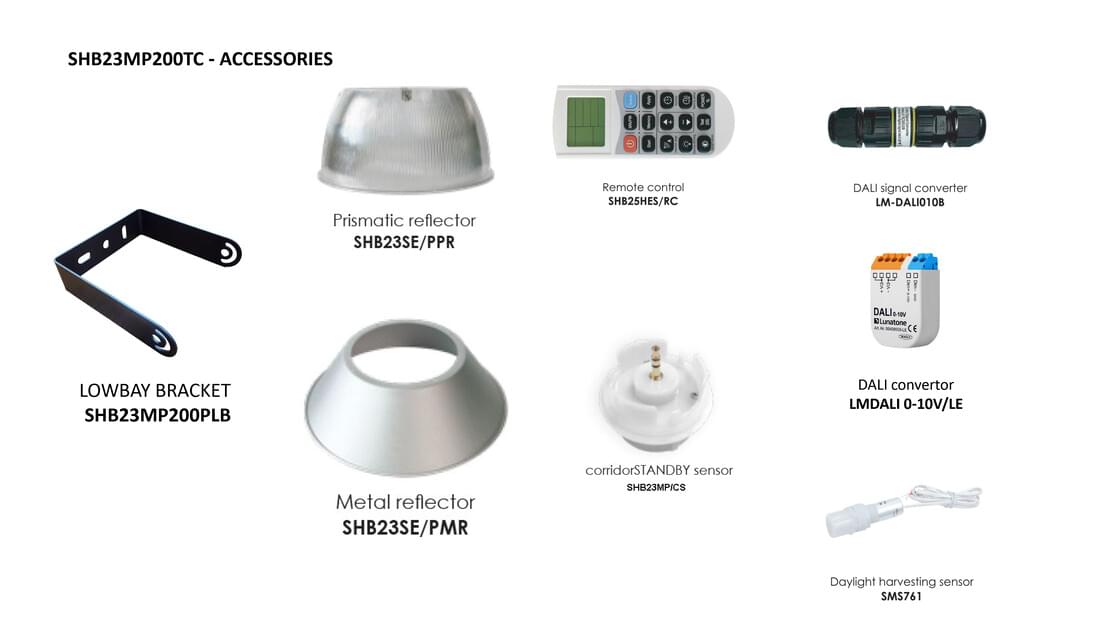

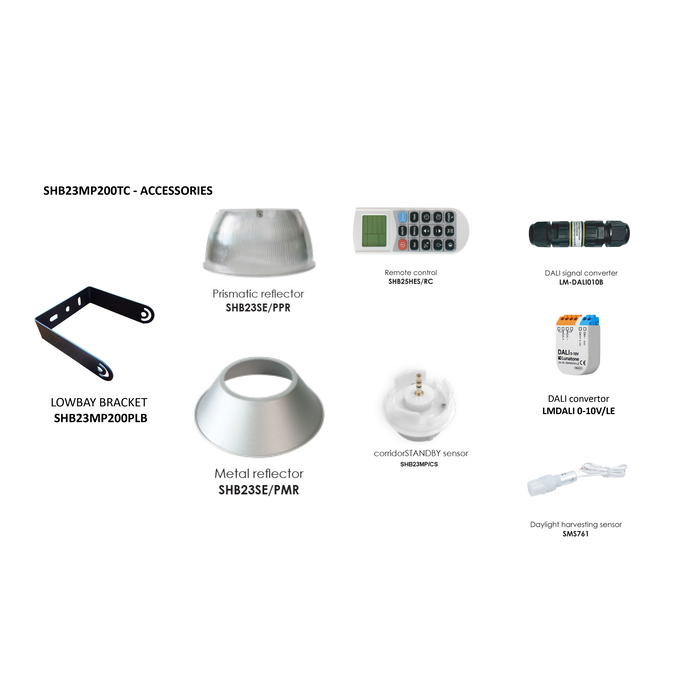

    Model No.SHB23MP/CS Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body ColourCORRIDOR SENSOR Diameter Dim Mass0.04 IPART Add to Enquiry Add Remove Remove

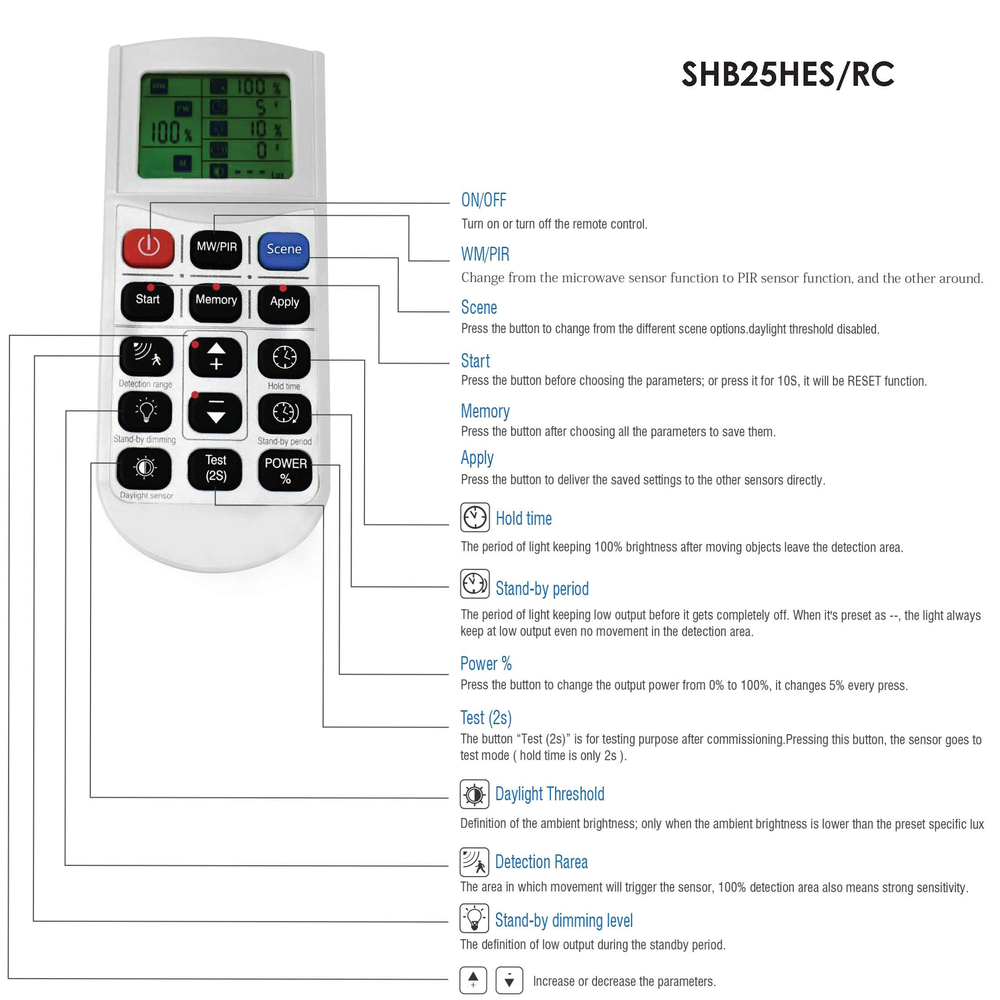

    Model No.SHB25HES/RC Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body ColourREMOTE CONTROL Diameter Dim Mass IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SHB23SE/PPR Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body ColourPRISMATIC REFLECTOR Diameter Dim Mass0.4 IPARTN/A Add to Enquiry Add Remove Remove

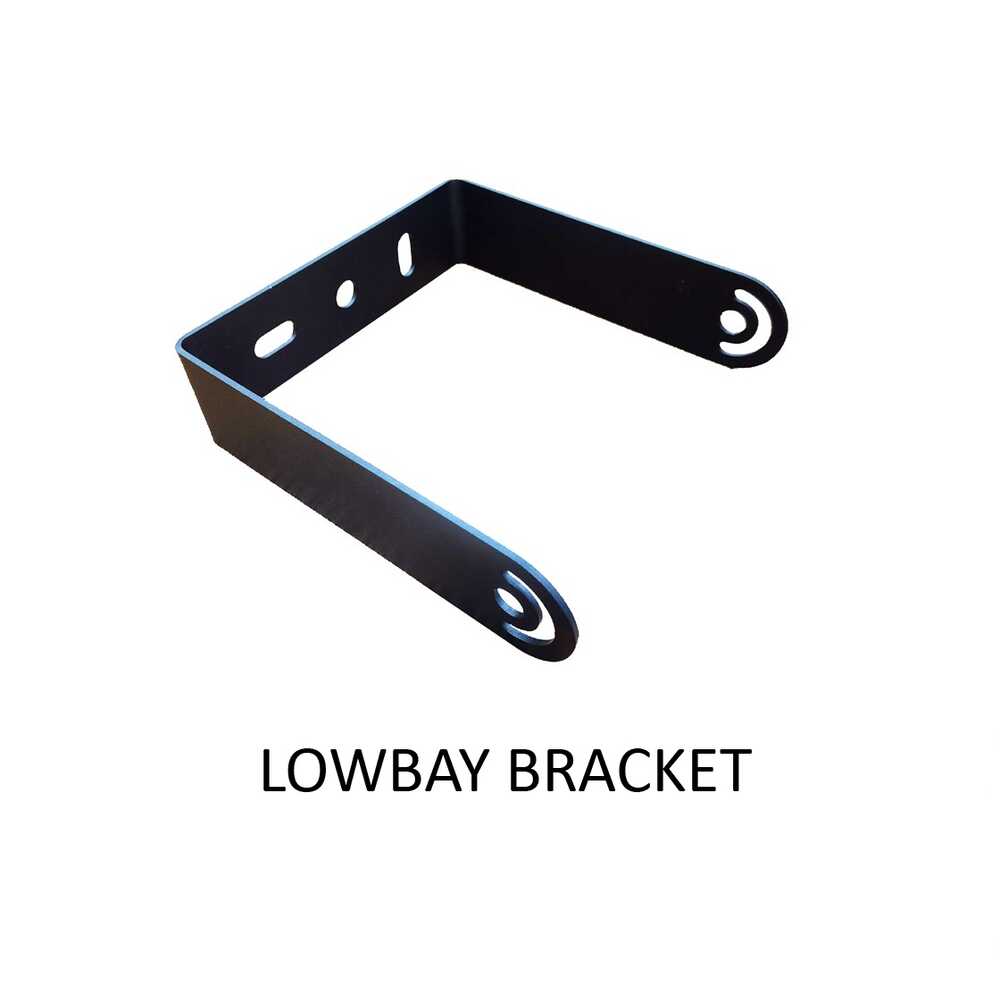

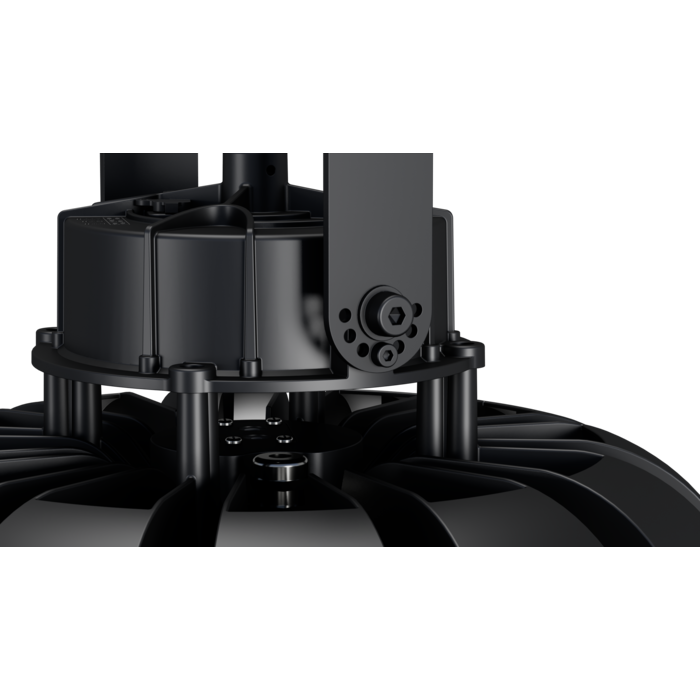

    Model No.SHB23MP200PLB Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body ColourBLACK Diameter Dim Mass IPARTN/A Add to Enquiry Add Remove Remove
    Model No.LM-DALI010B Input Voltage Multiple Wattage Lumens Beam Angle CCT CRI Body ColourDALI SIGNAL CONVERTER Diameter Dim Mass0.06 IPART Add to Enquiry Add Remove Remove

    Note: (1) 1-10V dimming does not provide 100% OFF dimming function.

    Note: (2) lumens (lm) shown are displayed at the 4000K 100/150/200W power setting

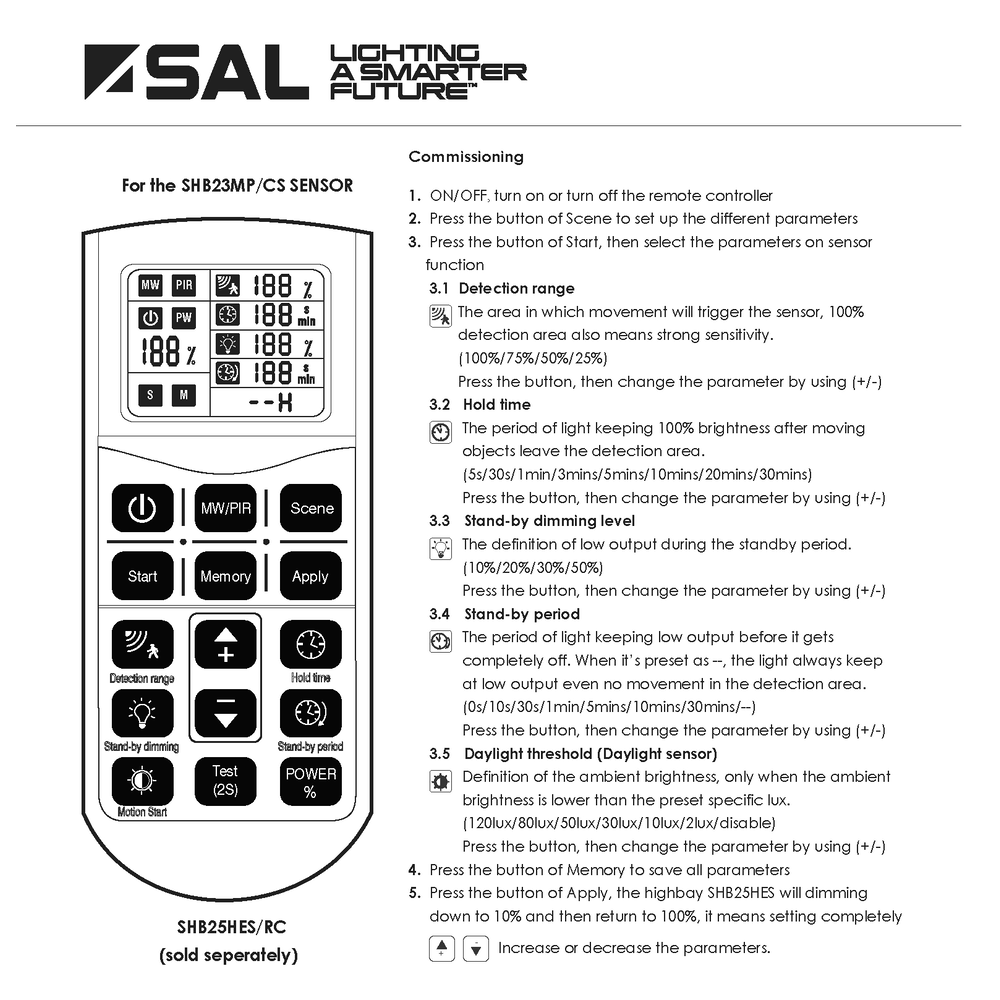

    Note: (3) Sensor default settings: Sensitivity=100%, Hold Time=30mins, StandBy power=30%, StandBy time 30mins, Daylight Threshold=disabled

    Note: (4) Sensor and dimming functions cannot be operated simultaneously.

    Note: (5) Remote control and sensor function height max 10M.



(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
