• HIGHBAYS

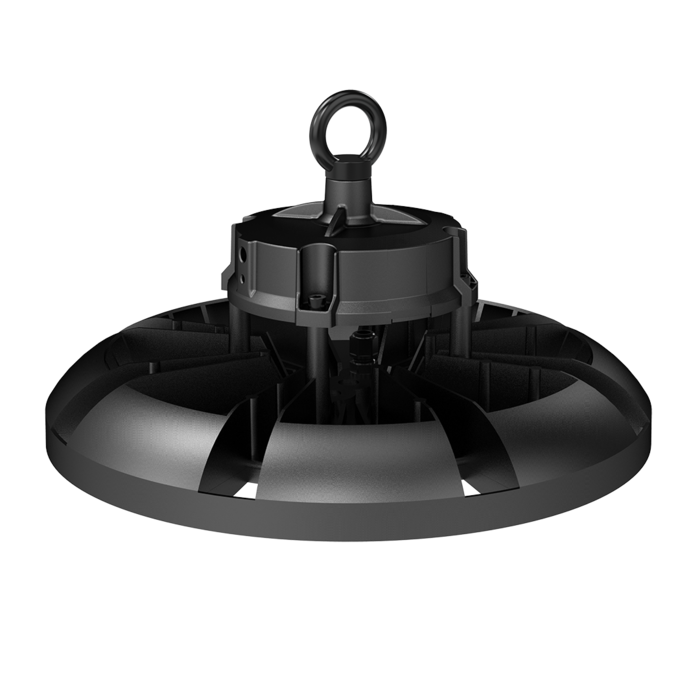

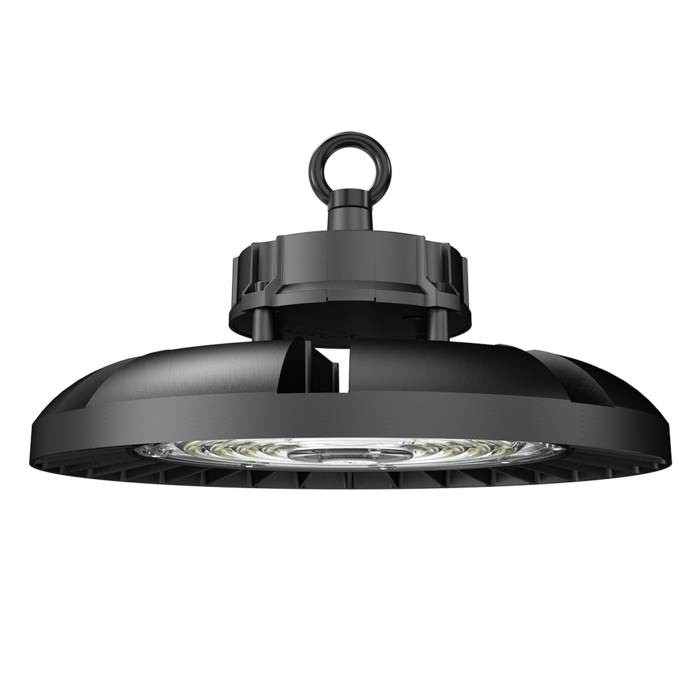

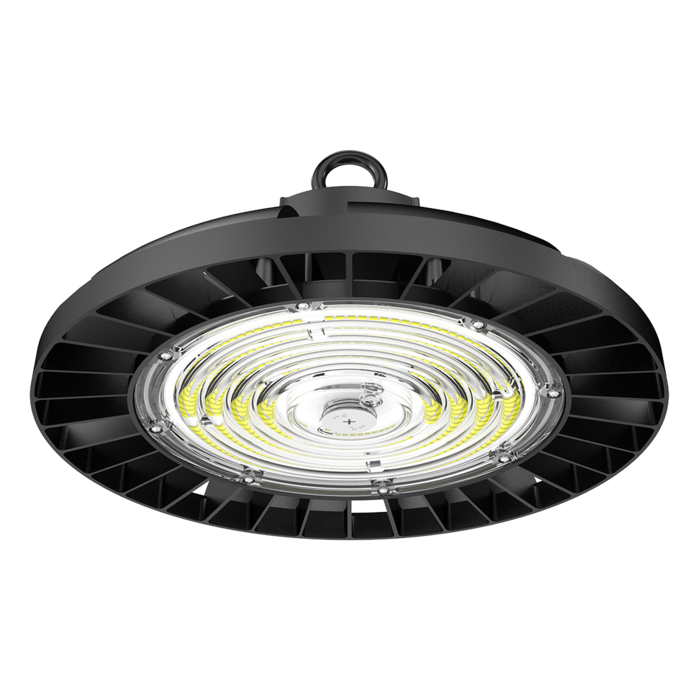

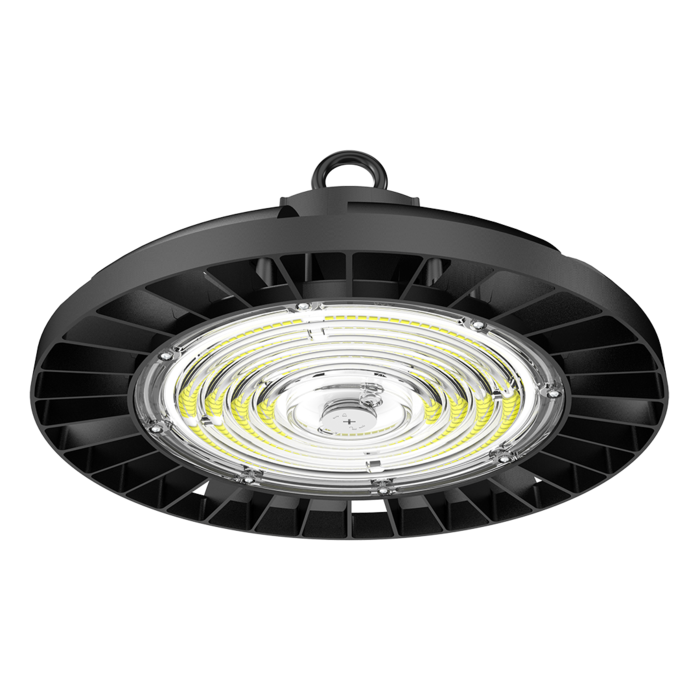

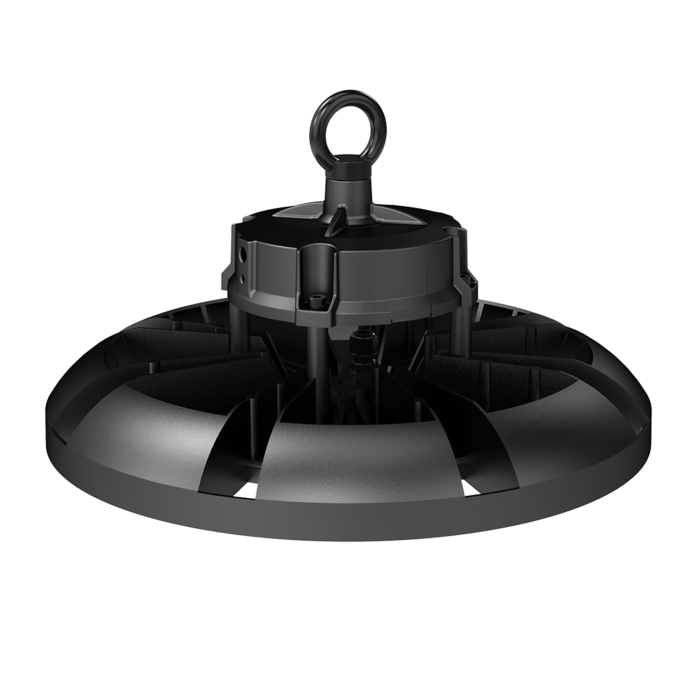

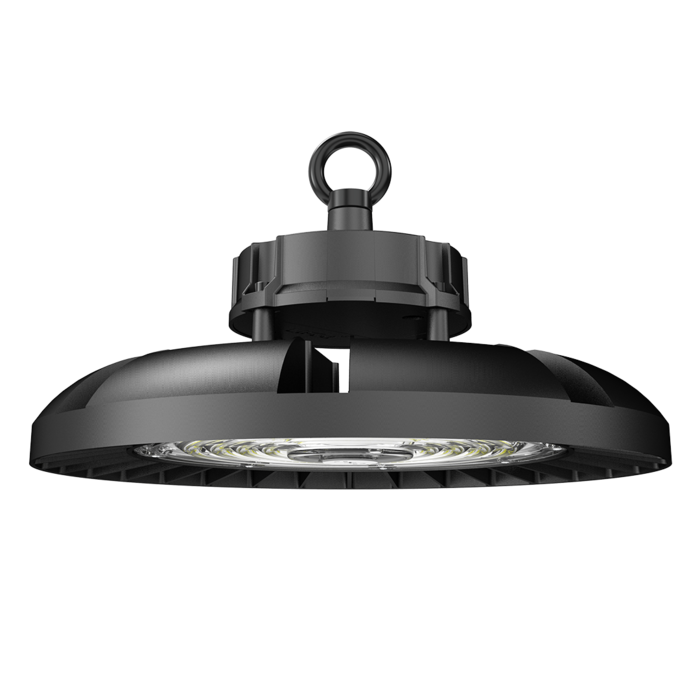

UFO SHB23MPTC2 - 150/200W

1-10V Dimmable, IP65 LED super low profile LED highbay, with selectable power, CCT and 200lm/W performance

Application

Ideal for any commercial or industrial interior spaces

Design Specifications

  • Black powder coated finish, die-cast aluminium body, super low profile design

  • Dimmable 1-10V, selectable power 90/120/150W and 120/160/200W with selectable CCT 3000/4000/5000K

  • High efficiency LED optics, clear polycarbonate lens, 90° beam distribution, SDCM <5, 200lm/W performance @ 4000K

  • Optional plug and play motion and daylight harvesting sensor available, with remote control functions

  • Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation

  • Robust design IP65 and IK08 rated, stainless safety lanyard included

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter
  • In Built Sensor - OPTIONAL

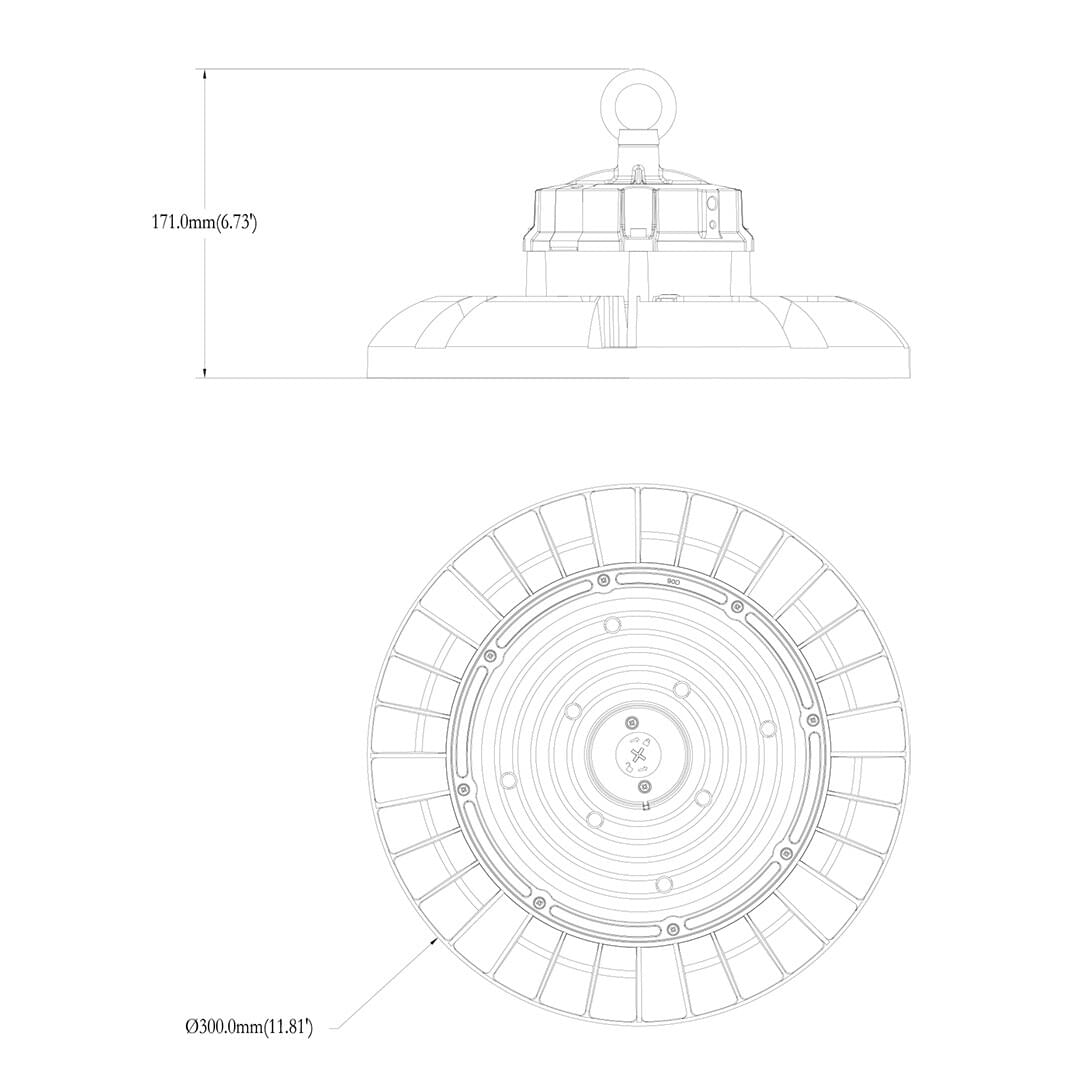

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer 1-10V YES
  • Photometric Data
  • FAQ

    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

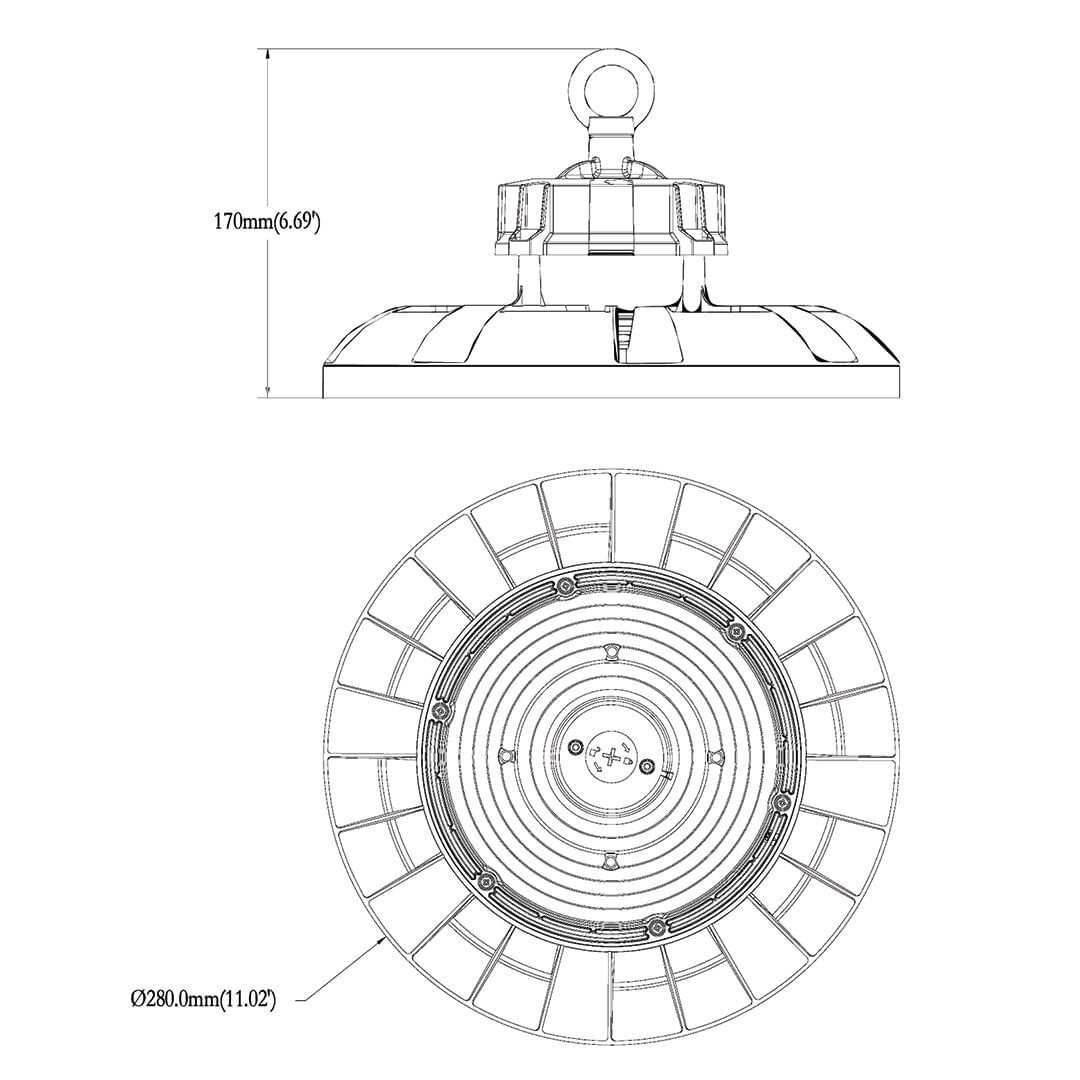

    Model No.SHB23MP150TC2 Input Voltage240 Power150 Multiple Wattage90/120/150 Lumens27500/30000/28300 Beam Angle90 CCT3000/4000/5000 CRI70 Body ColourBLACK Diameter280 Dim170(H) Mass2 Add to Enquiry Add Remove Remove
    Model No.SHB23MP200TC2 Input Voltage240 Power200 Multiple Wattage120/160/200 Lumens36000/40000/37200 Beam Angle90 CCT3000/4000/5000 CRI70 Body ColourBLACK Diameter320 Dim165(H) Mass2.32 Add to Enquiry Add Remove Remove

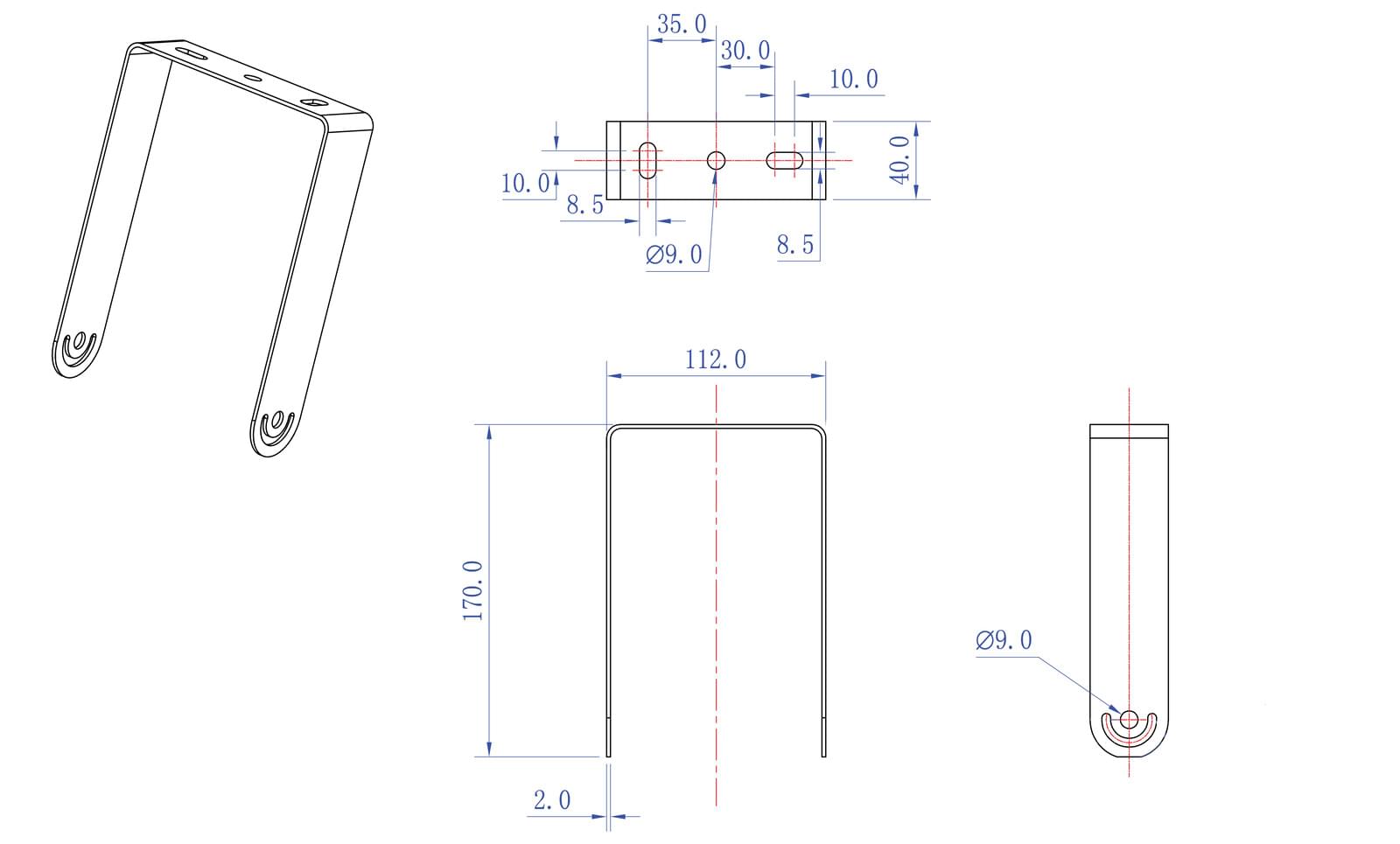

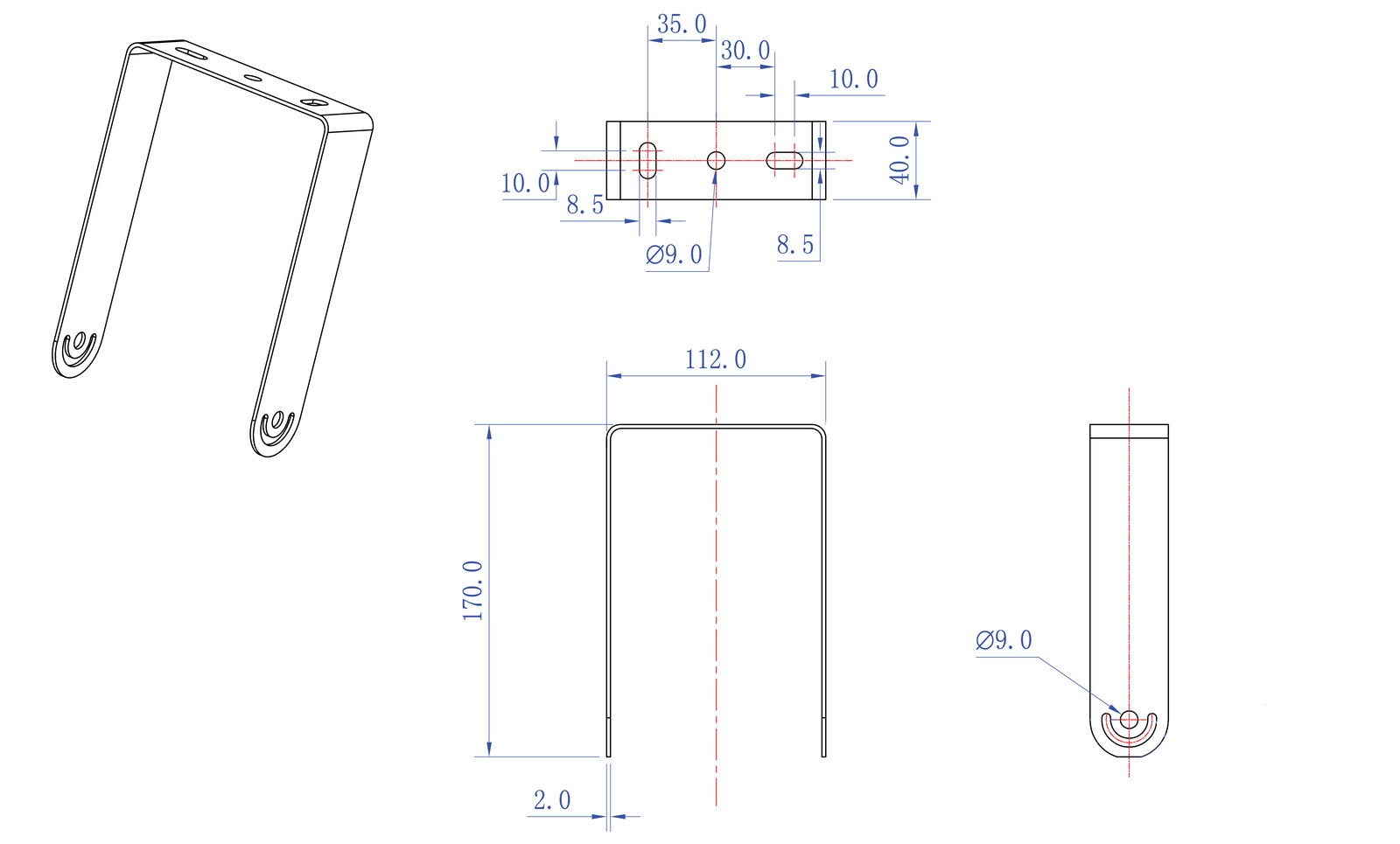

    Model No.SHB23SE/PLB Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourBLACK Diameter Dim Mass0.26 Add to Enquiry Add Remove Remove

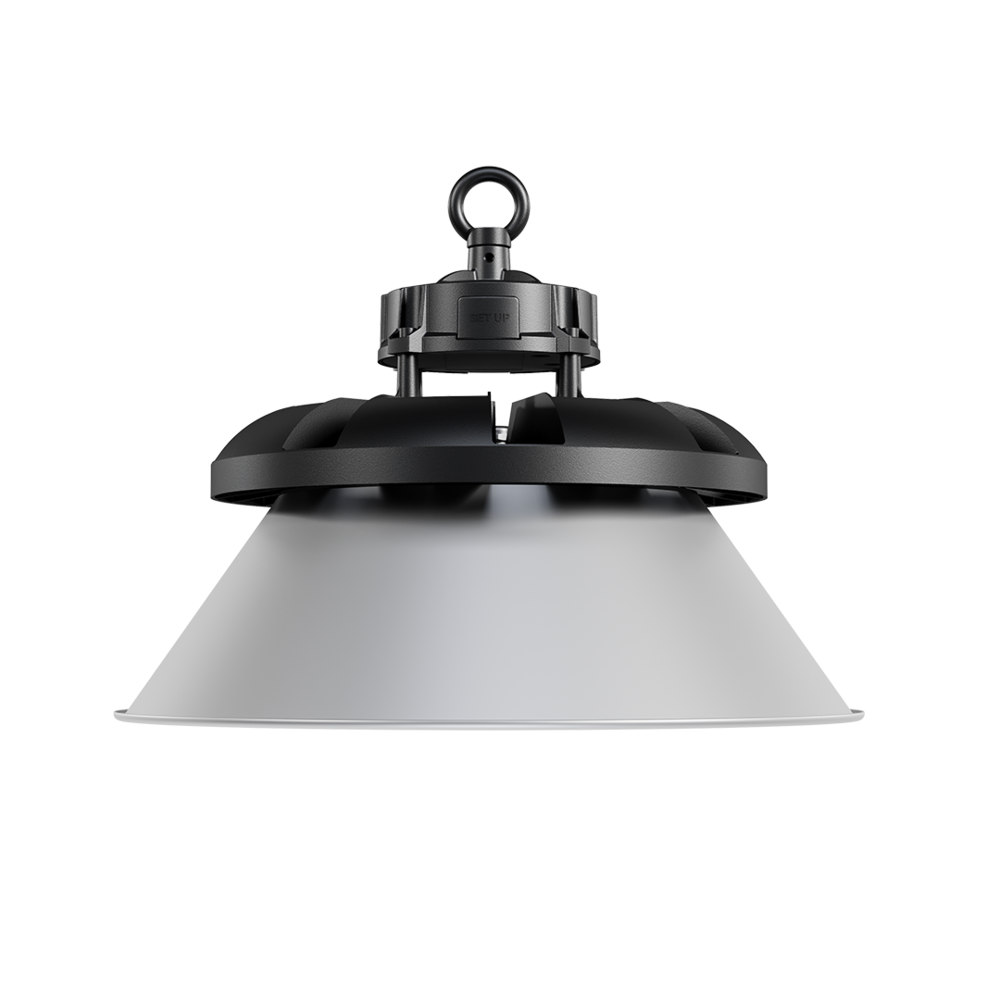

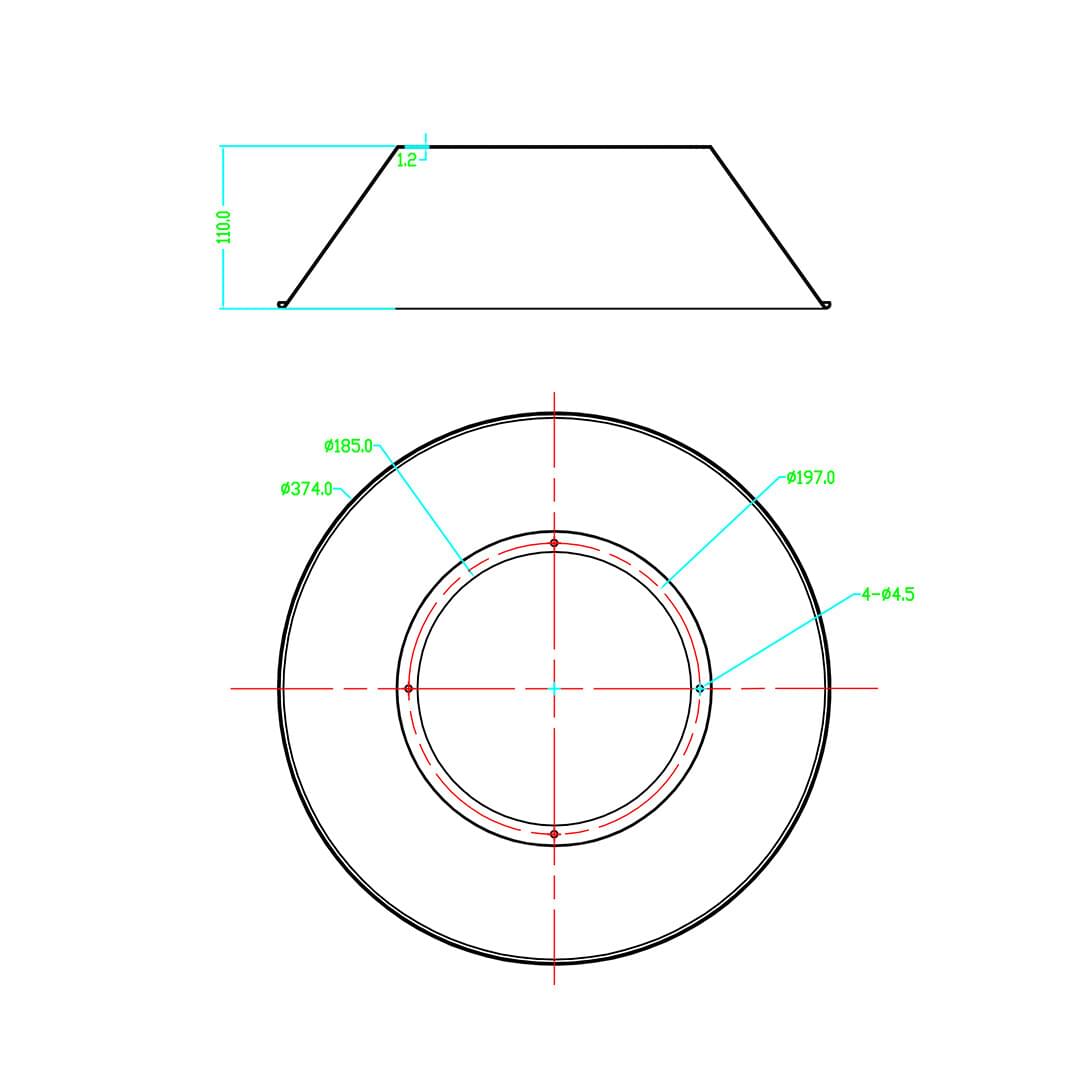

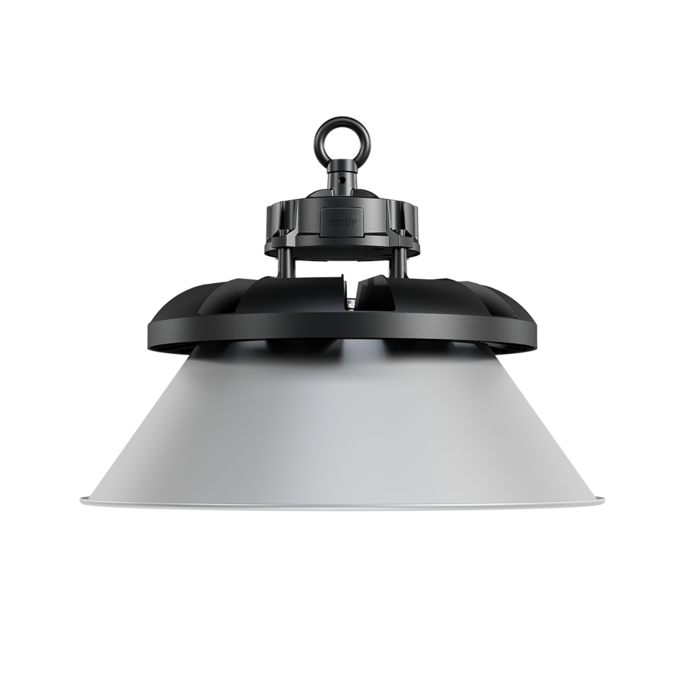

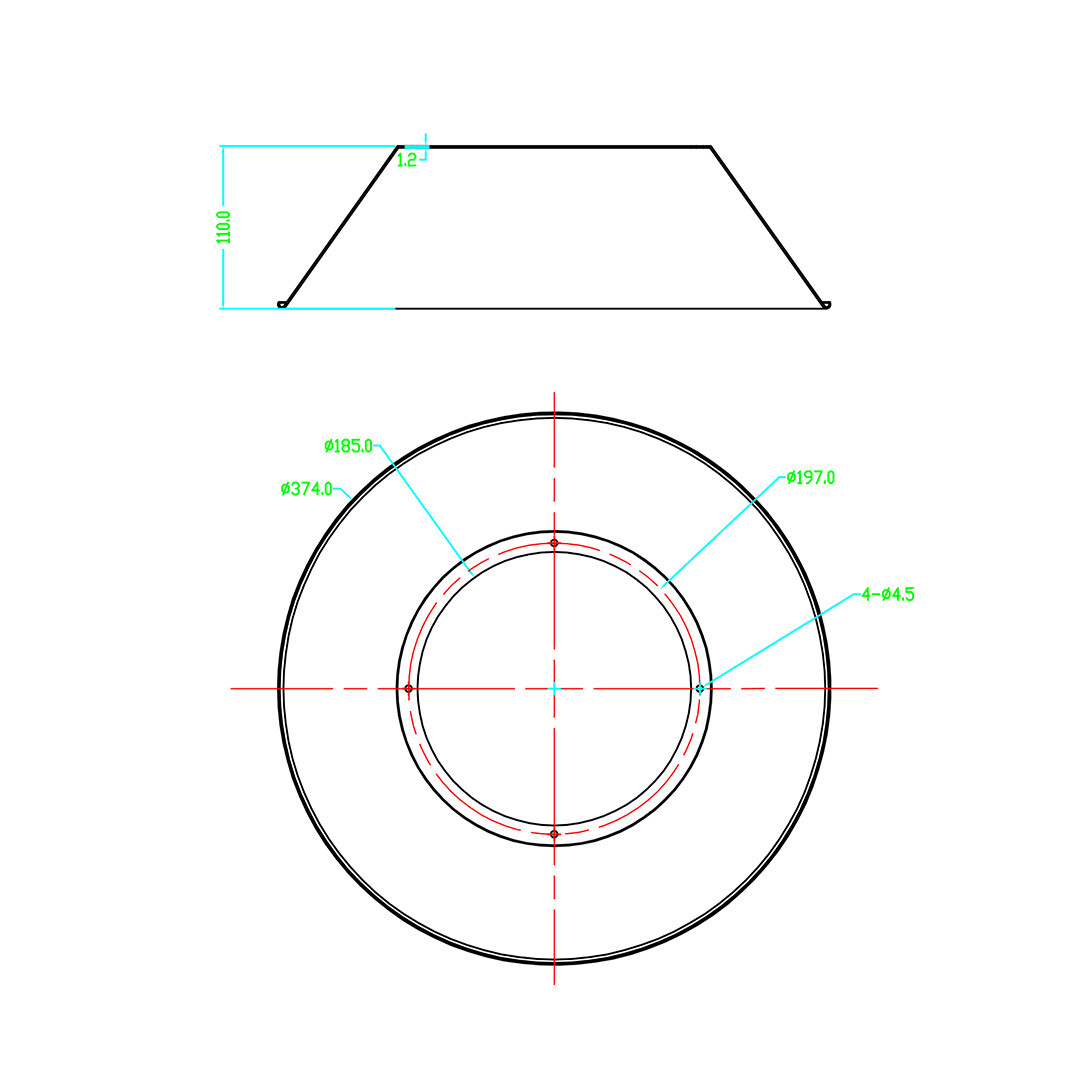

    Model No.SHB23SE/PMR Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourSILVER Diameter500 Dim236(H) Mass0.28 Add to Enquiry Add Remove Remove

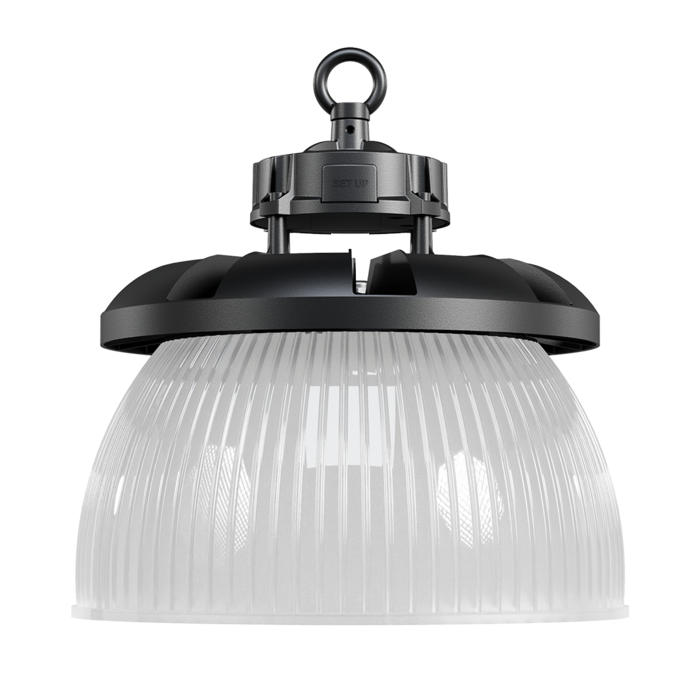

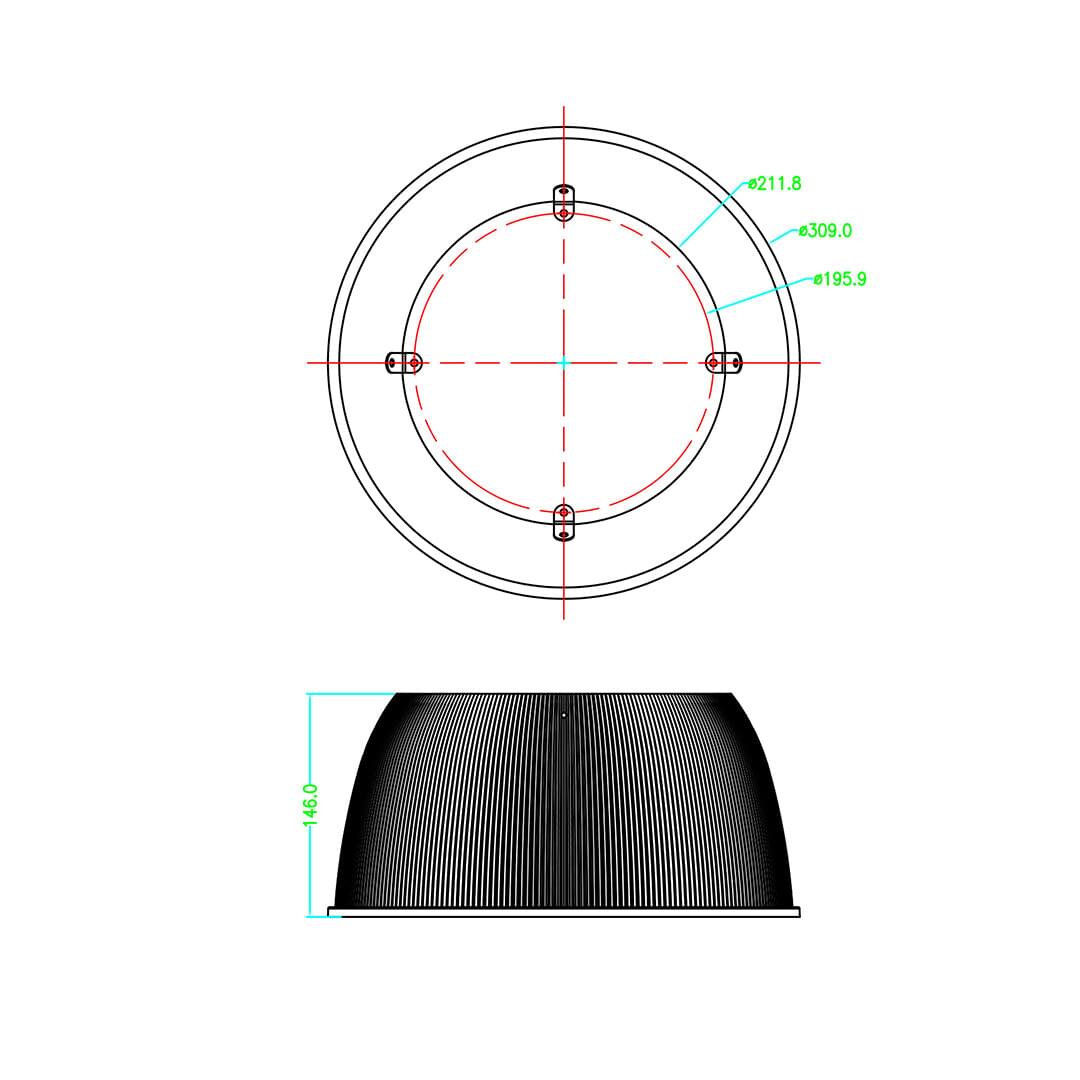

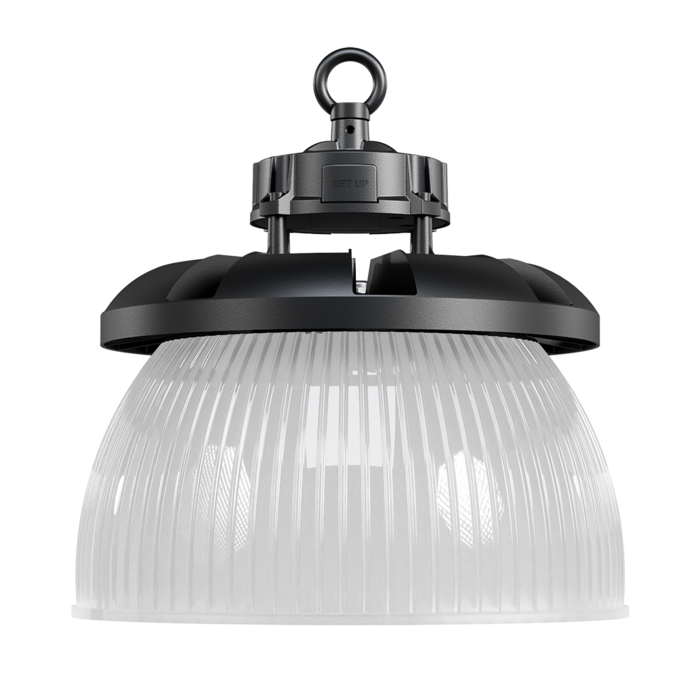

    Model No.SHB23SE/PPR Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourCLEAR PC Diameter480 Dim250(H) Mass0.4 Add to Enquiry Add Remove Remove

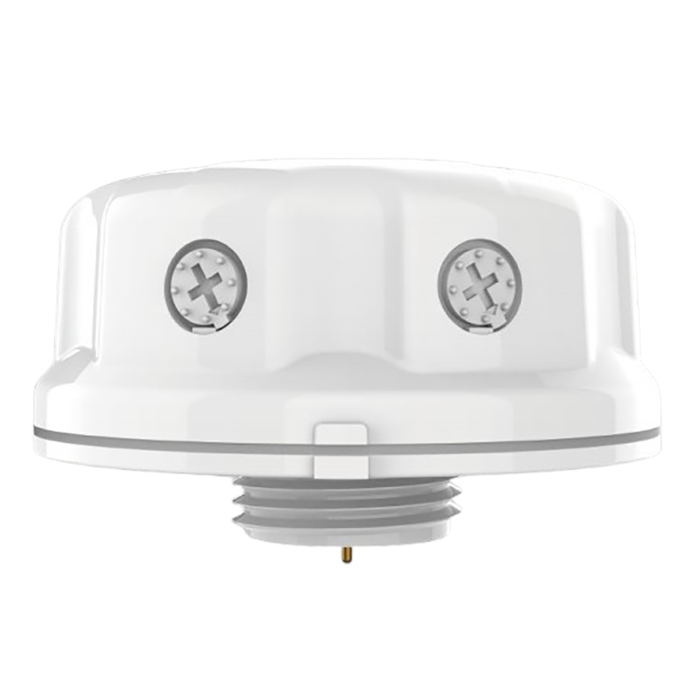

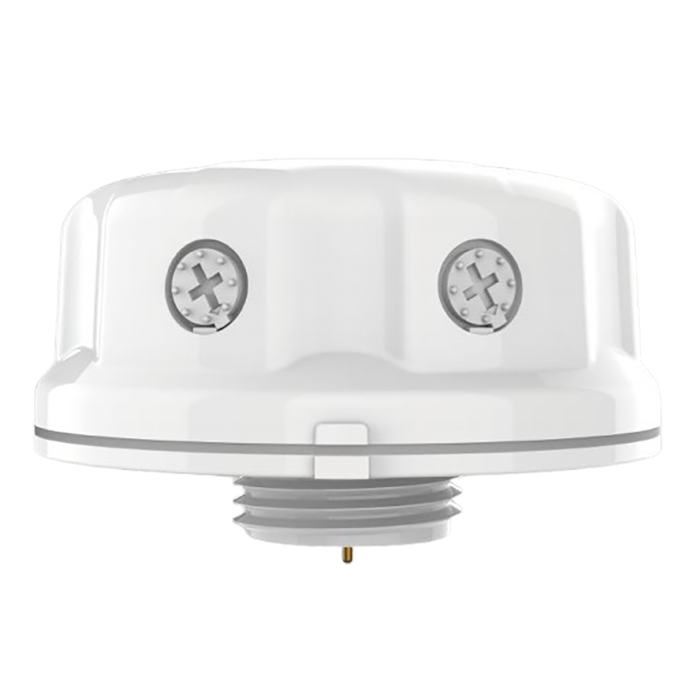

    Model No.SHB2X/CS Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourWHITE Diameter Dim Mass0.04 Add to Enquiry Add Remove Remove
    Model No.LM-DALI010B Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourDALI SIGNAL CONVERTER Diameter Dim Mass0.06 Add to Enquiry Add Remove Remove

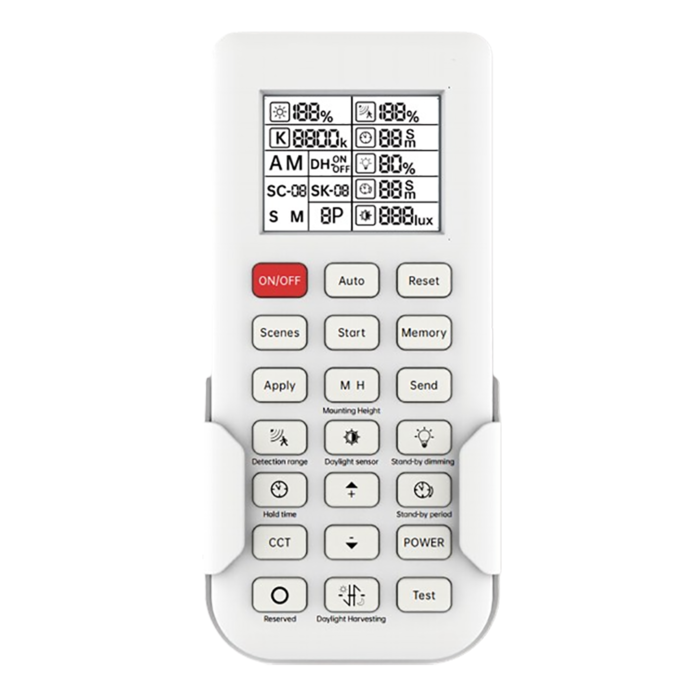

    Model No.SHB2XS/RC Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourWHITE Diameter Dim Mass0.14 Add to Enquiry Add Remove Remove

    NOTE: Lumens shown are at maximum power selection - 150TC2 (90) 17300/18000/17800lm, (120) 22300, 24000, 22800lm, (150) 27500, 30000, 28300lm - 200TC2 (120) 23000, 24000, 23800lm (160) 30000, 32000, 30600lm (200) 36000, 40000, 37200lm
