• ARCHITECTURAL

UD S9356 - 3W/12W

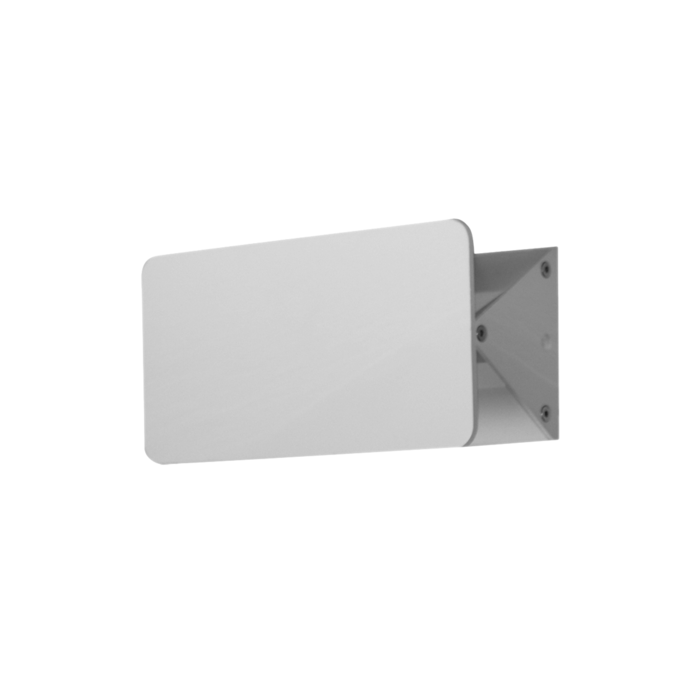

Adjustable LED surface mounted profile wall luminaires

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Durable aluminium body profile

  • White powder coat finish

  • High efficiency LED optics, CCT 3000K

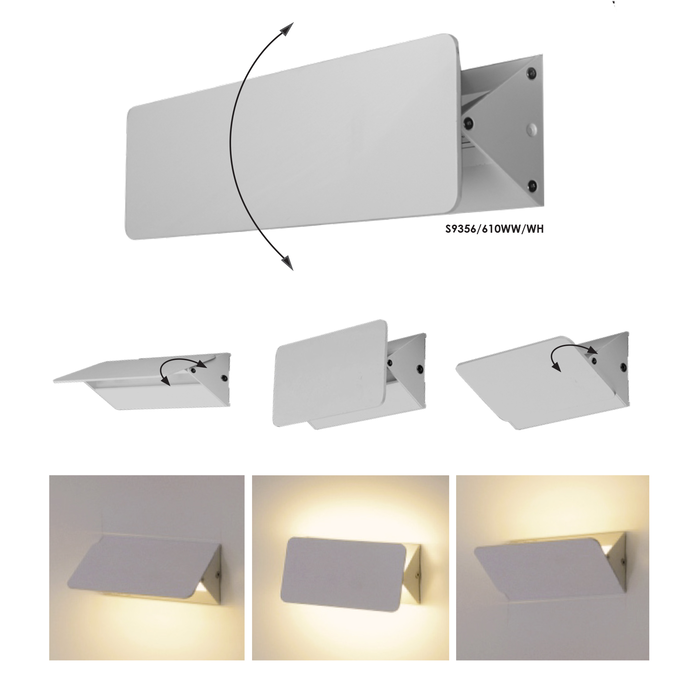

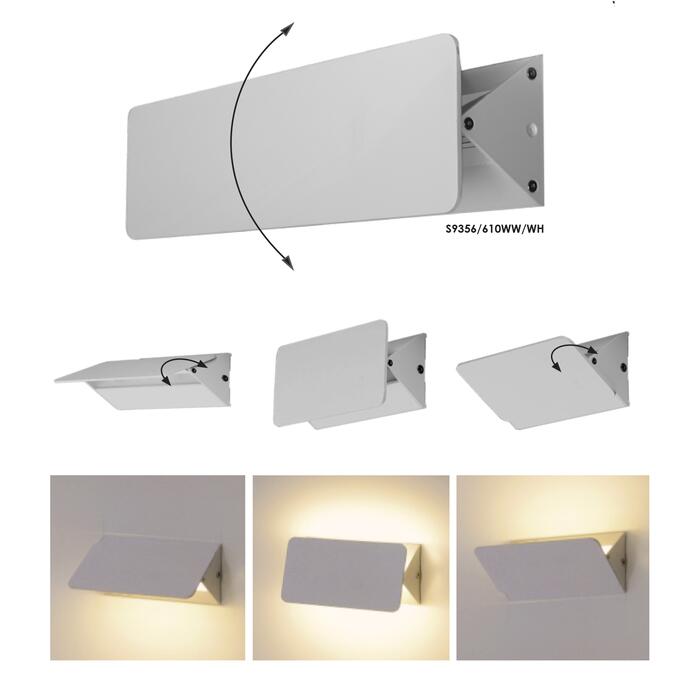

  • Up & Down beam angle adjustable from -60º to +60°

  • Integral non-dimmable LED driver, choice of 3 or 12 watt models

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - trailing edge refer to model selection
  • WARM WHITE3000K

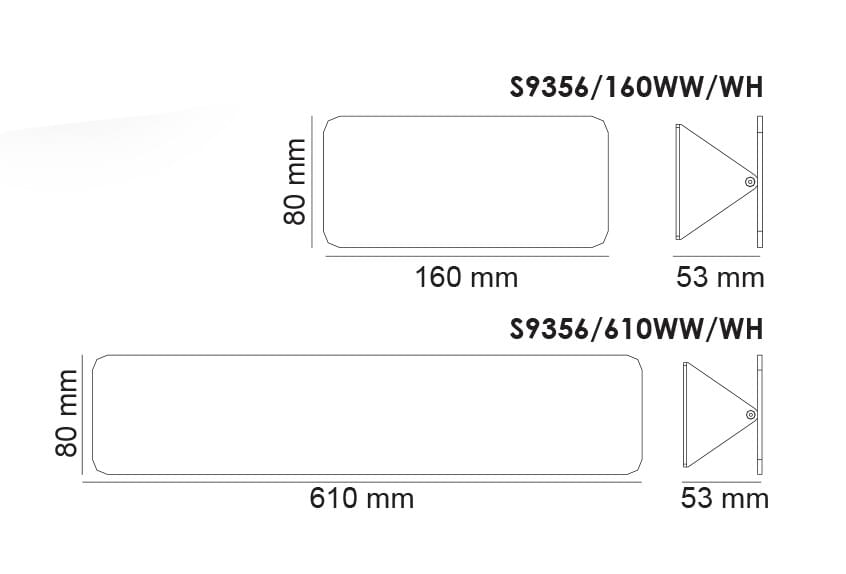

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9356/160WW/WH Input Voltage240 Power3 Lumens250 CCT3000 CRI80 Dimmable NO Dim160(L) x 53(W) x 80(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9356/610WW/WH Input Voltage240 Power12 Lumens800 CCT3000 CRI80 Dimmable OPTIONAL Dim610(L) x 53(W) x 80(H) Body ColourWHITE Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
