• LAMPS

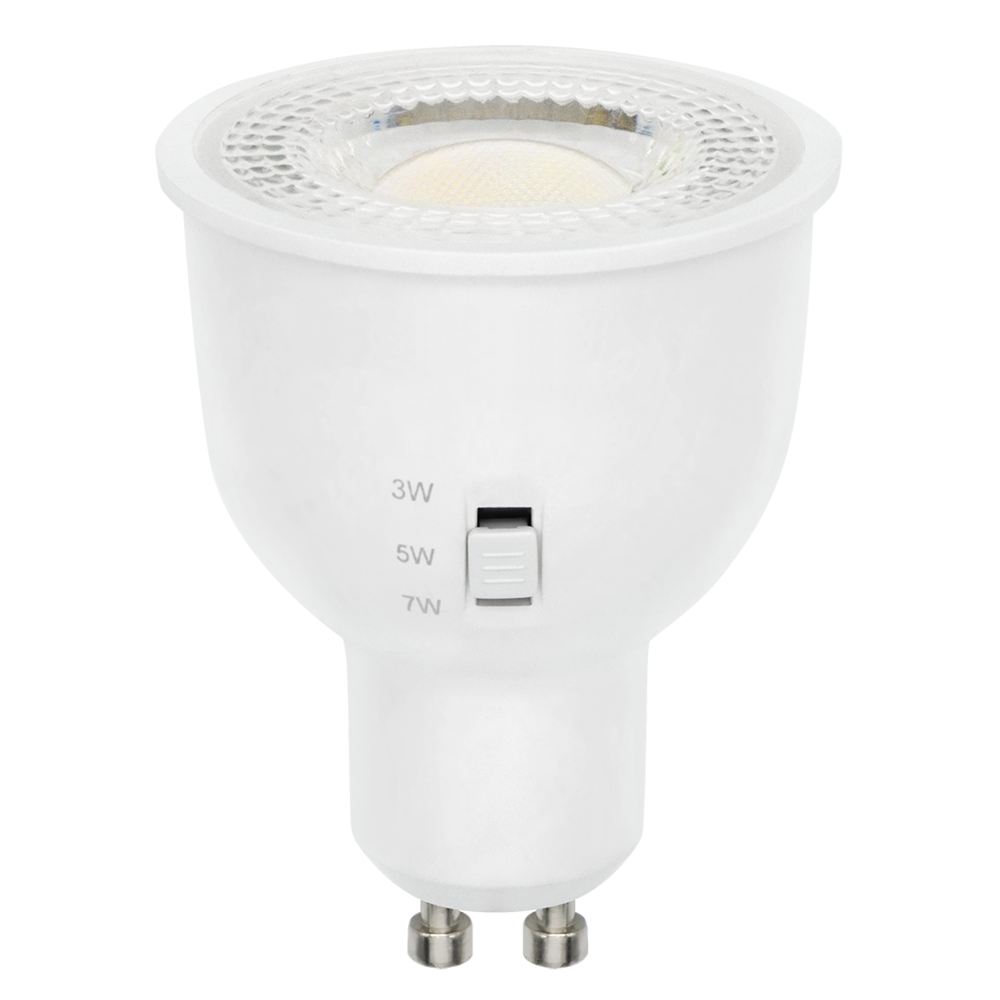

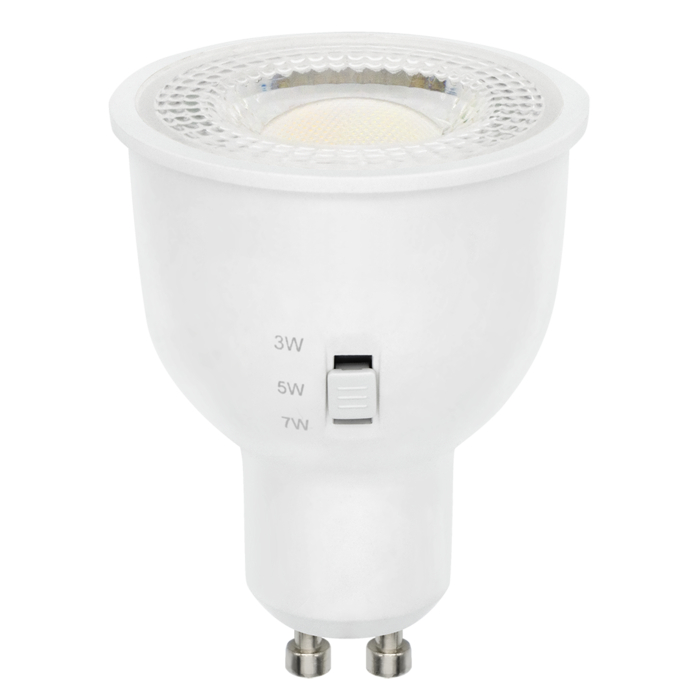

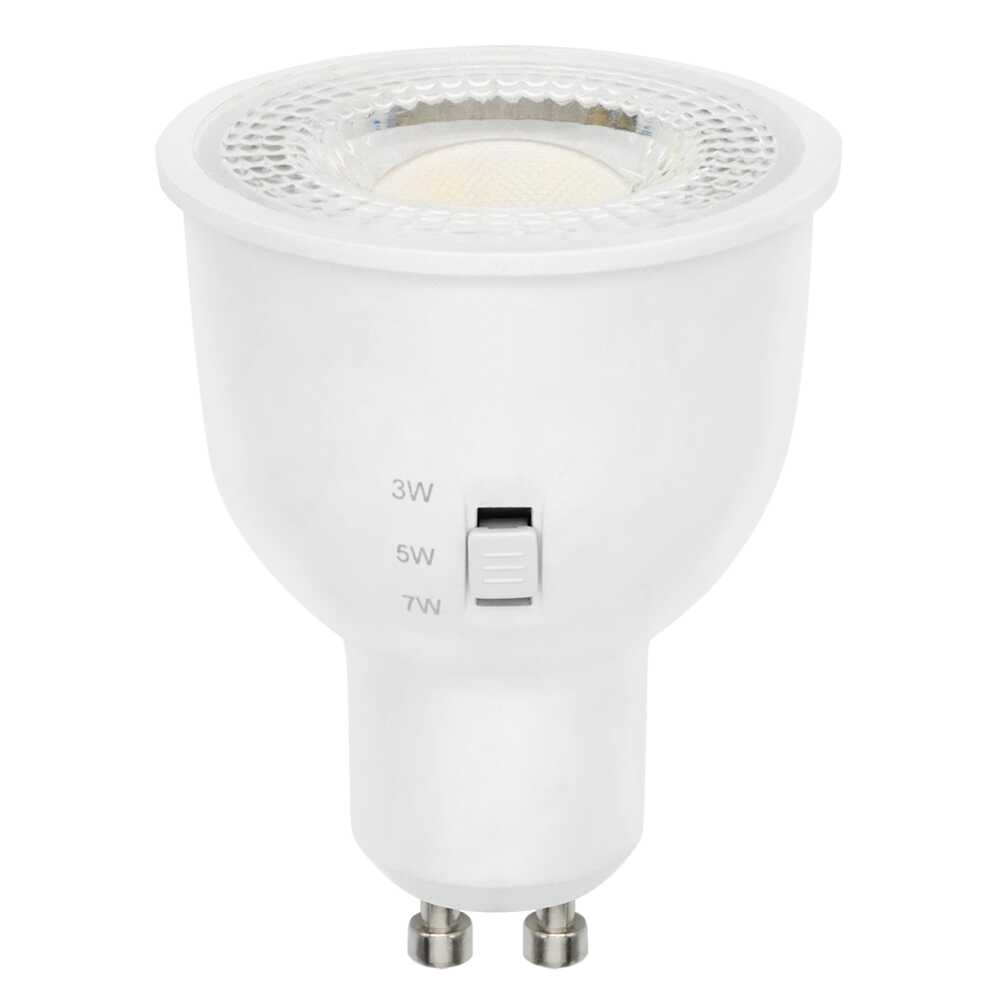

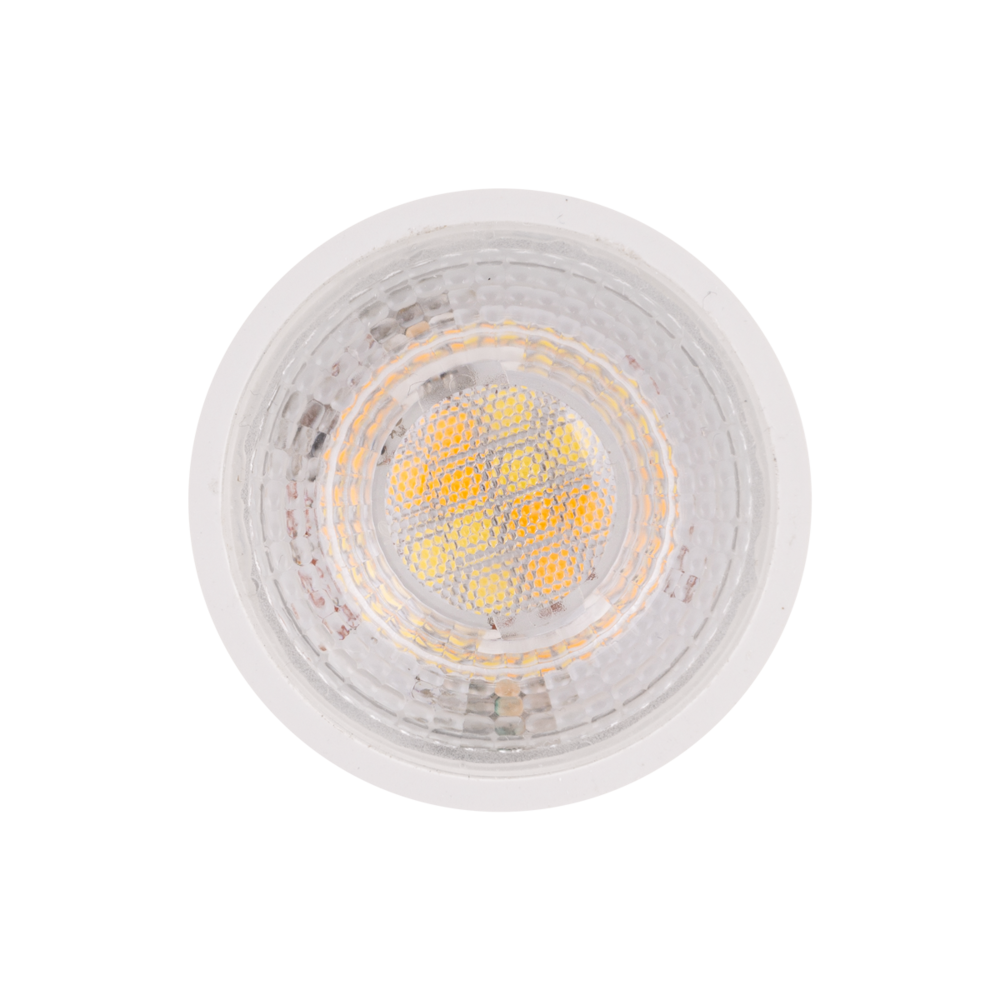

GU10LA750MP/TC - 3/5/7W

Dimmable, 7W GU10 LED lamp with selectable power and CCT

Application

Energy efficient LED lamp solutions, ideal for residential GU10 luminaires

Design Specifications

  • Frosted polycarbonate lens

  • Poly covered aluminium body

  • High efficiency LED optics, CRI > 80

  • Integral 240V dimmable driver, with selectable power,
    3W: 350/400/380lm, 5W: 550/600/580lm, 7W: 650/750/700lm

  • CCT choice of  3000K / 4000K / 6000K, beam distribution 60°

  • GU10 lamp base

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing Edge
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.GU10LA750MP/TC Input Voltage240 Multiple Wattage3/5/7 Lumens650/750/700 CCT3000/4000/6000 CRI80 Beam Angle60 Dimmable YES Diameter50 Height64 Base TypeGU10 Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are at maximum 7W power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
