• LAMPS

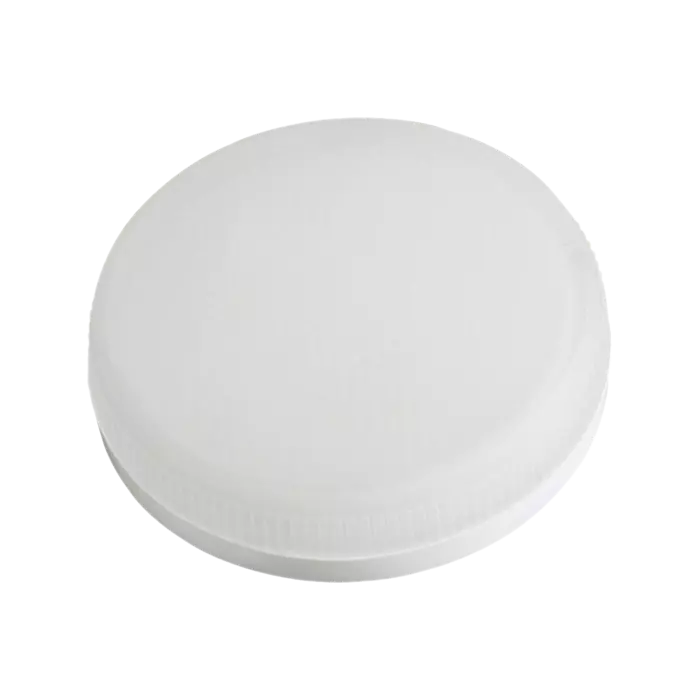

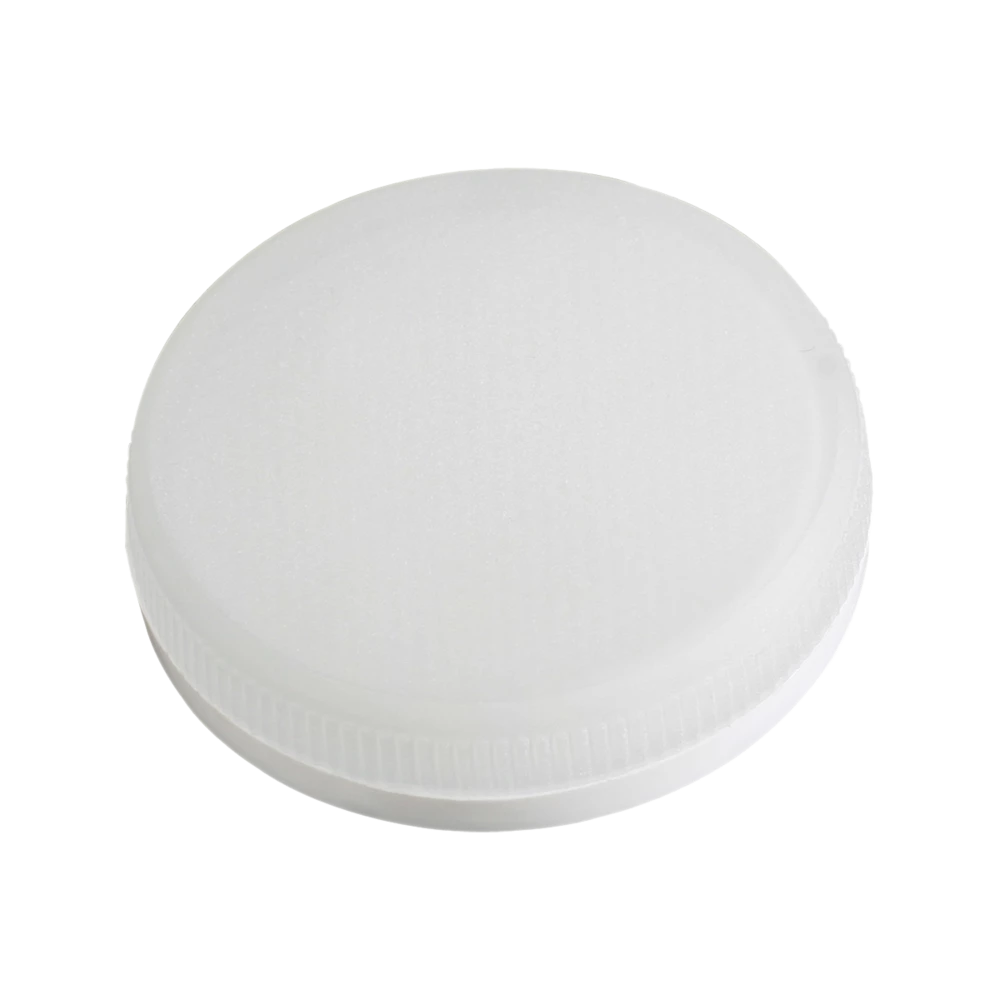

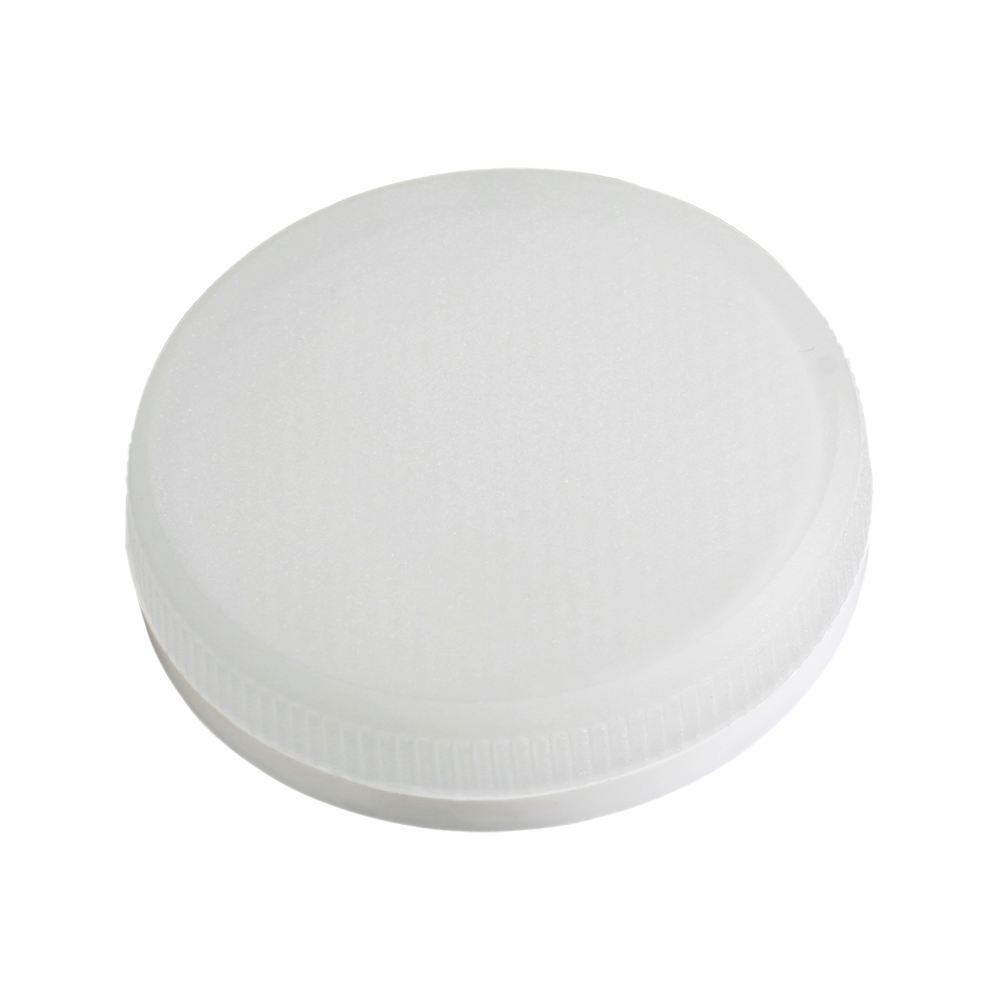

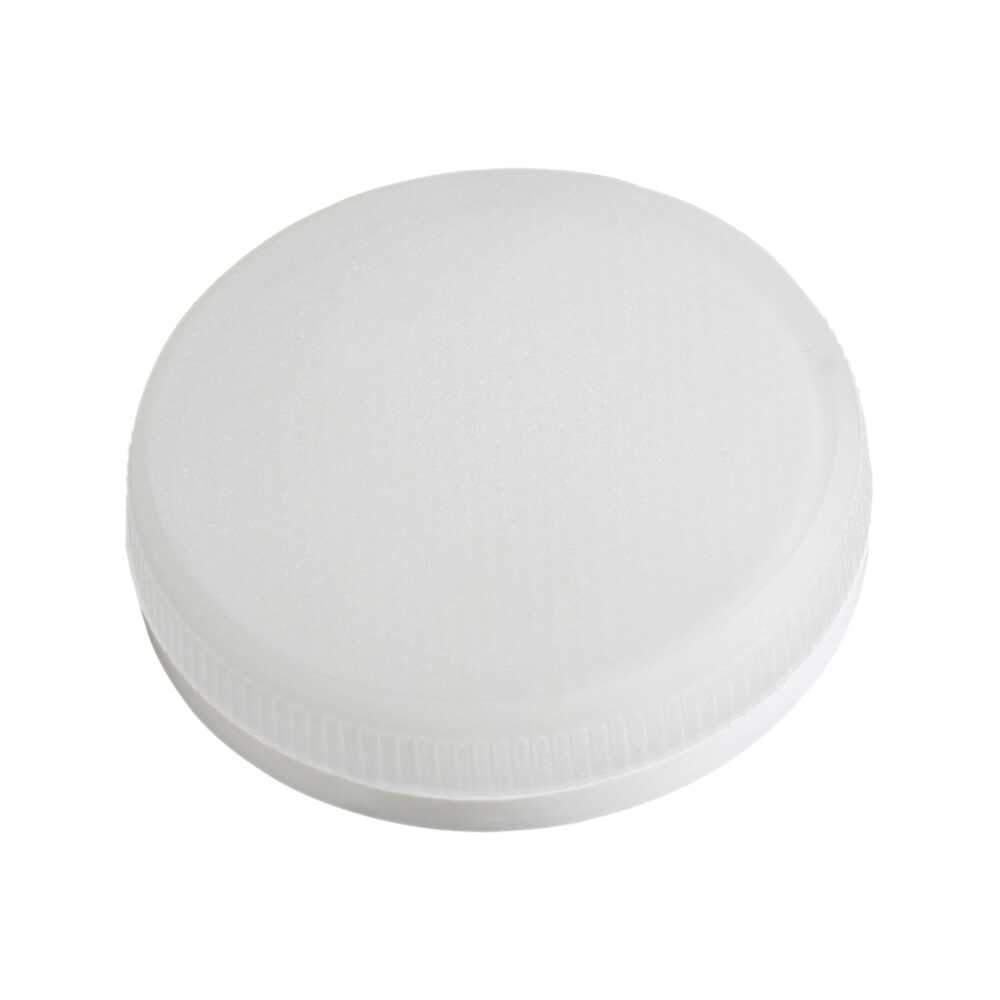

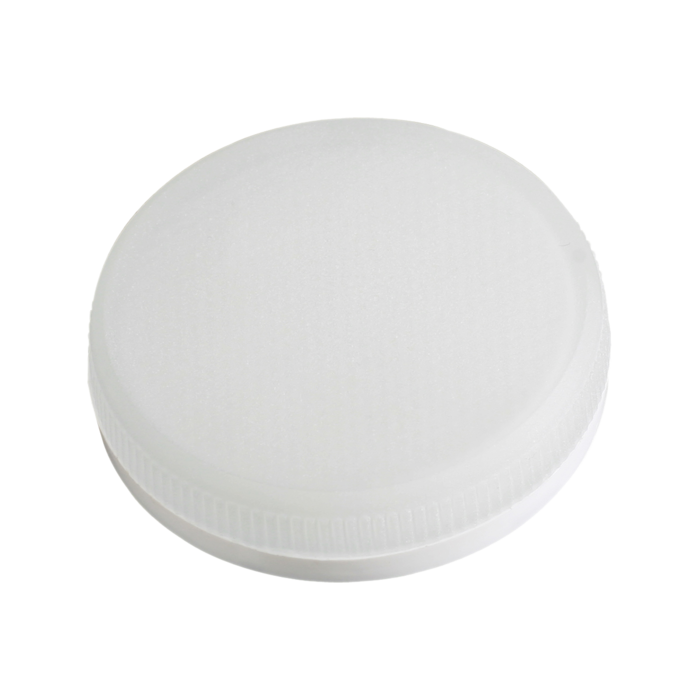

GX53 - 5W

GX53 base LED

Application

Perfect for under shelf feature lighting

Design Specifications

  • Frosted glass diffuser

  • Poly covered aluminium body

  • High efficiency LED optics

  • CRI>80

  • Integral non-dimmable driver

  • CCT choice of 3000K/4000K/6000K

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

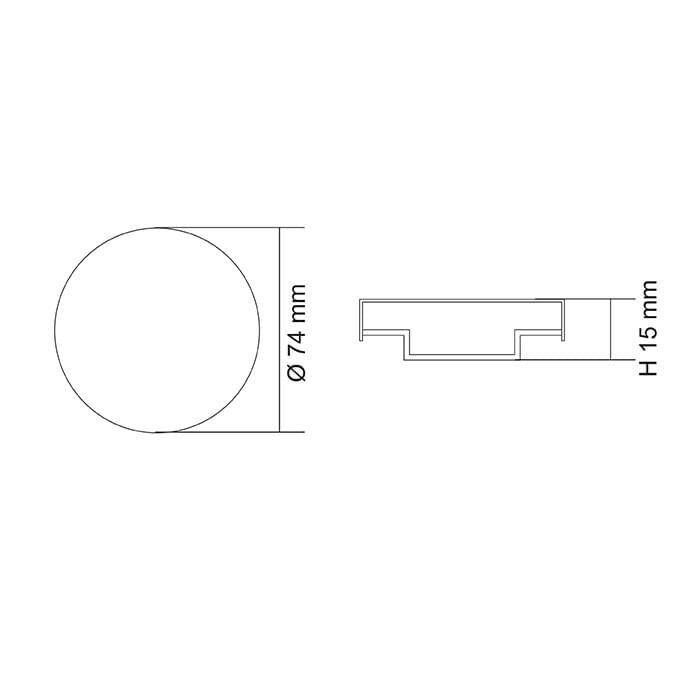

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.GX53/450WW Input Voltage240 Power5 Lumens420 CCT3000 CRI80 Beam Angle120 Dimmable NO Base TypeGX53 Add to Enquiry Add Remove Remove
    Model No.GX53/450CW Input Voltage240 Power5 Lumens430 CCT4000 CRI80 Beam Angle120 Dimmable NO Base TypeGX53 Add to Enquiry Add Remove Remove
    Model No.GX53/450DL Input Voltage240 Power5 Lumens450 CCT6000 CRI80 Beam Angle120 Dimmable NO Base TypeGX53 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
