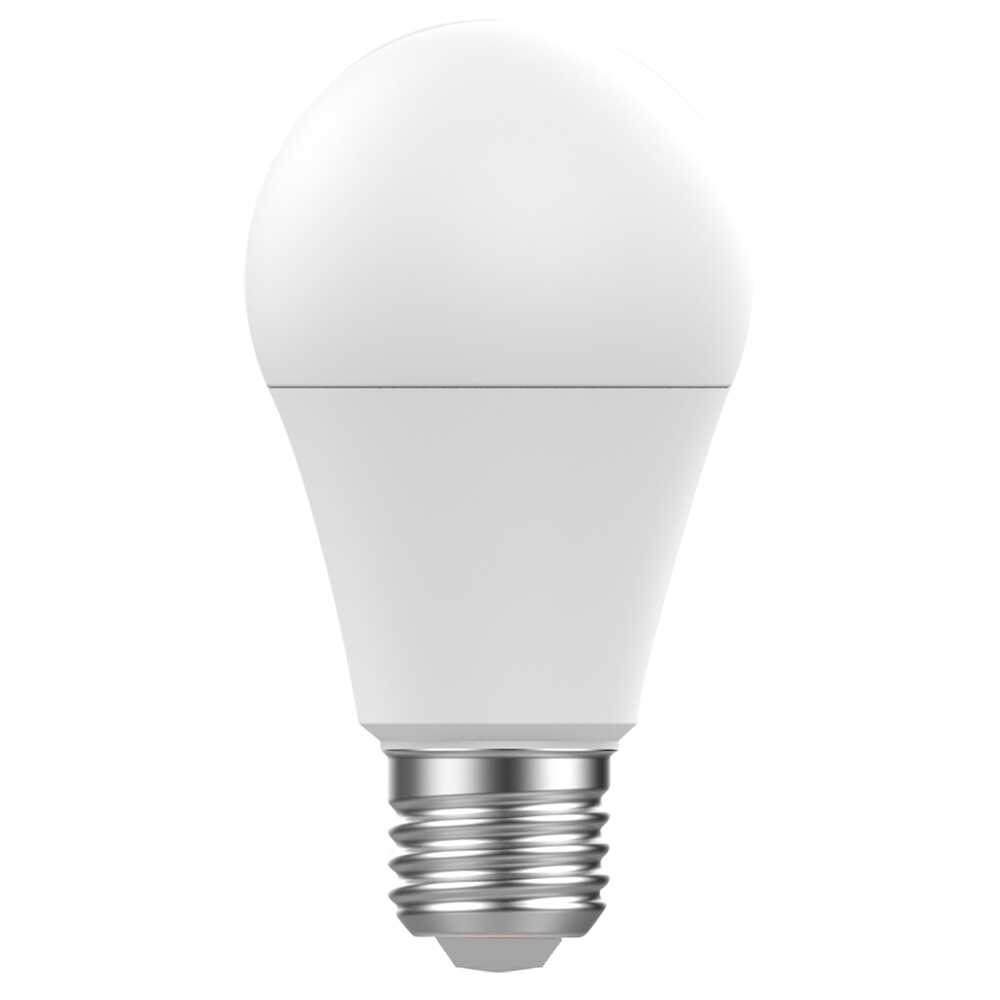

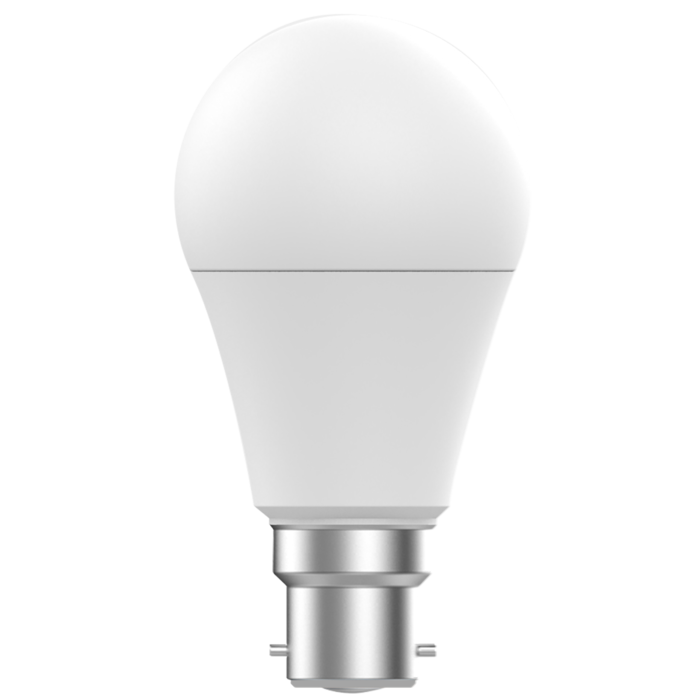

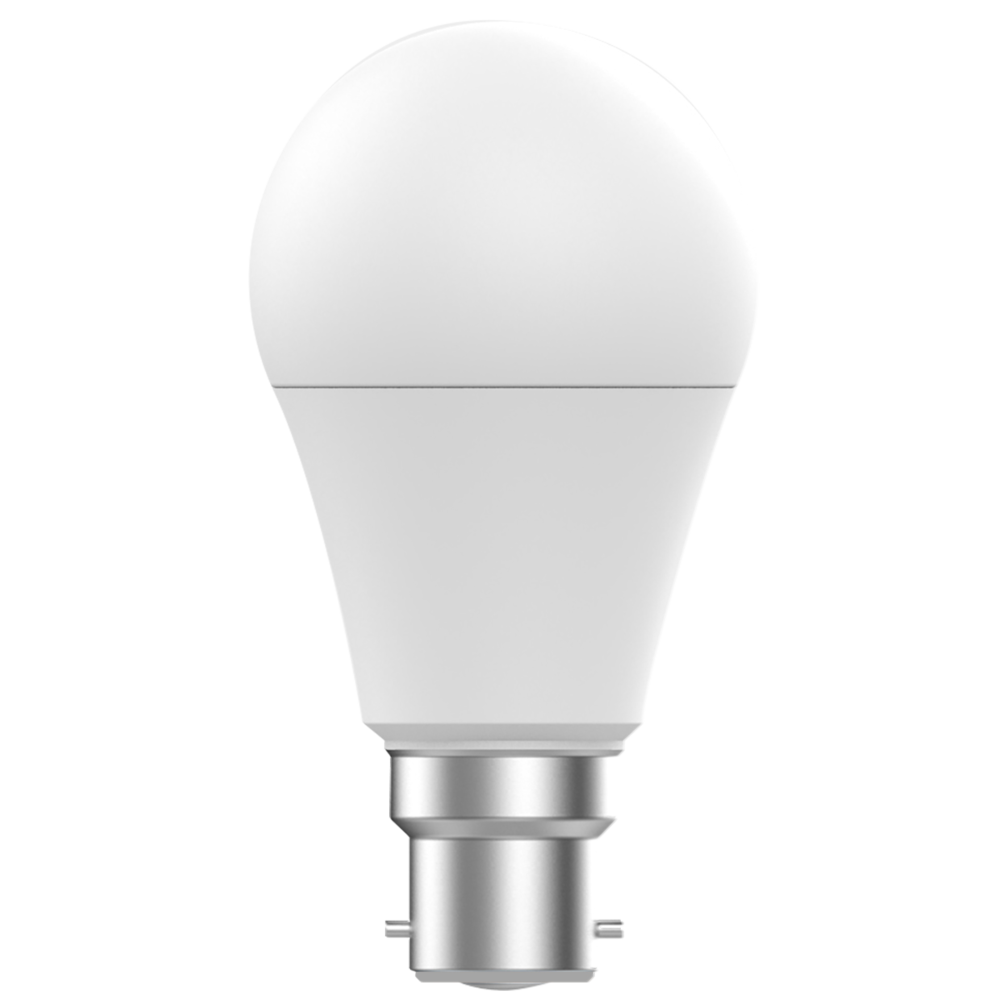

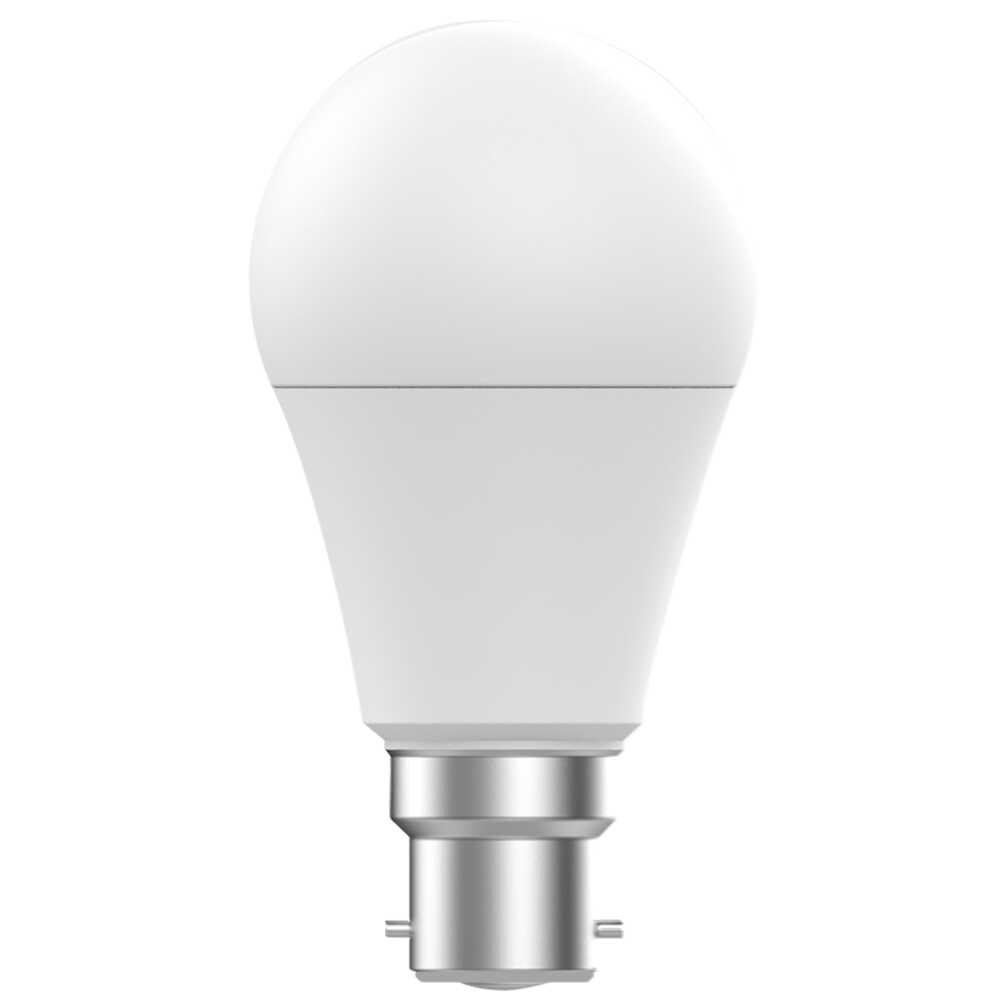

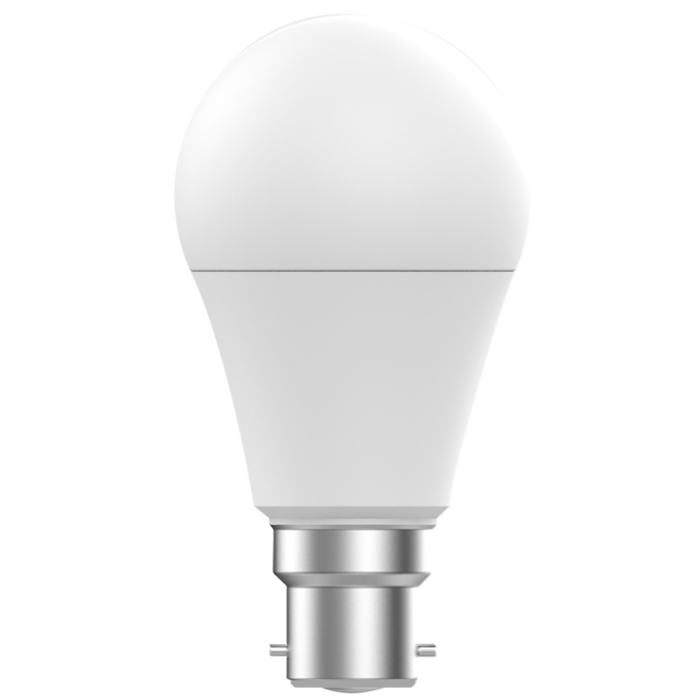

LGS10 OPAL - 10W

10 watt LED GLS style opal lamps

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser, beam distribution 200°

  • Poly covered aluminium body, B22 and E27 lamp bases

  • High efficiency LED optics, CRI > 80

  • Integral non-dimmable LED driver

  • CCT choice of 3000K / 4000K / 6000K

  • 1:1 size to traditional GLS lamp,
    suits most GLS lamp fittings

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

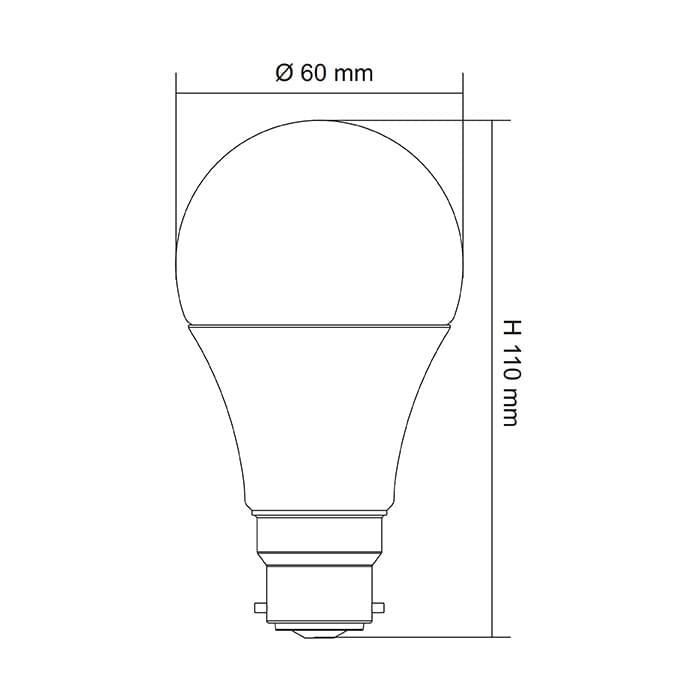

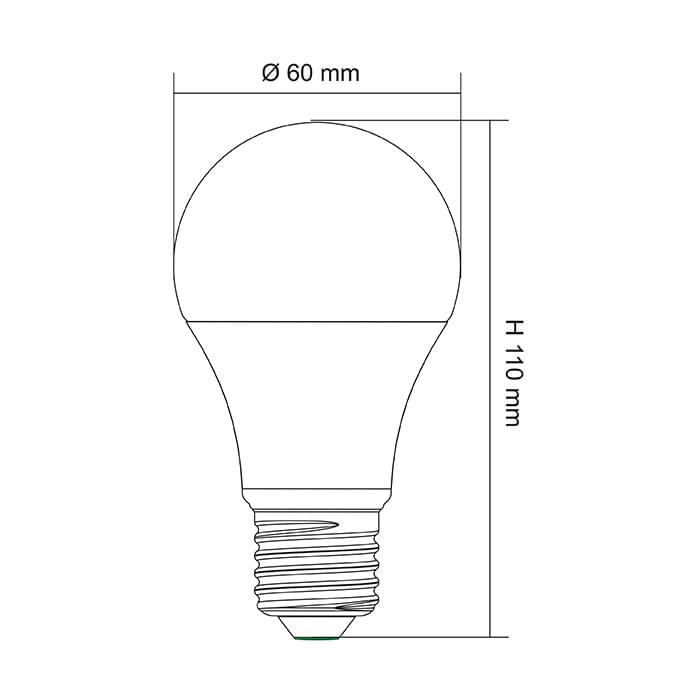

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LGS10/830B22 Input Voltage240 Power10 Lumens950 CCT3000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LGS10/840B22 Input Voltage240 Power10 Lumens1000 CCT4000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LGS10/860B22 Input Voltage240 Power10 Lumens1050 CCT6000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LGS10/830E27 Input Voltage240 Power10 Lumens950 CCT3000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeE27 Add to Enquiry Add Remove Remove
    Model No.LGS10/840E27 Input Voltage240 Power10 Lumens1000 CCT4000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeE27 Add to Enquiry Add Remove Remove
    Model No.LGS10/860E27 Input Voltage240 Power10 Lumens1050 CCT6000 CRI80 Beam Angle240 Dimmable NO Diameter60 Length110 Base TypeE27 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
