• LAMPS

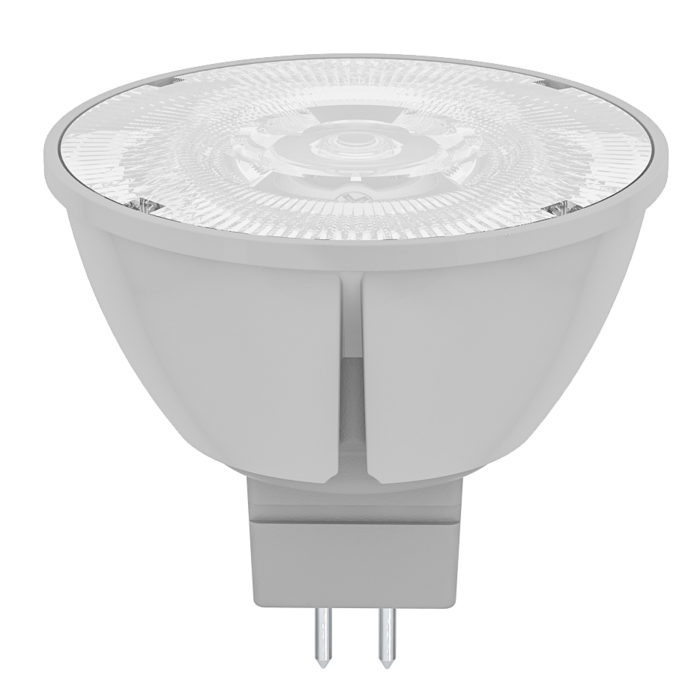

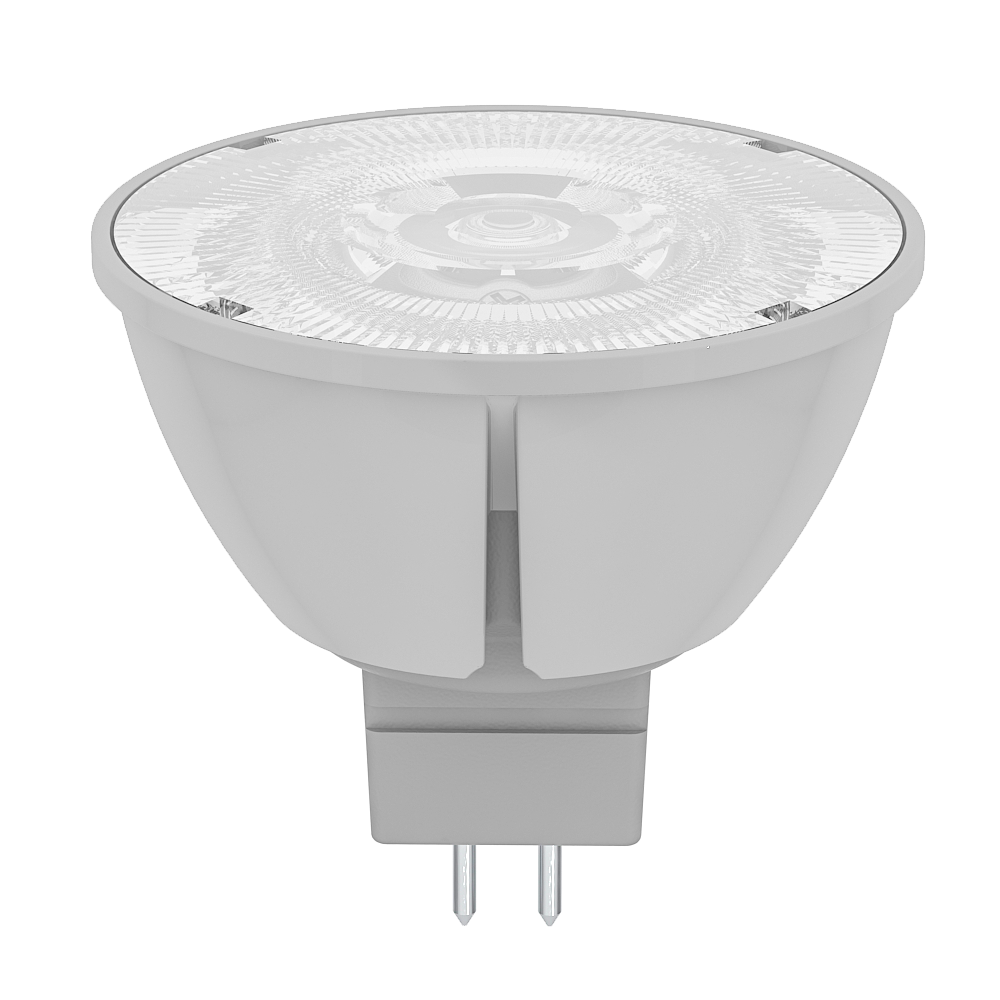

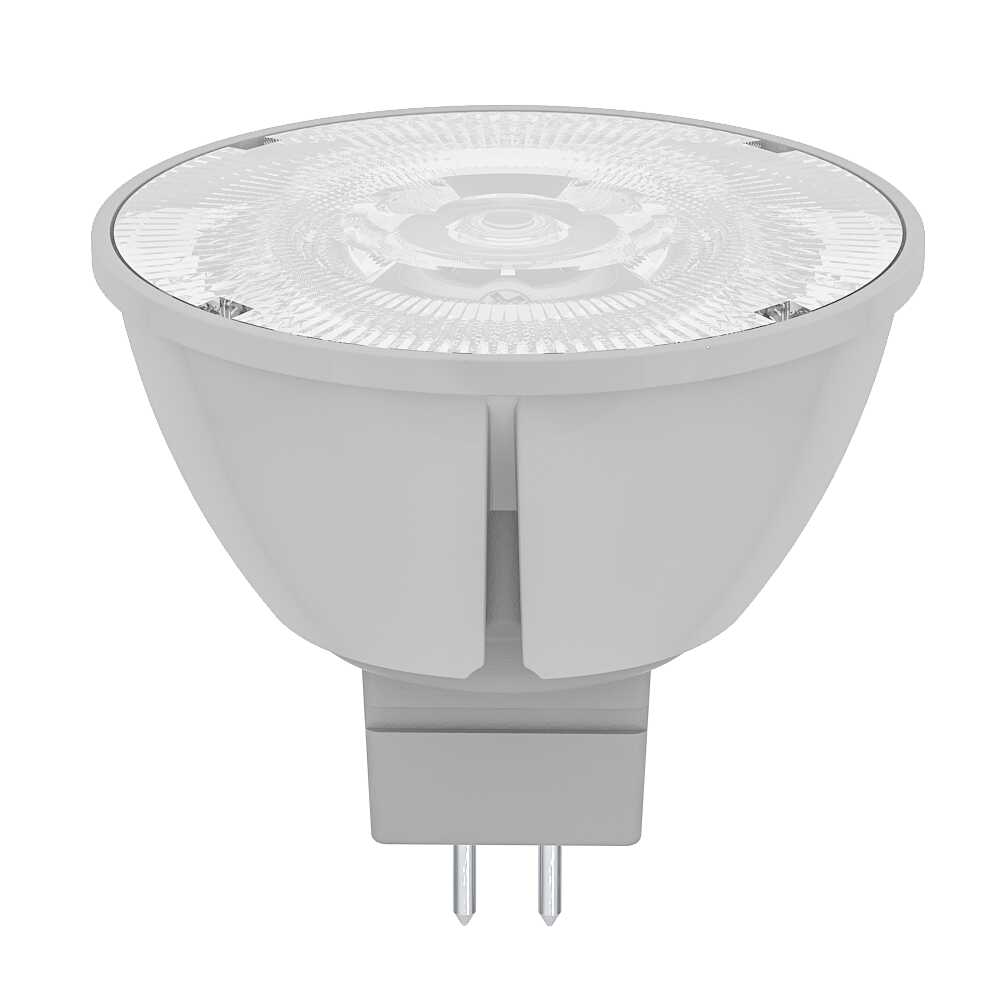

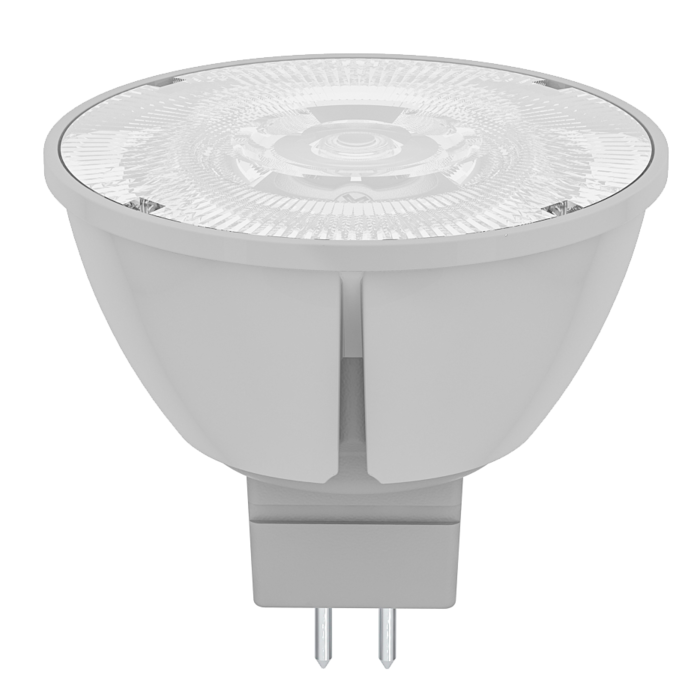

MR16DIM DIMMABLE - 9W

Dimmable 9 watt - MR16 profile LED 12V AC-DC

Application

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Die cast grey aluminium body

  • High efficiency LED optics, CRI>80

  • Dimmable only with SAL MINI60 driver

  • Beam distribution 60°, CCT choice of 3000K / 4000K / 5700K

  • Lamp base GU5.3

Performance

  • Dimmable - YES
  • Dimmer Type - SAL MINI60 only
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.MR16DIM9WW Input Voltage12 Input Voltage12 Power9 Lumens550 CCT3000 CRI80 Beam Angle60 Dimmable YES Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16DIM9CW Input Voltage12 Input Voltage12 Power9 Lumens550 CCT4000 CRI80 Beam Angle60 Dimmable YES Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16DIM9DL Input Voltage12 Input Voltage12 Power9 Lumens550 CCT5700 CRI80 Beam Angle60 Dimmable YES Base TypeGU5.3 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
