• LAMPS

MR16 - 5 W

5 watt MR16 profile shape LED

Application

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Poly covered aluminium body

  • High efficiency LED optics

  • 12V AC or DC electronic transformer required, non-dimmable

  • 5 watt, CRI > 80, CCT 3000K / 4000K / 6000K,
    beam distribution 38 degree

  • Lamp base GU5.3

Performance

  • Dimmable - NO
MR16 -
LIMITED STOCK
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

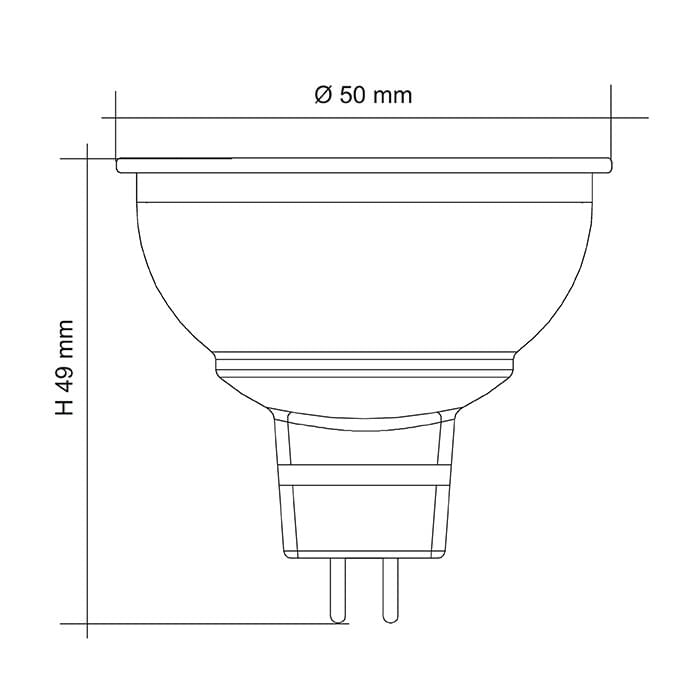

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.MR16 5W WW Input Voltage12 Input Voltage12 Power5 Lumens330 CCT3000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16 5W CW Input Voltage12 Input Voltage12 Power5 Lumens350 CCT4000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16 5W DL Input Voltage12 Input Voltage12 Power5 Lumens350 CCT6000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
