PHOENIX SL9775TC - 30W

30 watt LED linkable with 1-10V dimmable functionality and selectable CCT

Application

Decorative commercial service spaces, meeting rooms, amenity areas

Design Specifications

  • Extruded rectangular aluminium profile with an opal polycarbonate diffuser

  • Choice of white or black finish

  • High efficiency LED optics, CRI > 80

  • Selectable CCT 3000/4000/5700K, integral 1-10V dimmable LED driver

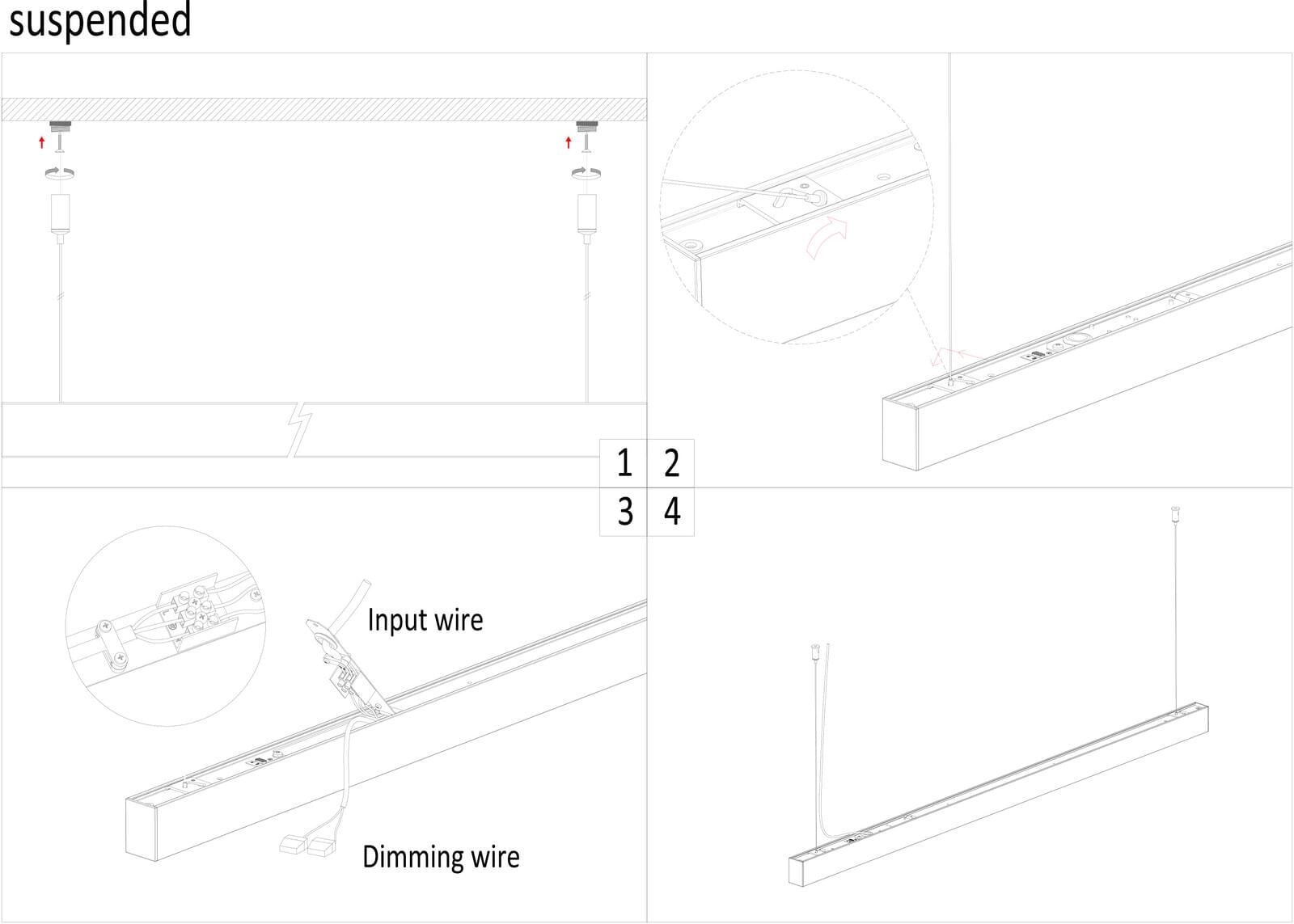

  • Surface mount or suspended, suspension kit (2 off 1800mm drops) incl.

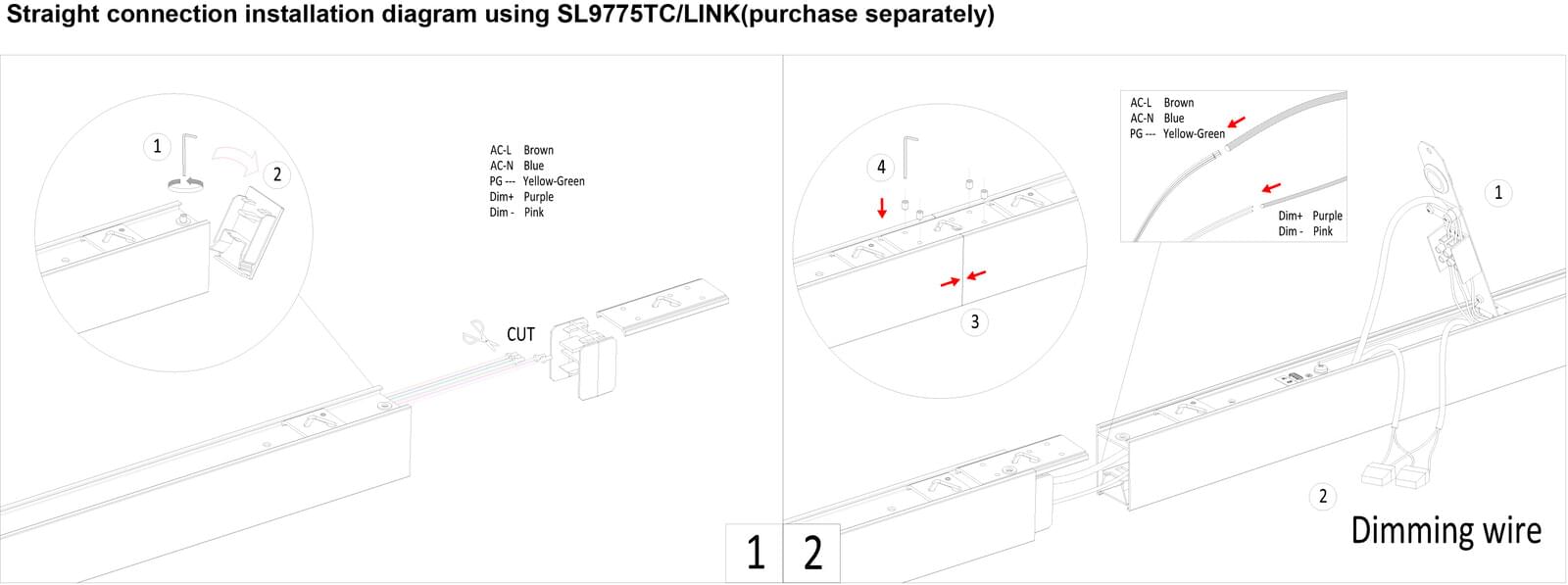

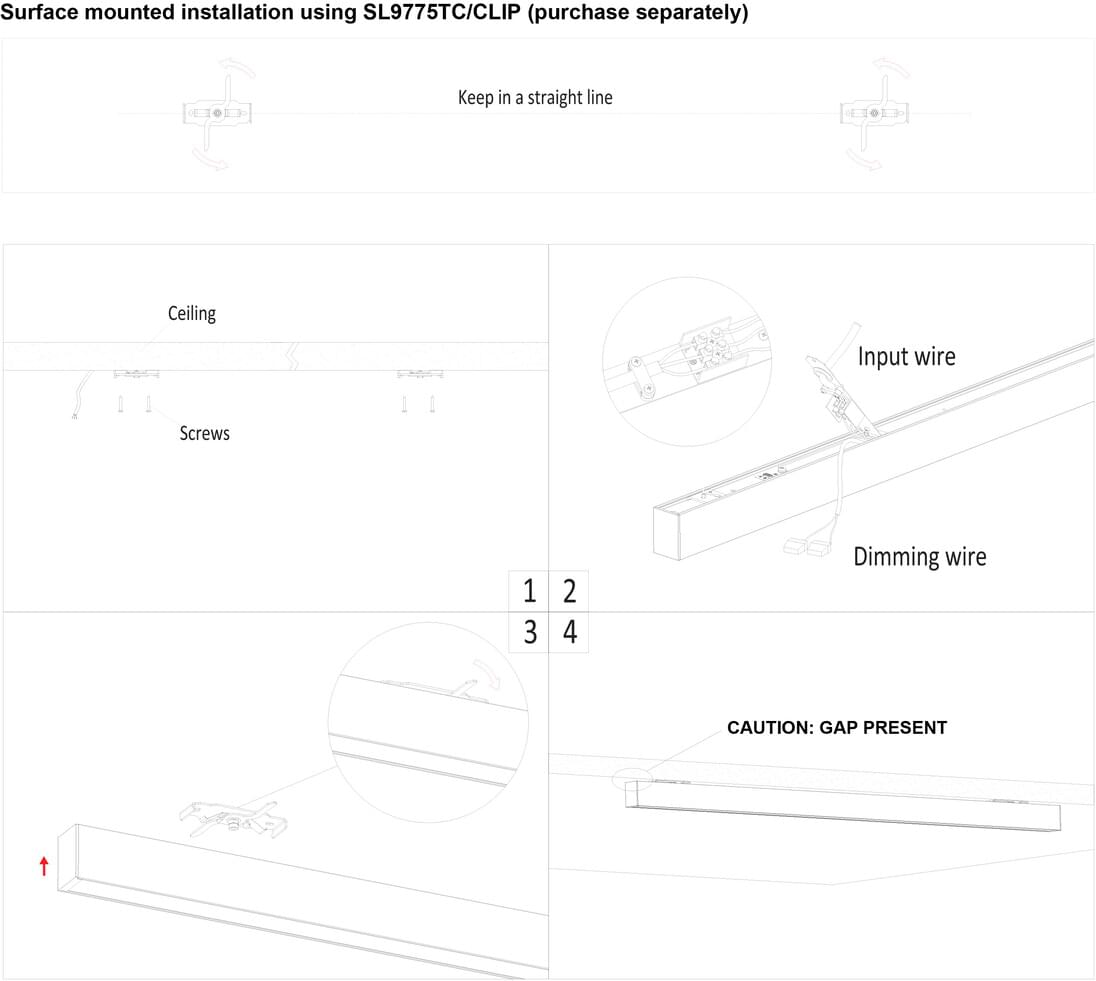

  • Optional surface mount, accessories to order (SL9775TC/CLIP - pack of two), max connected units 15 off, optional straight joiner required (SL9775TC/LINK - pack of one), continuous 5m diffuser roll (SL9775TC/DF5)

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour

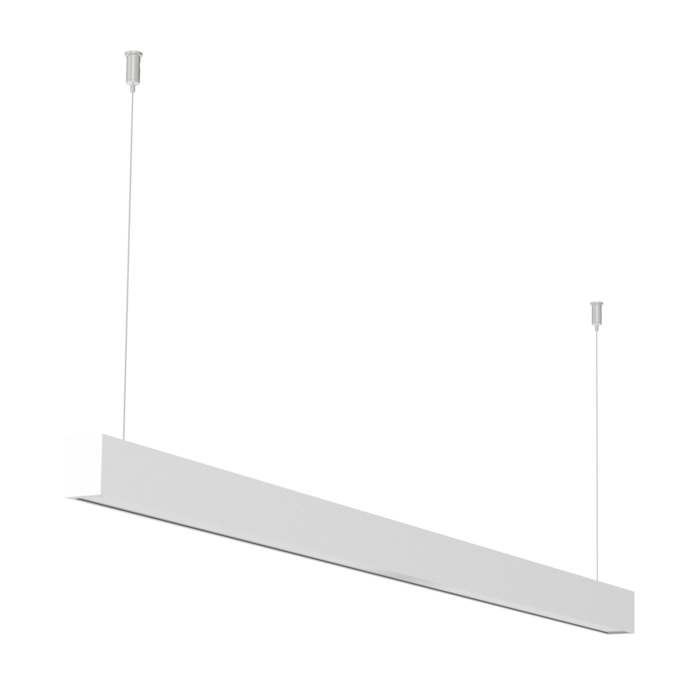

      		Model No. SL9775TC/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3100/3300/3300 CCT 3000/4000/5700 CRI 80 Beam Angle 105 Dimmable YES Dim 1129(L) x 35(W) x 50(H) Body Colour WHITE

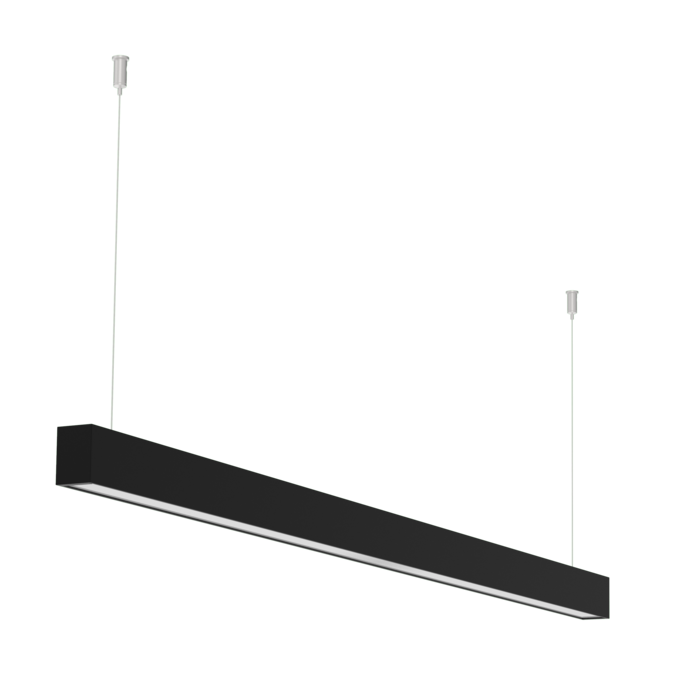

      		Model No. SL9775TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3100/3300/3300 CCT 3000/4000/5700 CRI 80 Beam Angle 105 Dimmable YES Dim 1129(L) x 35(W) x 50(H) Body Colour BLACK
      		Model No. SL9775TC/CLIP Add to Enquiry Add Remove Remove Body Colour WHITE

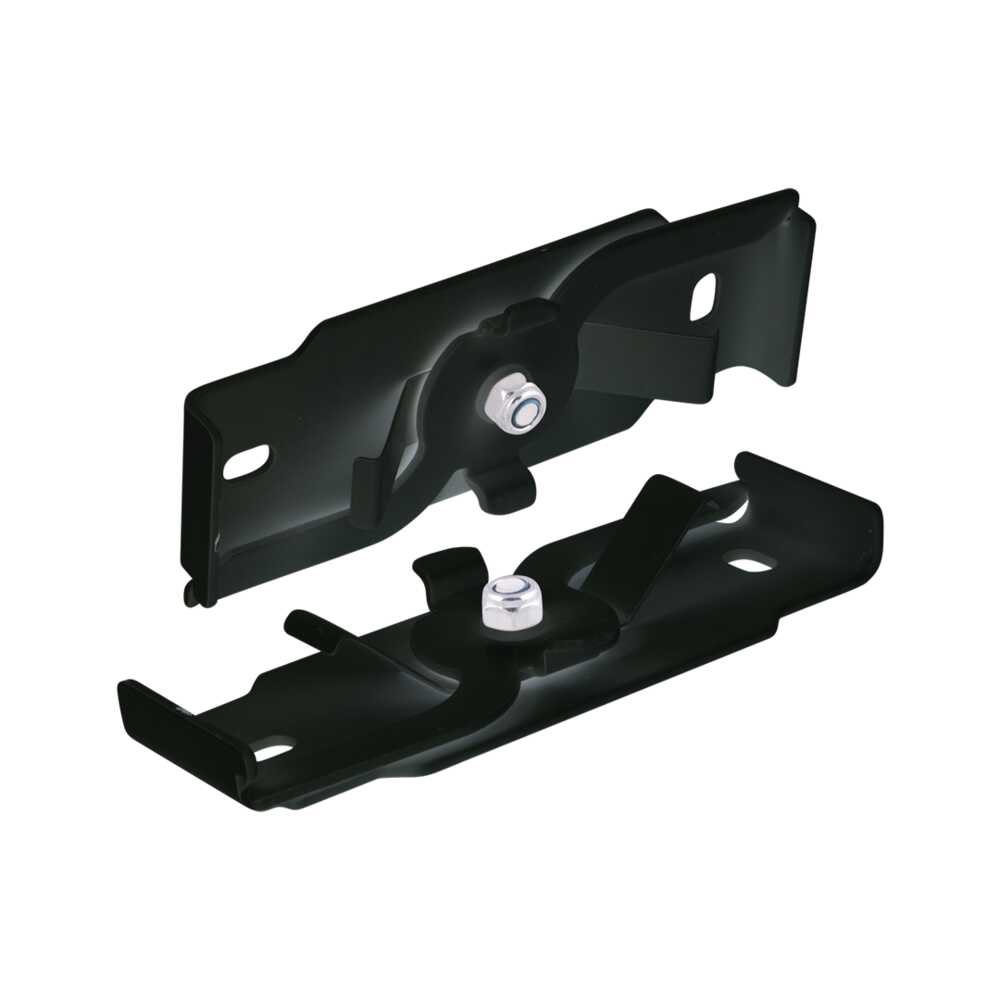

      		Model No. SL9775TC/CLIP/BK Add to Enquiry Add Remove Remove Body Colour BLACK
      		Model No. SL9775TC/LINK Add to Enquiry Add Remove Remove Body Colour WHITE
      		Model No. SL9775TC/DF5 Add to Enquiry Add Remove Remove Dim 5000(L) Body Colour OPAL WHITE

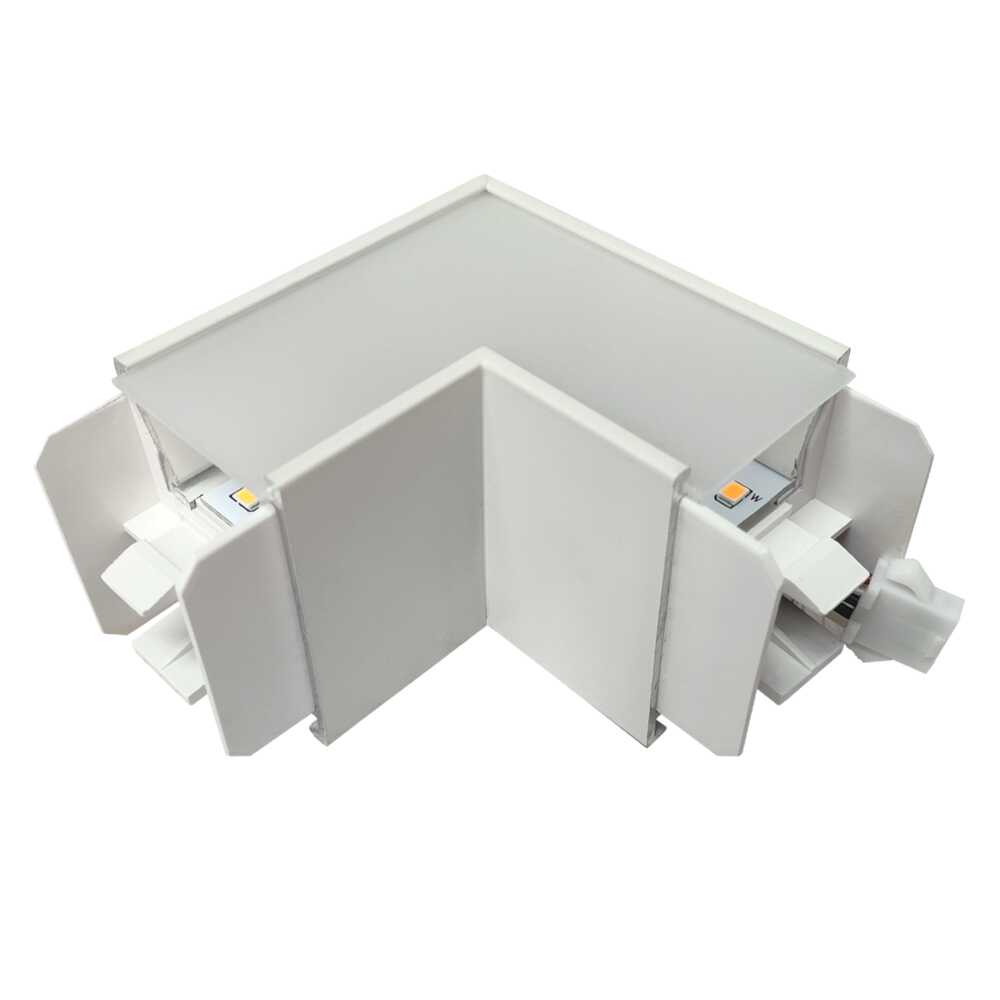

      		Model No. SL9775TC/CNR Add to Enquiry Add Remove Remove Body Colour WHITE

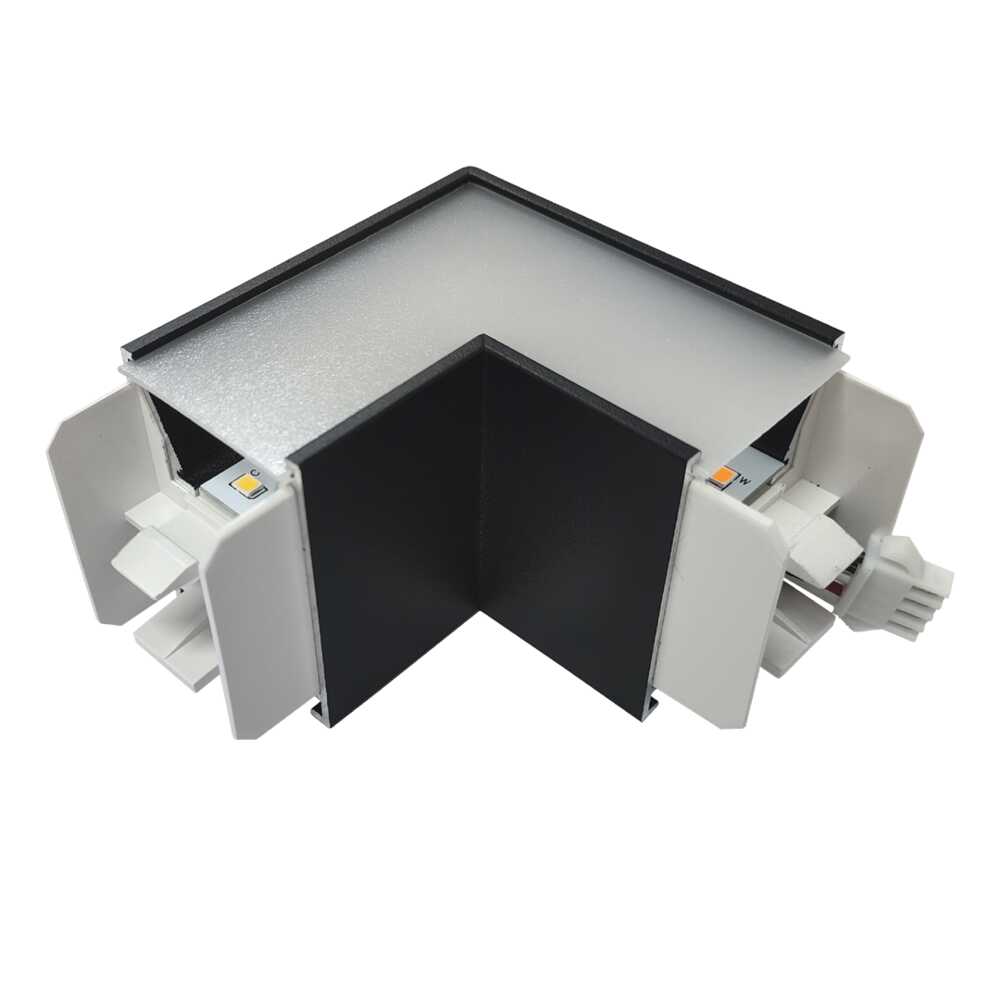

      		Model No. SL9775TC/CNR/BK Add to Enquiry Add Remove Remove Body Colour BLACK
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
