• LINEAR BATTENS & PROFILES

STD TC TUBELINE DIFFUSE - 9/36W

Conventional LED tube diffuse battens 9 - 36 watt

Application

Conventional LED interior battens ideal for residential and commercial service spaces

Design Specifications

  • Pressed steel base with PVC body
  • Large terminal block, easy installation

  • High efficiency LED T8 tubes fitted, beam distribution 120°, CRI >80, with selectable CCT lamps included, 3000K/4000K/6000K

  • Safety HRC fuse installed

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options

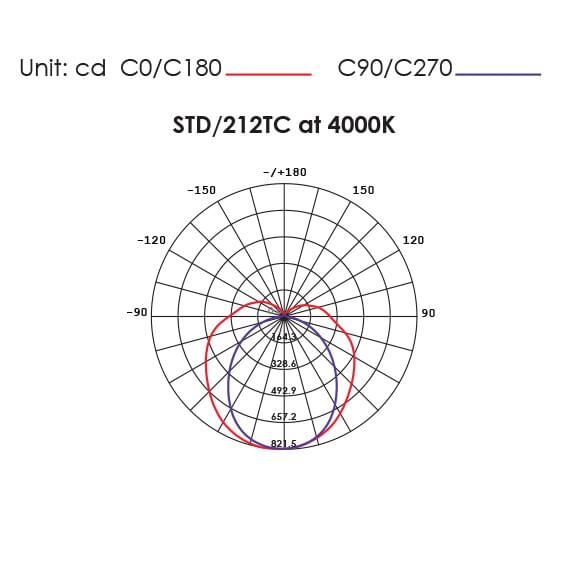

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

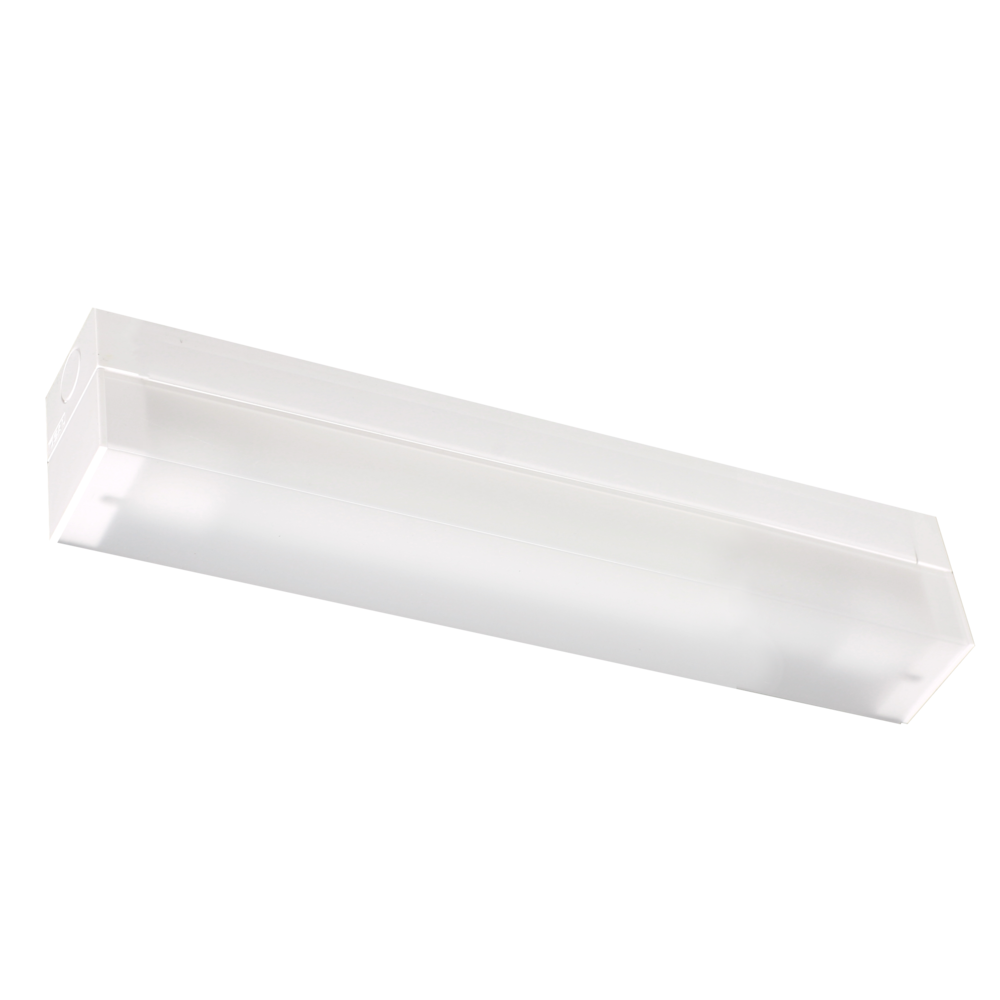

    Model No.STD/106TC Input Voltage240 Power9 Lumens900/1100/1000 CRI80 Beam Angle120 Dimmable NO Dim625(L) x 65(W) x 77(H) Body ColourWHITE Add to Enquiry Add Remove Remove

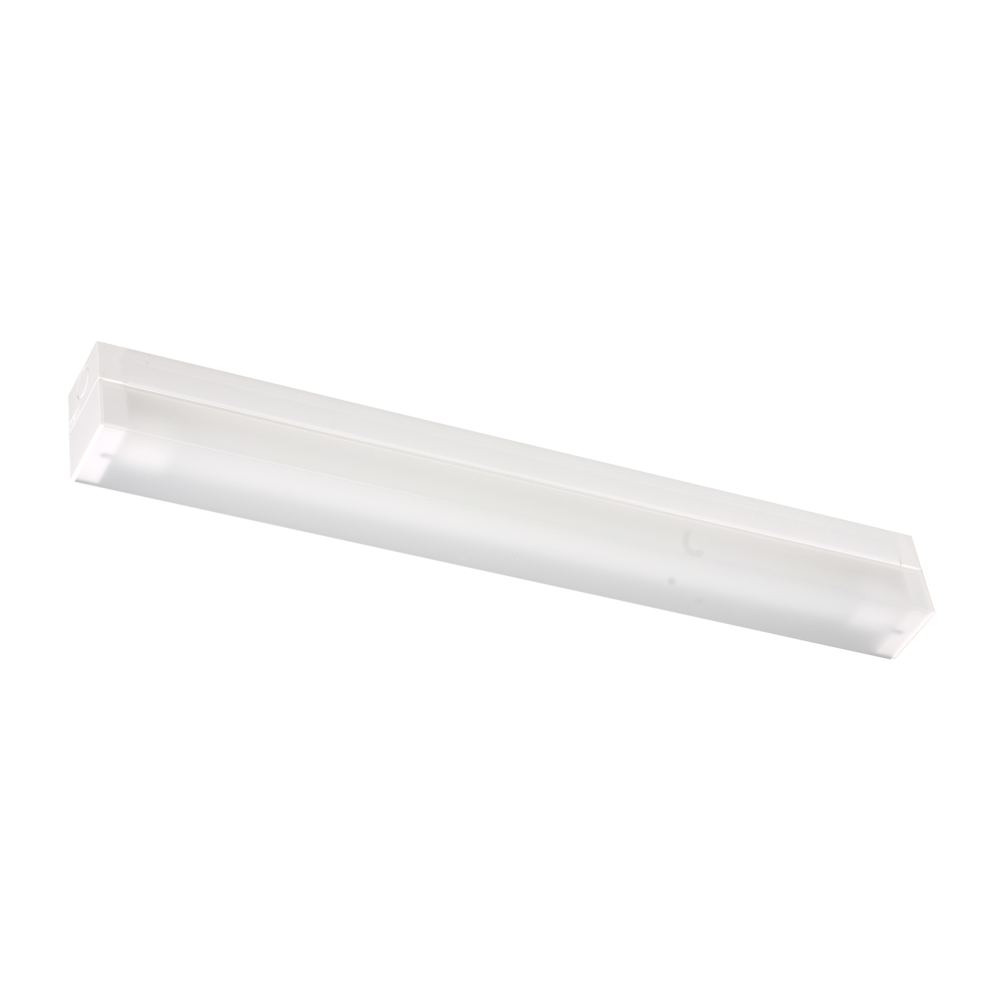

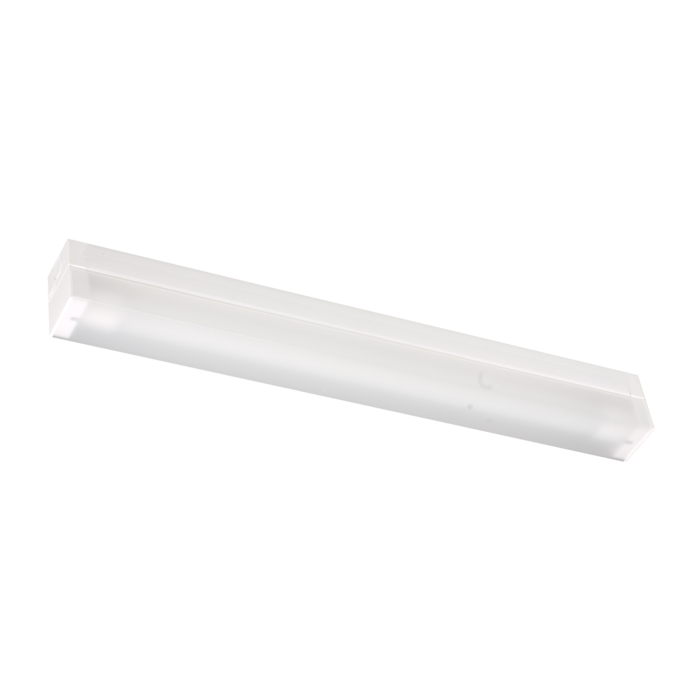

    Model No.STD/112TC Input Voltage240 Power18 Lumens1800/2200/2000 CRI80 Beam Angle120 Dimmable NO Dim1225(L) x 65(W) x 77(H) Body ColourWHITE Add to Enquiry Add Remove Remove

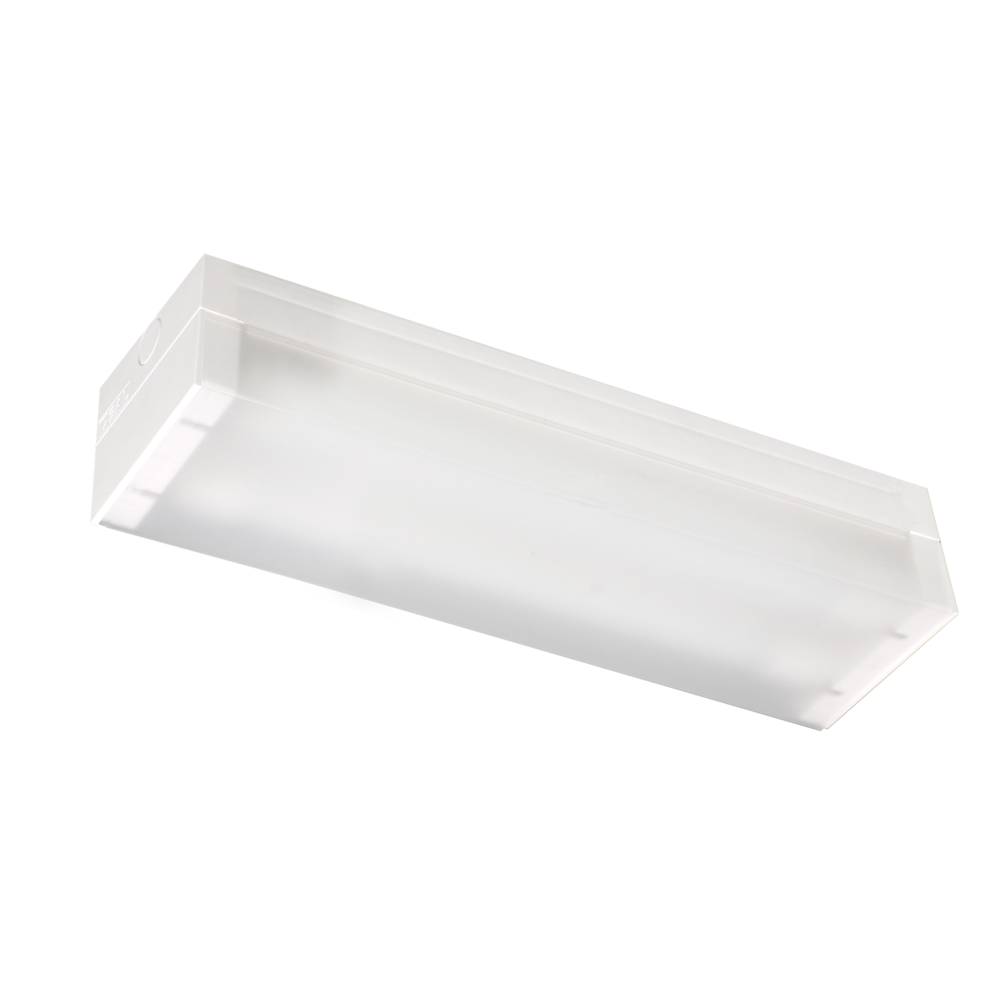

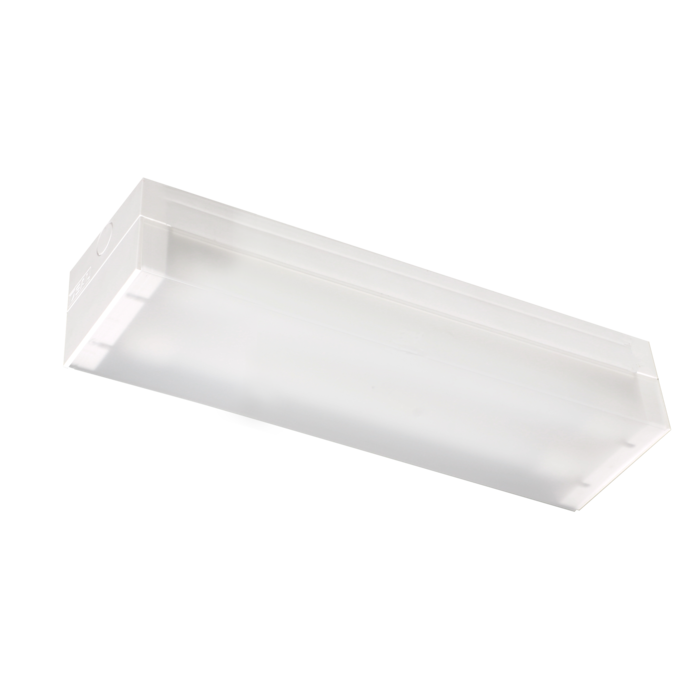

    Model No.STD/206TC Input Voltage240 Power18 Lumens1800/2200/2000 CRI80 Beam Angle120 Dimmable NO Dim625(L) x 110(W) x 77(H) Body ColourWHITE Add to Enquiry Add Remove Remove

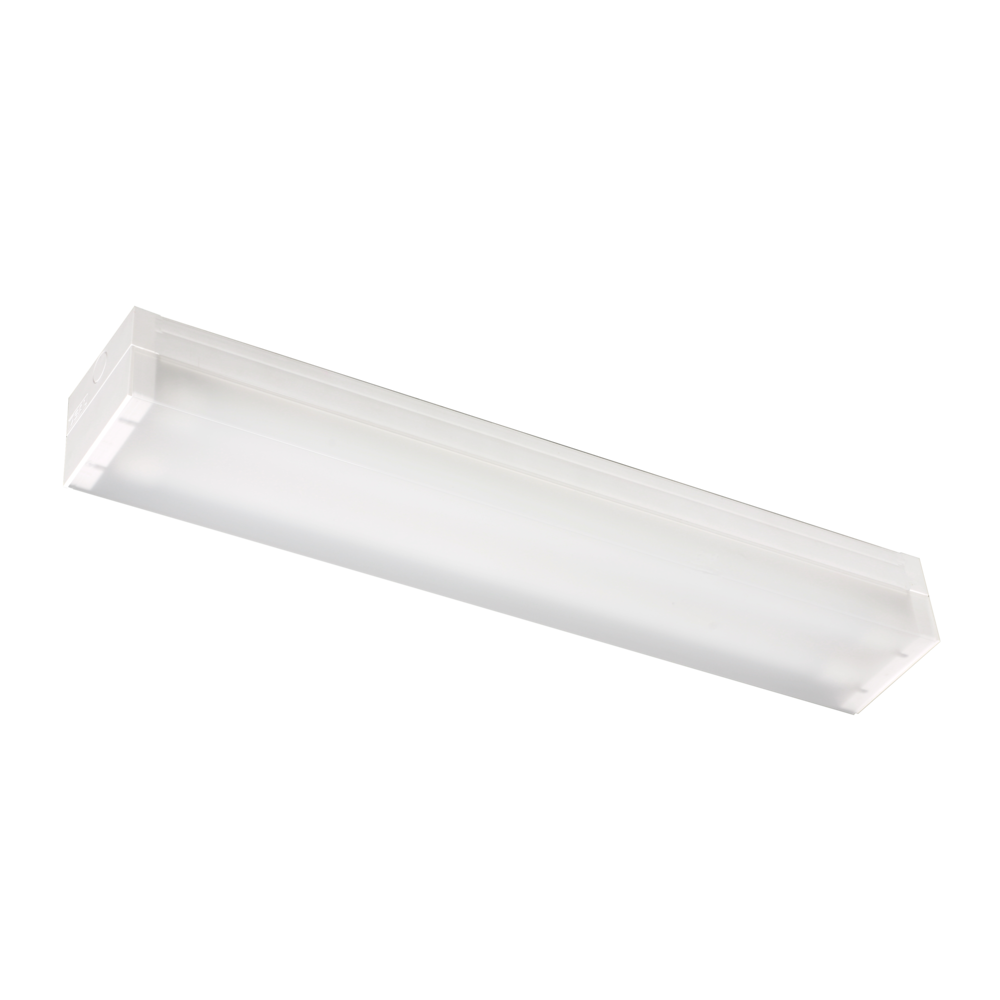

    Model No.STD/212TC Input Voltage240 Power36 Lumens3600/4400/4000 CRI80 Beam Angle120 Dimmable NO Dim1225(L) x 110(W) x 77(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
