• LINEAR BATTENS & PROFILES

WIDELINE S9733L - 20/65W

LED wide diffused batten 20-65 watt with selectable CCT

Application

Low profile design suitable for residential apartments and commercial service spaces

Design Specifications

  • Wide pressed steel base with opal polycarbonate diffuser

  • Quality white powder coated finish

  • High efficiency LED optics, CRI>80, beam distribution 120 degree

  • Integral constant current non-dimmable LED driver

  • Selectable CCT 3000K, 4000K, 5700K

  • Large terminal block, easy installation

Performance

  • Dimmable - NO
WIDELINE S9733L
LIMITED STOCK
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options

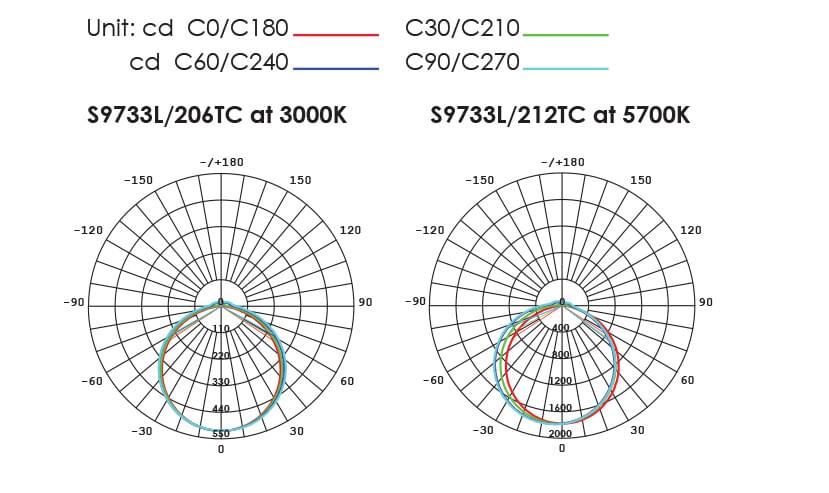

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9733L/206TC Input Voltage240 Power20 Lumens1800/2000/1800 CCT3000/4000/5700 CRI80 Beam Angle120 Dim610(L) x 160(W) x 60(H) Body ColourWHITE IPARTYES Add to Enquiry Add Remove Remove
    Model No.S9733L/212TC Input Voltage240 Power38 Lumens3700/3800/3700 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1144(L) x 160(W) x 60(H) Body ColourWHITE IPARTYES Add to Enquiry Add Remove Remove
    Model No.S9733L/215TC Input Voltage240 Power65 Lumens5400/5800/5400 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1495(L) x 160(W) x 60(H) Body ColourWHITE IPARTYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
