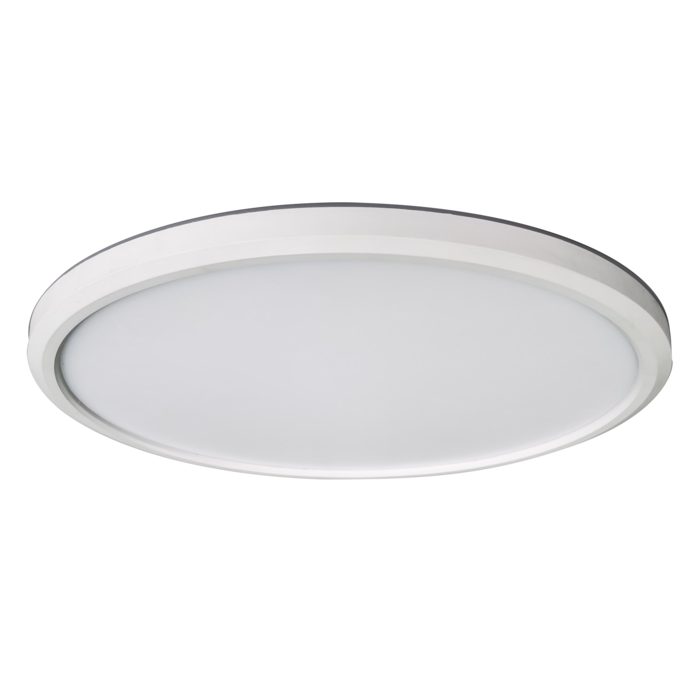

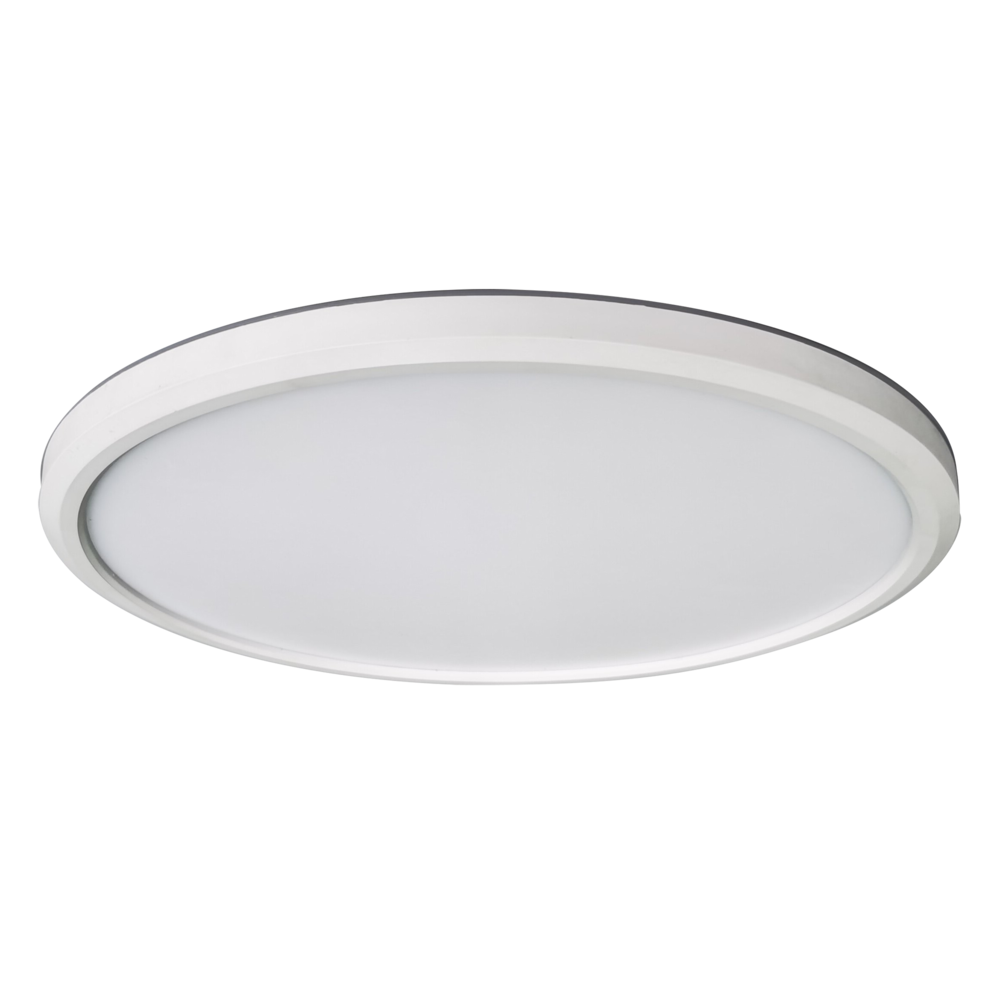

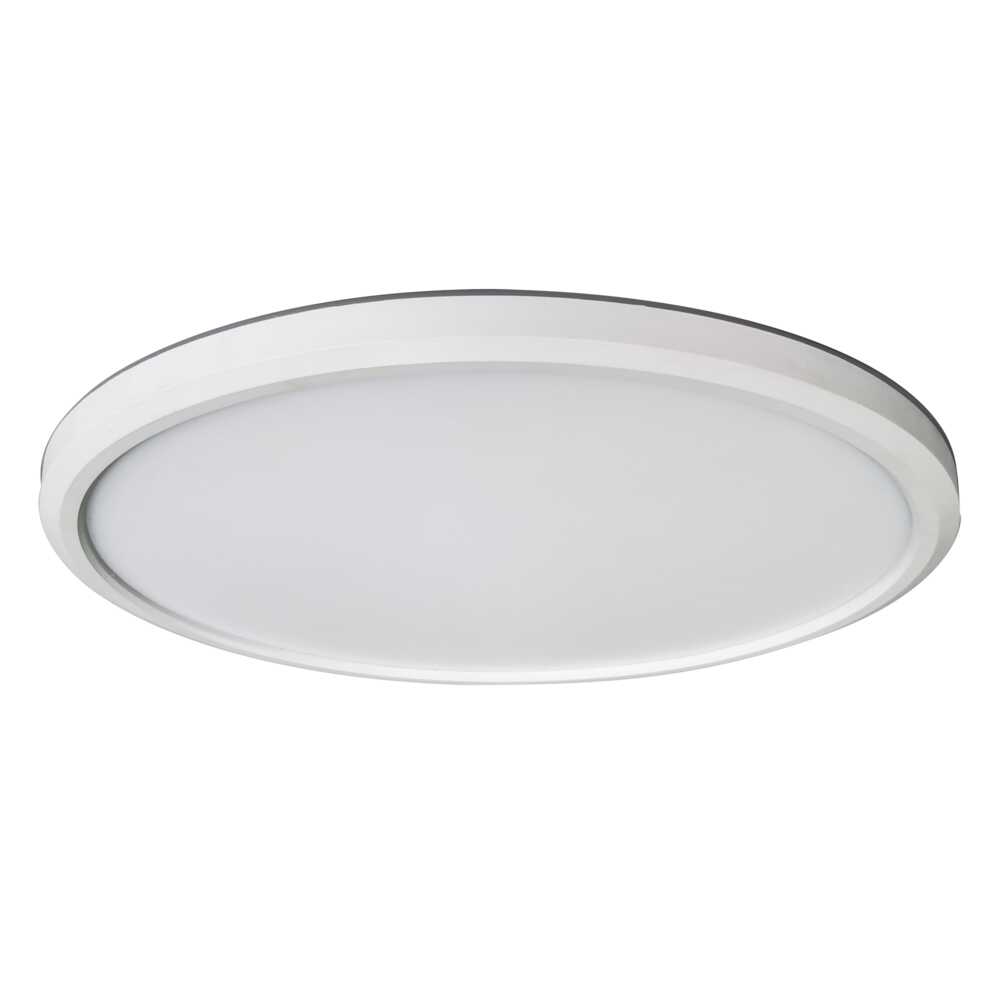

KINGSTON DIMMABLE SL2115/TCD - 13W/30W

Dimmable, super low profile LED Oyster 13, 24 or 30 watt, with selectable CCT, IP54

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 5700K

  • High performance IP54 opal PC mounting base and LED optical module

  • High efficiency LED optics, CRI > 80, 100° beam distribution

  • Integral, dimmable LED driver, choice of 13, 24 or 30 watt

  • Double insulated, ceiling mount

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dimmable Beam Angle Body Colour Diameter Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

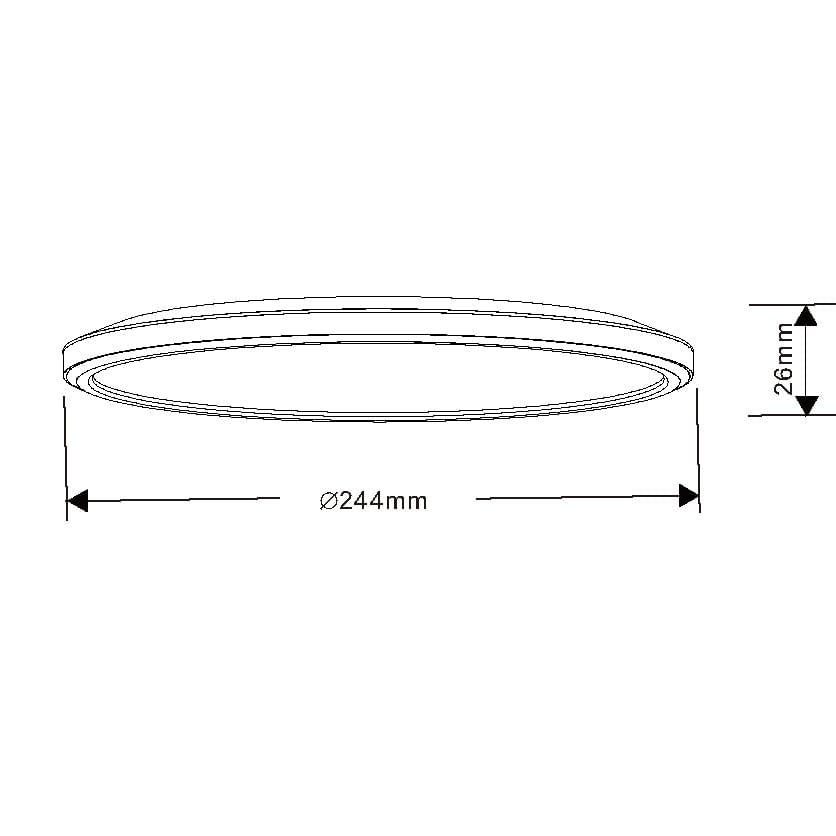

    Model No.SL2115/25TCD Input Voltage240 Power13 Lumens1000/1150/1050 CCT3000/4000/5700 CRI80 Dimmable YES Beam Angle100 Body ColourWhite Diameter244 Dim26(H) Mass0.5 Add to Enquiry Add Remove Remove

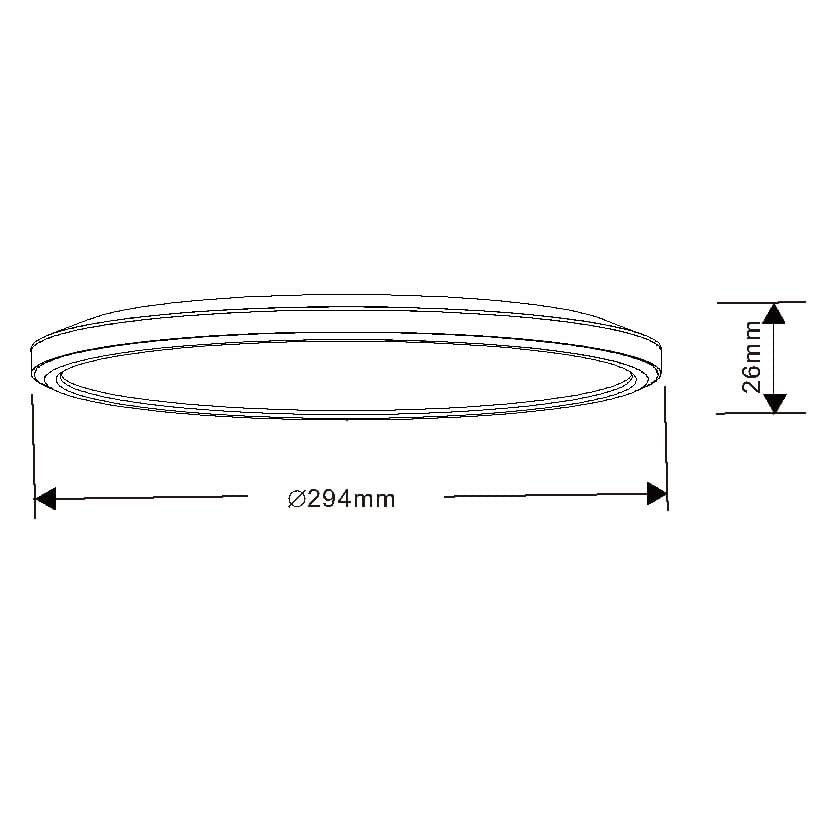

    Model No.SL2115/30TCD Input Voltage240 Power24 Lumens1900/2100/2000 CCT3000/4000/5700 CRI80 Dimmable YES Beam Angle100 Body ColourWhite Diameter294 Dim26(H) Mass0.66 Add to Enquiry Add Remove Remove
    Model No.SL2115/40TCD Input Voltage240 Power30 Lumens2600/2800/2700 CCT3000/4000/5700 CRI80 Dimmable YES Beam Angle100 Body ColourWhite Diameter420 Dim30(H) Mass1.14 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
