• OYSTERS

SHELL SO3160 - 14/30W

IP20 LED Oyster

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Premier aluminium housing, two profile sizes available

  • Chrome plated centre locking disc

  • Opal acrylic diffuser

  • High efficiency LED optics, CRI >80

  • Integral constant current non-dimmable LED driver

Performance

  • Dimmable - NO
  • WARM WHITE3000K

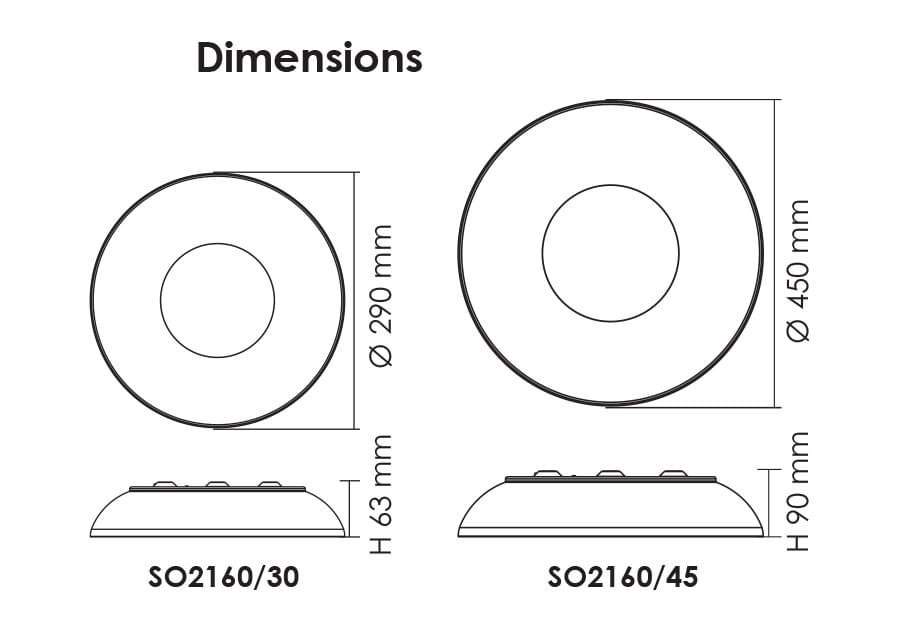

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Diameter Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SO3160/30 Input Voltage240 Power14 Lumens930 CCT3000 CRI80 Beam Angle90 Body ColourAnodised silver Diameter290 Dim63(H) Mass0.9 Add to Enquiry Add Remove Remove
    Model No.SO3160/45 Input Voltage240 Power30 Lumens1800 CCT3000 CRI80 Beam Angle90 Body ColourAnodised silver Diameter450 Dim90(H) Mass1.8 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
With over 1000 Australian trade partners, finding where to buy SAL products is easy.  Search a trade partner nearby
