• PANELS & TROFFERS

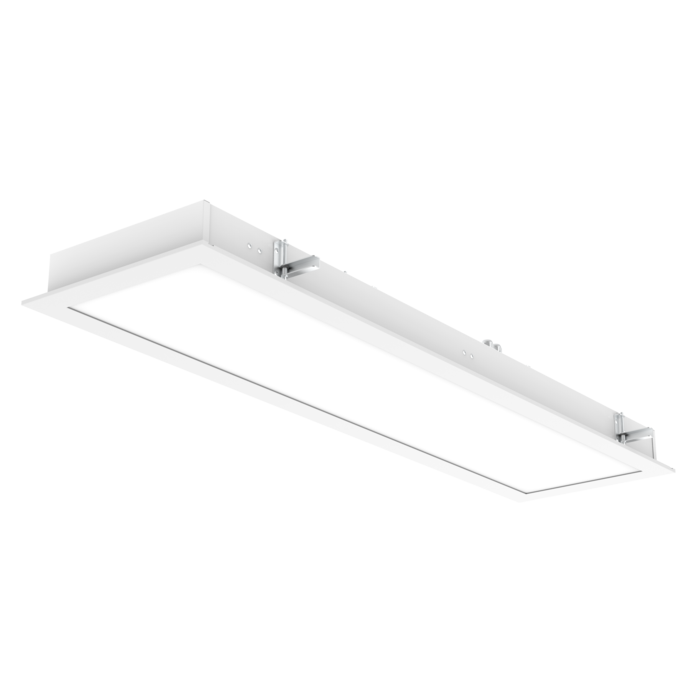

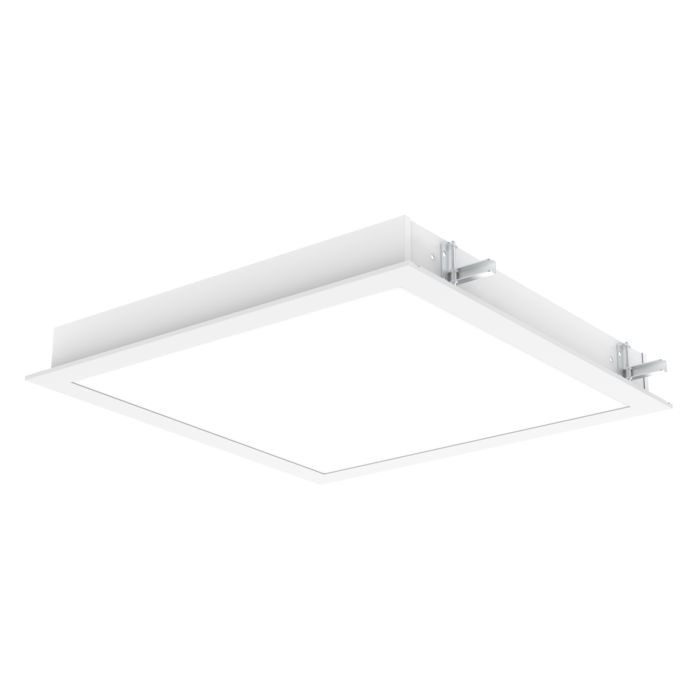

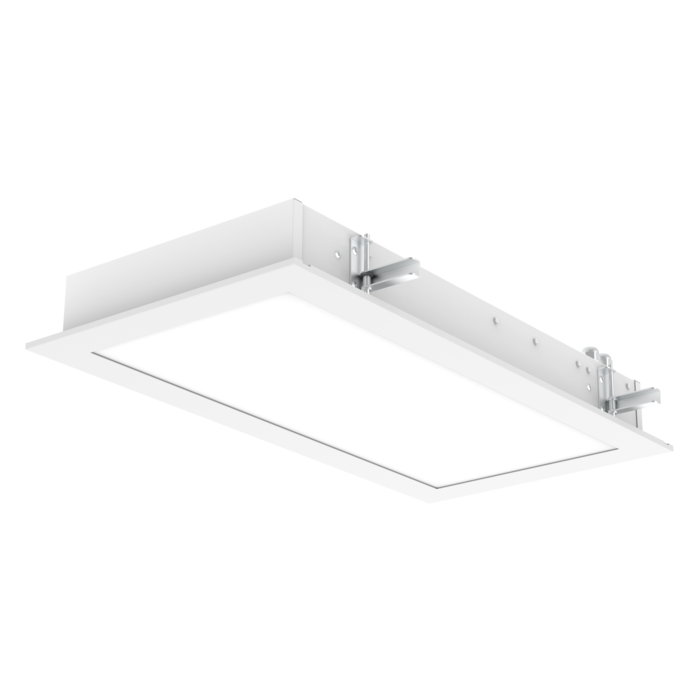

BISMARCK II S9794 - 34/53W

LED IP65 (above and below the ceiling) cleanroom panel

Application

Designed for cleanroom commercial interior spaces

Design Specifications

  • Fully enclosed design suitable for plaster troffer frames

  • Adjustable flip-out mounting brackets for easy installation and sealing integrity

  • Pressed steel frame, with a quality white powder coated finish

  • Precision (magnetic) sealed shockproof clear polycarbonate lens, 110 degree beam distribution, UGR<19, CCT 4000K

  • Integral control gear with flex and 3 pin plug fitted for faster installation

  • Three convenient model sizes to select, in two versatile wattages - 34 or 53 watts.

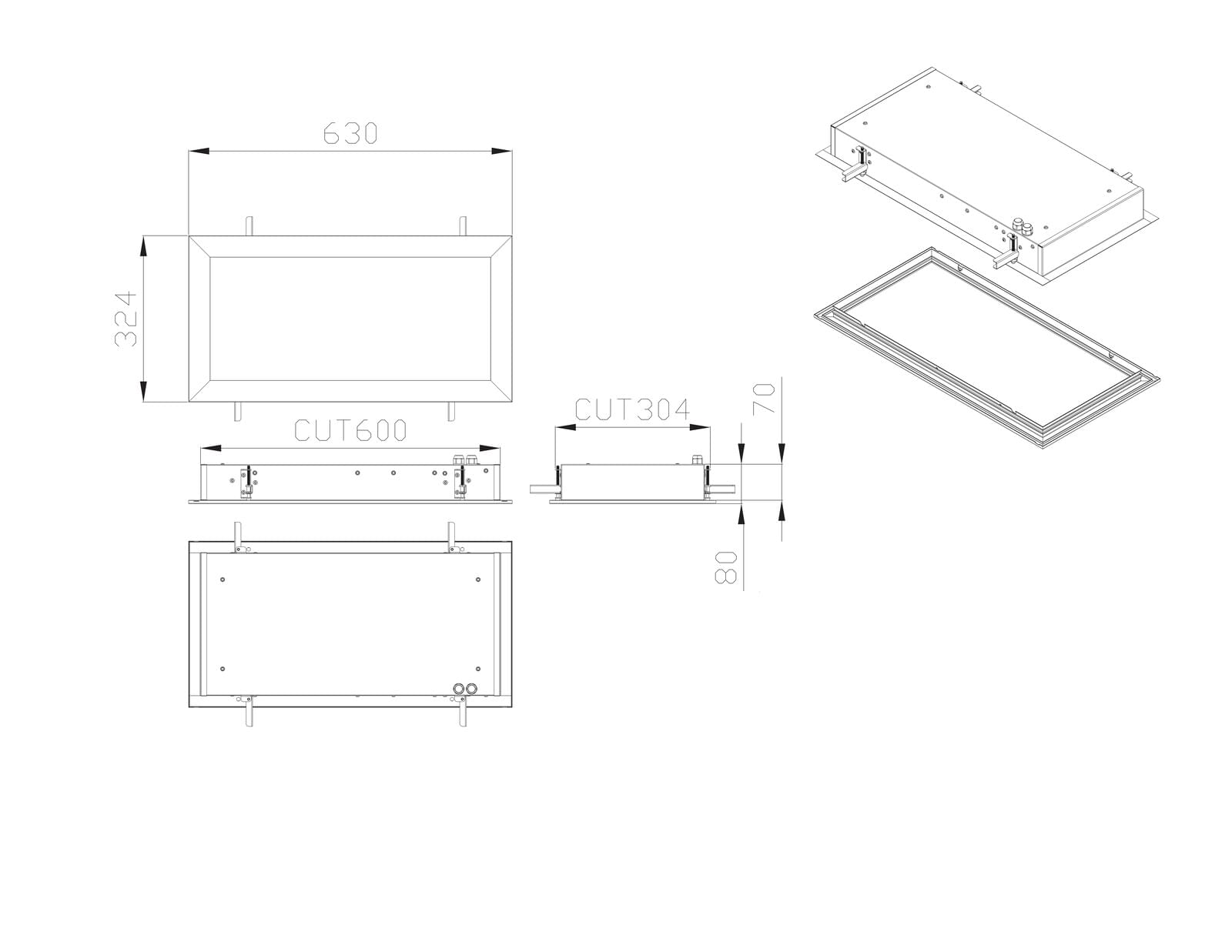

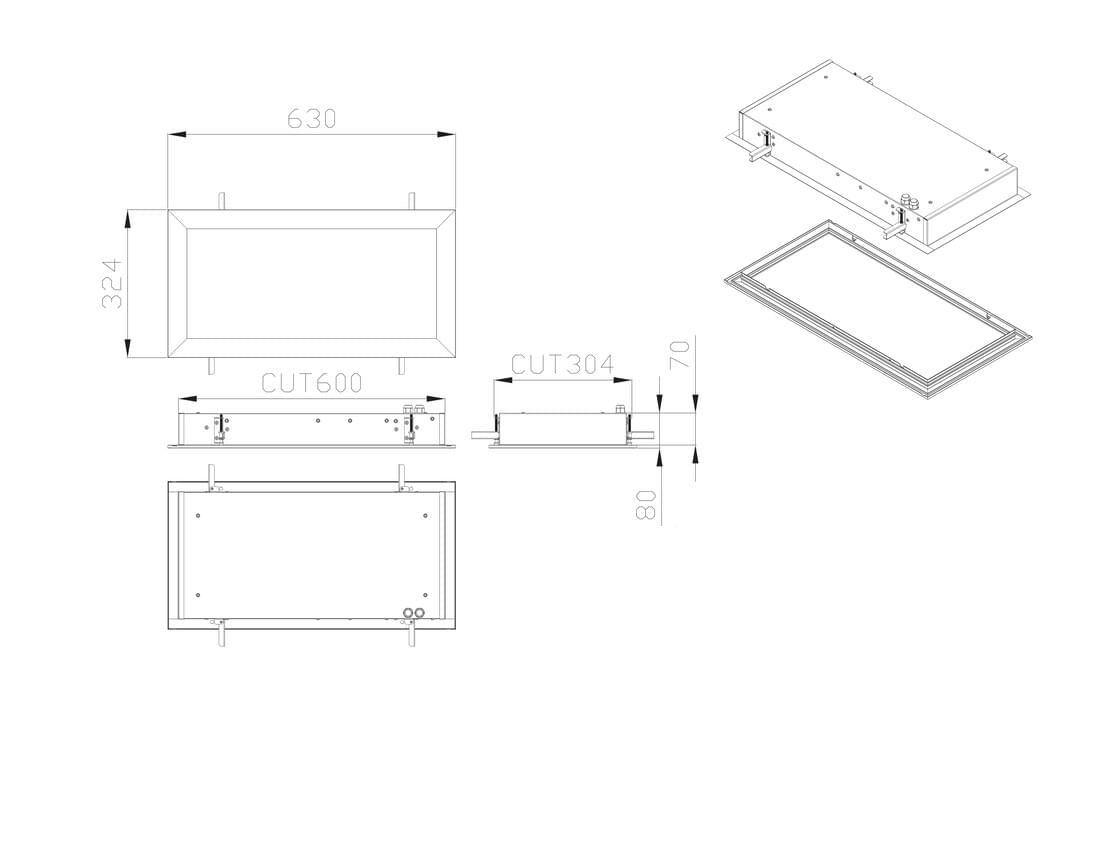

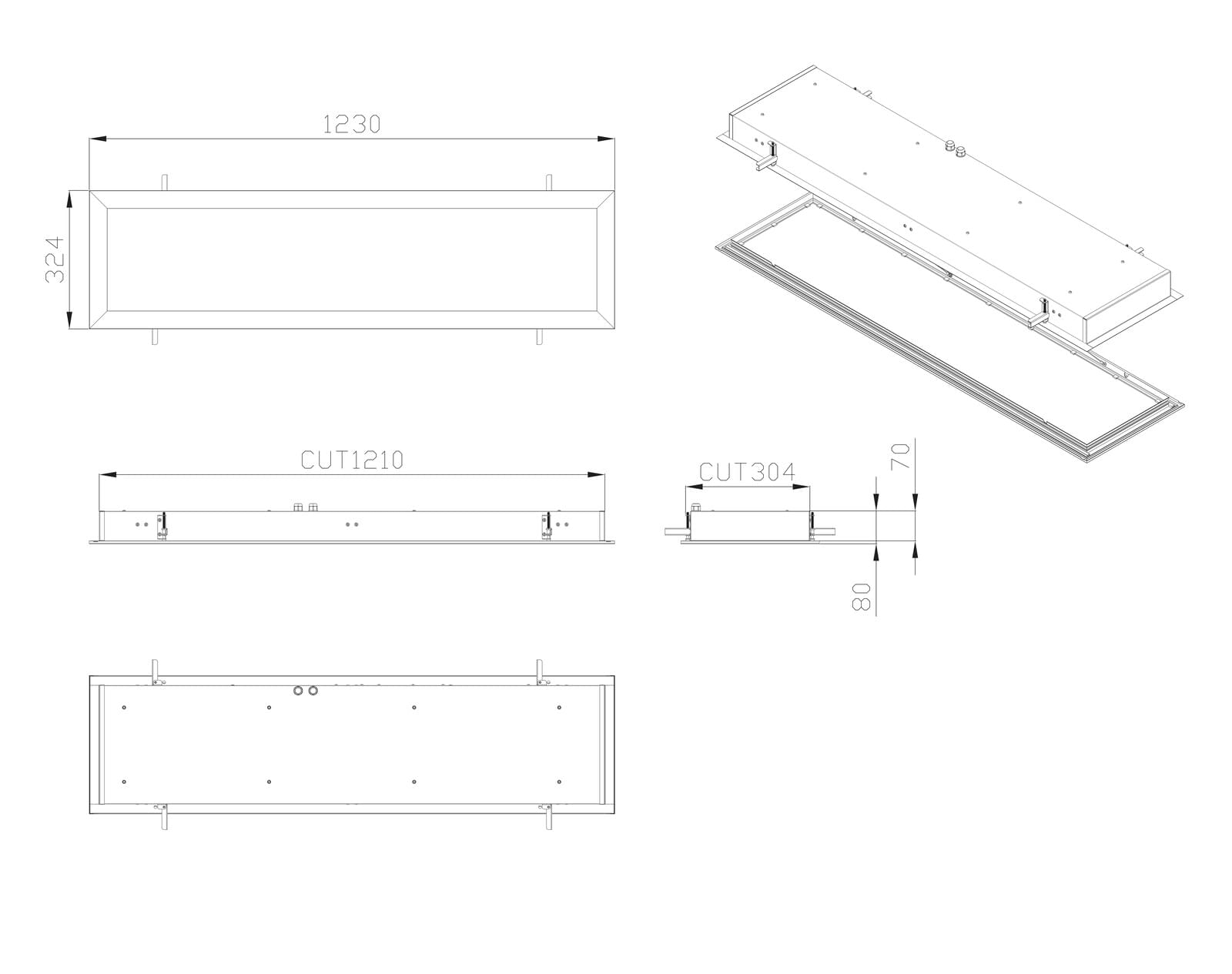

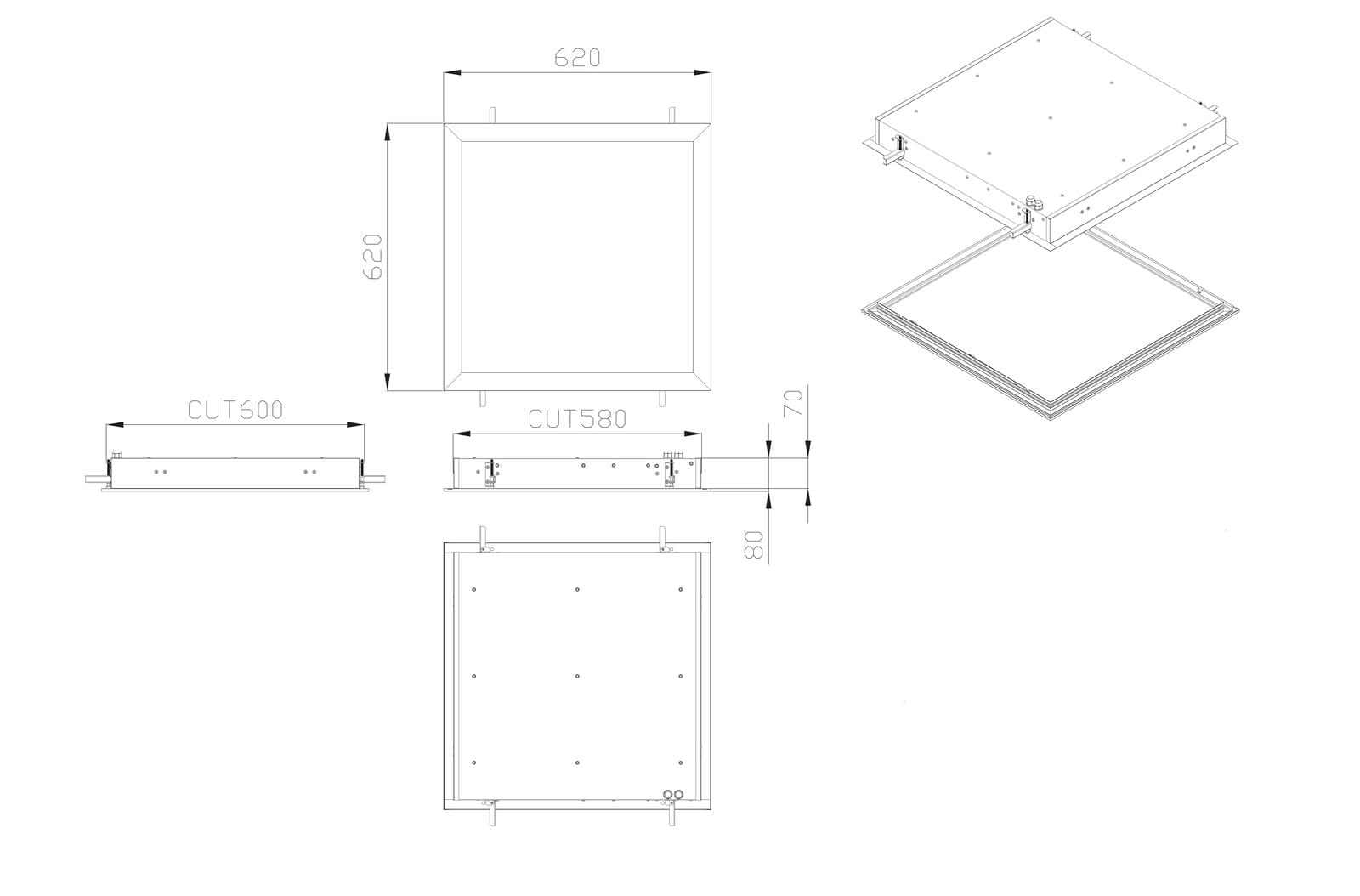

  • Dimensions - Wiring Diagrams
  • Design Options

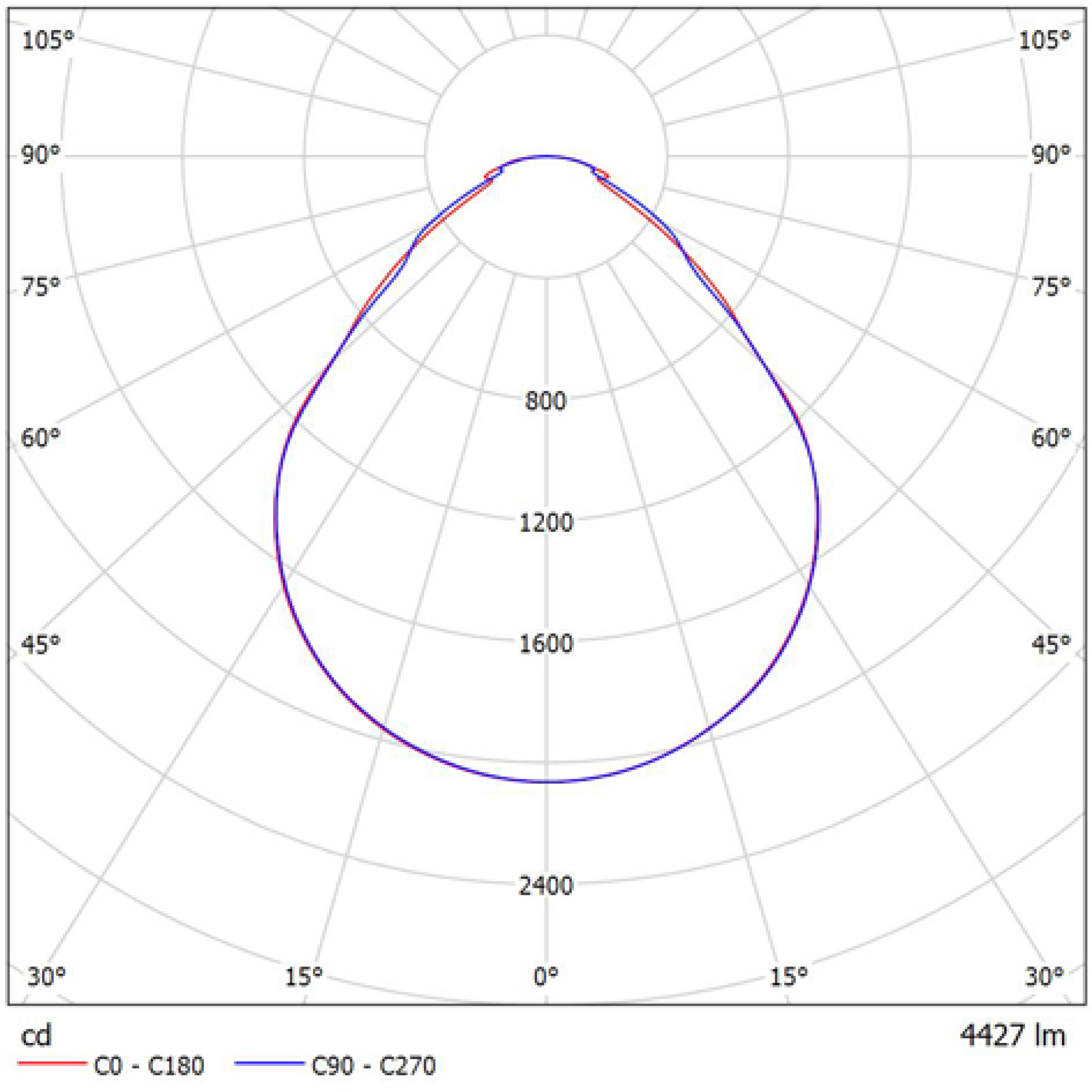

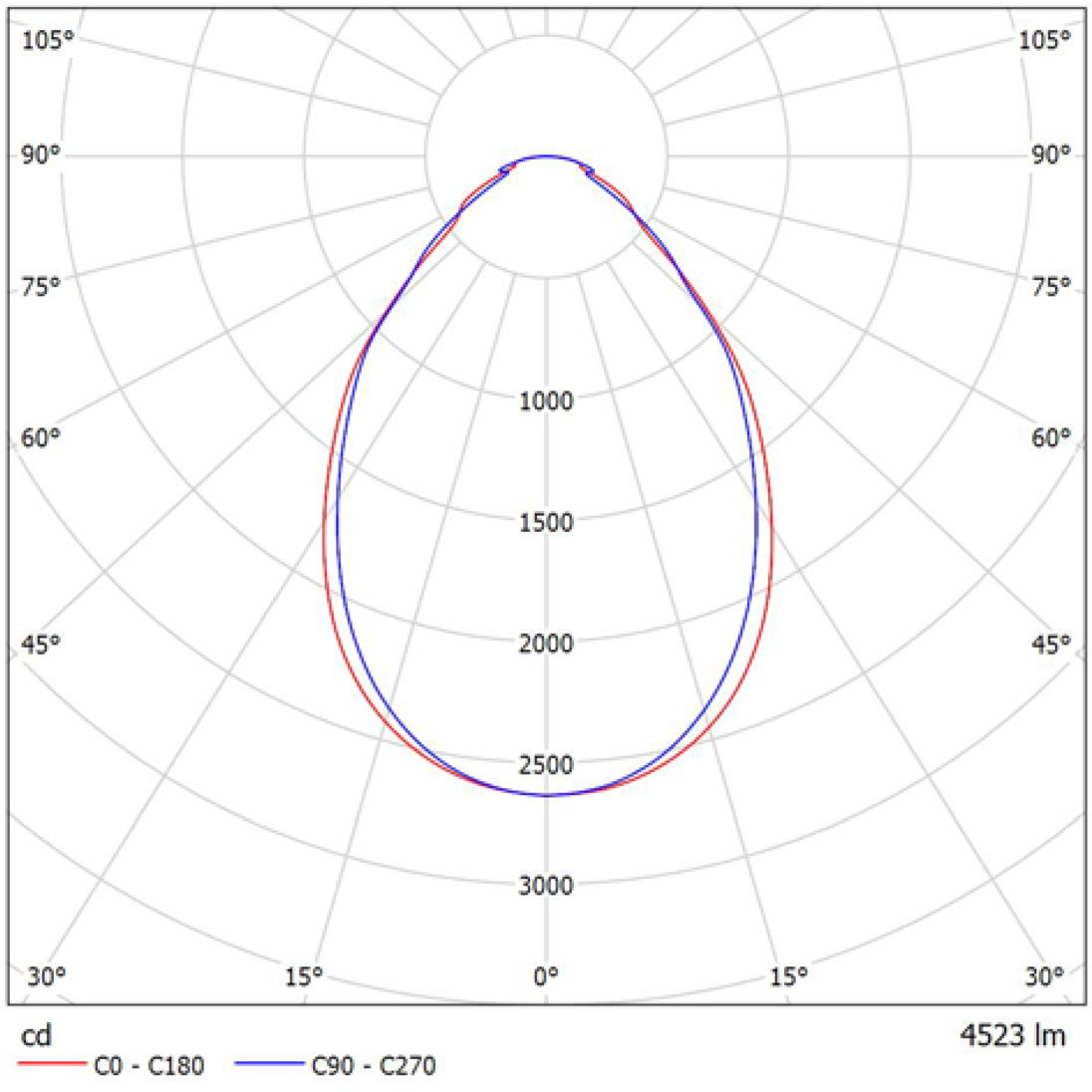

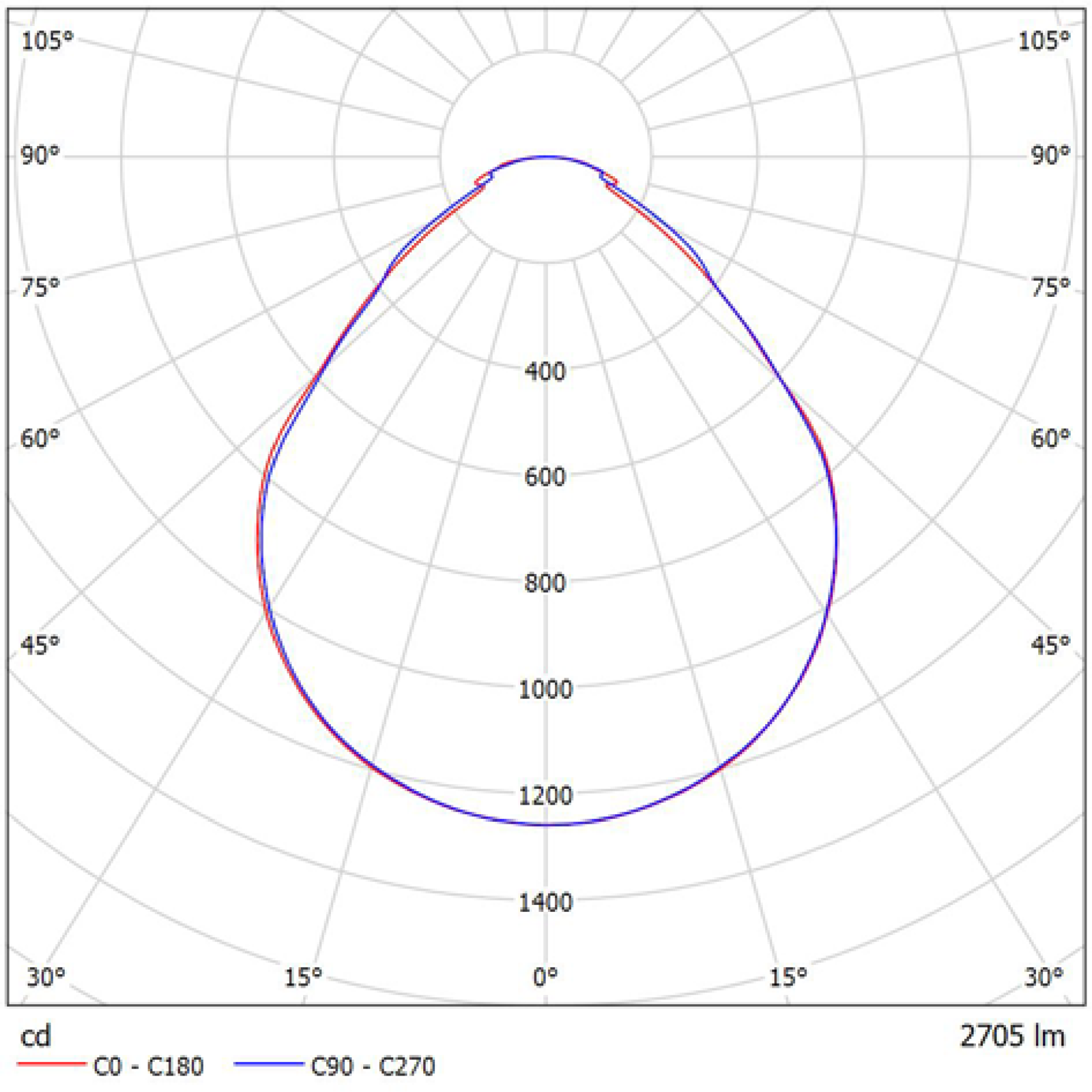

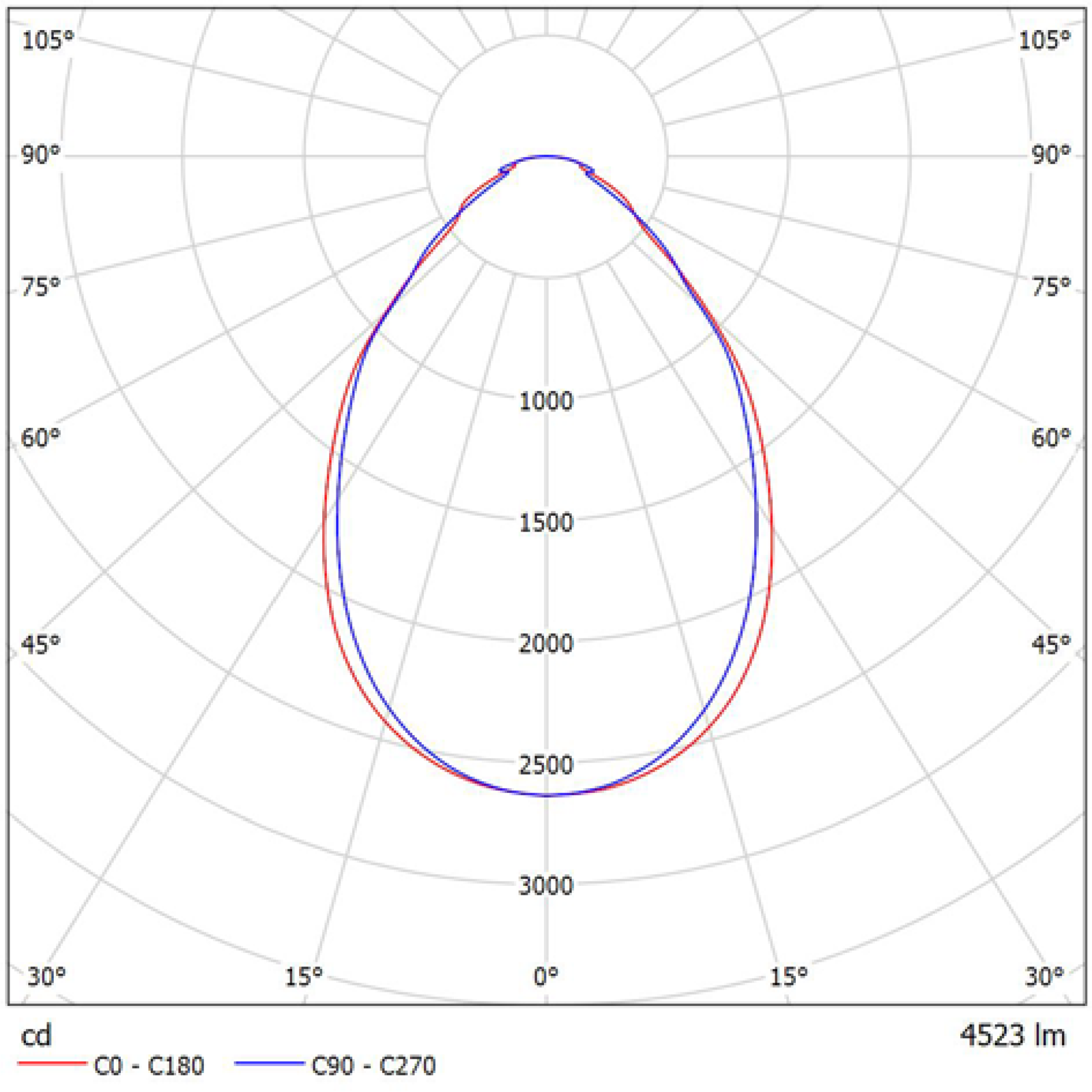

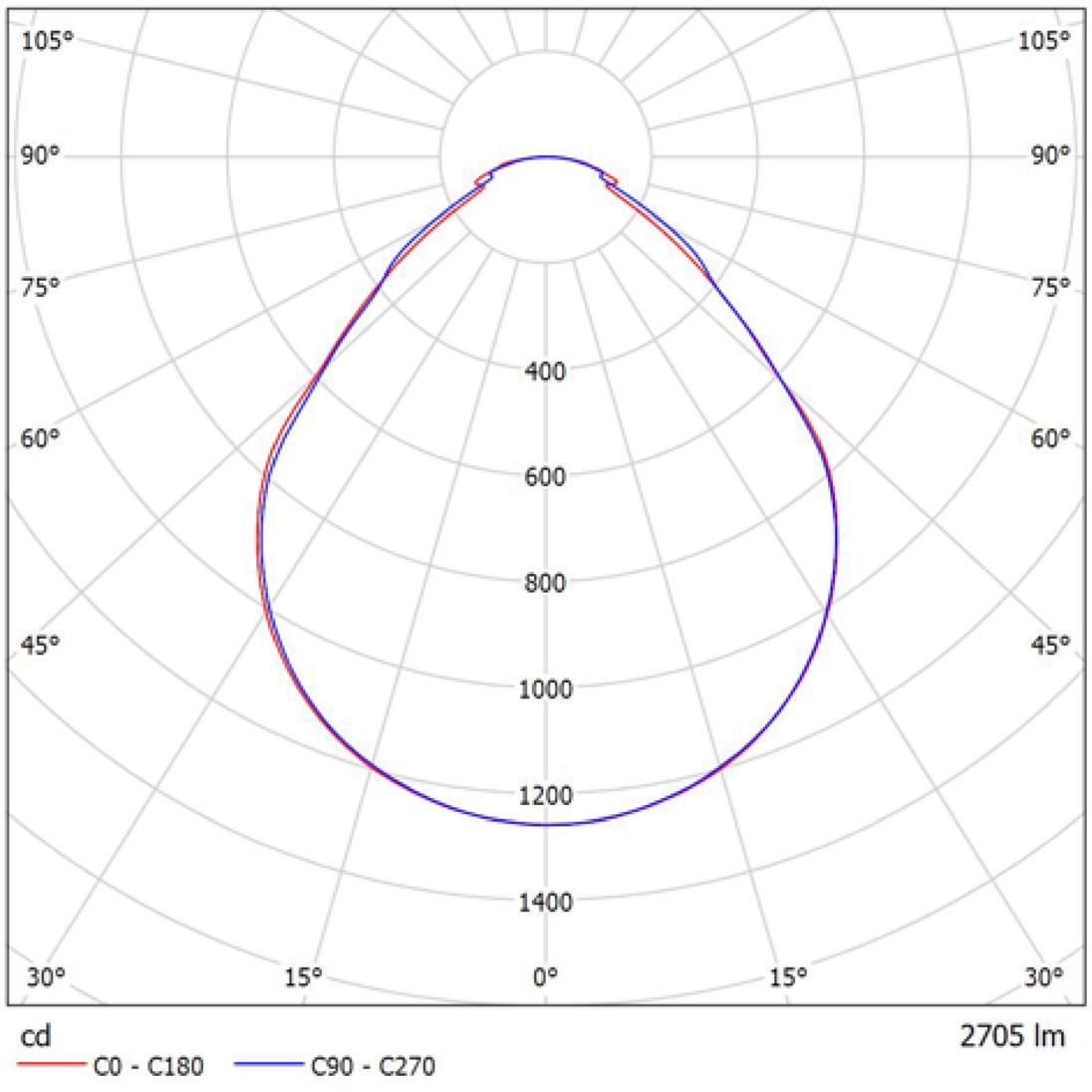

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Mass IPART VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9794/306CW Input Voltage240 Power34 Lumens3100 CCT4000 CRI80 Beam Angle110 Body ColourWHITE Dim630(L) x 324(W) x 80(H) Mass2.3 IPARTN/A VEETN/A Add to Enquiry Add Remove Remove
    Model No.S9794/606CW Input Voltage240 Power53 Lumens5300 CCT4000 CRI80 Beam Angle110 Body ColourWHITE Dim620(L) x 620(W) x 80(H) Mass IPARTN/A VEETN/A Add to Enquiry Add Remove Remove
    Model No.S9794/312CW Input Voltage240 Power53 Lumens5000 CCT4000 CRI80 Beam Angle110 Body ColourWHITE Dim1230(L) x 324(W) x 80(H) Mass3 IPARTN/A VEETN/A Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
