• PANELS & TROFFERS

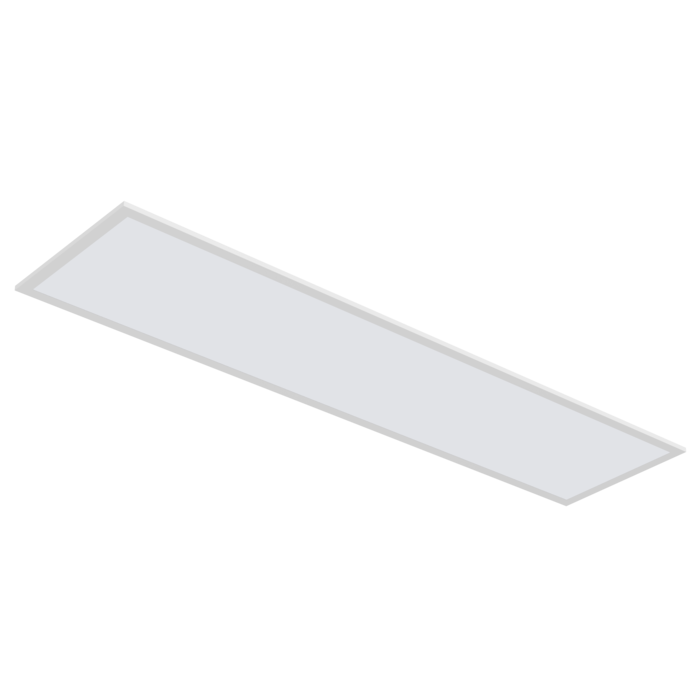

PANEL MK III S9764 - 36W

Slimline conventional LED panel (5pack) with flickerCONTROLLED technology

Application

 Designed for commercial and office space lighting tasks.

Design Specifications

  • Extruded aluminium profile with high efficiency opal diffuser suitable for a range of installation types.

  • White powder coated finish

  • High efficiency LED optics, CRI > 80

  • Remote constant current non-dimmable LED driver with flickerCONTROLLED technology, complete with flex and plug

  • CCT 4000K

  • Suspension kits available
    Emergency models compliant to AS/NZS2293, see SEL20PK EM Power Kit.


Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9764/312/CW/PK5 Input Voltage240 Power36 Lumens3600 CCT4000 CRI80 Beam Angle120 Body ColourWhite Dim1195(L) x 295(W) x 33(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
