• PANELS & TROFFERS

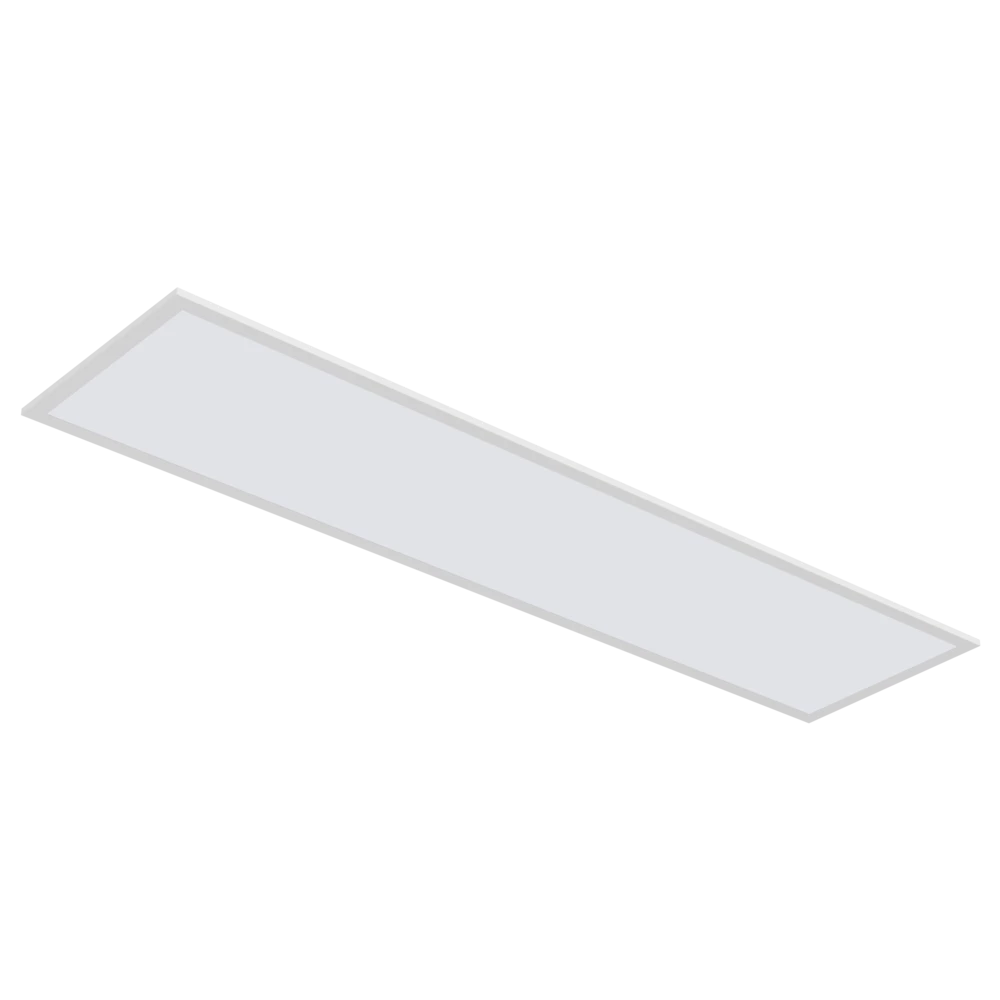

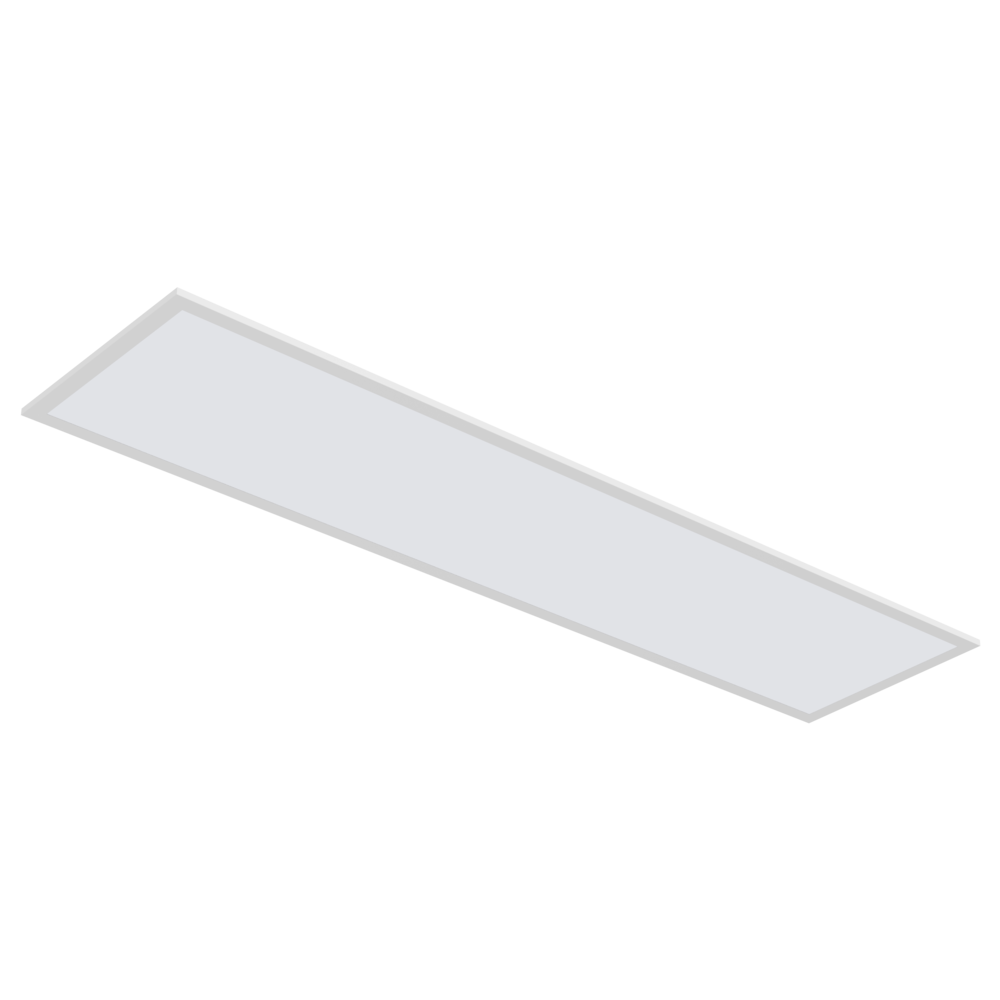

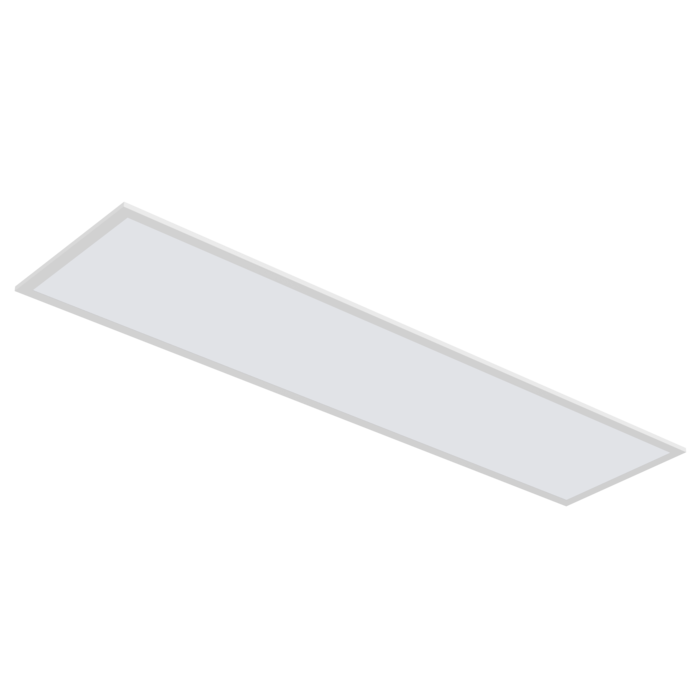

PANEL S9764HETC - 24W

High performance LED panel, 24W with selectable CCT

Application

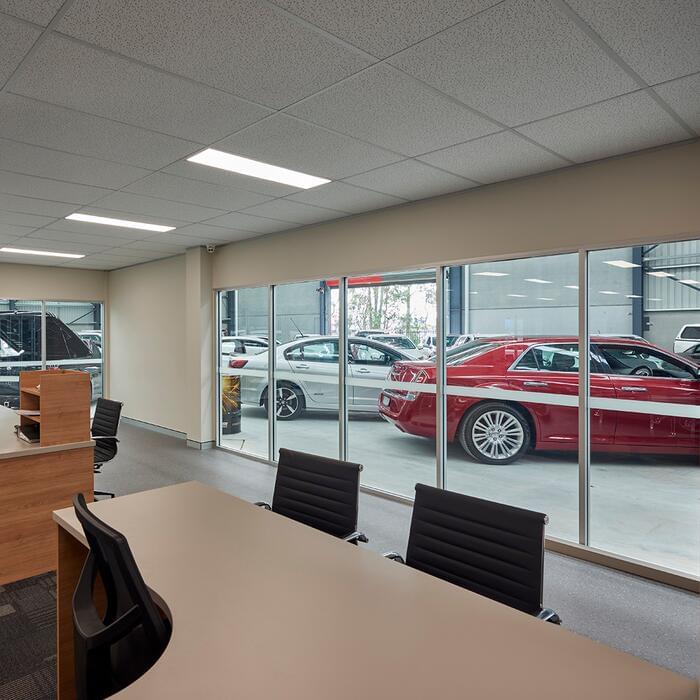

 Designed for commercial and office space lighting tasks.

Design Specifications

  • Extruded aluminium profile with high performance optical design, suitable for a range of installation types.

  • White powder coated finish

  • High efficiency LED optics, CRI > 80, SDCM <6, optical performance > 116lm/W

  • Remote constant current non-dimmable LED driver PF>0.9, complete with flex and plug

  • Selectable CCT 3000 / 4000 / 5700K

  • Recessed frames, surface mount kits and suspended wire kits available

  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9764HE312TC Input Voltage240 Power24 Lumens2800/3100/3000 CCT3000/4000/5700 CRI80 Beam Angle110 Dimmable NO Body ColourWHITE Dim1195(L) x 295(W) x 32(H) Mass1.5 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
With over 1000 Australian trade partners, finding where to buy SAL products is easy.  Search a trade partner nearby
