• STRIP LIGHTS

FLEXI STREAMLINE 24V TC SELECTABLE KITS - 2/5/10M

TC selectable strip kits available in 2, 5 or 10m length , CRI90

Application

Perfect for the home or commercial, feature lighting application

Design Specifications

  • Choice of 2 metre (15W), 5 metre (35W) or 10 metre (60W) kits, refer installation instructions for cutting and wiring configurations for existing installations and single colour requirements

  • TC selectable 2700, 4000, 6000K

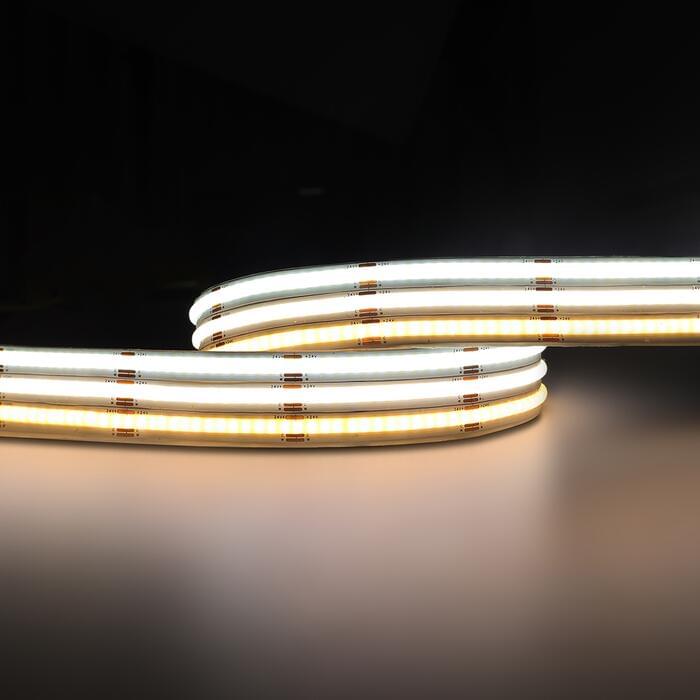

  • Streamline COB LED technology, providing a smooth lighting profile

  • Beam distribution 140° , CRI90, 560 LED's per metre

  • Remote (IP20) non-dimmable driver included with flex and plug for easy installation

  • Cuttable (every 50mm), note when cutting LED strips, it is always important to calculate the remaining LED load to reconfirm its compatibility with the existing driver, as driver changes may be required with moderate reduction in loads.  LED channel options refer this section

  • WARM WHITE2700K
  • COOL WHITE4000K
  • DAYLIGHT6000K

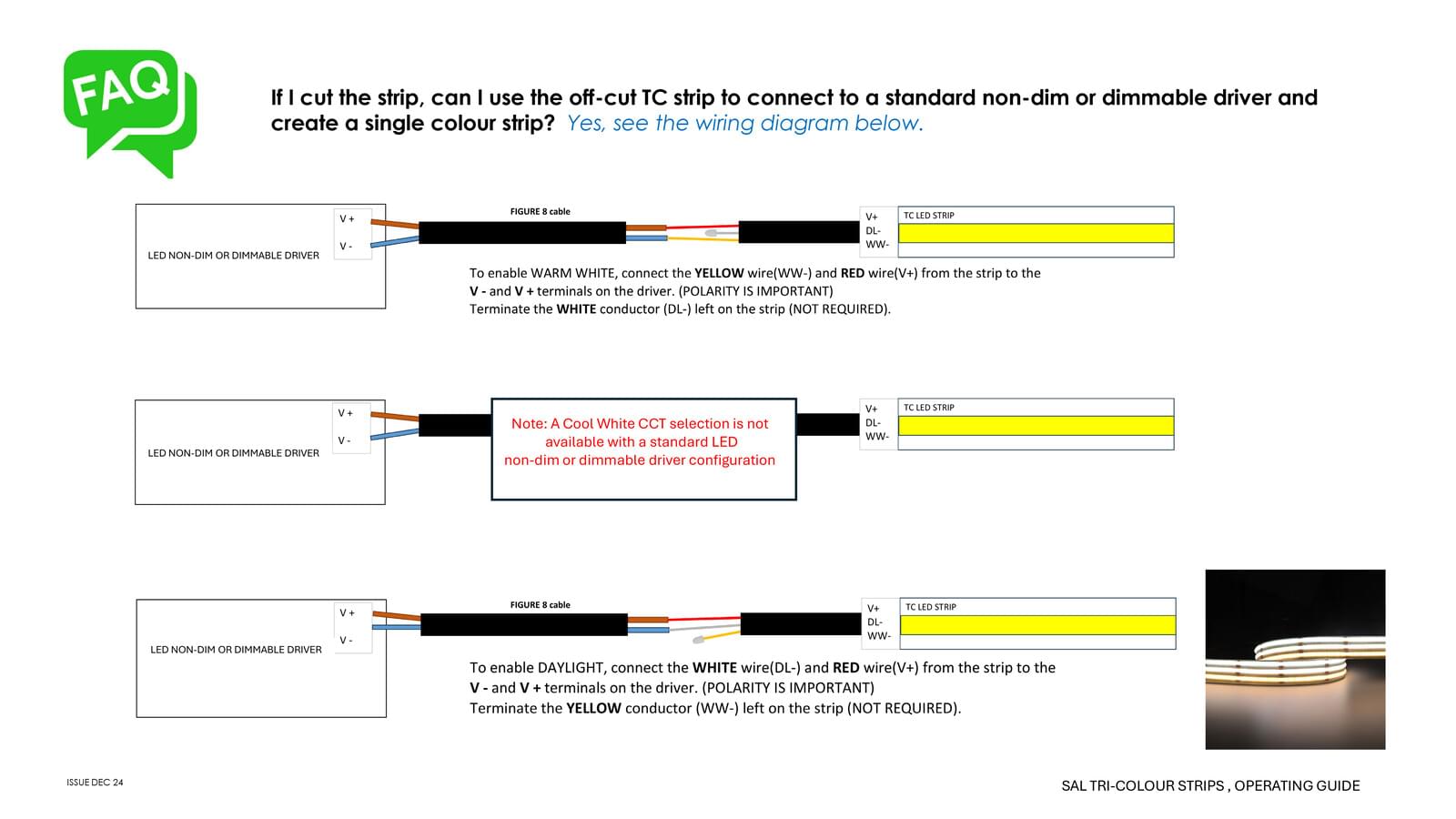

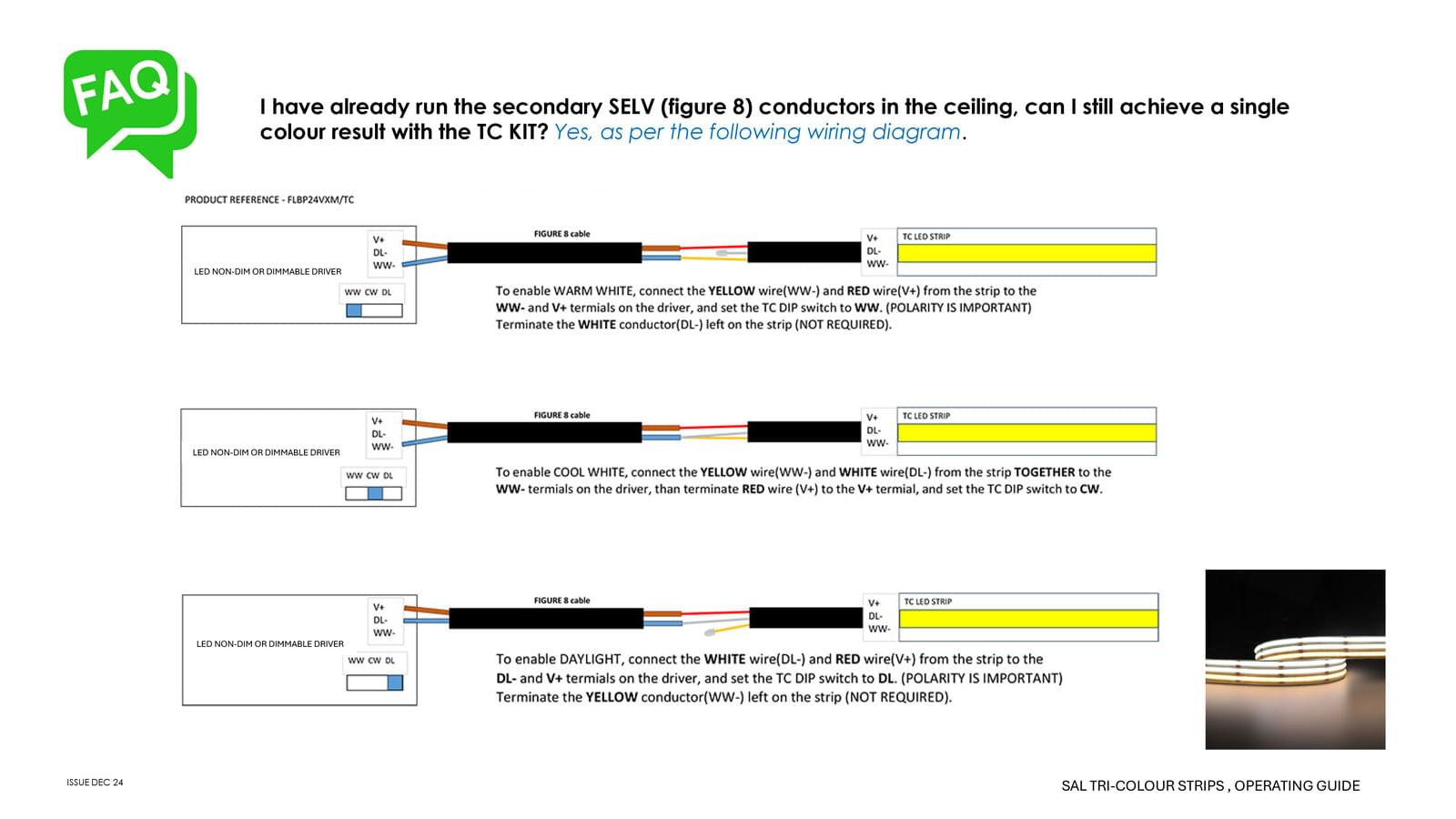

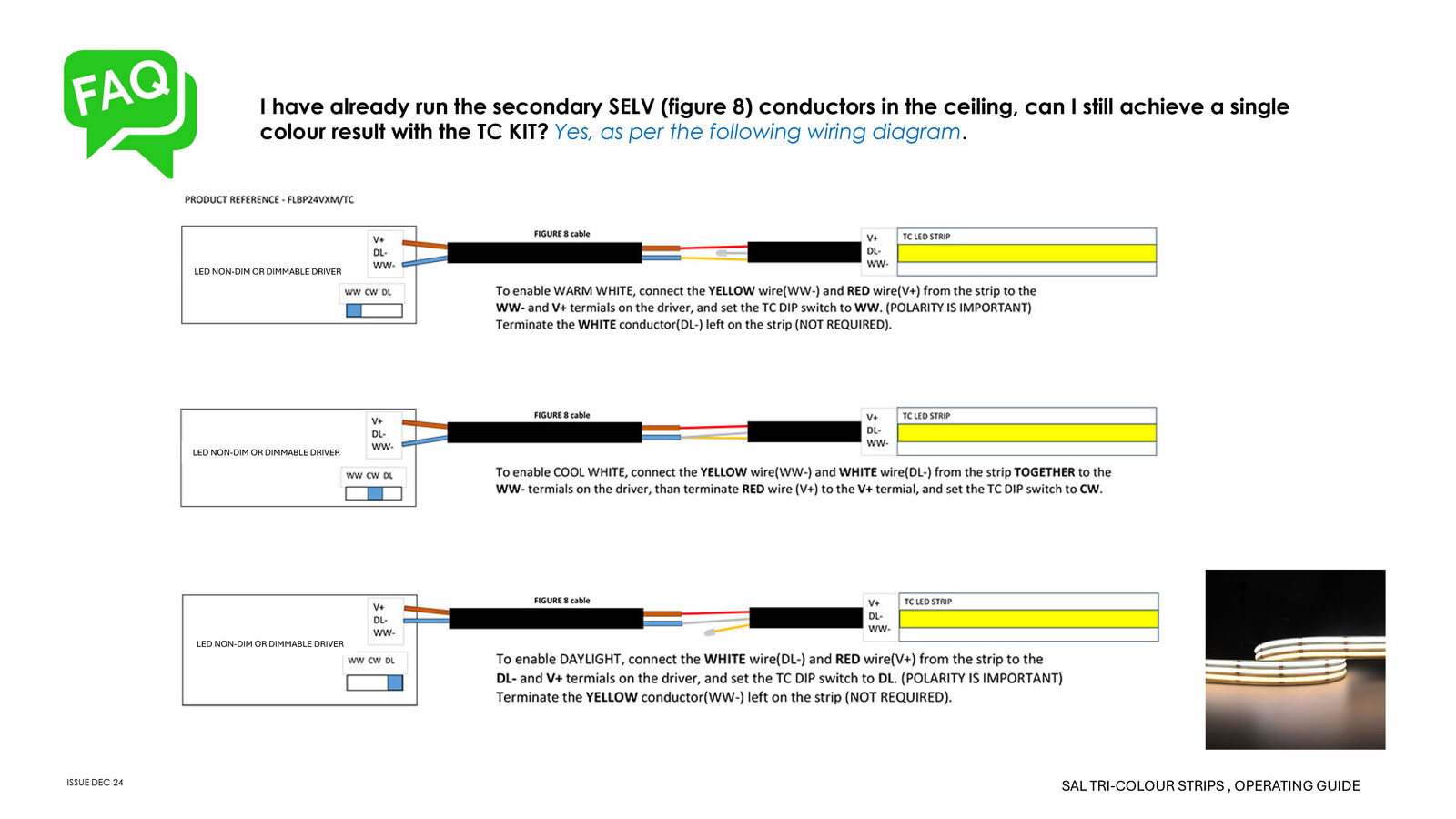

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data

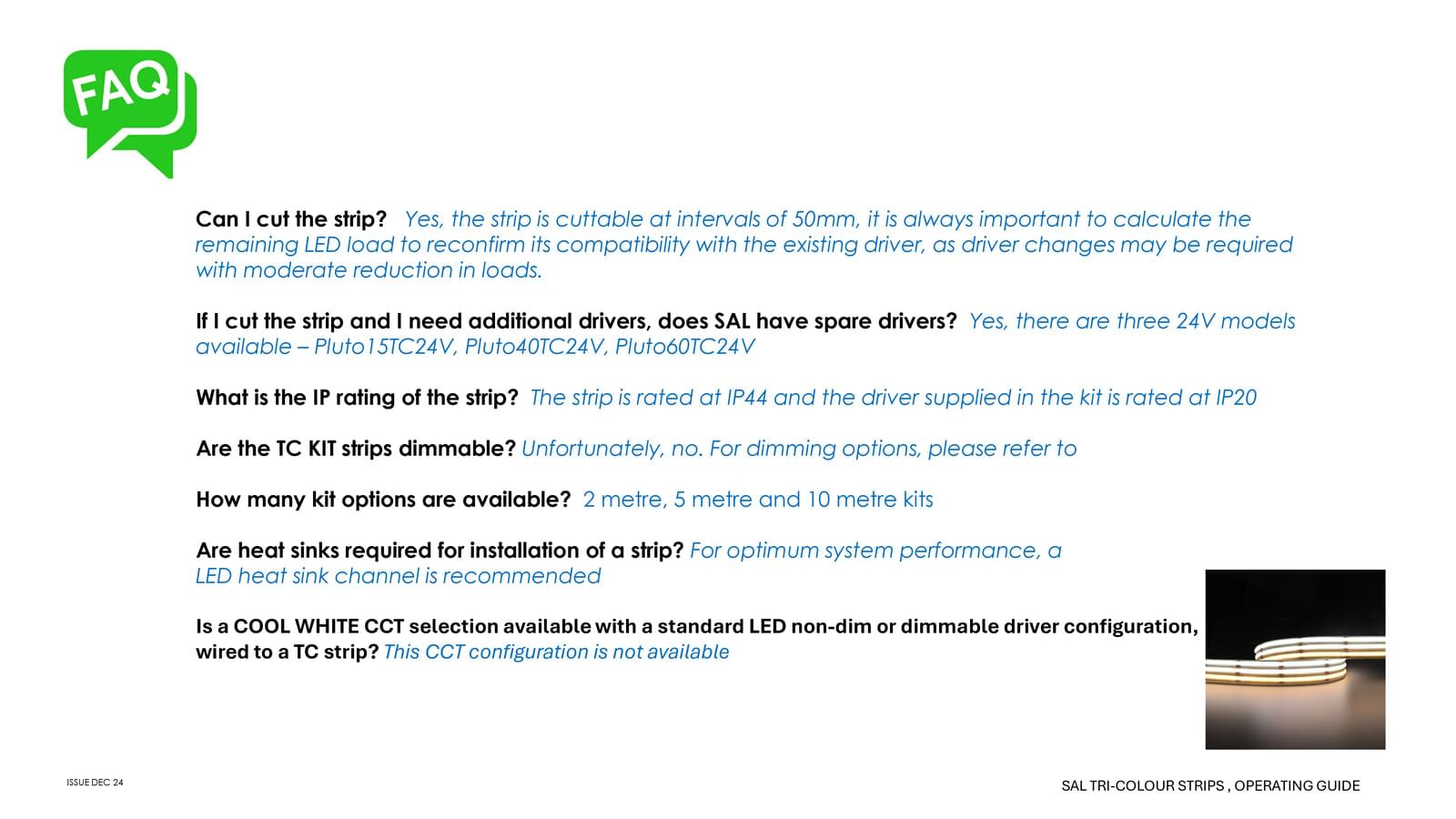

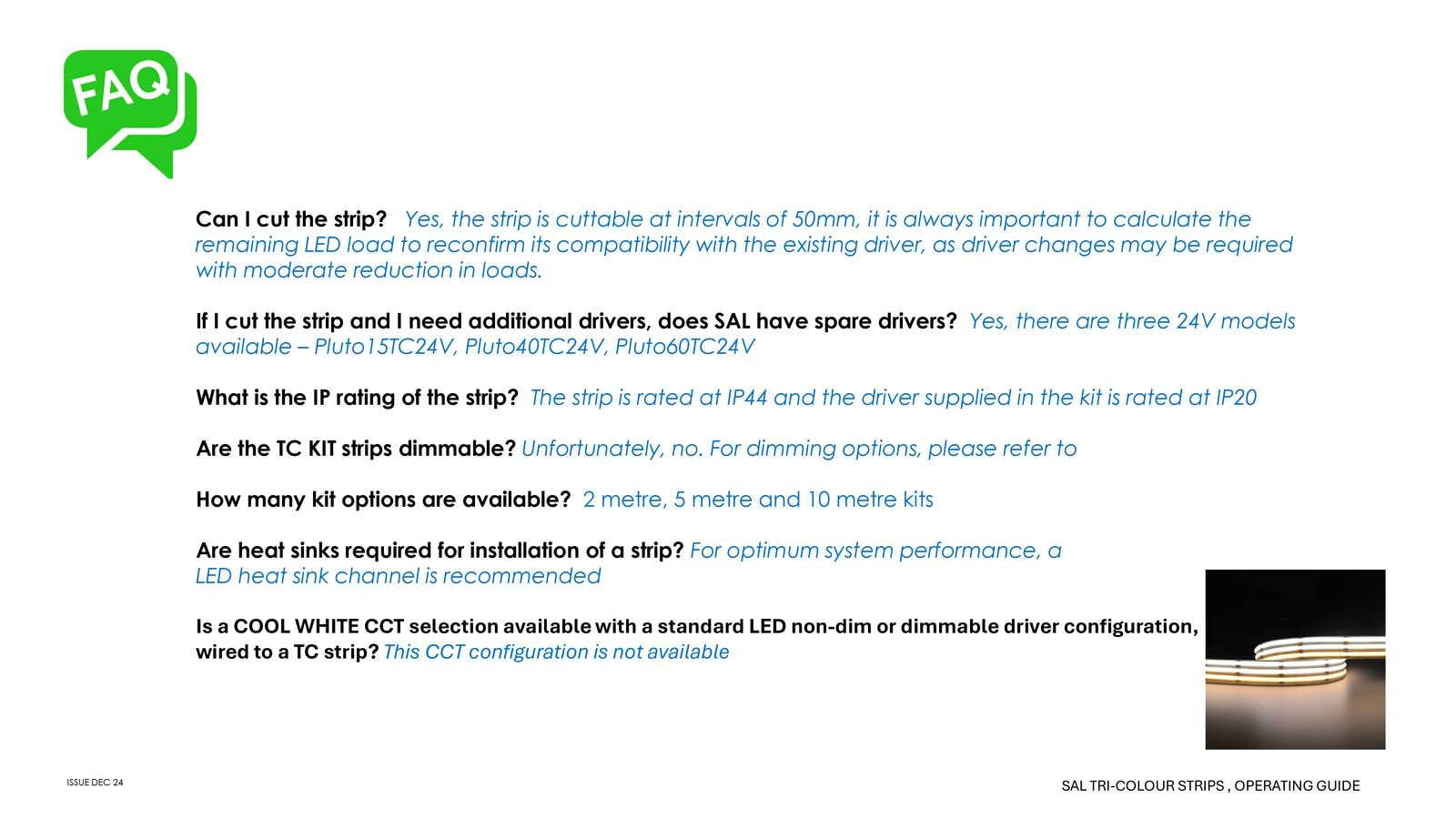

  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLBP24V2M/TC Input Voltage240 Power15 Beam Angle140 CRI90 Lumens500/560/610 LEDs Per Metre560 Cutting Interval50 CCT2700/4000/6000 Body ColourSILICON Dim2000(L) x 8(W) x 1.7(H) Add to Enquiry Add Remove Remove
    Model No.FLBP24V5M/TC Input Voltage240 Power35 Beam Angle140 CRI90 Lumens500/560/610 LEDs Per Metre560 Cutting Interval50 CCT2700/4000/6000 Body ColourSILICON Dim5000(L) x 8(W) x 1.7(H) Add to Enquiry Add Remove Remove
    Model No.FLBP24V10M/TC Input Voltage240 Power60 Beam Angle140 CRI90 Lumens500/560/610 LEDs Per Metre560 Cutting Interval50 CCT2700/4000/6000 Body ColourSILICON Dim10000(L) x 8(W) x 1.7(H) Add to Enquiry Add Remove Remove

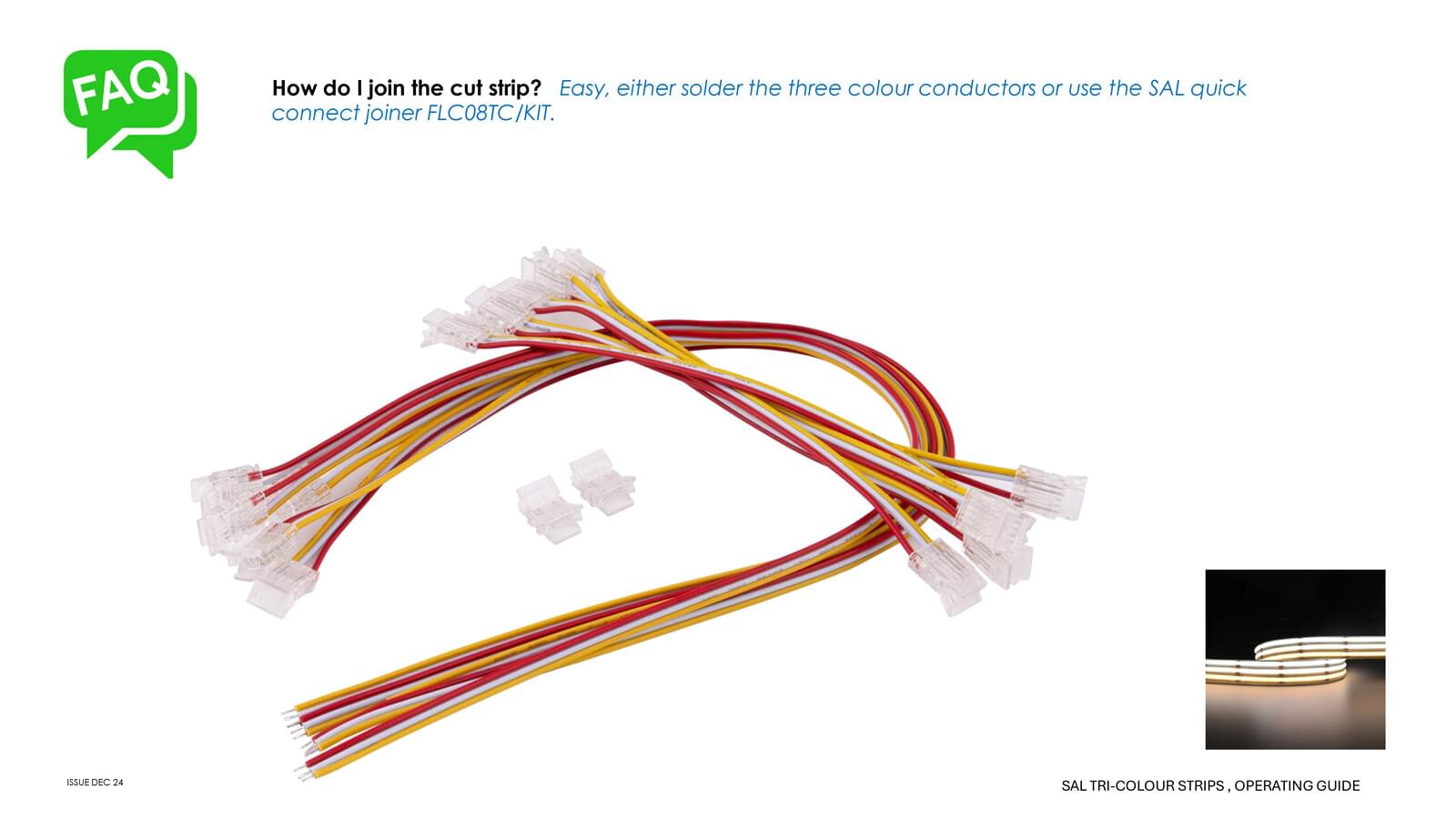

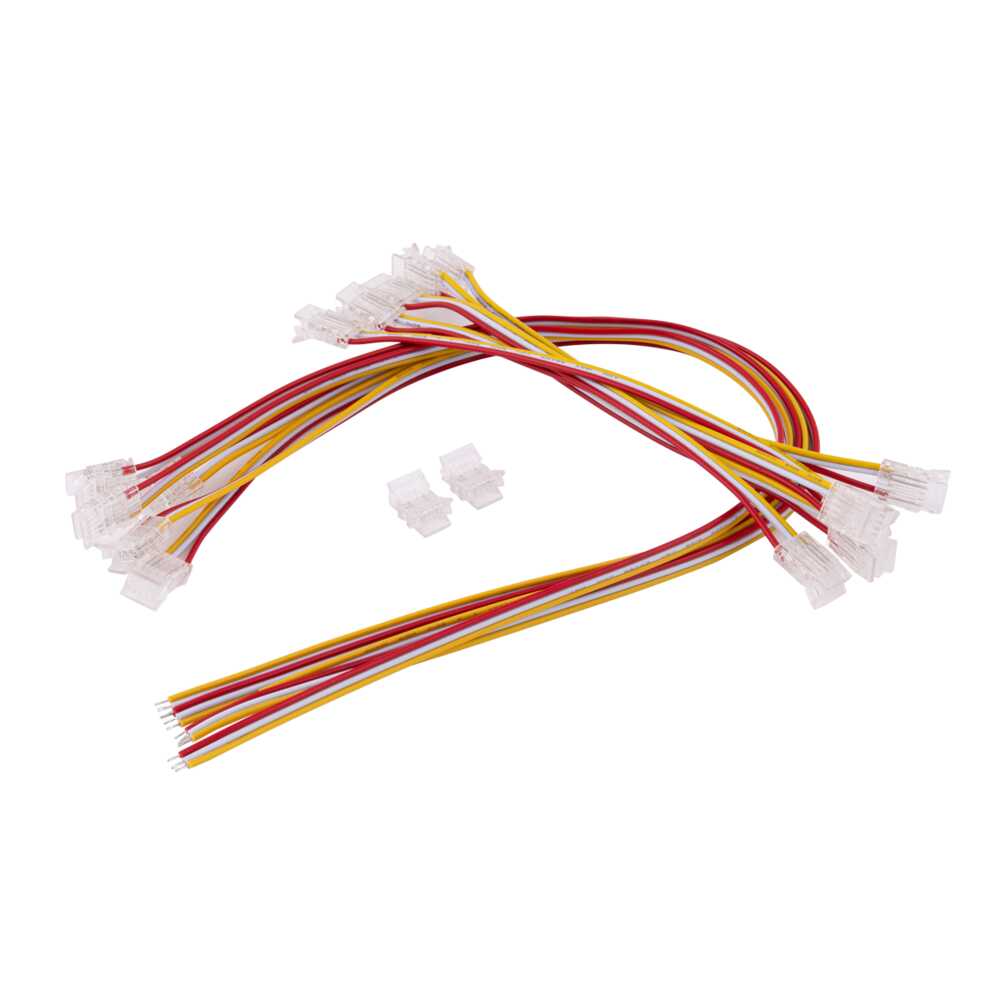

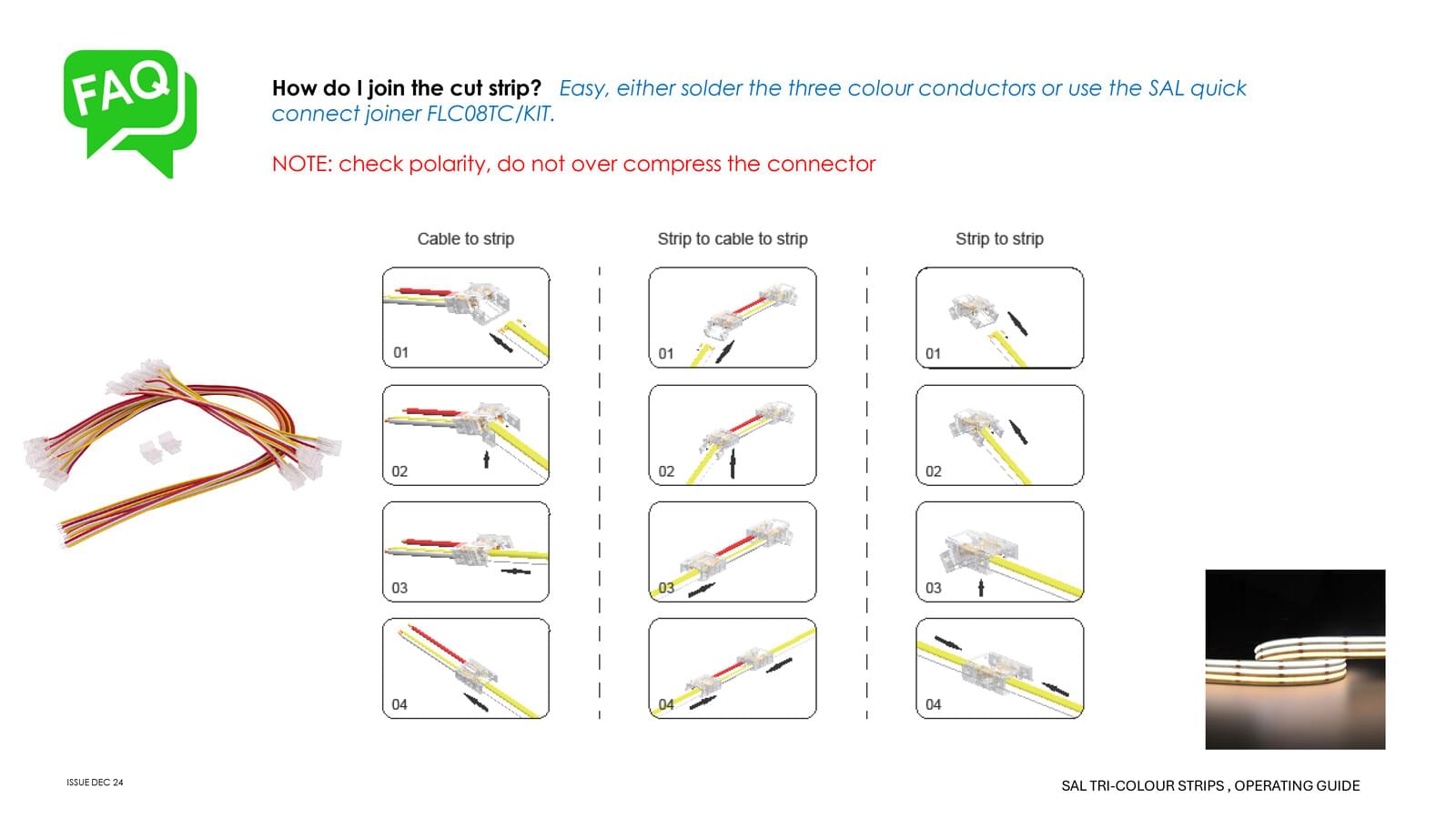

    Model No.FLC08TC/KIT Input Voltage24 Power Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body Colour Dim Add to Enquiry Add Remove Remove

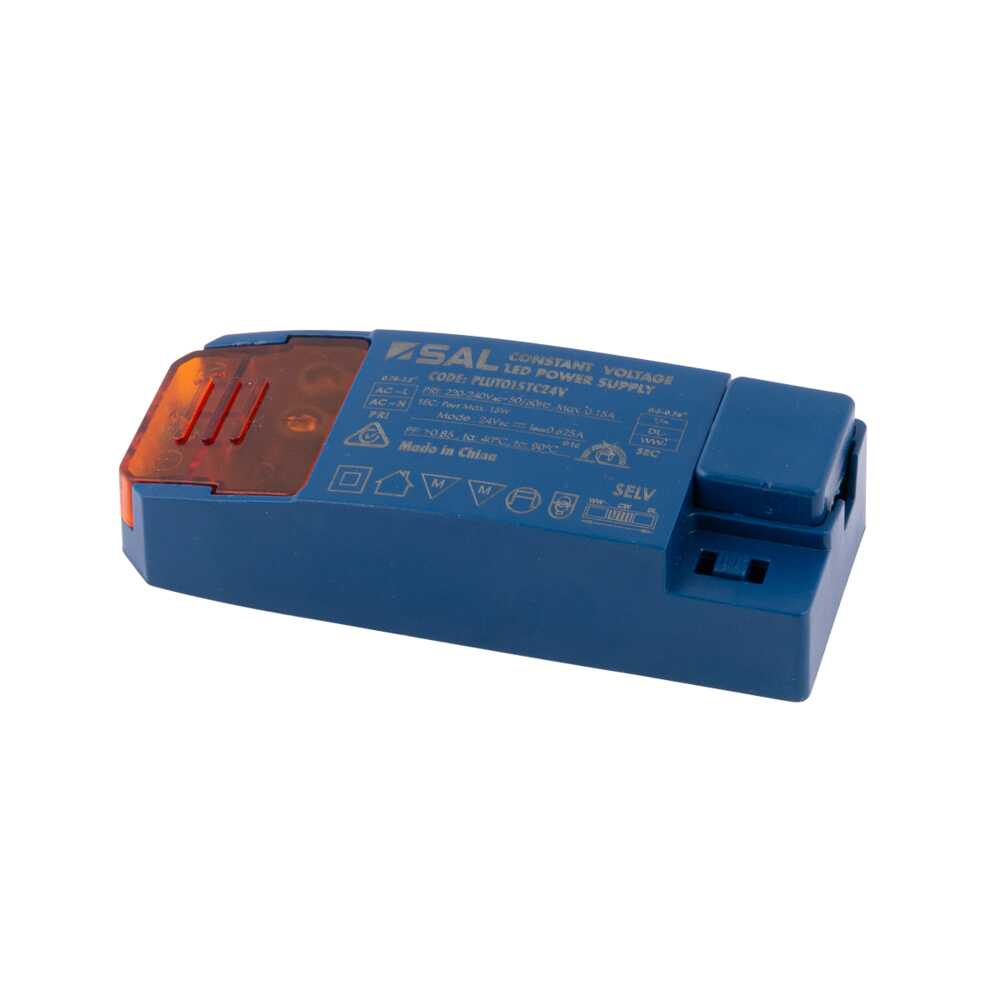

    Model No.PLUTO15TC24V Input Voltage240 Power15 Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body ColourBLUE Dim Add to Enquiry Add Remove Remove

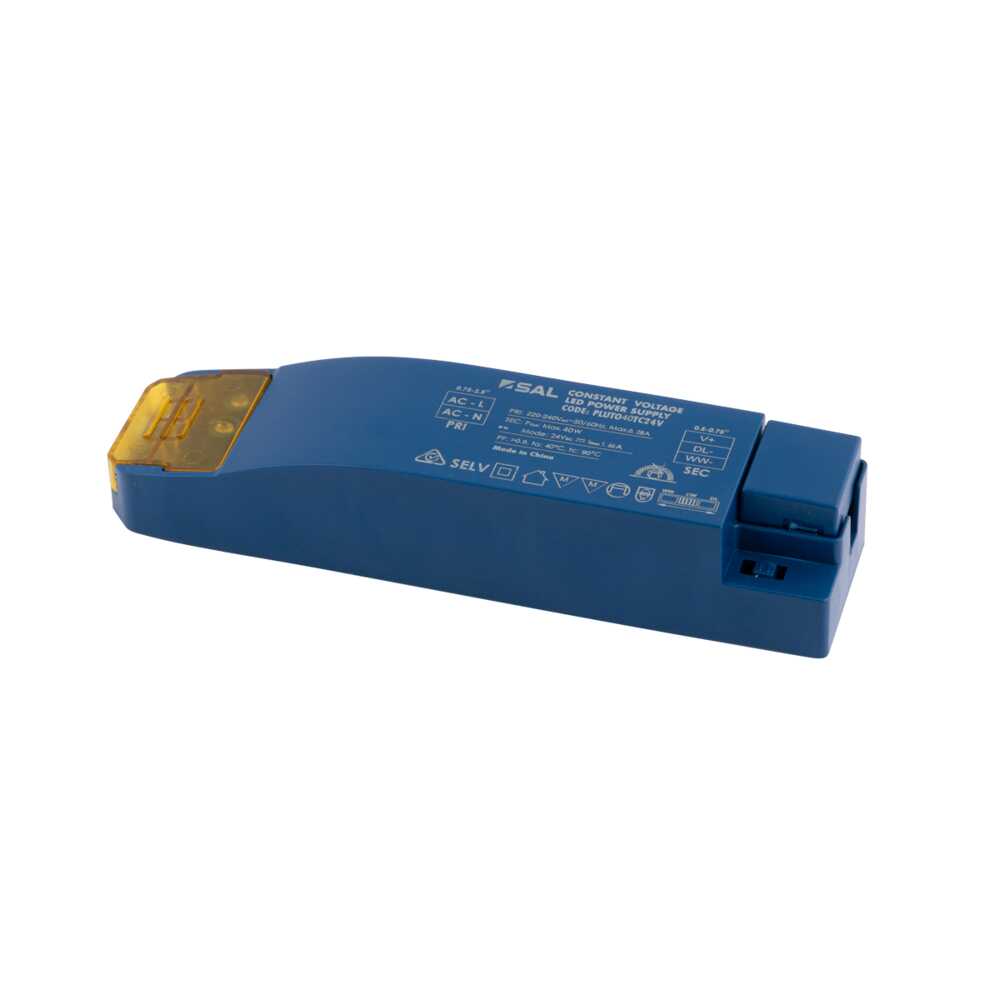

    Model No.PLUTO40TC24V Input Voltage240 Power40 Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body ColourBLUE Dim Add to Enquiry Add Remove Remove

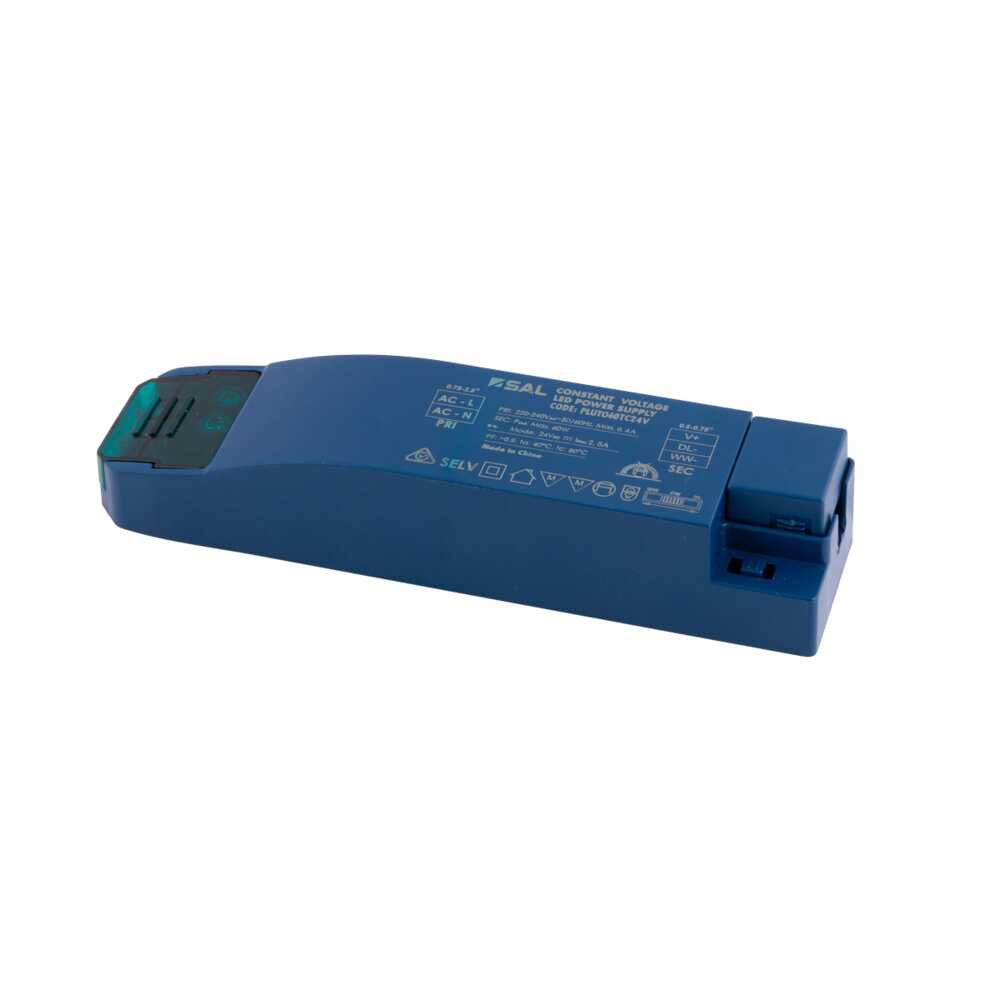

    Model No.PLUTO60TC24V Input Voltage240 Power60 Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body ColourBLUE Dim Add to Enquiry Add Remove Remove

    NOTE: Pluto 15/40/60TC drivers are only compatible with SAL FLEXI Streamline FLBP24V/TC strip

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
