• STRIP LIGHTS

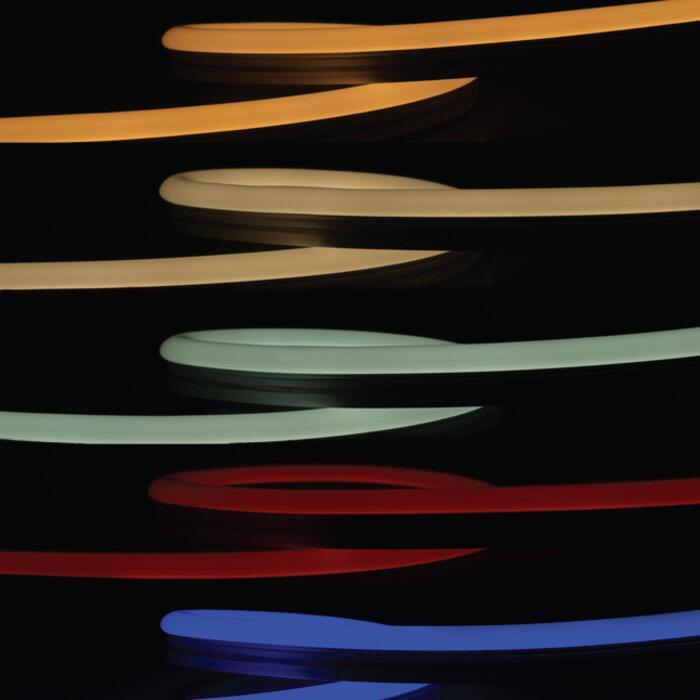

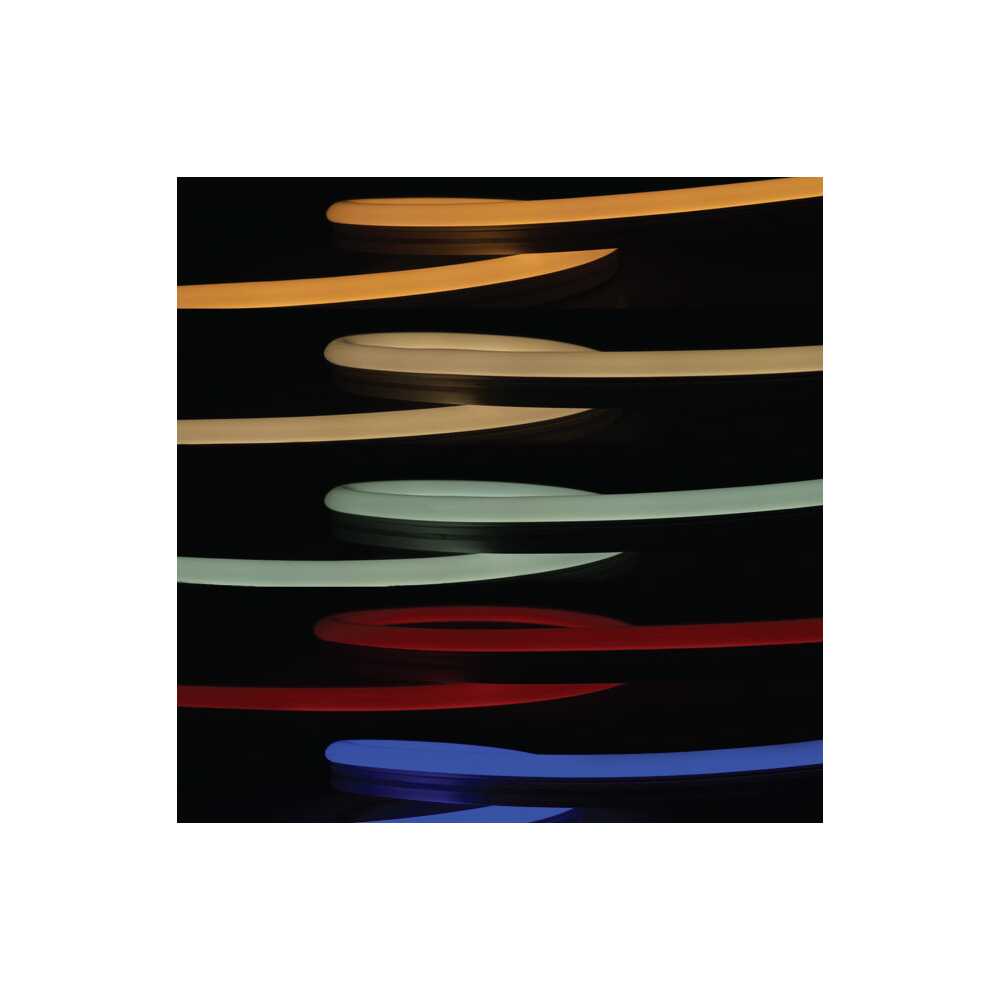

NEON SIDE BEND 24V SINGLE COLOUR IP66 FLN2407 - 7W/M

Roll length 10m, maximum run length 10m, flexible Neon SIDE Bend strip, 24V, IP66, Neon width 10mm.

Application

A very flexible solution for residential and commercial interior spaces

Design Specifications

  • High efficiency LED optics, luminous efficacy up to 40lm/W, beam distribution 270°

  • Maximum run length 10m, cuttable every 50 mm

  • Smooth colour uniformity

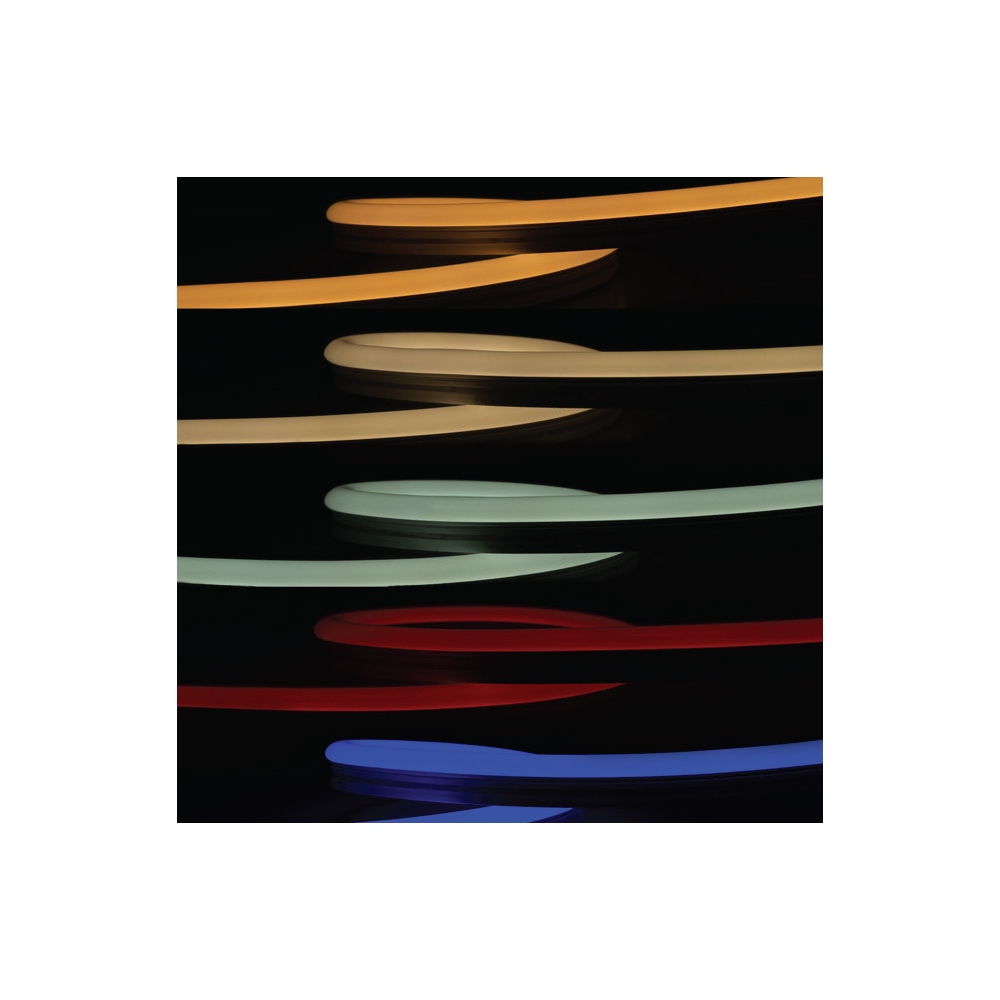

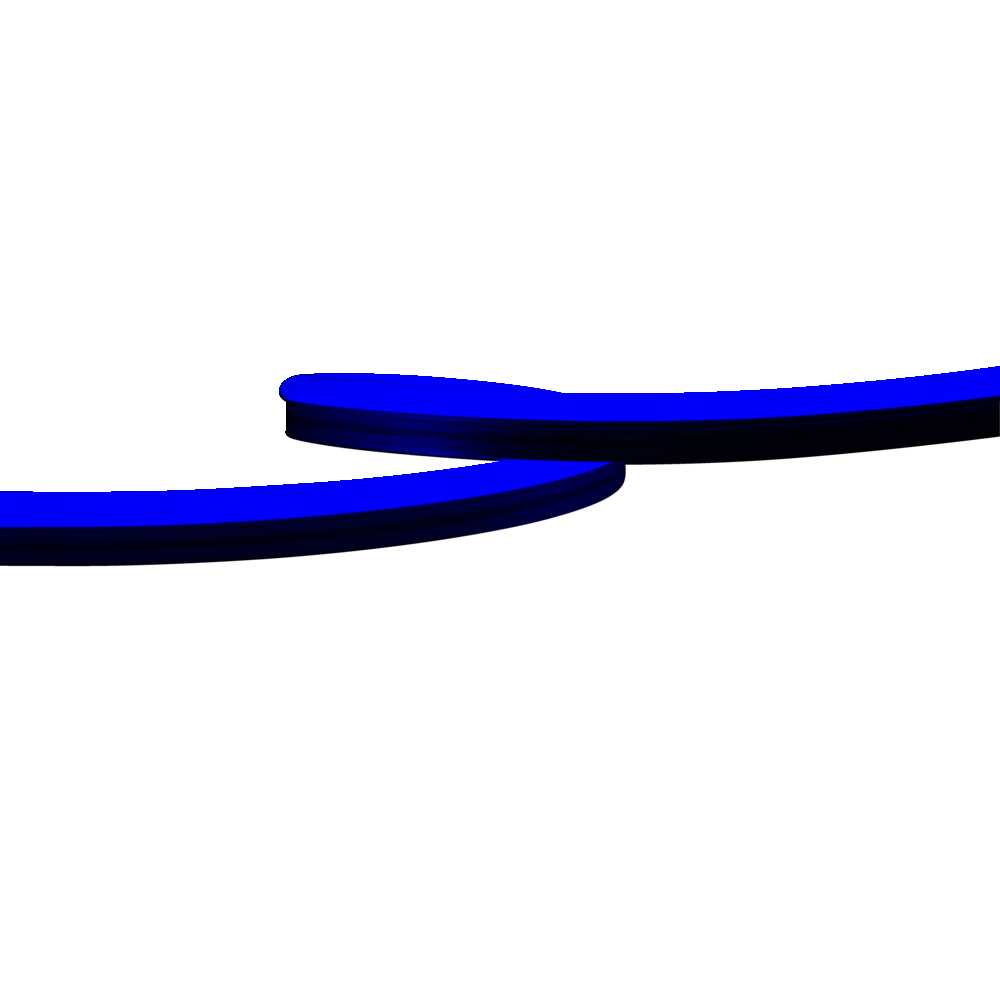

  • SIDE-BEND Blue, Green, Yellow, Red or White in 3000K/4000K/6000K colour choices, CRI >80

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • Power supply ordered separately, 7 W/m, termination accessories available, codes listed are per metre, 10M roll packs to order

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - refer power supply specification
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

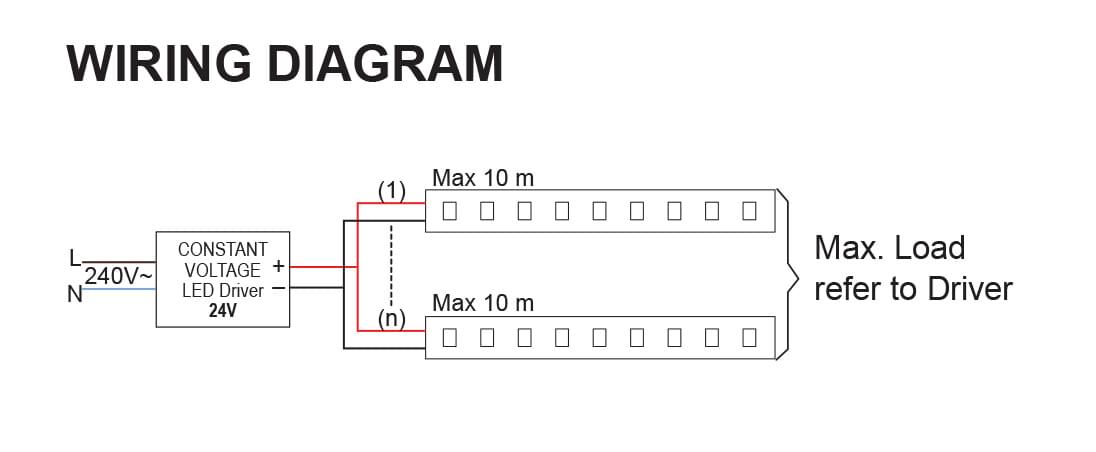

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

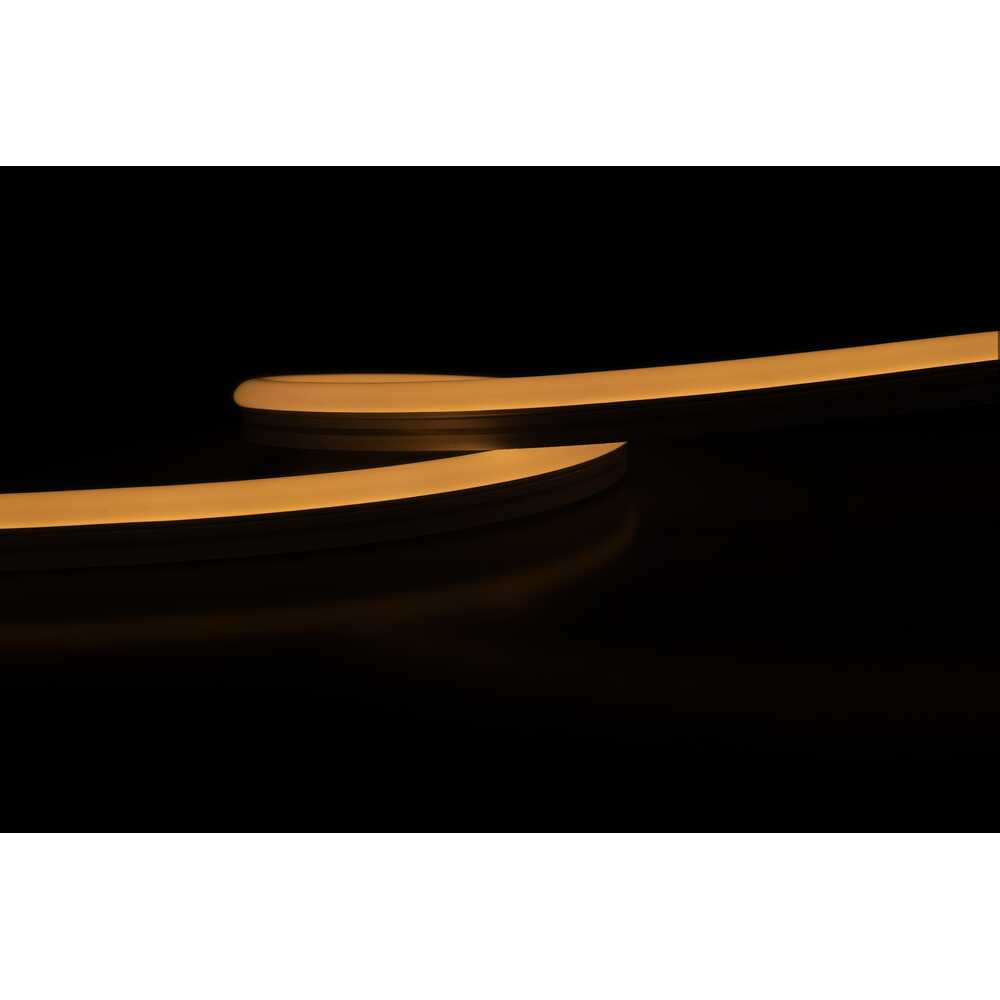

    Model No.FLN2407WW17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre250 LEDs Per Metre120 Cutting Interval50 Colour Temp.3000 Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

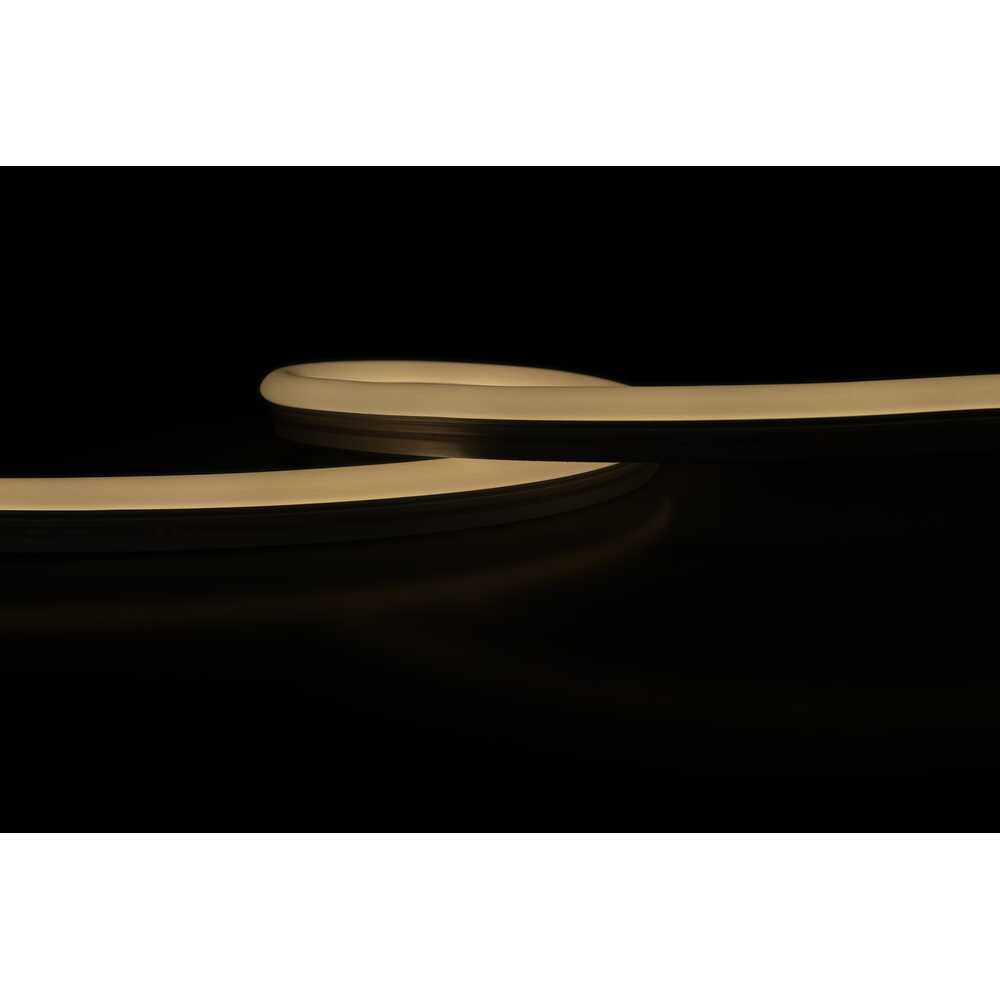

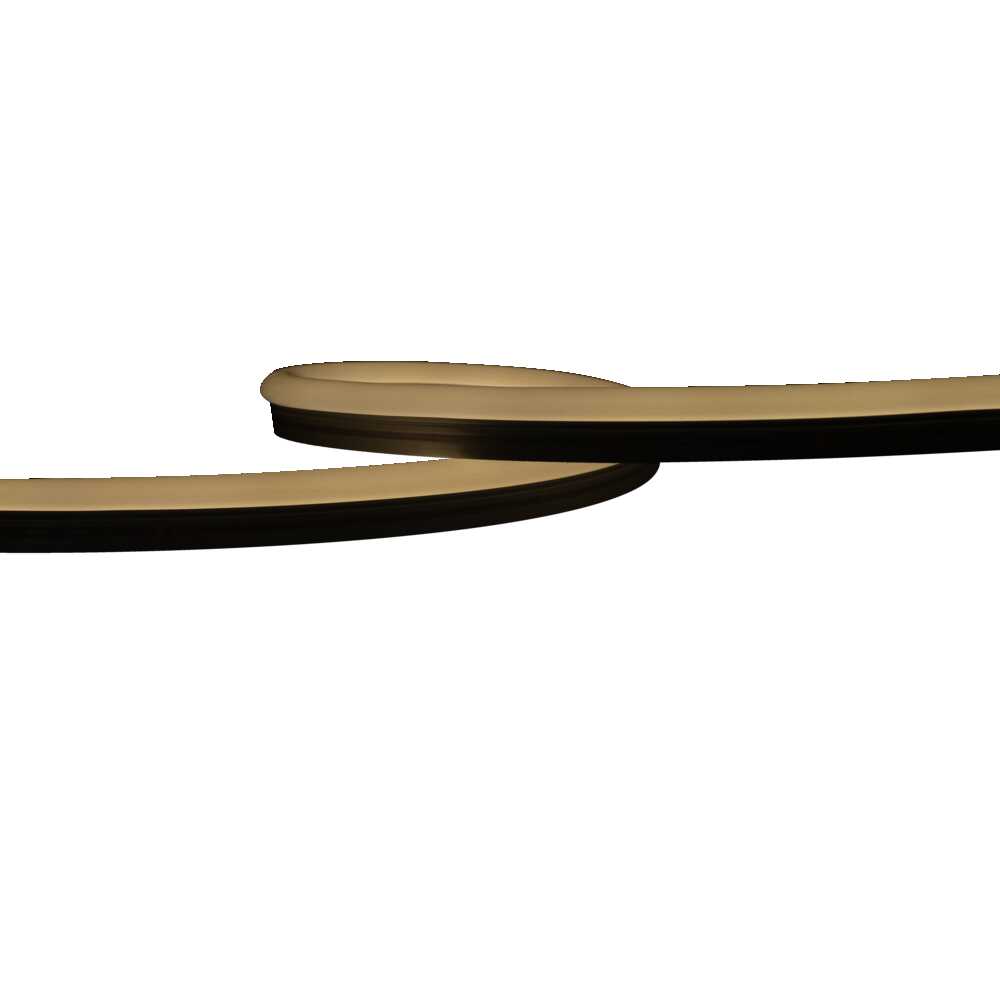

    Model No.FLN2407CW17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre250 LEDs Per Metre120 Cutting Interval50 Colour Temp.4000 Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

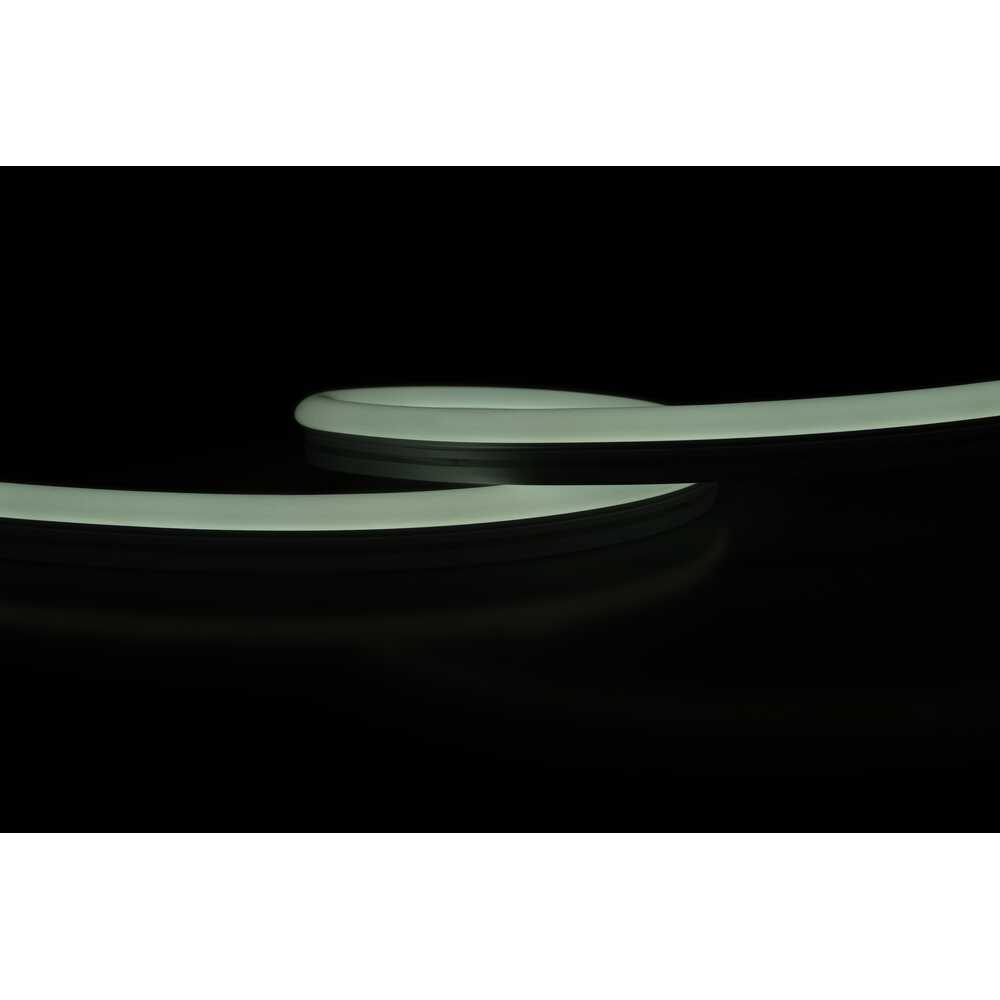

    Model No.FLN2407DL17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre250 LEDs Per Metre120 Cutting Interval50 Colour Temp.6000 Dim10(W) x 17(H) Add to Enquiry Add Remove Remove
    Model No.FLN2407YW17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre45 LEDs Per Metre120 Cutting Interval50 Colour Temp. Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

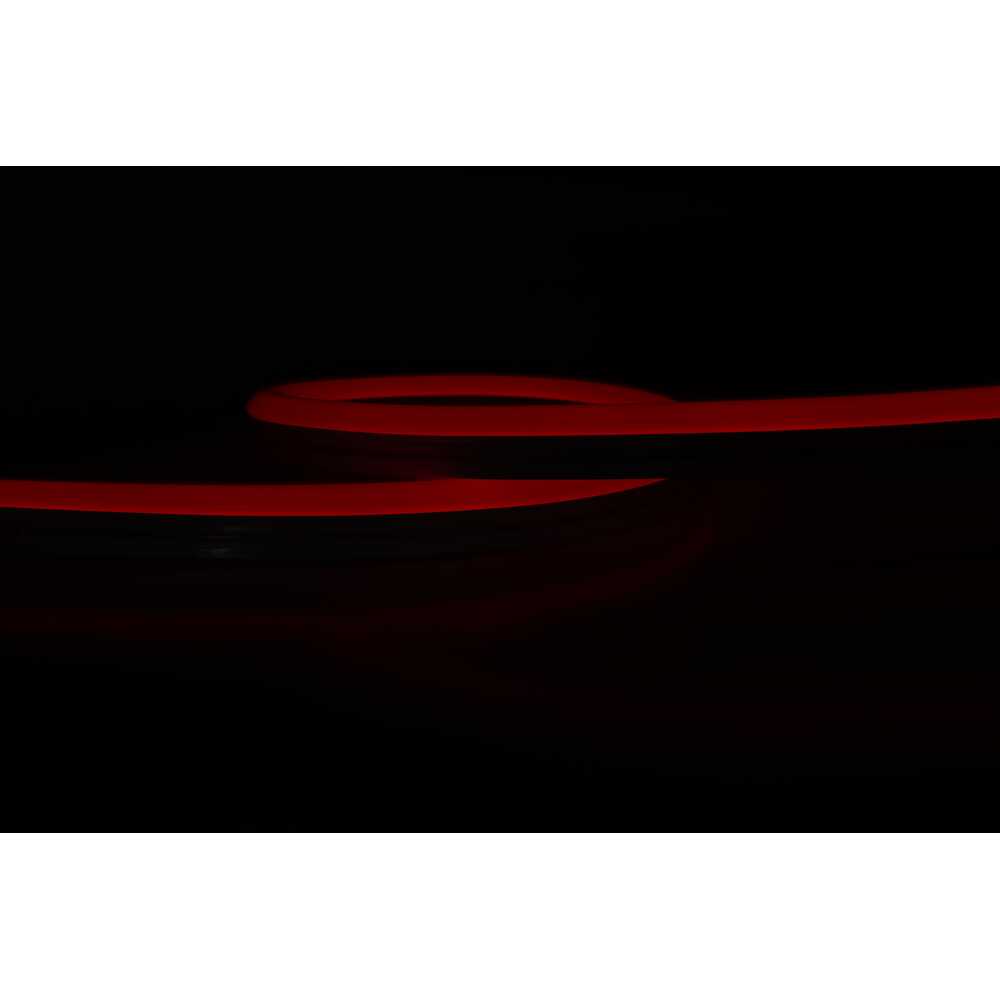

    Model No.FLN2407RD17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre45 LEDs Per Metre120 Cutting Interval50 Colour Temp. Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

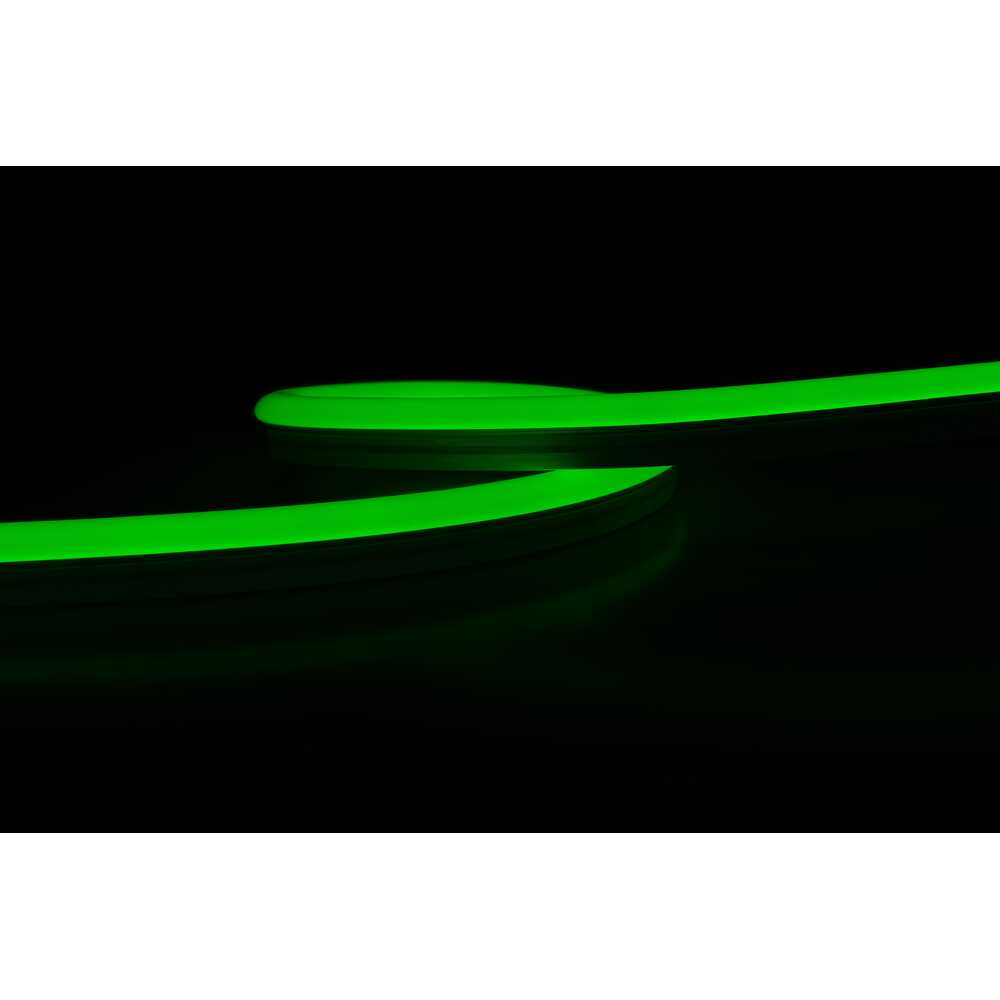

    Model No.FLN2407GN17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre180 LEDs Per Metre120 Cutting Interval50 Colour Temp. Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

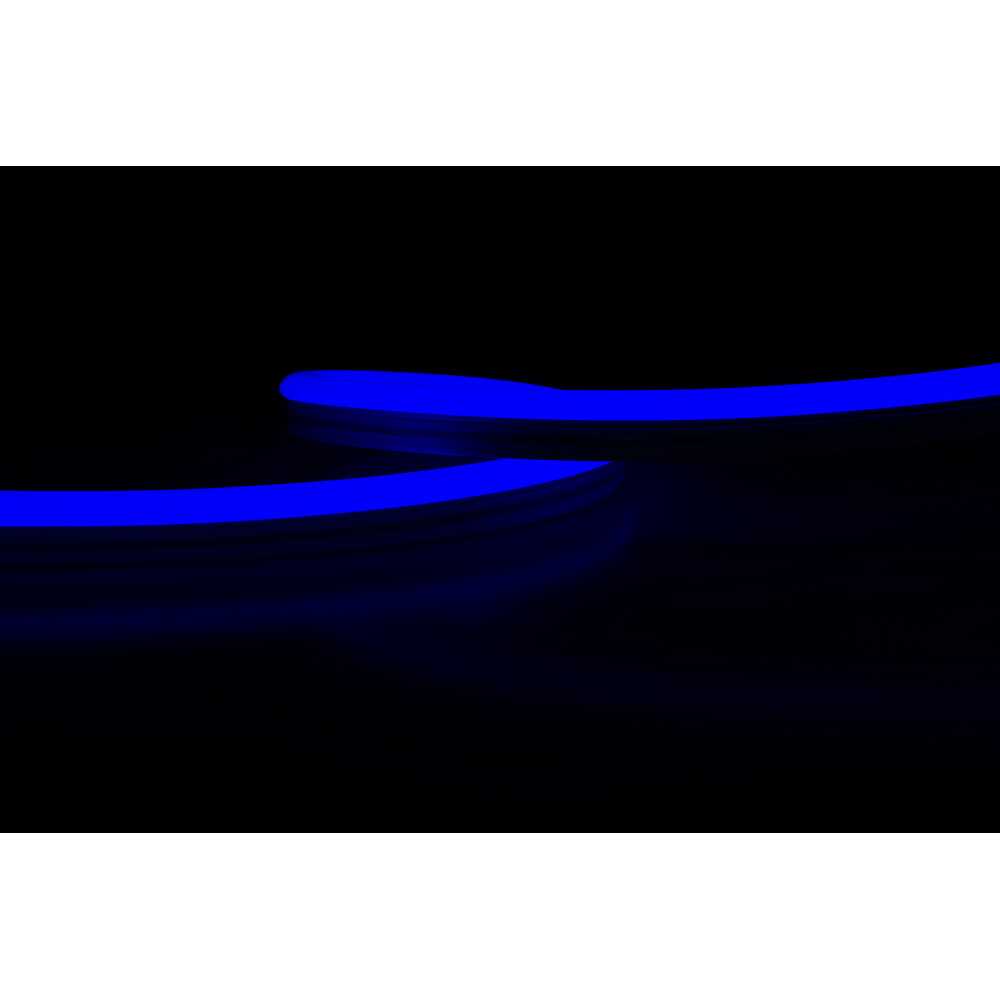

    Model No.FLN2407BU17 Input Voltage24 Watts per metre7 Beam Angle270 CRI80 Lumens per metre50 LEDs Per Metre120 Cutting Interval50 Colour Temp. Dim10(W) x 17(H) Add to Enquiry Add Remove Remove

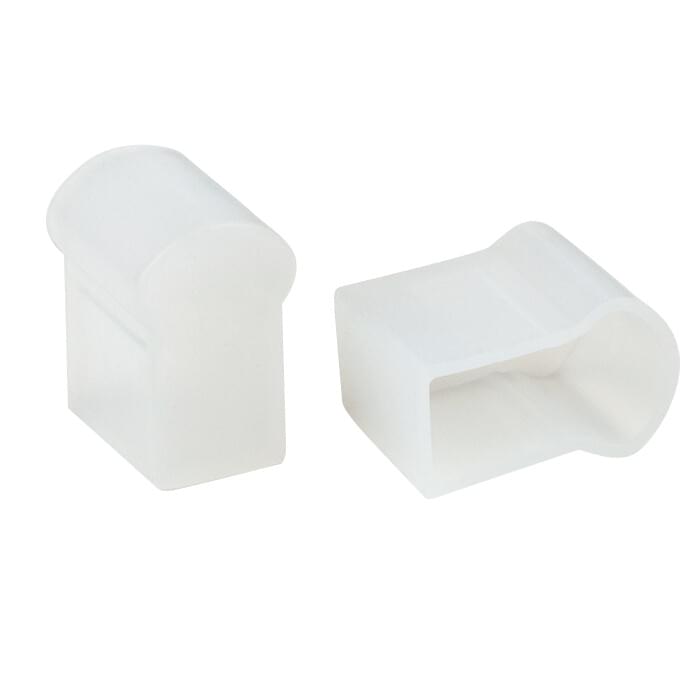

    Model No.FLN17EC Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Dim Add to Enquiry Add Remove Remove

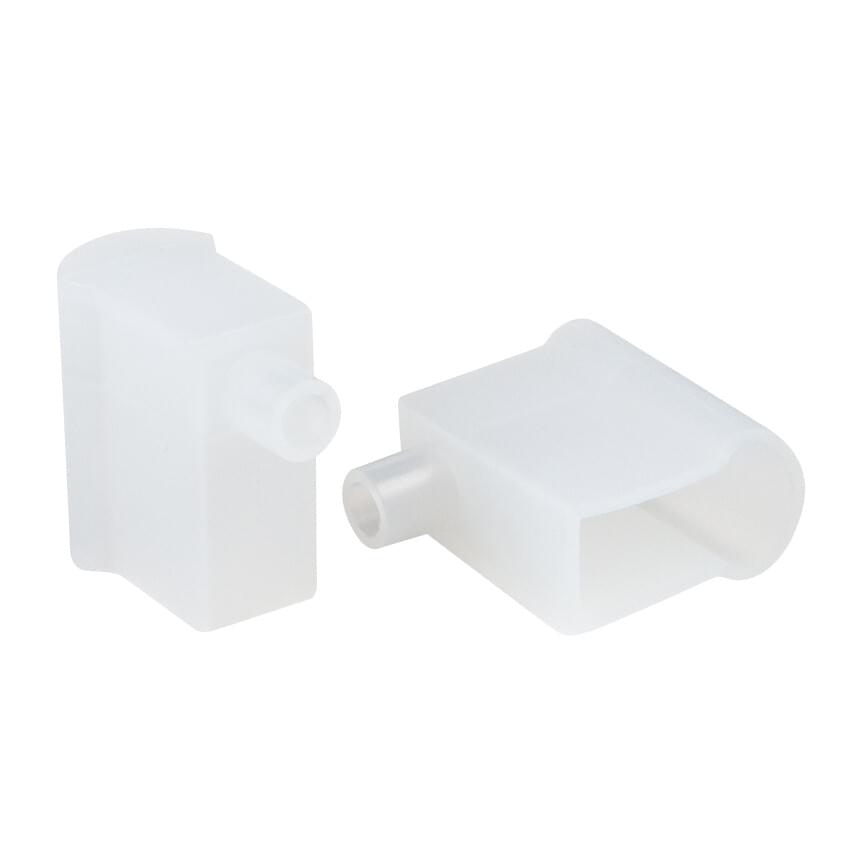

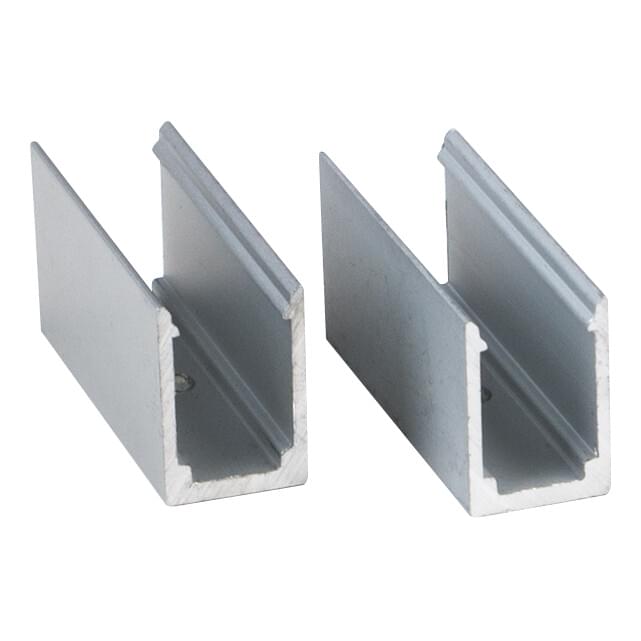

    Model No.FLN17LB Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Dim Add to Enquiry Add Remove Remove

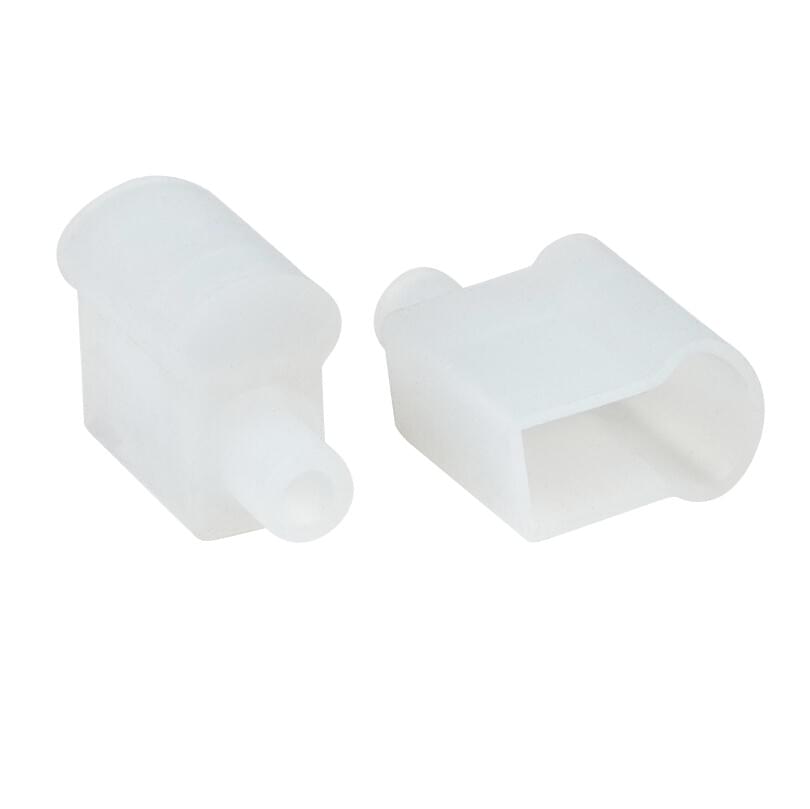

    Model No.FLN17LE Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Dim Add to Enquiry Add Remove Remove

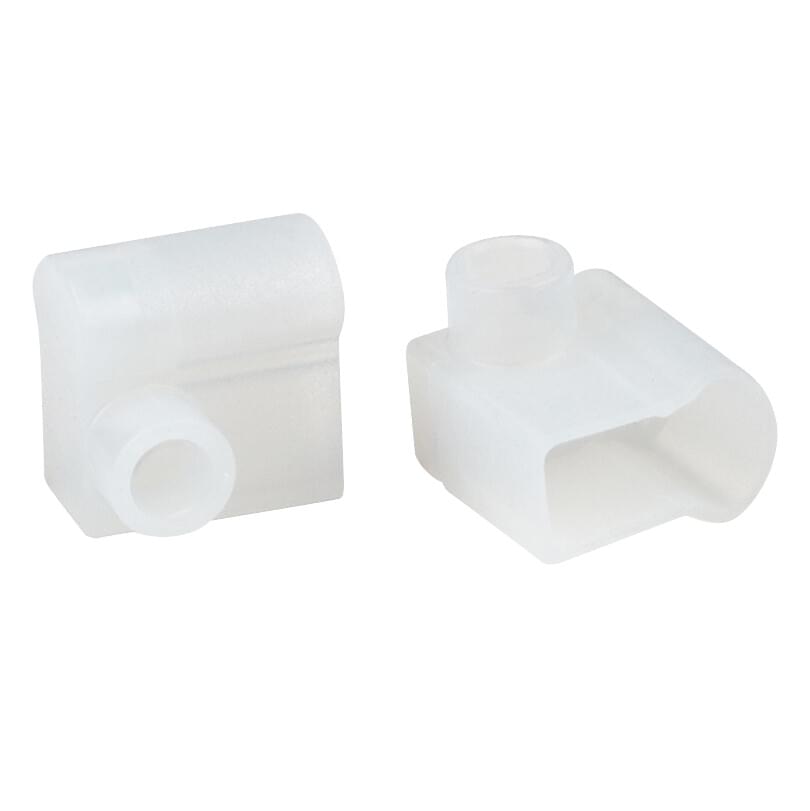

    Model No.FLN17LS Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Dim Add to Enquiry Add Remove Remove

    Note: For exterior applications, installation in spaces exposed to direct UV exposure is not recommended

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
