• STRIP LIGHTS

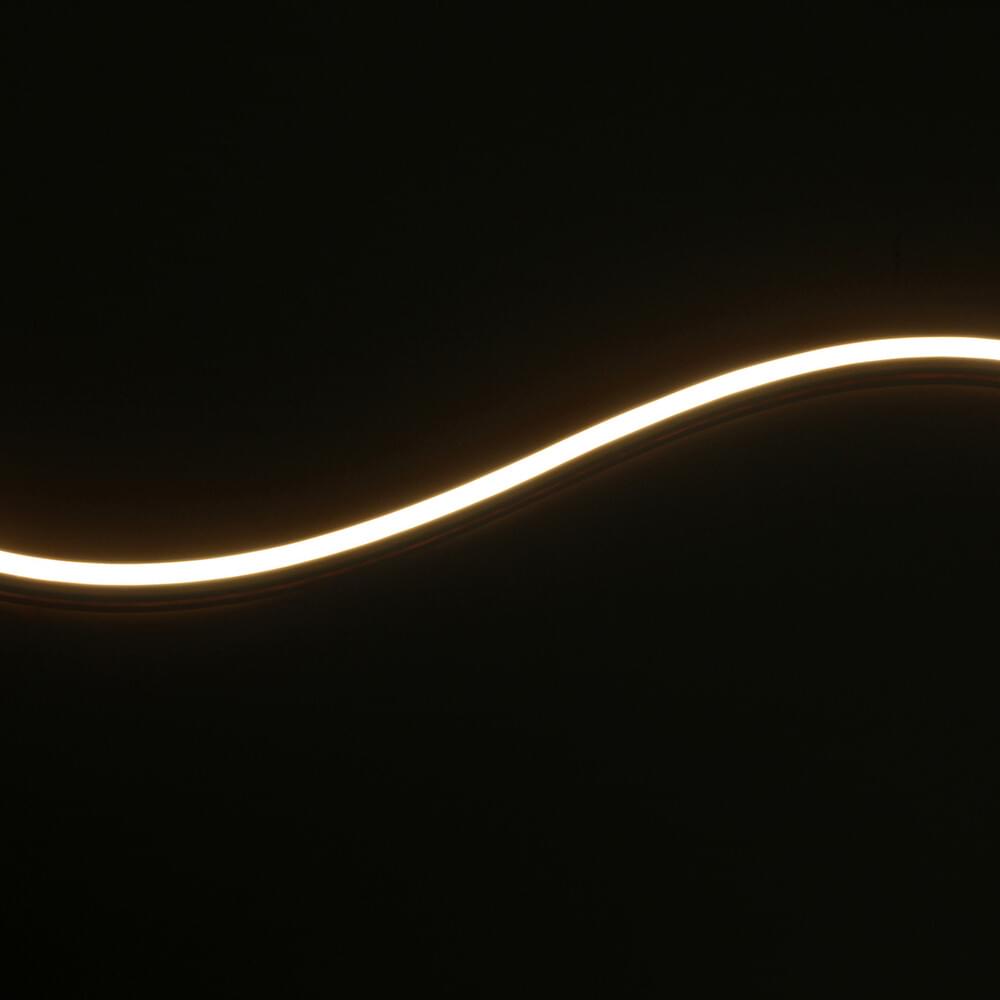

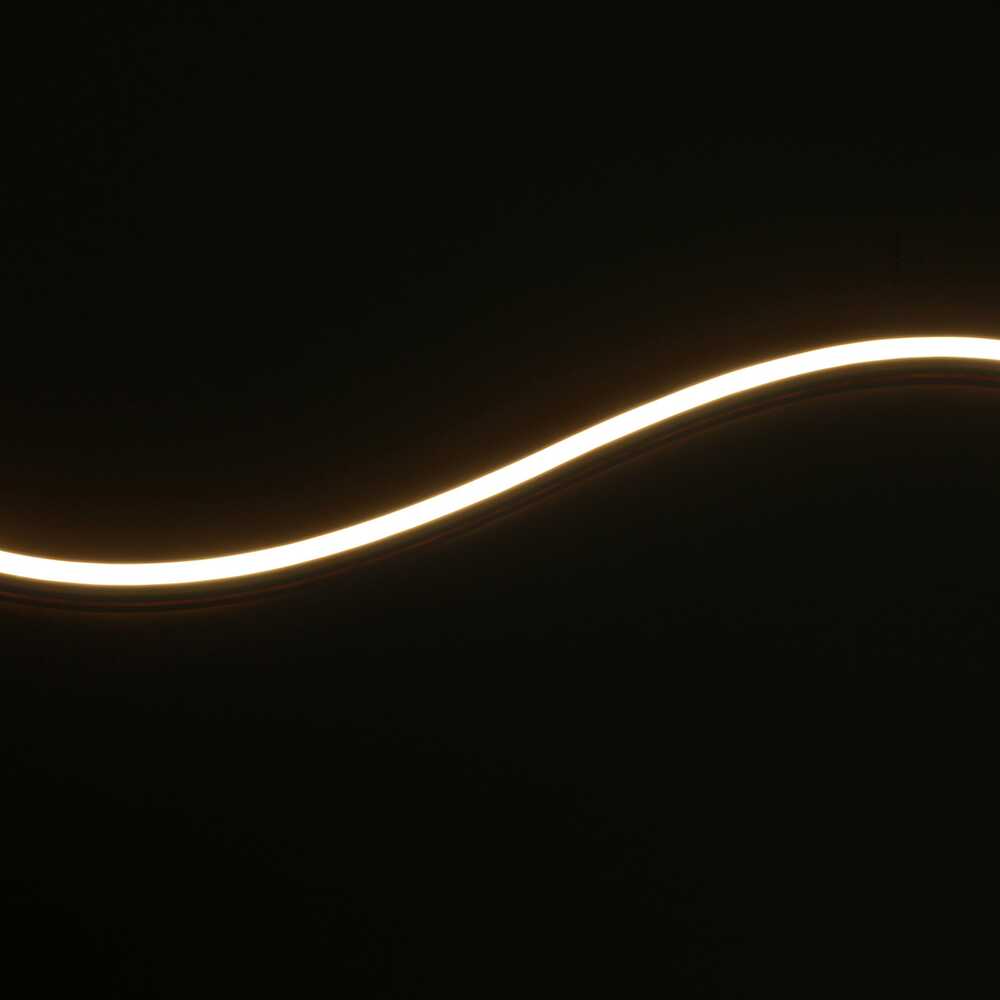

NEON SIDE BEND 24V WHITE FLN2410WW - 10W/m

Roll length 5m, maximum run length 5m, flexible Neon SIDE Bend white colour Neon, 24V, IP67, 6mm illuminated strip width

Application

A very flexible solution for residential and commercial interior or exterior spaces

Design Specifications

  • High efficiency optics, 10W/m

  • Cuttable every 50mm

  • Maximum run length 5m

  • Power supply ordered separately, 10W/m, 24V DC

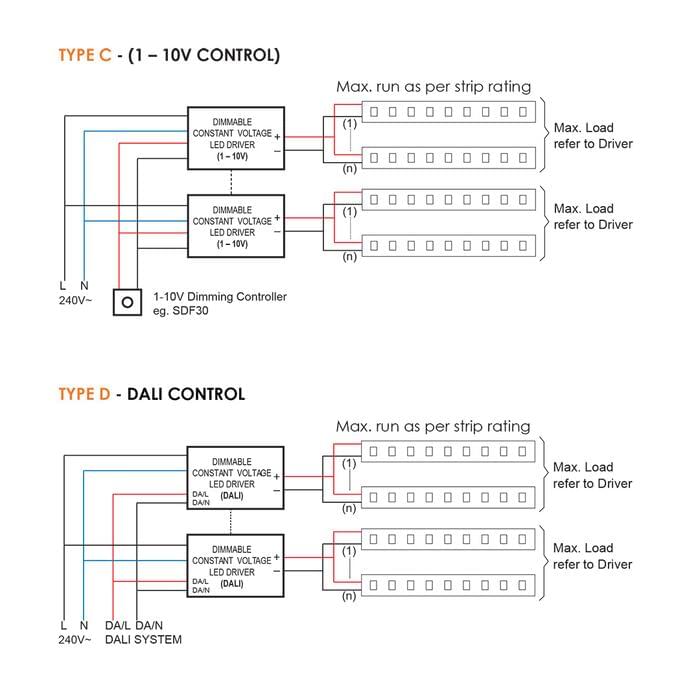

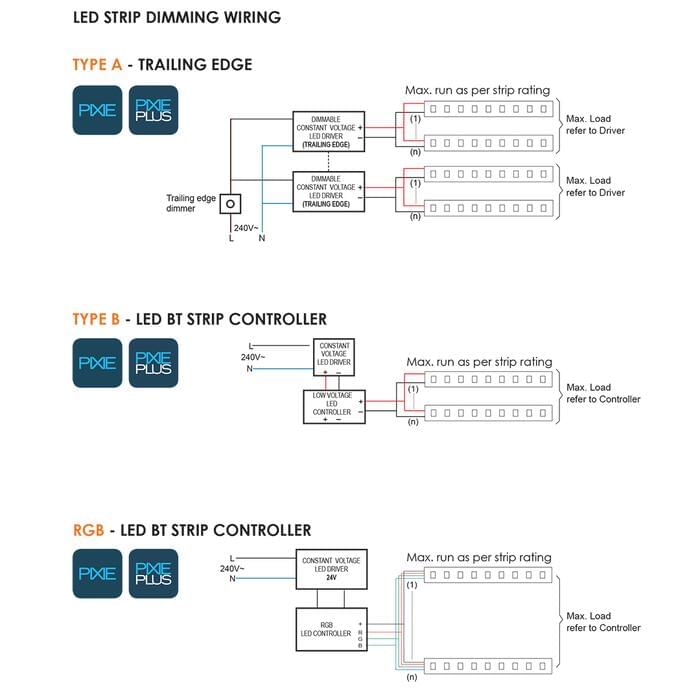

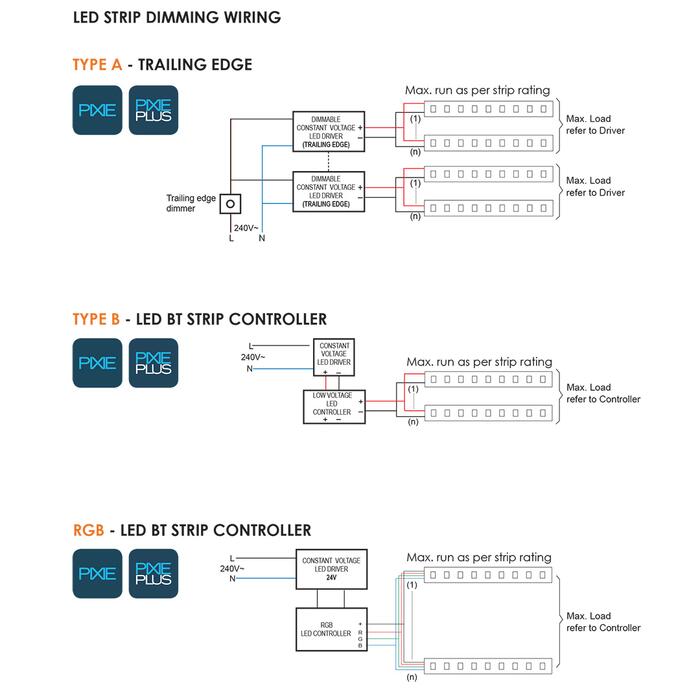

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • Codes listed are per metre, 5M roll packs to order

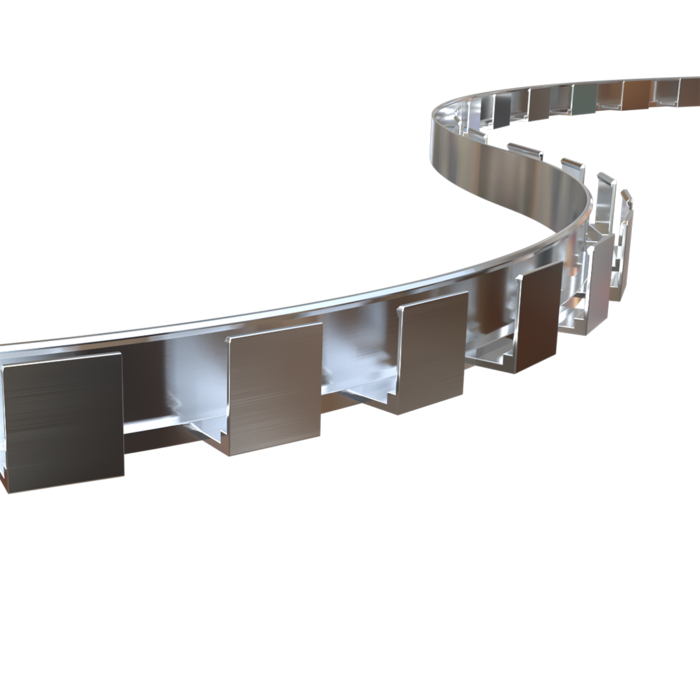

    Optional, flexible channels available (FLN0612FLEX)

    LED channel options (quick link)  Heat sink required for system performance

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Refer dimming options
  • WARM WHITE3000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval CCT Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLN2410WW0612 Input Voltage24 Watts per metre10 Beam Angle120 CRI90 Lumens per metre280 LEDs Per Metre140 Cutting Interval50 CCT3000 Dim6(W) x 12(H) Add to Enquiry Add Remove Remove
    Model No.FLN0612FLEX Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval CCT Dim1000(L) x 8(W) x 13.5(H) Add to Enquiry Add Remove Remove

    NOTE: for external use, protection against direct UV exposure is recommended.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
