• TRACK LIGHTS

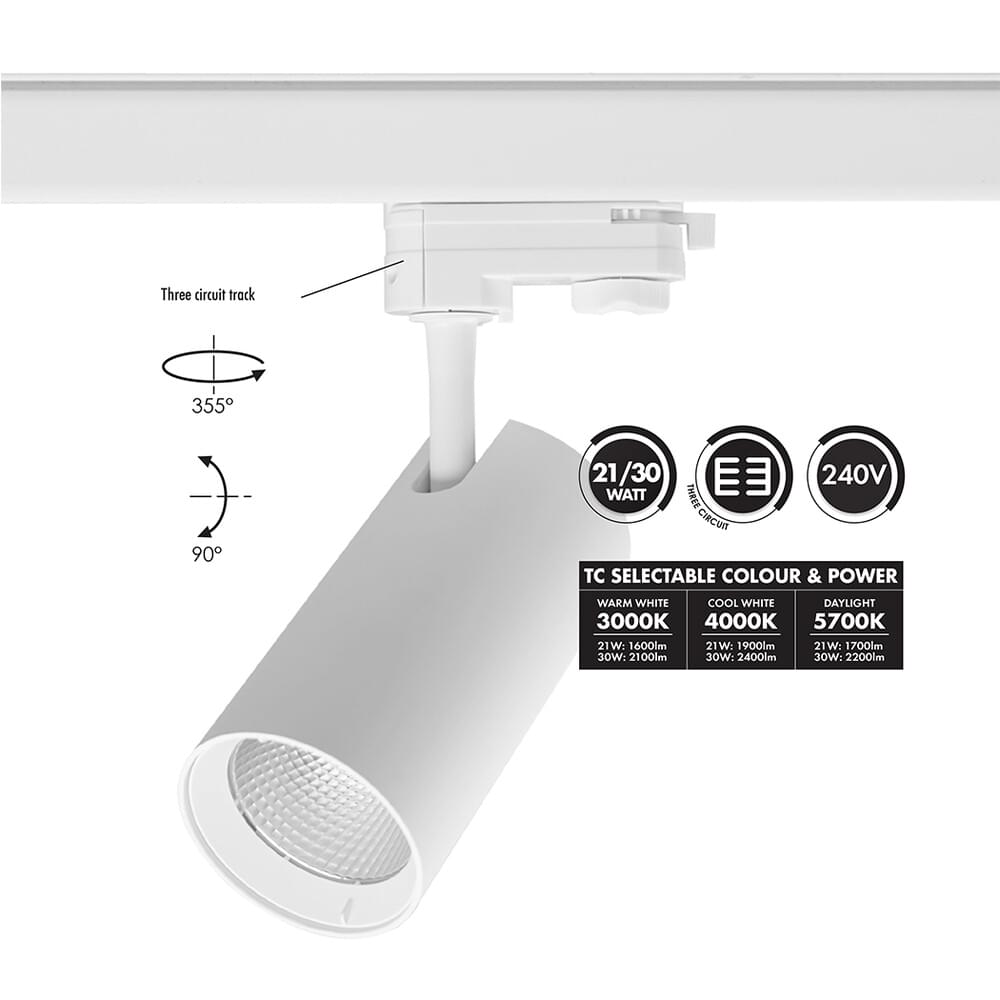

UNITREK STR3/9017/30TC/DP - 21/30W

30 watt architectural, three circuit track spot, with selectable power and CCT

Application

Ideal for decorative interior and retail designs

Design Specifications

  • Architectural cylindrical shape, 350° horizontal rotation

  • Durable Polyamide body profile, colour white or black

  • High efficiency LED optics, CRI > 80, selectable CCT 3000/4000/5700K

  • Multi-faceted reflector system, standard beam distribution 40°

  • Optional black or white baffle available

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

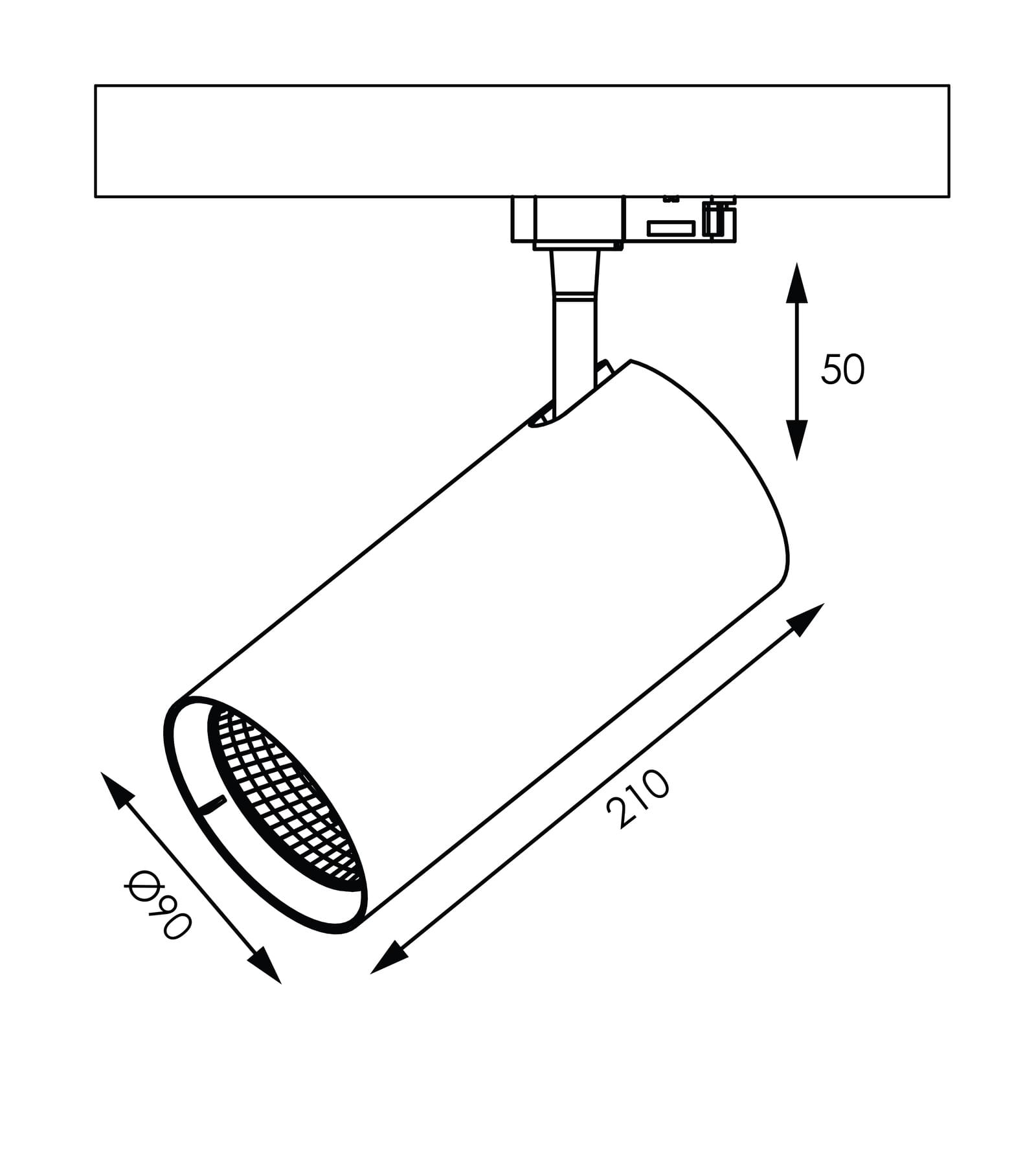

  • Dimensions - Wiring Diagrams
  • Design Options

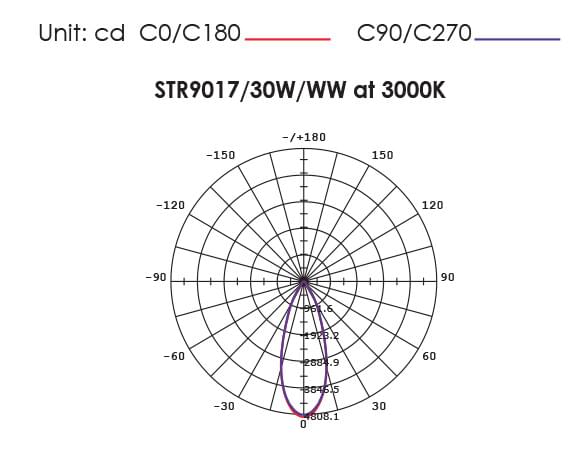

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Body Colour CRI Beam Angle Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STR3/9017/30TC/DP/WH Input Voltage240 Multiple Wattage21/30 Lumens2100/2400/2200 CCT3000/4000/5700 Body ColourWHITE CRI80 Beam Angle40 Dim90(W) x 210(H) Add to Enquiry Add Remove Remove

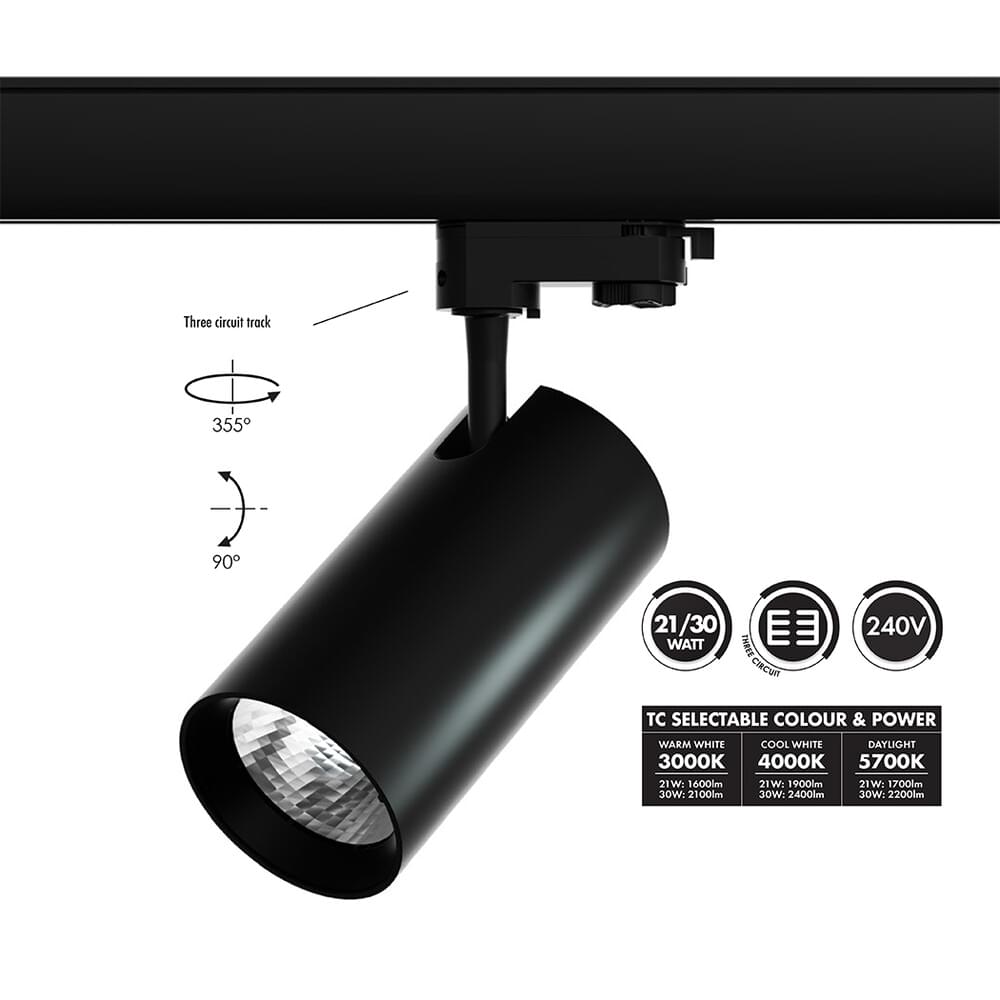

    Model No.STR3/9017/30TC/DP/BK Input Voltage240 Multiple Wattage21/30 Lumens2100/2400/2200 CCT3000/4000/5700 Body ColourBLACK CRI80 Beam Angle40 Dim90(W) x 210(H) Add to Enquiry Add Remove Remove

    NOTE: Lumens (lm) are shown at maximum power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
