• TRACK LIGHTS

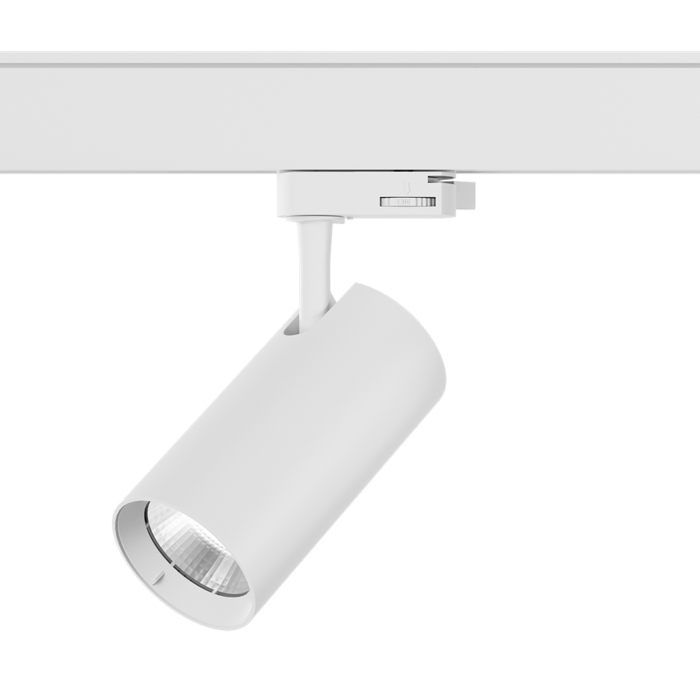

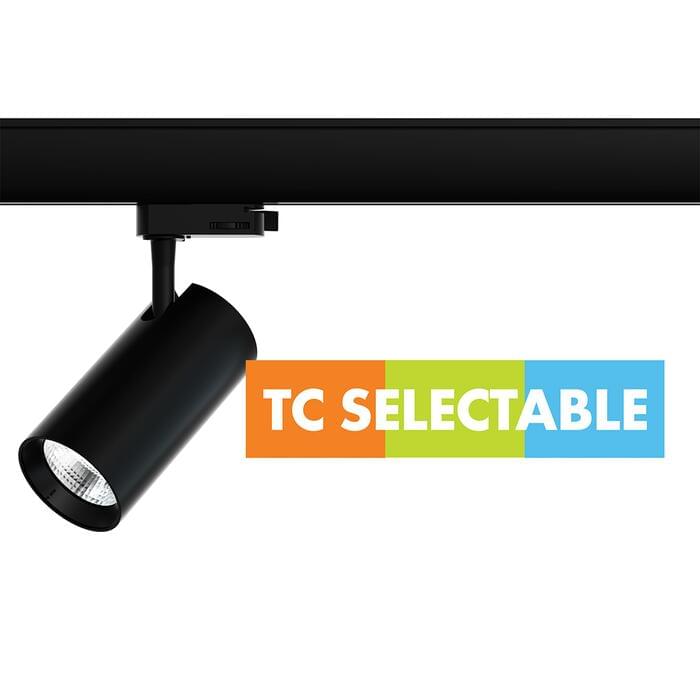

UNITREK DIMMABLE STR9017/15TC - 15W

Single circuit, dimmable 15 watt architectural track spot, with integral driver

Application

Ideal for decorative retail or interior residential spaces

Design Specifications

  • Durable Polyamide body profile, colour white or black

  • High output LED optics, CRI >80, selectable CCT 3000K / 4000K / 5700K

  • Polycarbonate lens, 40° beam distribution

  • 15 watt integral trailing edge dimmable driver

  • Optional black or white baffle available

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

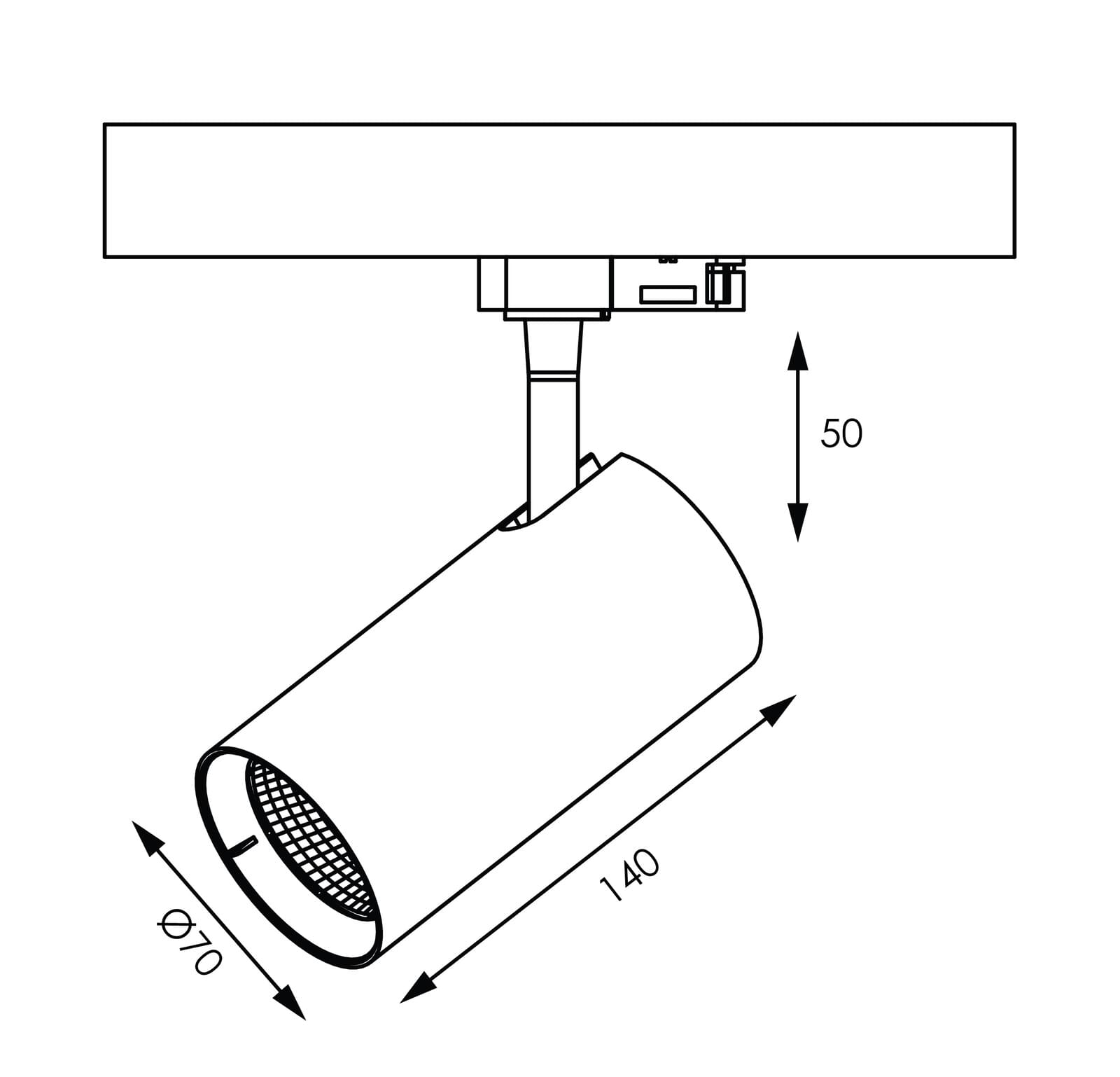

  • Dimensions - Wiring Diagrams
  • Design Options

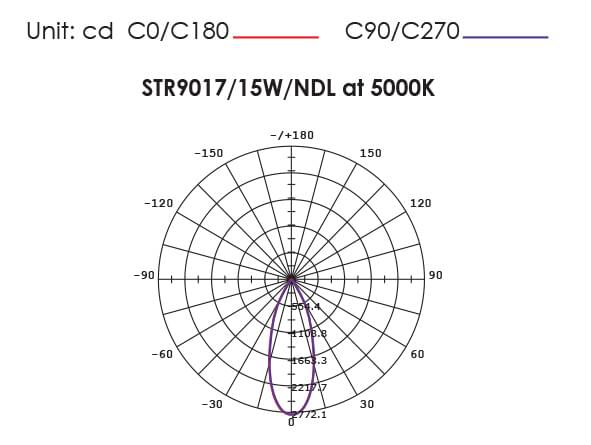

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT Body Colour CRI Beam Angle Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.STR9017/15TC/WH Input Voltage240 Power15 Lumens1000/1150/1100 CCT3000/4000/5700 Body ColourWHITE CRI80 Beam Angle40 Dimmable YES Dim70(W) x 140(H) Add to Enquiry Add Remove Remove

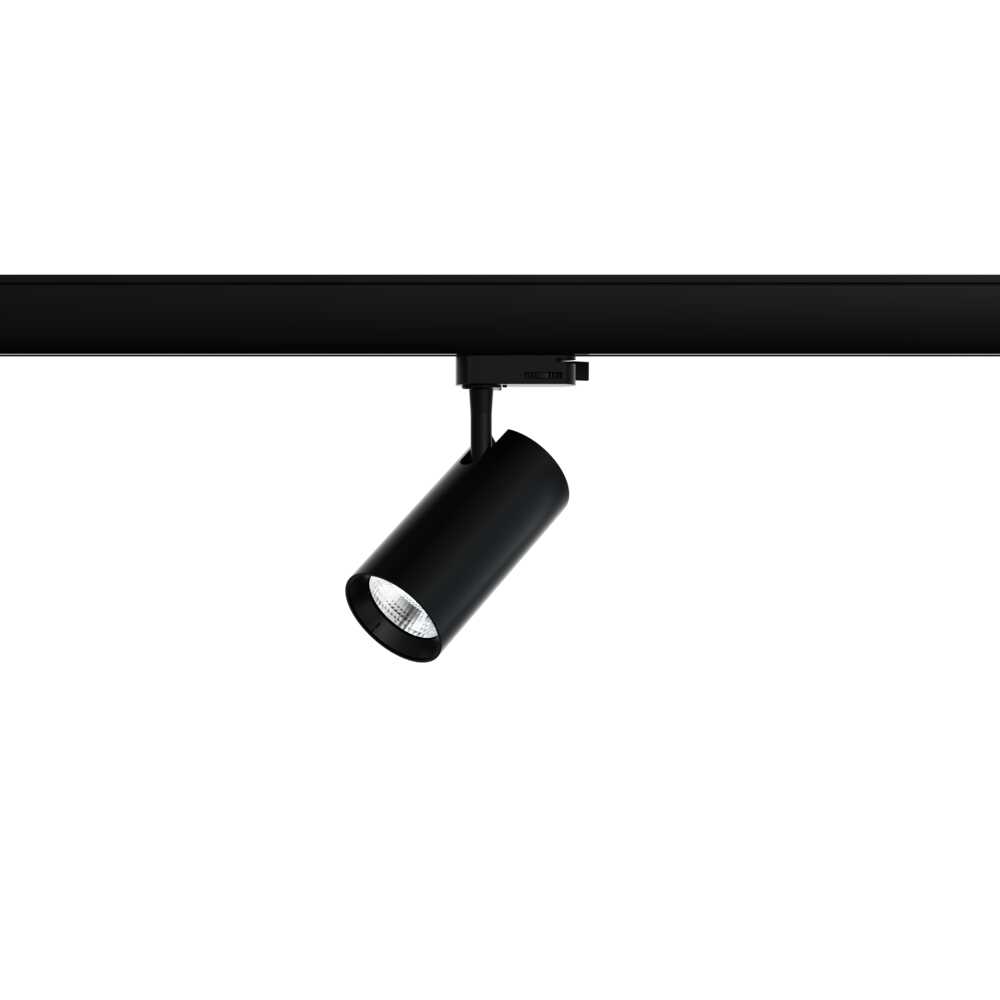

    Model No.STR9017/15TC/BK Input Voltage240 Power15 Lumens1000/1150/1100 CCT3000/4000/5700 Body ColourBLACK CRI80 Beam Angle40 Dimmable YES Dim70(W) x 140(H) Add to Enquiry Add Remove Remove

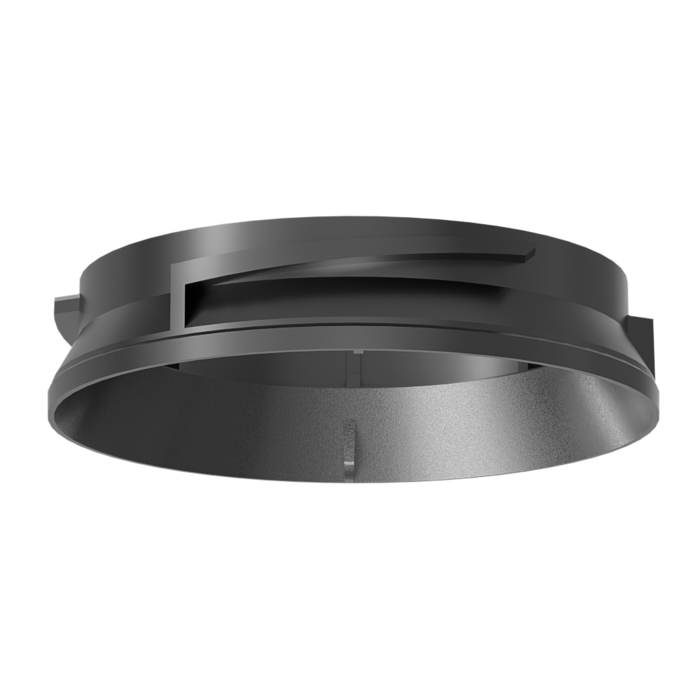

    Model No.STR9017/15RING/BK Input Voltage Power Lumens CCT Body ColourBLACK RING INSERT CRI Beam Angle40 Dimmable Dim Add to Enquiry Add Remove Remove

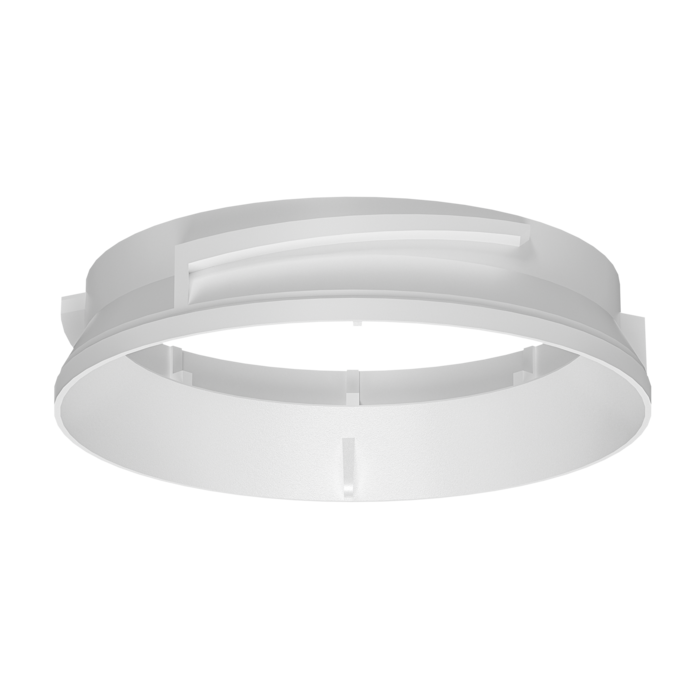

    Model No.STR9017/15RING/WH Input Voltage Power Lumens CCT Body ColourWHITE RING INSERT CRI Beam Angle40 Dimmable Dim Add to Enquiry Add Remove Remove
    Model No.STR9017/15R60P Input Voltage Power Lumens CCT Body Colour60 DEG BEAM INSERT CRI Beam Angle60 Dimmable Dim Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
