PLUTO SP24V/FC - 45W/240W

Australian approved 24V constant voltage flickerCONTROLLED power supply, IP20

Application

An ideal choice for LED strips, LED Neon or exterior lighting requirements

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, power factor 0.95, non-dimmable

  • Overload and short circuit protection, flickerCONTROLLED performance

  • Fixed wire termination

  • Electrical class II, Do Not Cover.

  • Choice of 45W, 100W, 150W or 240W models

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

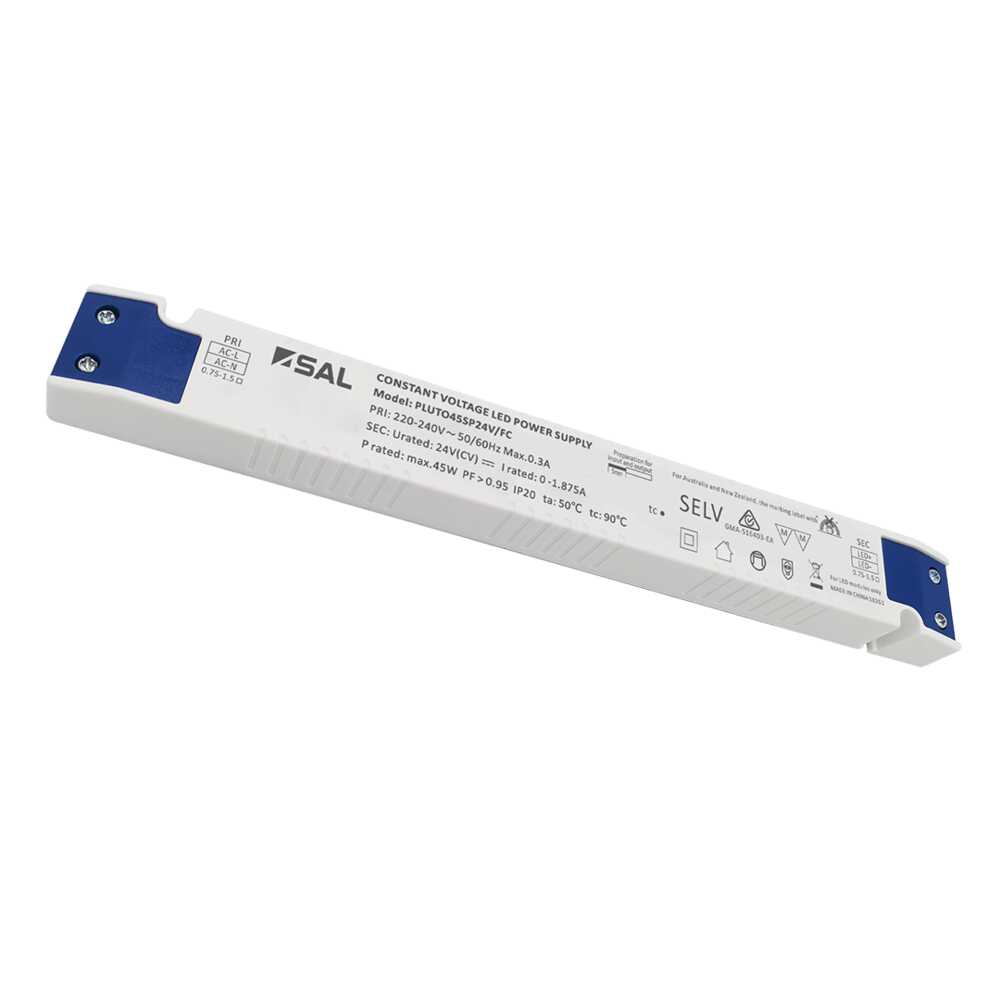

    Model No.PLUTO45SP24V/FC Input Voltage240 Frequency50 Output Voltage24 Power45 Power Factor0.95 Dimmable NO Dim251(L) x 31(W) x 19(H) Add to Enquiry Add Remove Remove

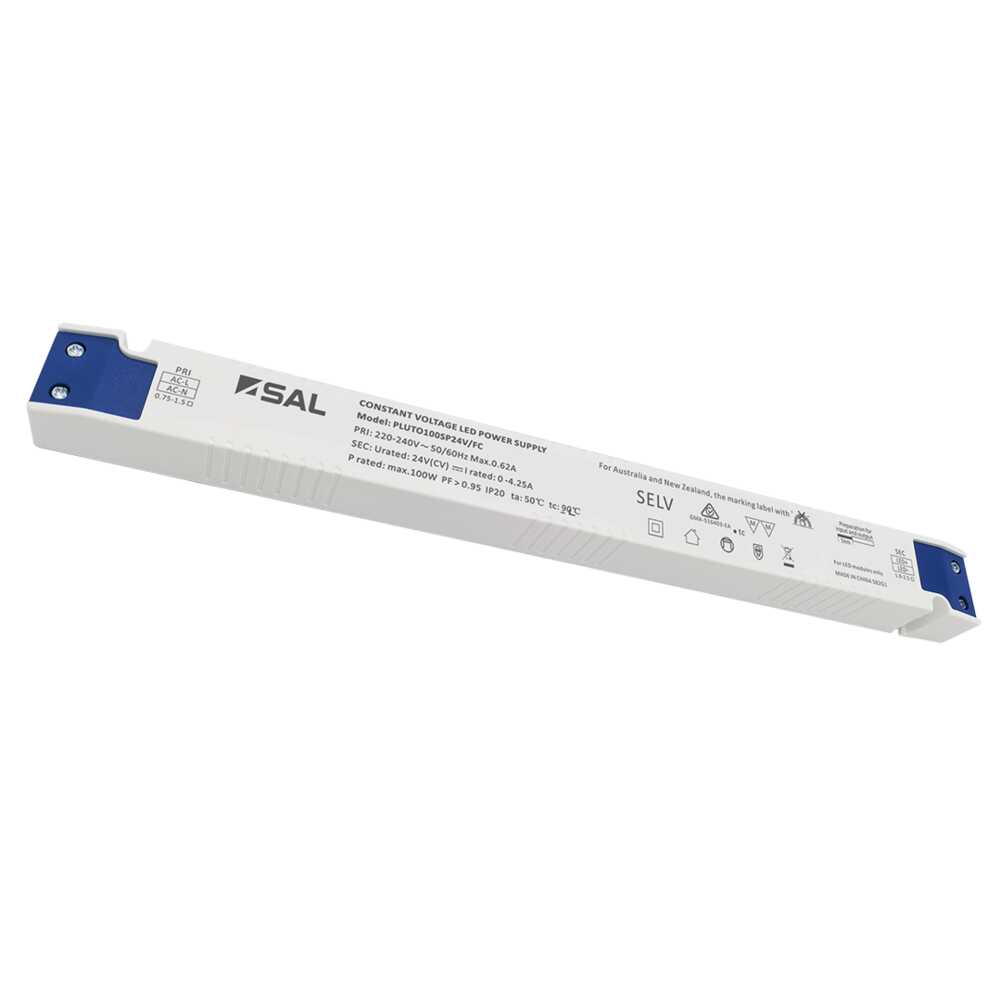

    Model No.PLUTO100SP24V/FC Input Voltage240 Frequency50 Output Voltage24 Power100 Power Factor0.95 Dimmable NO Dim316(L) x 31(W) x 23(H) Add to Enquiry Add Remove Remove

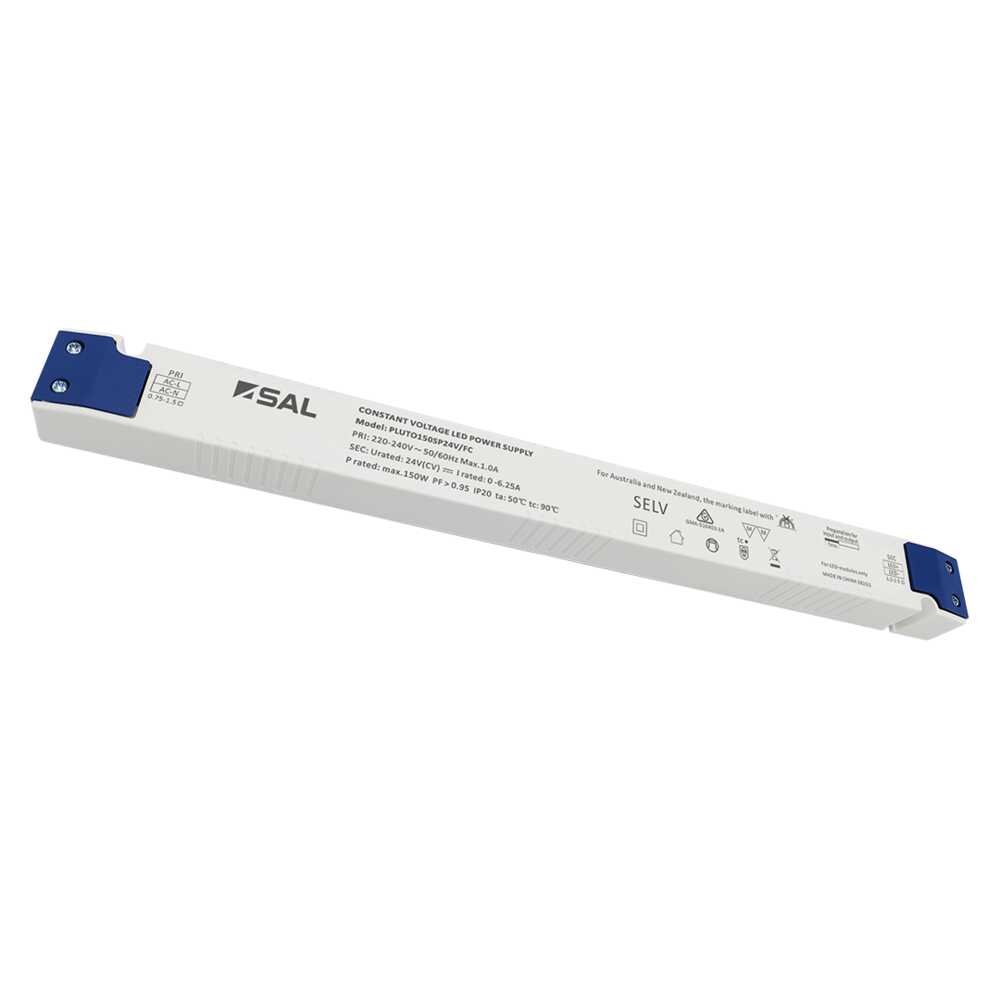

    Model No.PLUTO150SP24V/FC Input Voltage240 Frequency50 Output Voltage24 Power150 Power Factor0.95 Dimmable NO Dim336(L) x 31(W) x 23(H) Add to Enquiry Add Remove Remove

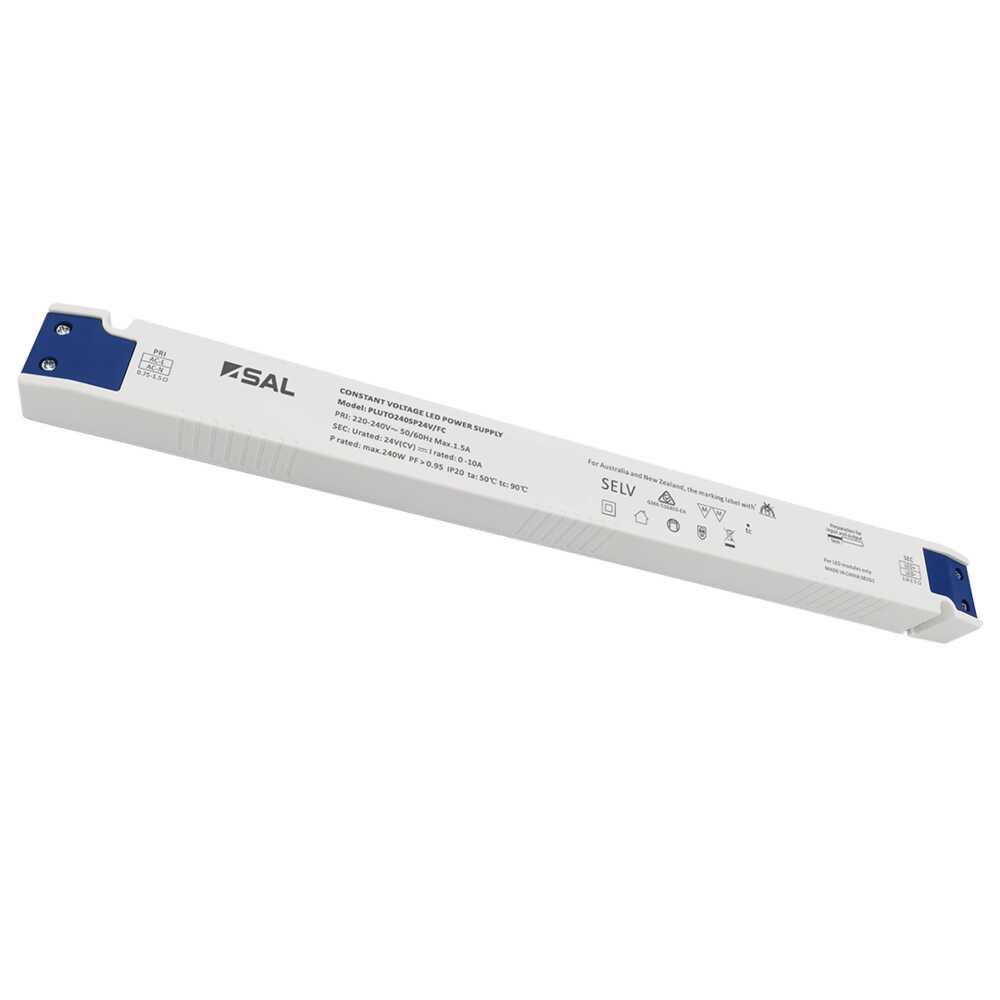

    Model No.PLUTO240SP24V/FC Input Voltage240 Frequency50 Output Voltage24 Power240 Power Factor0.95 Dimmable NO Dim361(L) x 31(W) x 23(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
