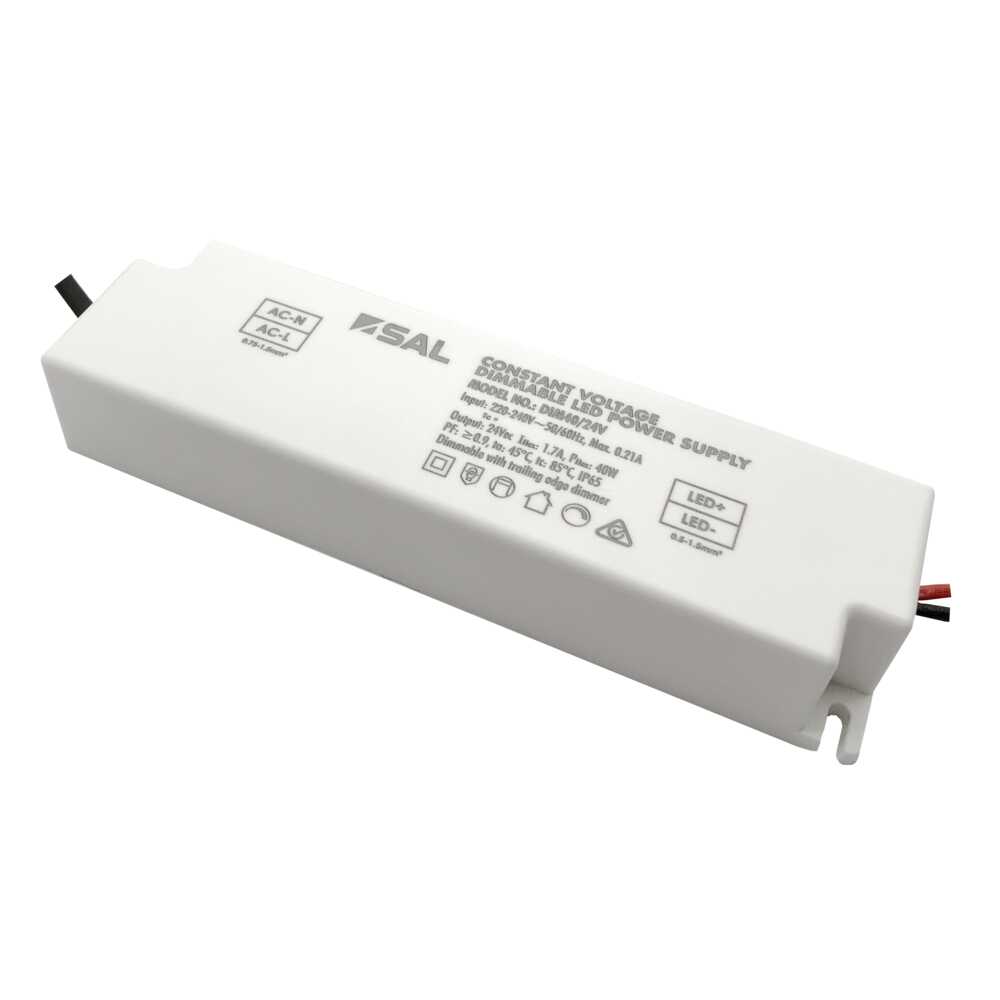

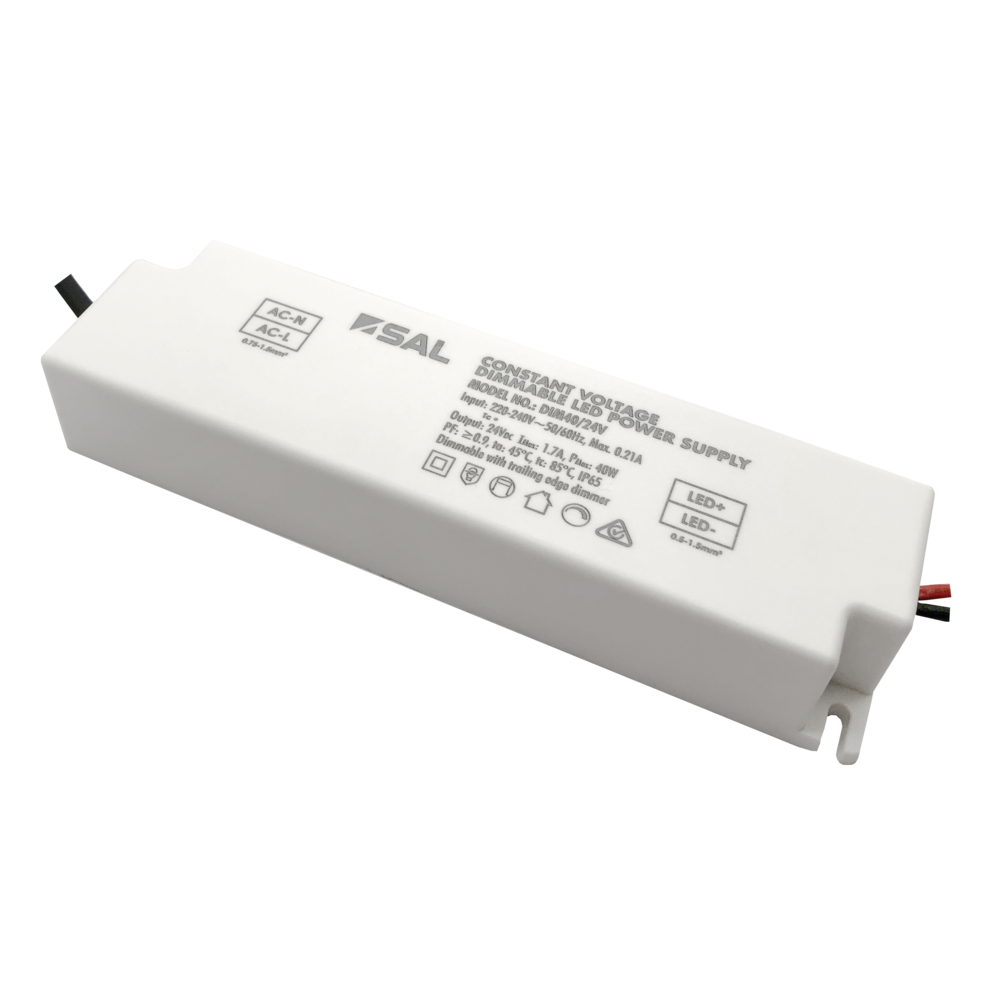

DIM40 - 24V 40W

Australian approved IP65 dimmable 24V constant voltage LED power supply

Application

Suitable for LED strip, trailing edge dimming models

Design Specifications

  • SELV and EMC compliant

  • Safe no load operation, 40 watt, minimum load 5 watt, PF > 90, output 24V

  • Overload and short circuit protection

  • 1.2 m flex & 2 pin plug fitted, 1.2 m flex & 2 pin plug fitted, secondary output fly leads

  • Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U/LED

  • Electrical class II, Do Not Cover

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE

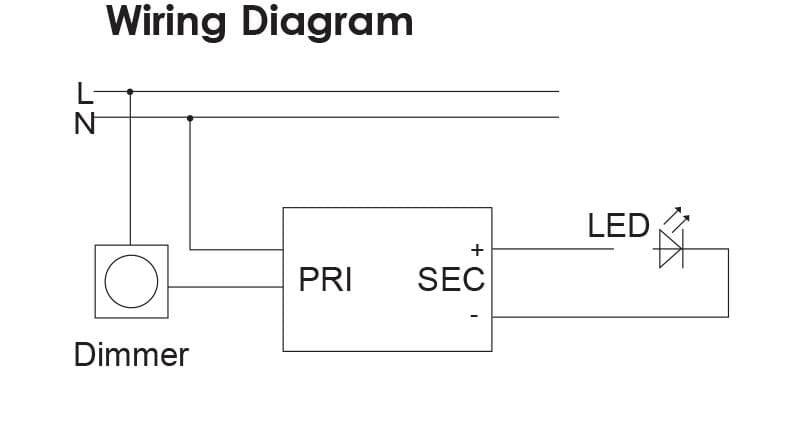

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Frequency Output Voltage Power Power Factor Dimmable Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DIM40/24V Input Voltage240 Frequency50 Output Voltage24 Power40 Power Factor0.9 Dimmable YES Dim155(L) x 43(W) x 26(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
