• ELECTRICAL ACCESSORIES

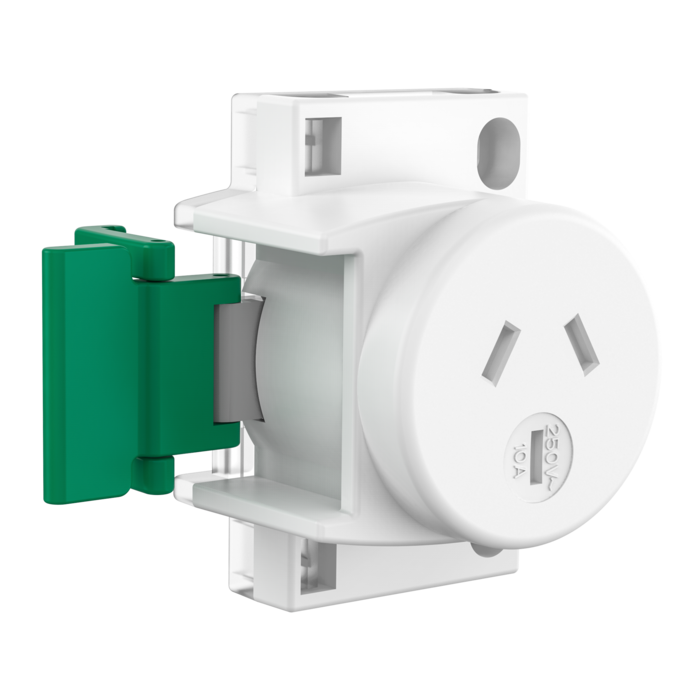

SURFACE SOCKET - QUICK CONNECT ESS107

Quick connect inline surface socket, 250V / 10A rated

Application

Inline surface socket designed to save you installation time and money

Design Specifications

  • Australian approved three pin 250V, 10A socket, compliant to AS/NZS3112:2017

  • Secure clip lock design

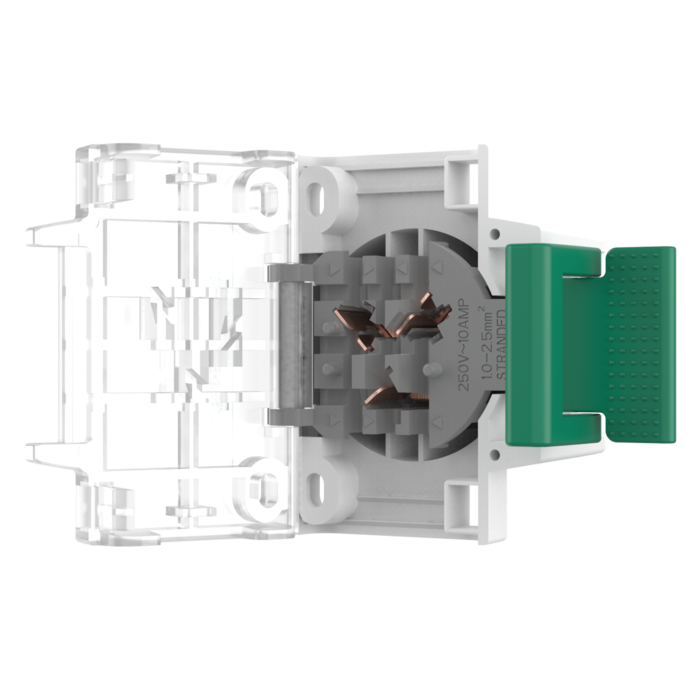

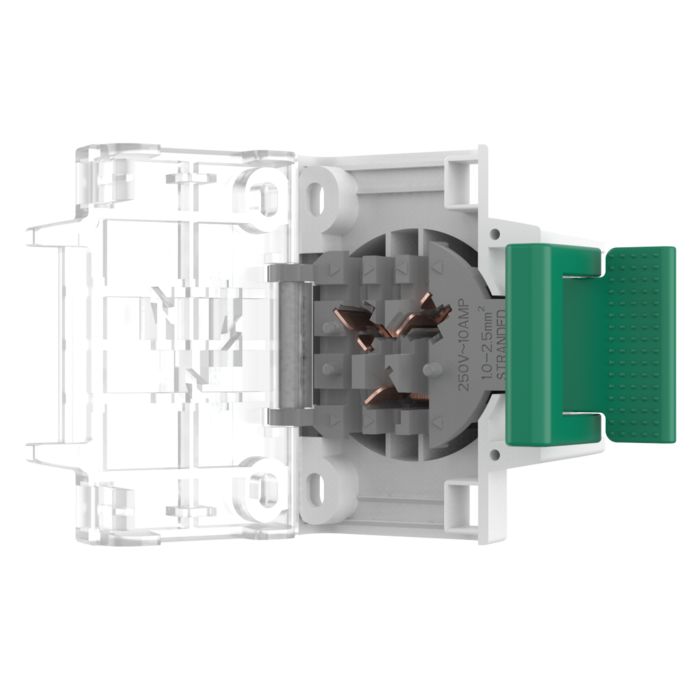

  • Innovative transparent rear termination inspection cover

  • Durable polycarbonate construction

  • Designed to suit 1.0mm to 2.5mm flat twin and earth TPS, stranded or solid conductors for installation by a qualified electrical installer

  • Colour white

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

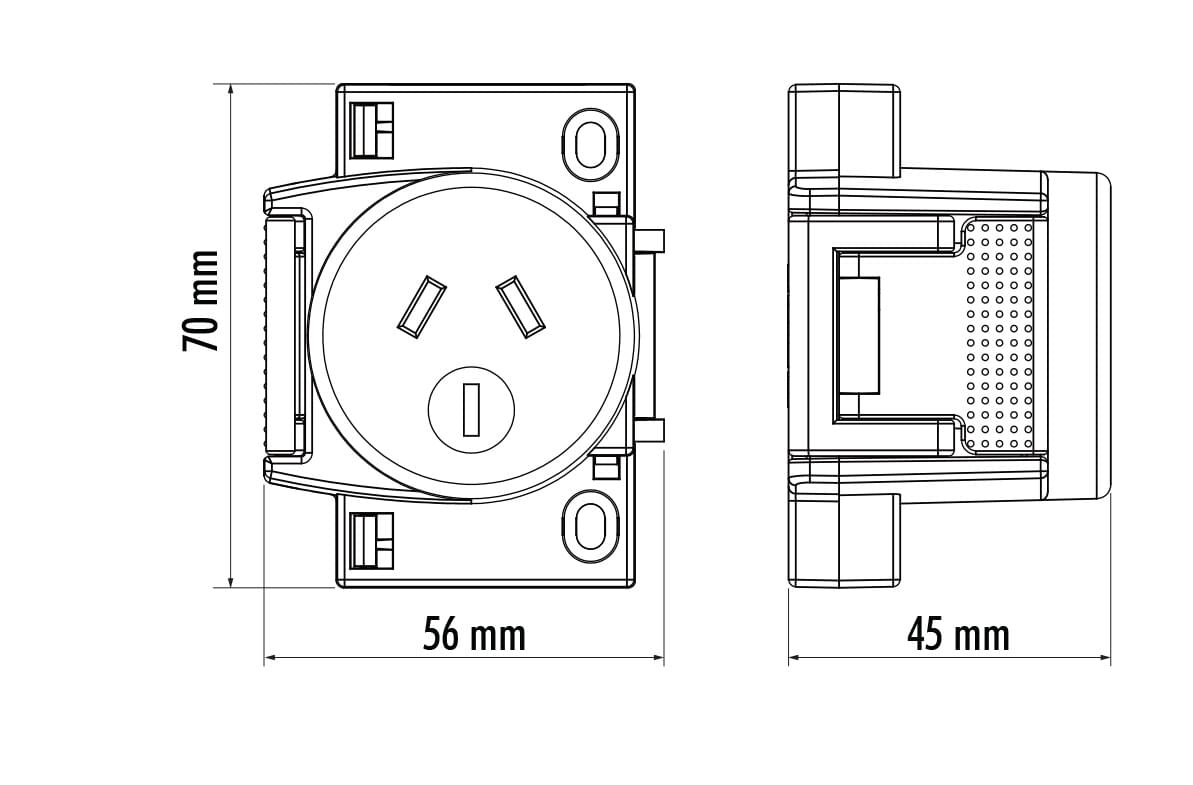

    Model No.ESS107 Input Voltage250 Dim70(L) x 56(W) x 47(H) Body ColourWHITE Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
