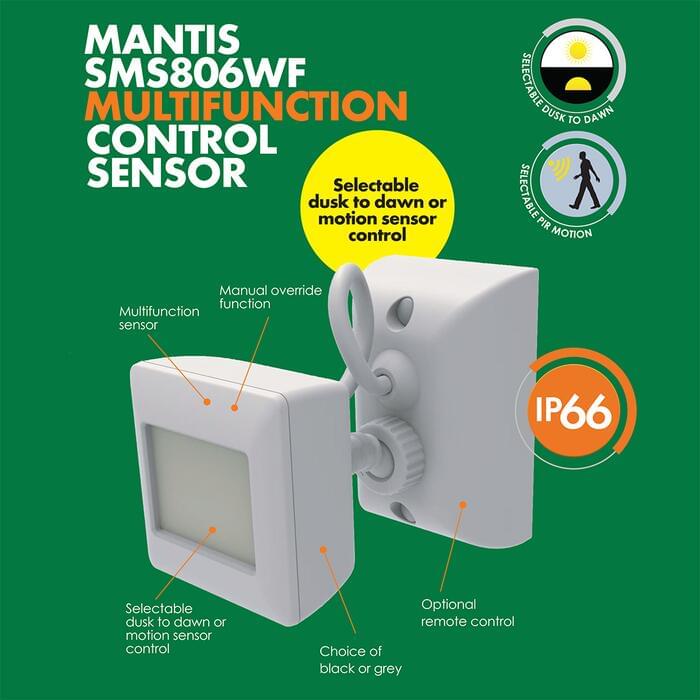

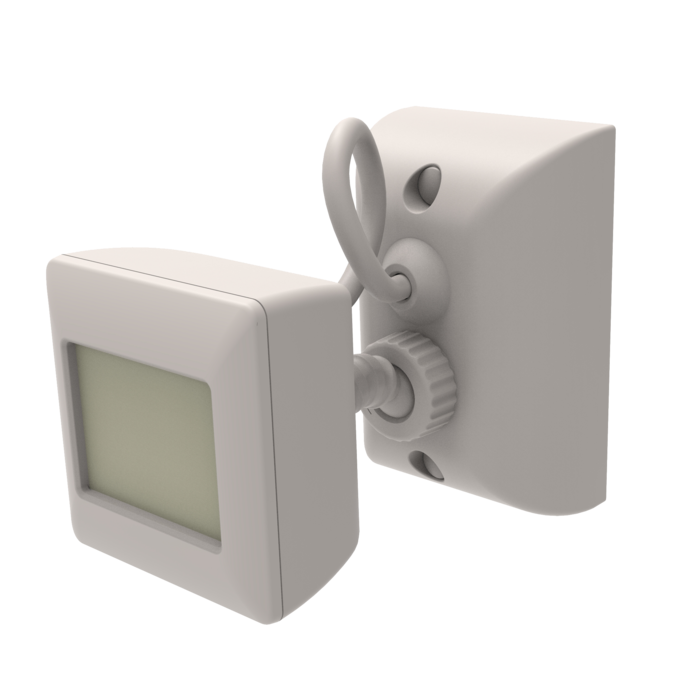

MANTIS MULTI FUNCTION SENSOR - SMS806WF

Multi function PIR Sensor with photocell and override functions - surface mount IP66.

Application

Versatile residential and commercial sensor applications

Design Specifications

  • 3 wire design for interior or exterior use in a choice of GREY or BLACK

  • Selectable dusk to dawn (PE) or motion sensor control functions

  • Manual override function, sensitivity, time, light level or PE cell adjustments can be set manually or via the optional remote control

  • Maximum loads (LED) 500W, (CFL) 1000W, (Halogen) 2000W

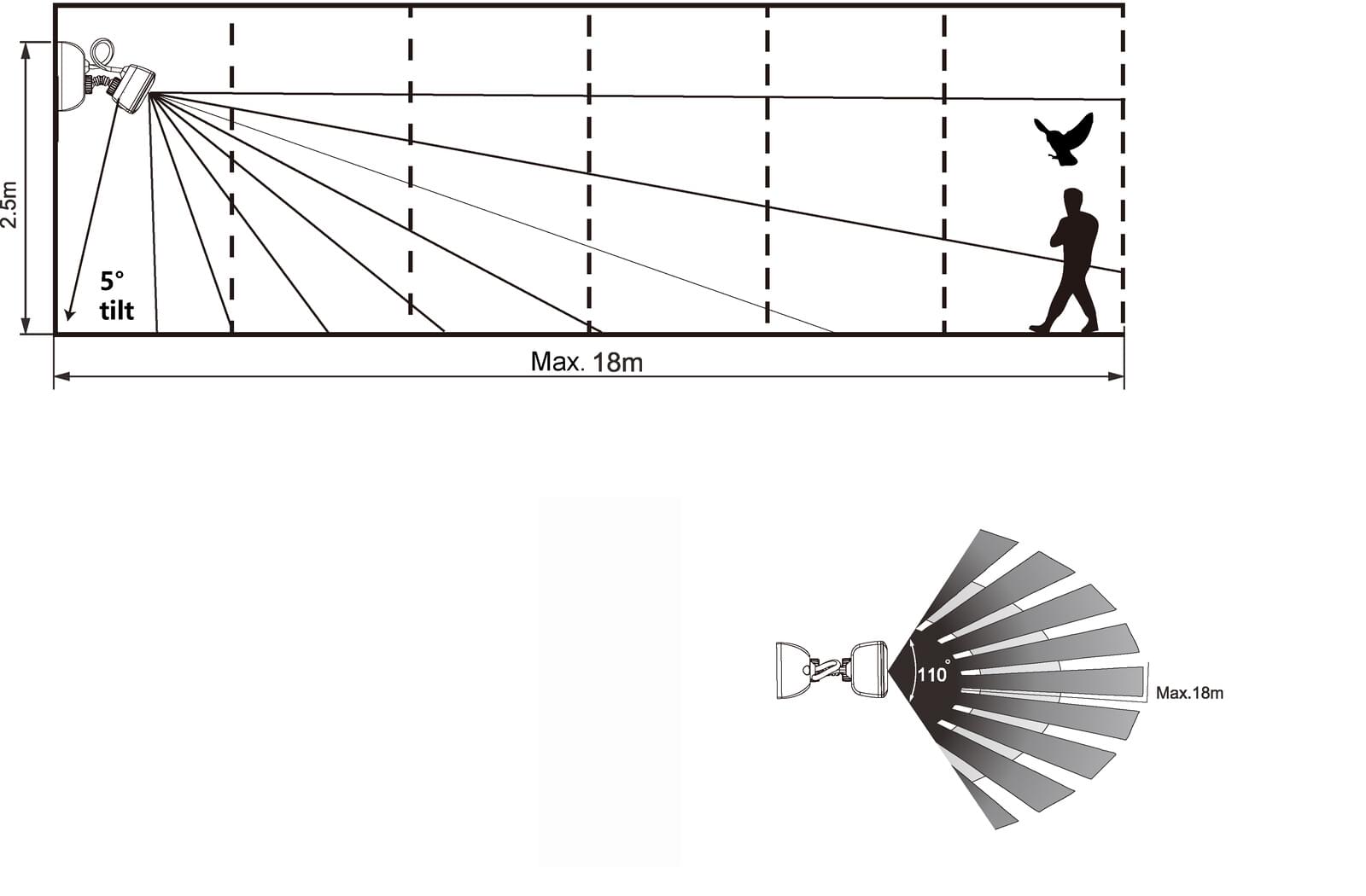

  • Detection angle 110° up to 18 metres at a height of 1.8 - 2.5hm (Black model detection range 15 metres).

  • The controller (SMS806WF/RC) contains batteries and is designed for trade use only.

Performance

  • In Built Sensor - YES
  • Sensor Type - PIR

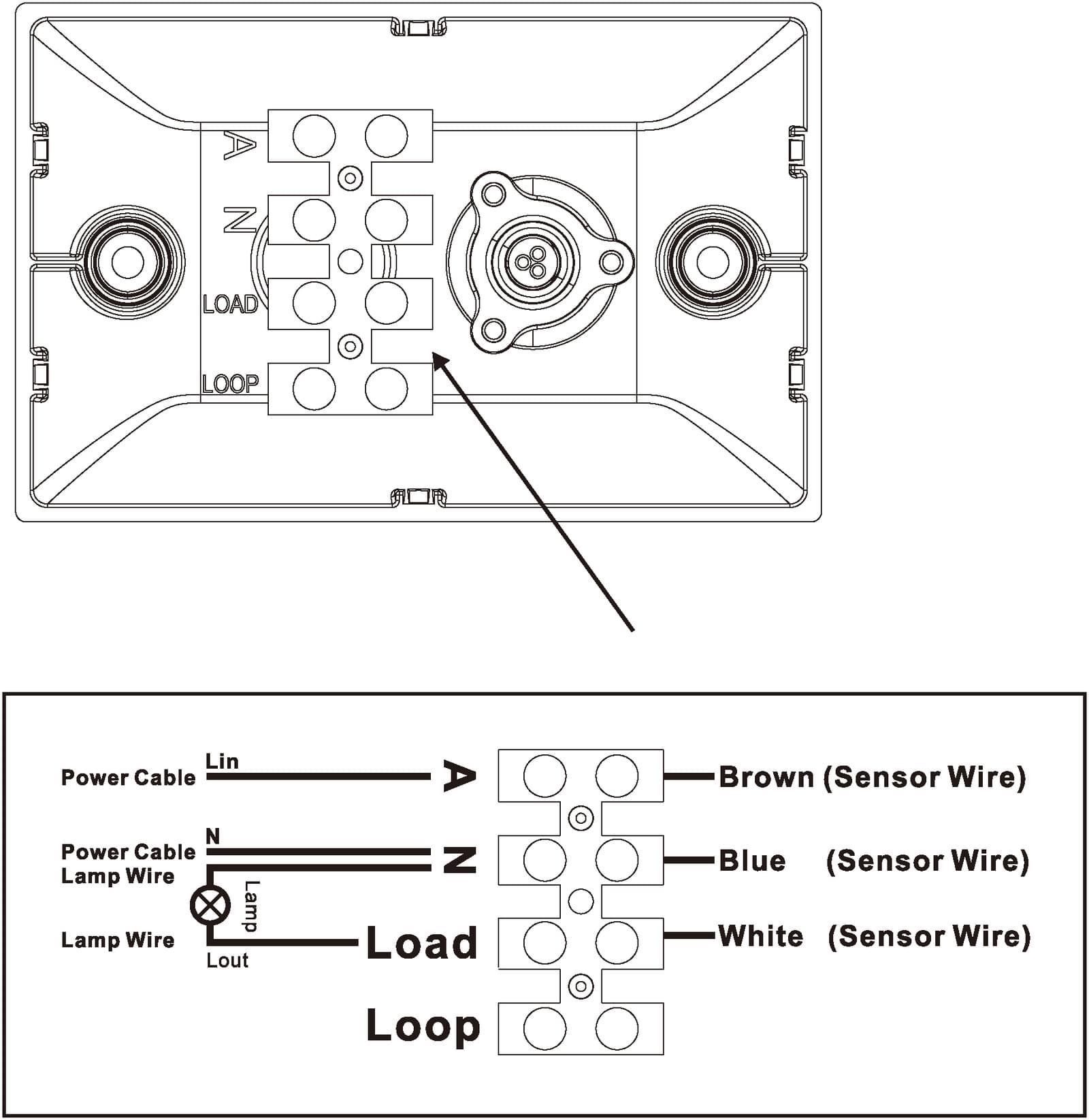

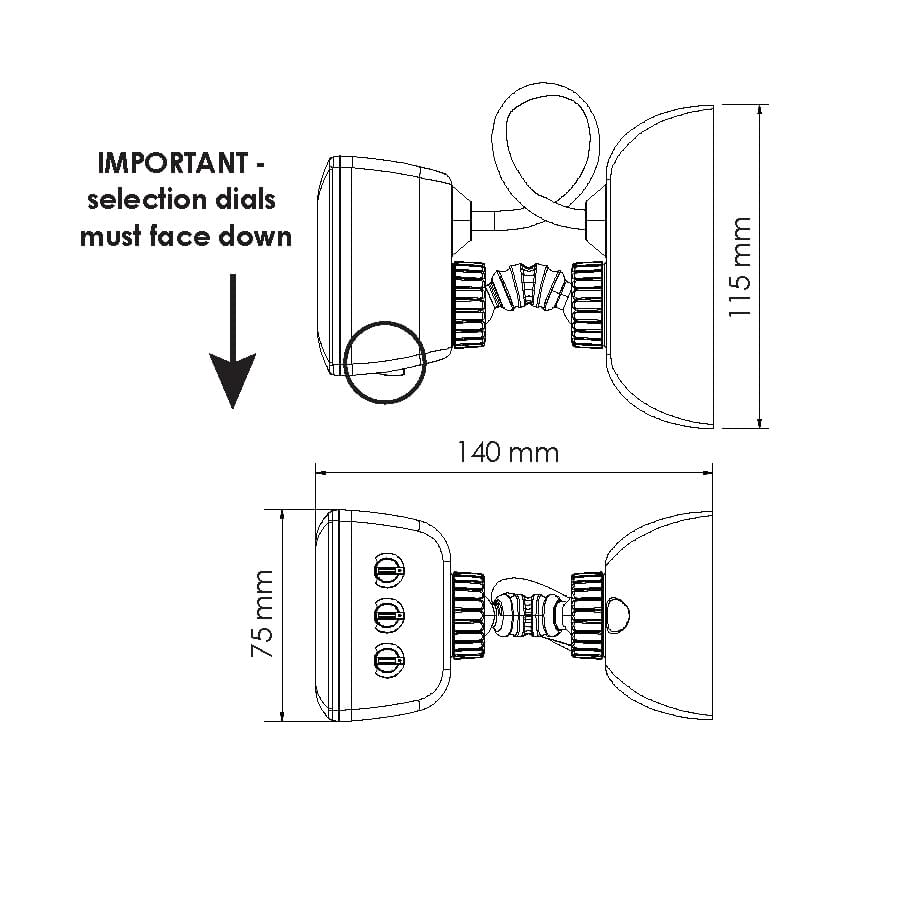

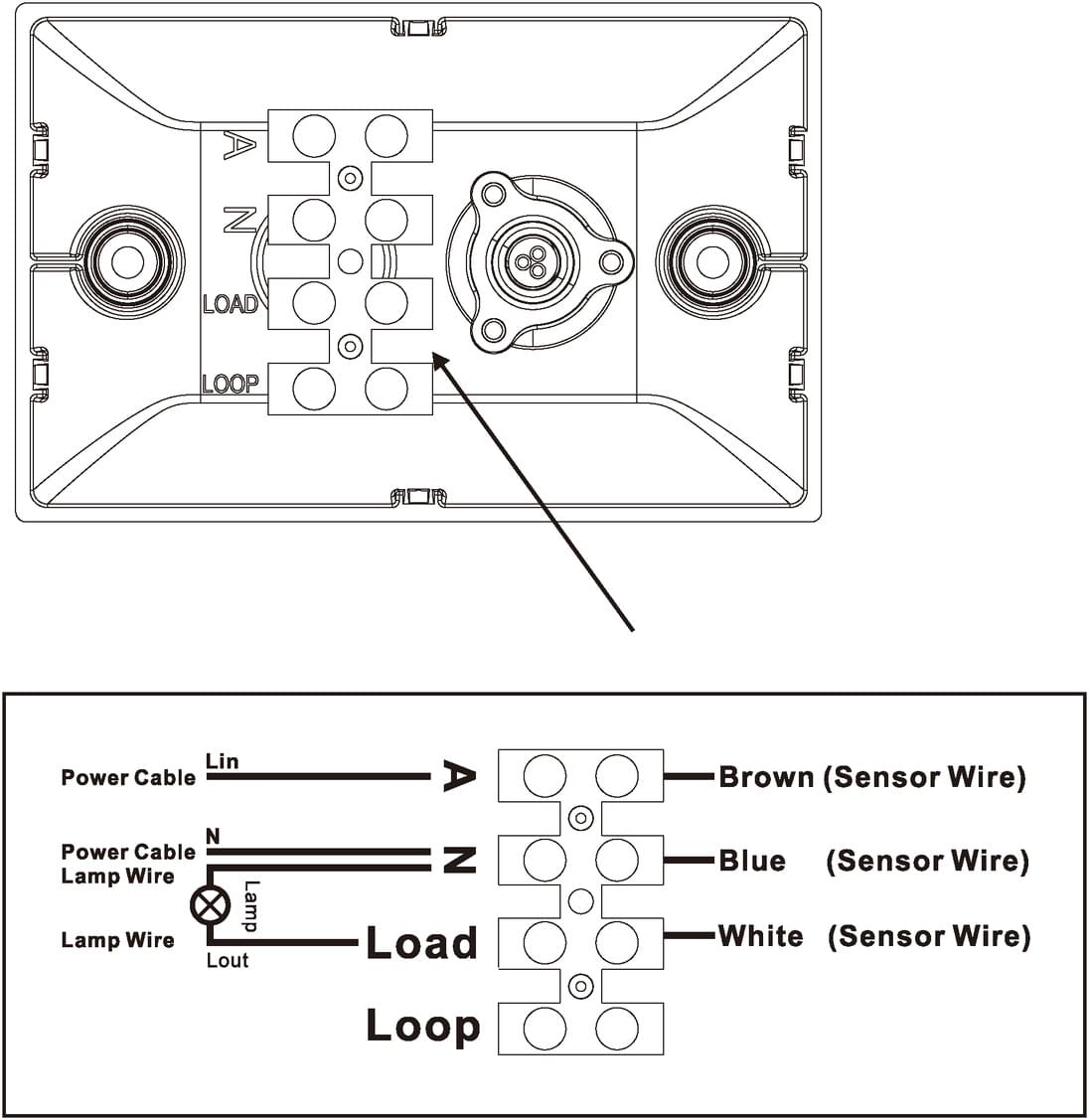

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Body Colour
      		Model No. SMS806WF Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour GREY

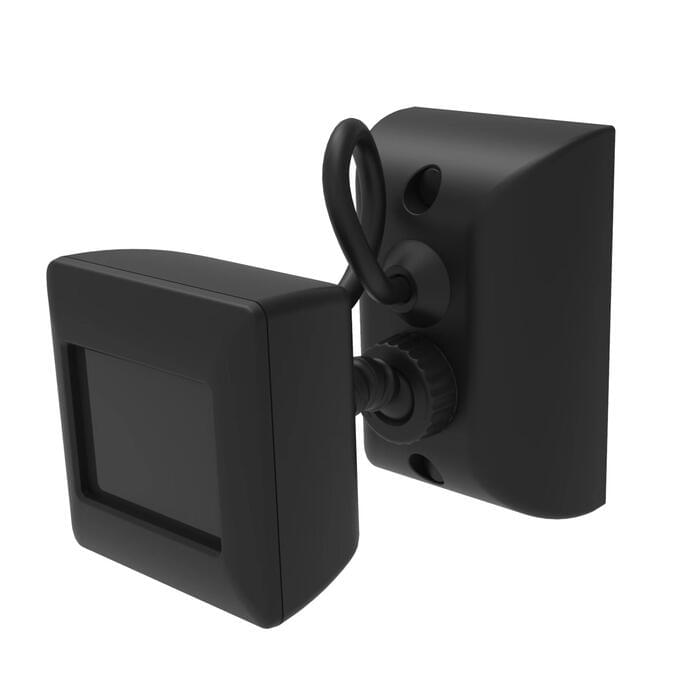

      		Model No. SMS806WF/BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK
      		Model No. SMS806WF/RC Add to Enquiry Add Remove Remove Body Colour WHITE
