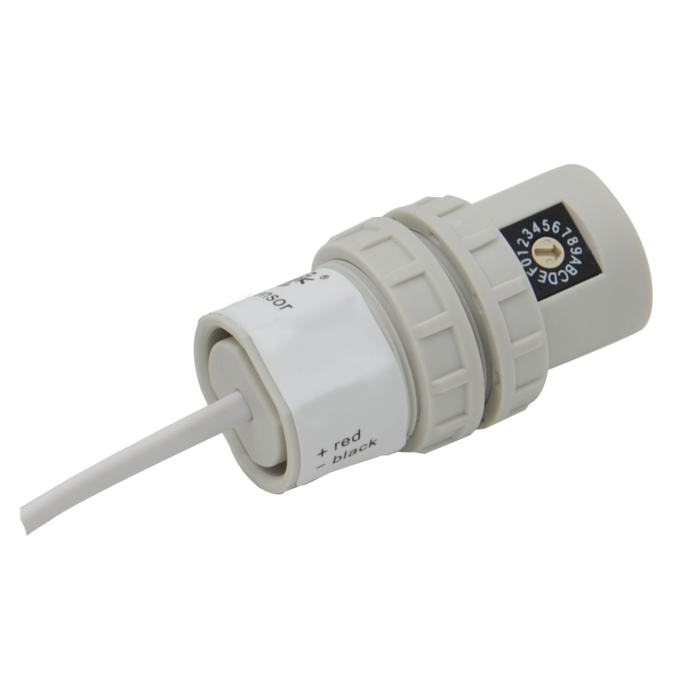

DAYLIGHT HARVESTING SENSOR - SMS761

Daylight harvasting sensor IP20

Application

Innovative recessed daylight harvesting sensor

Design Specifications

  • Operating voltage: 1-10V DC, the sensor must be installed with an active 1-10V dimming power source

  • Note: maximum quantity of connected devices is 30 or a maximum current sink of 50mA

  • Dimming range: 1%~100%, 15 x adjustable light level sensor settings

  • Colour coding of cable: Red+, Black-

  • Cable length: 80cm, 24mm diameter cut-out

  • Detection angle: 90°, @3hm

Performance

  • In Built Sensor - YES

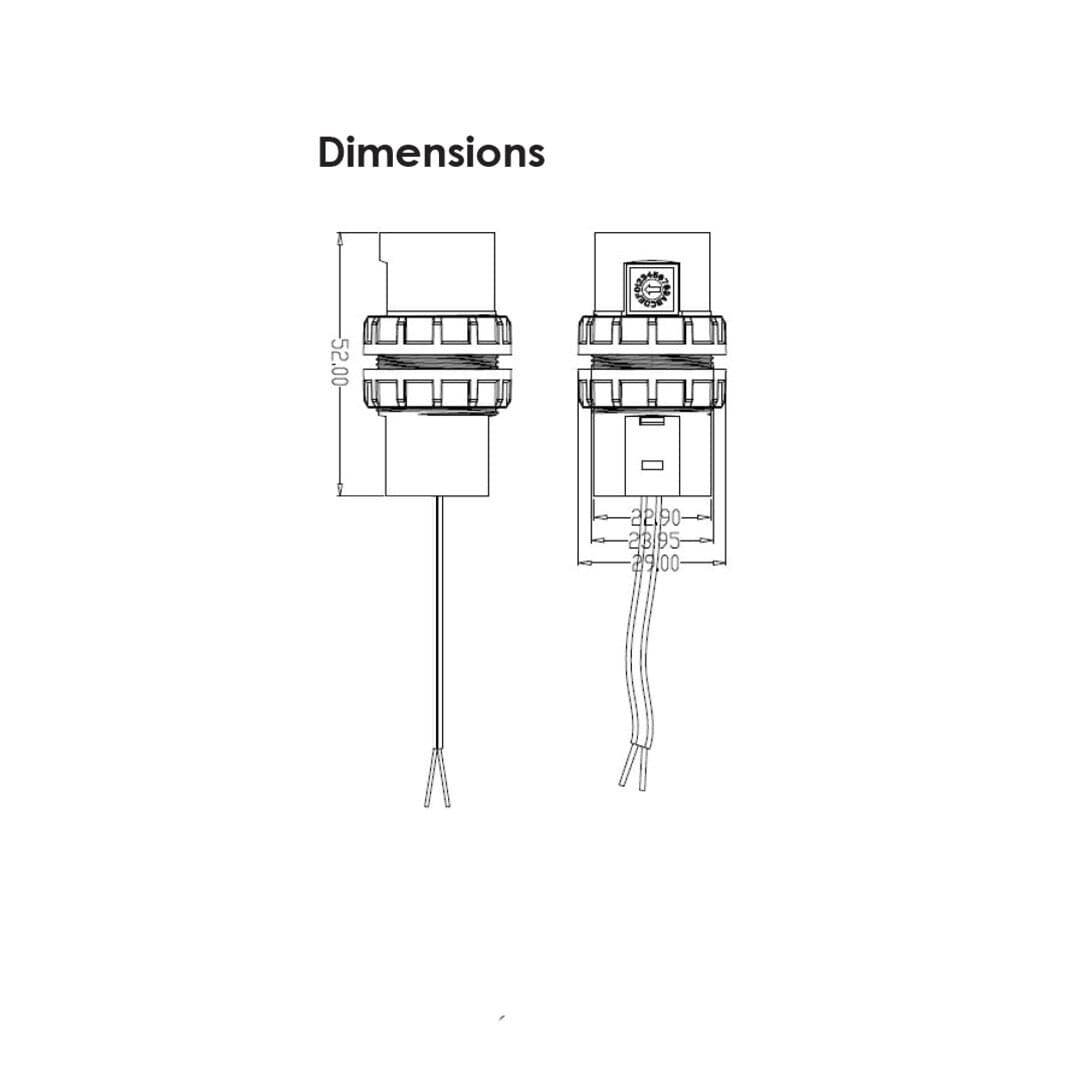

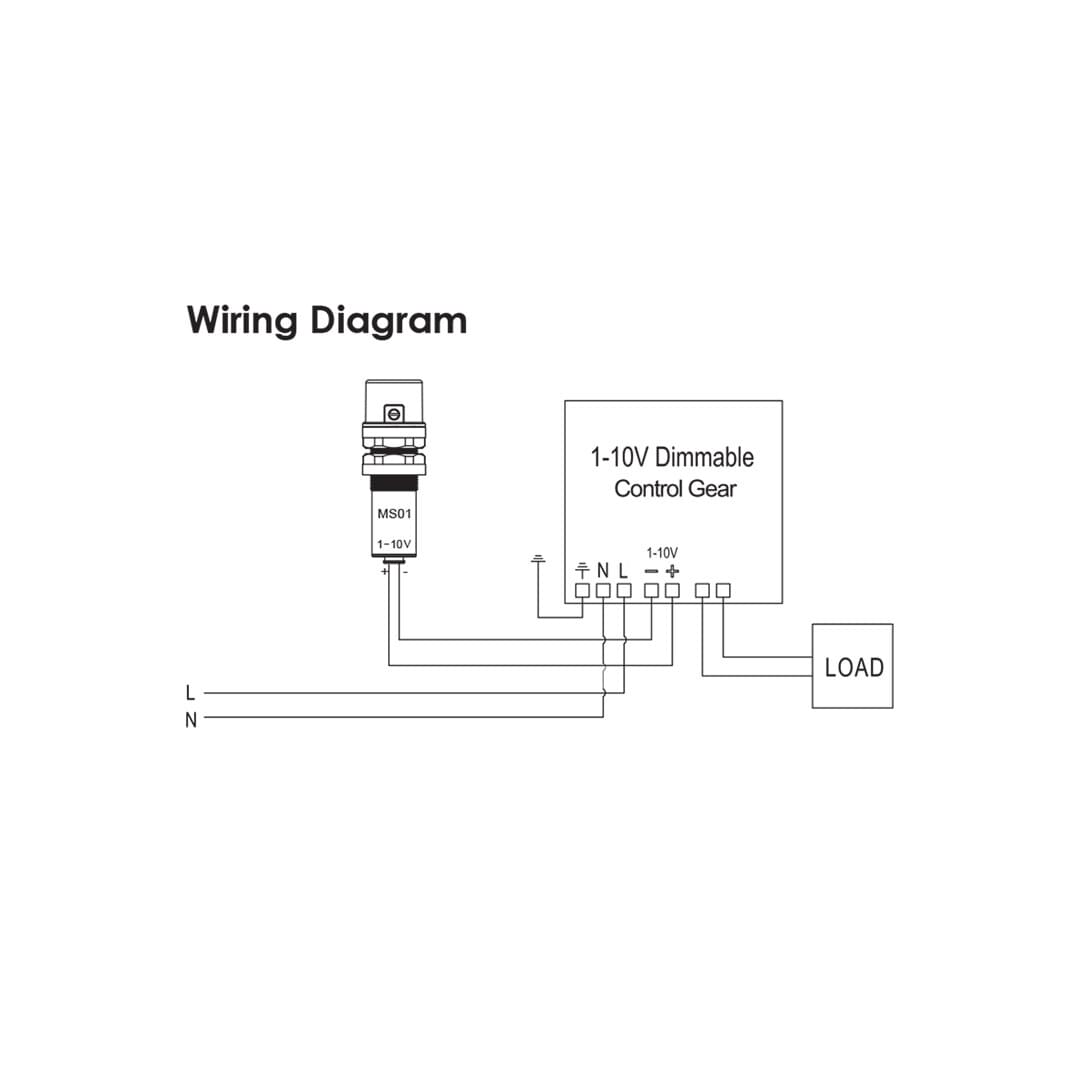

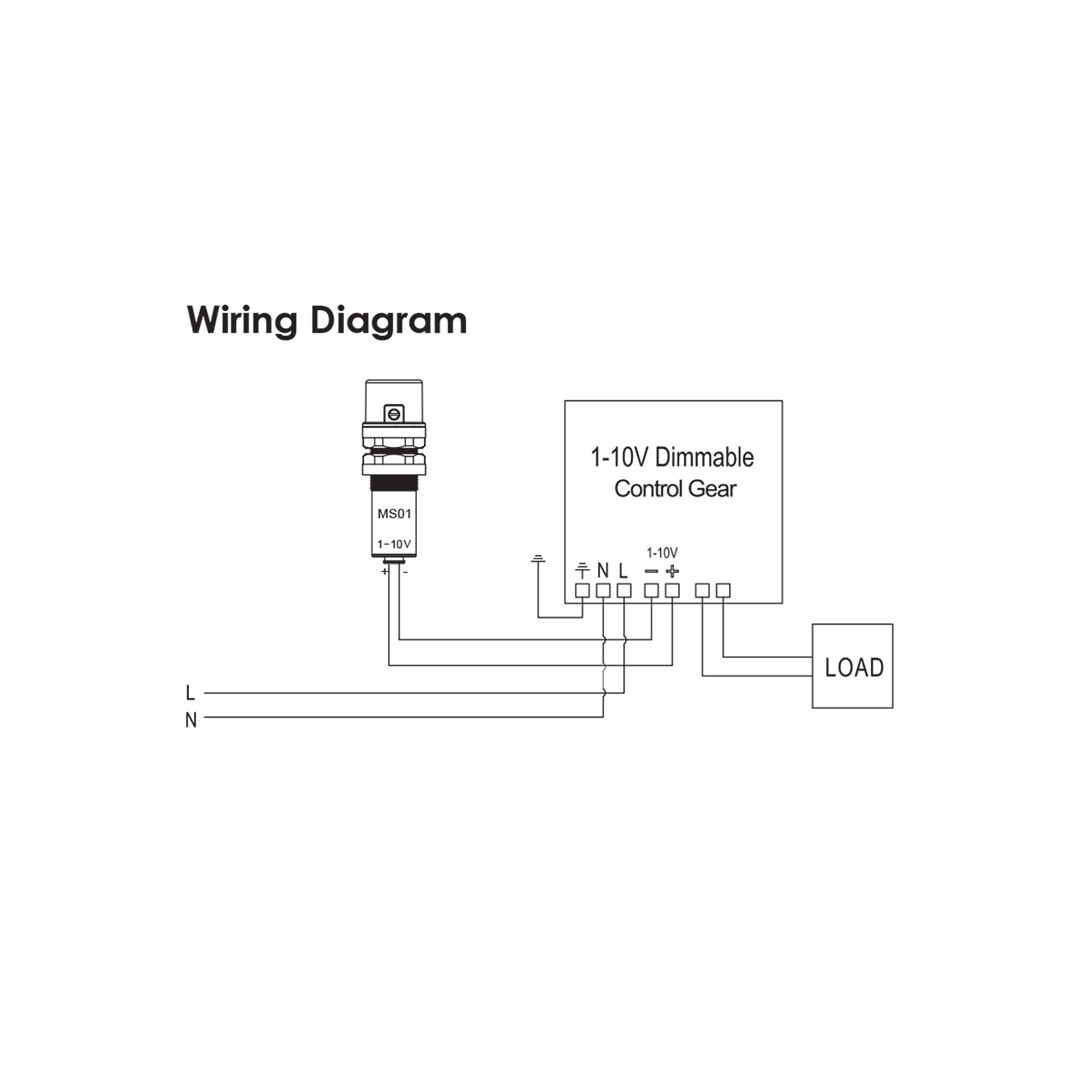

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer 1-10V YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SMS761 Input Voltage10 Body ColourGREY Add to Enquiry Add Remove Remove
