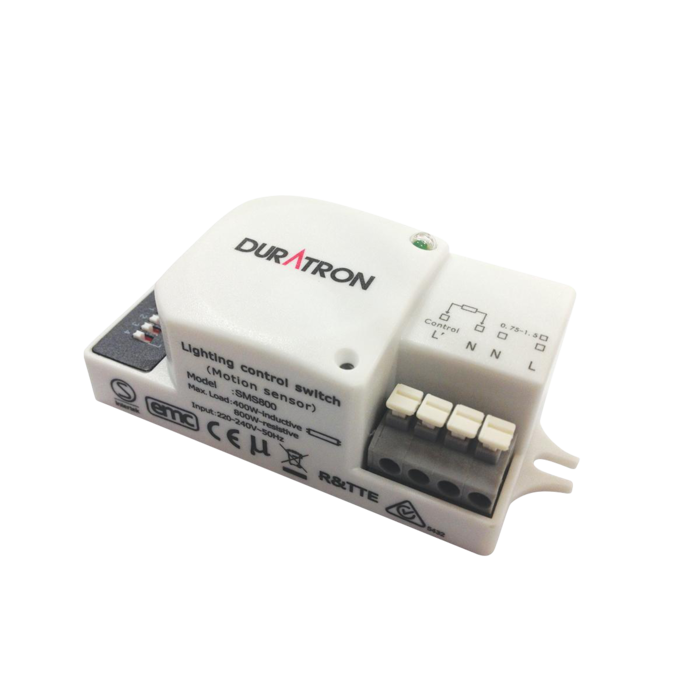

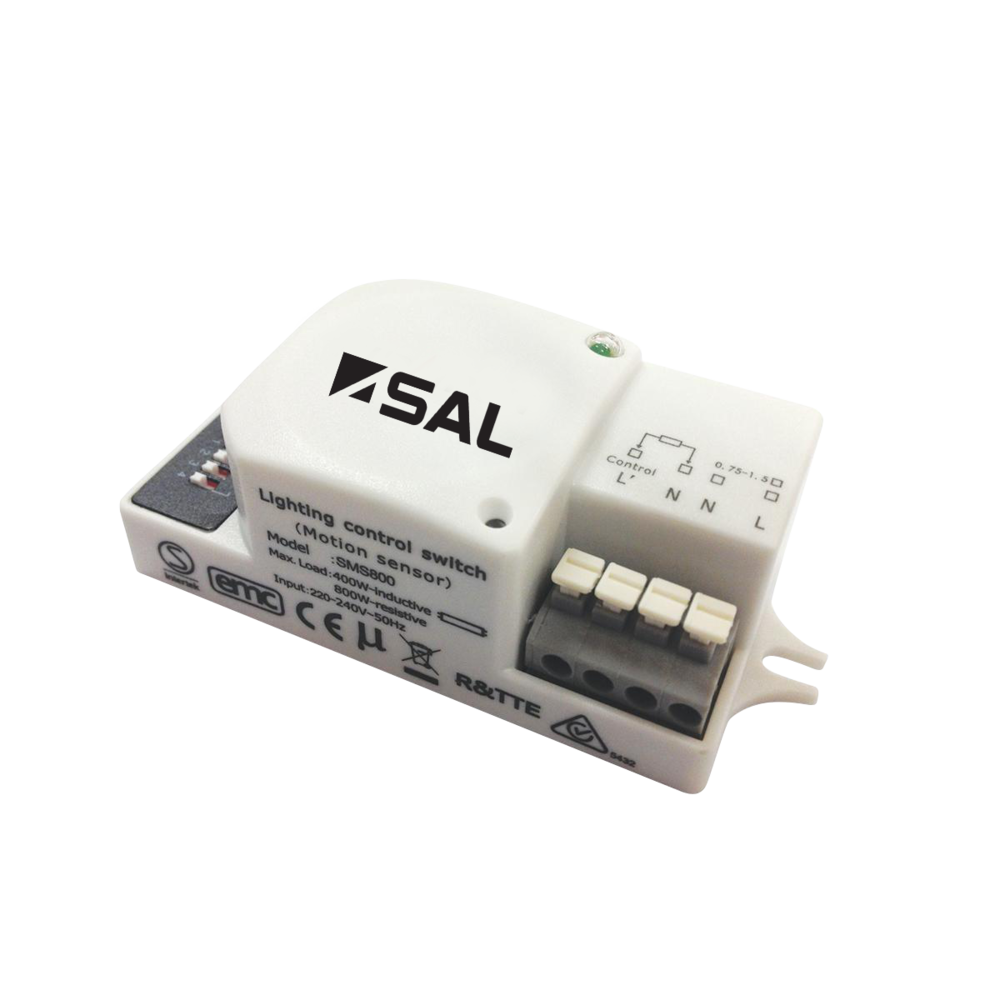

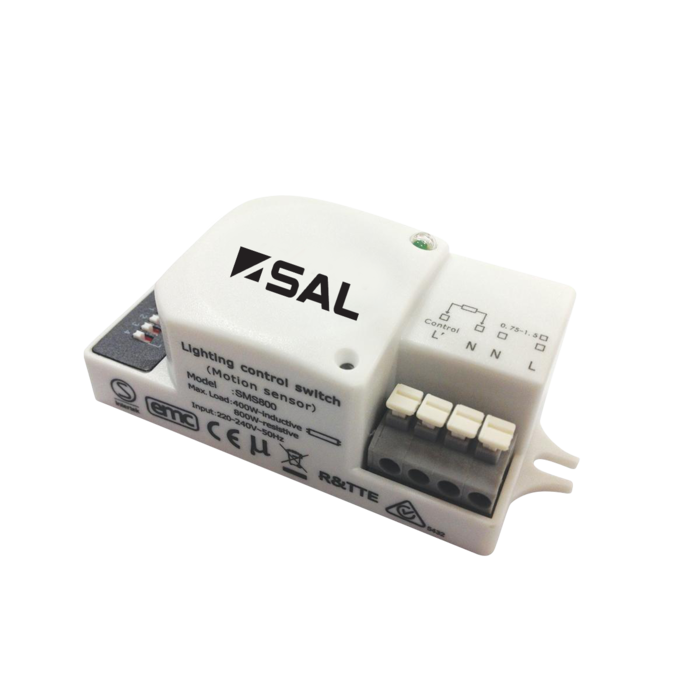

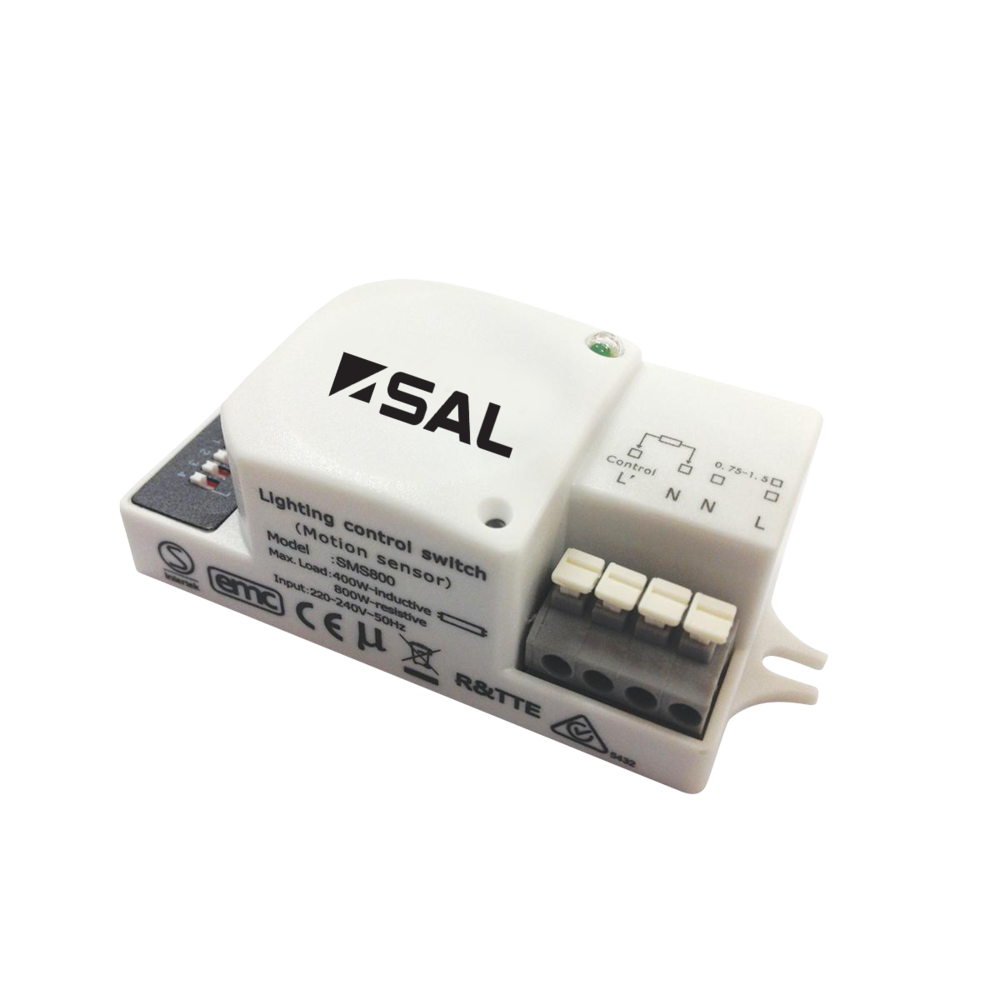

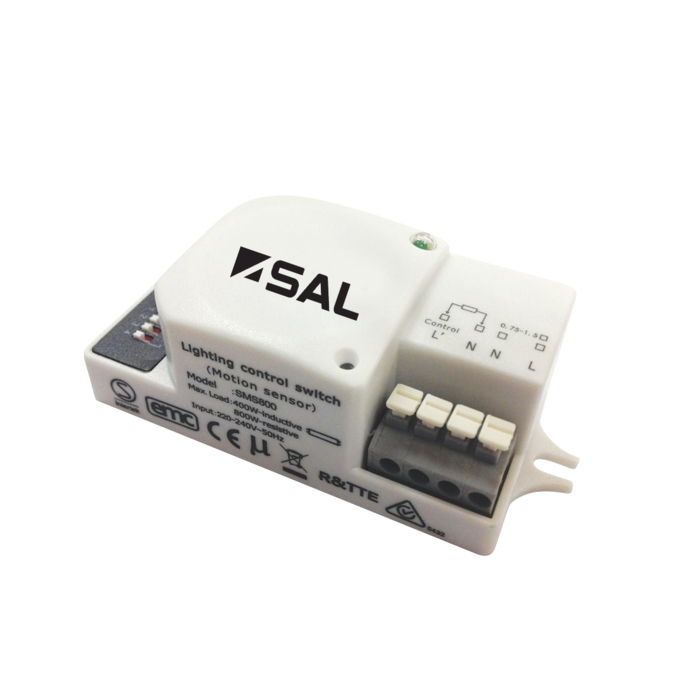

MV SENSOR - SMS800

Microwave motion sensor IP20

Application

SAL factory fitted sensor option for approved products only, not for individual sale.

Design Specifications

  • Switched power 1000W incandescent, 300W, Fluorescent, 200W LED
  • Standby power <1W

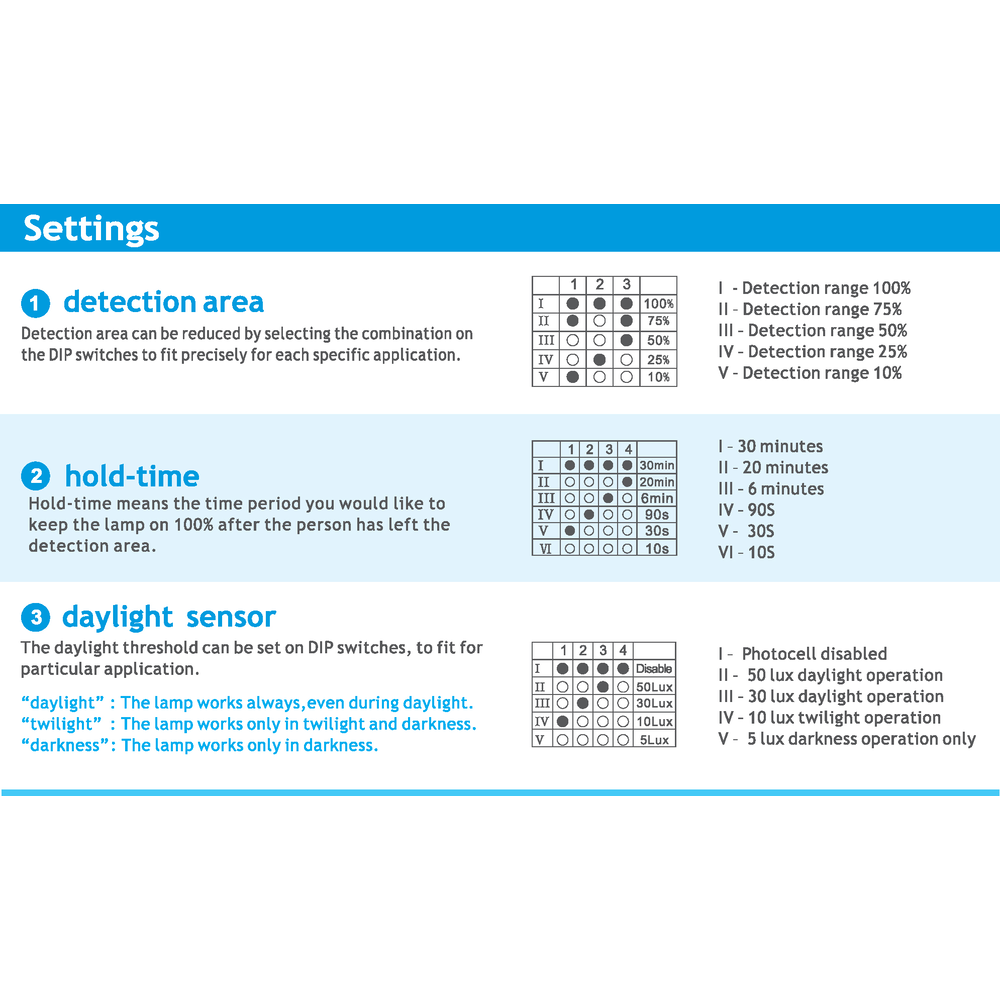

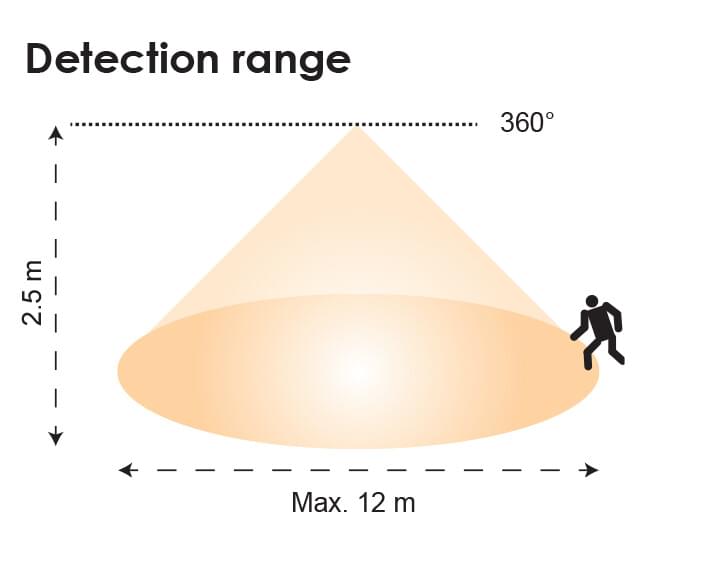

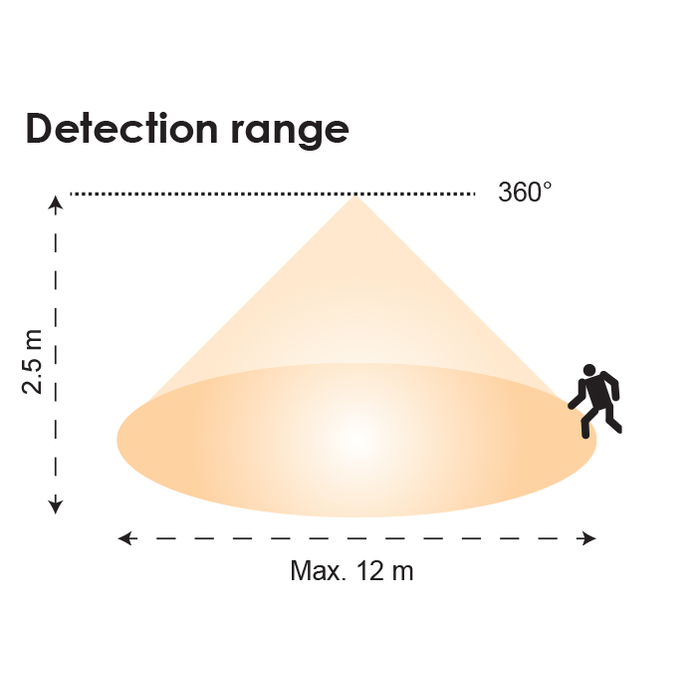

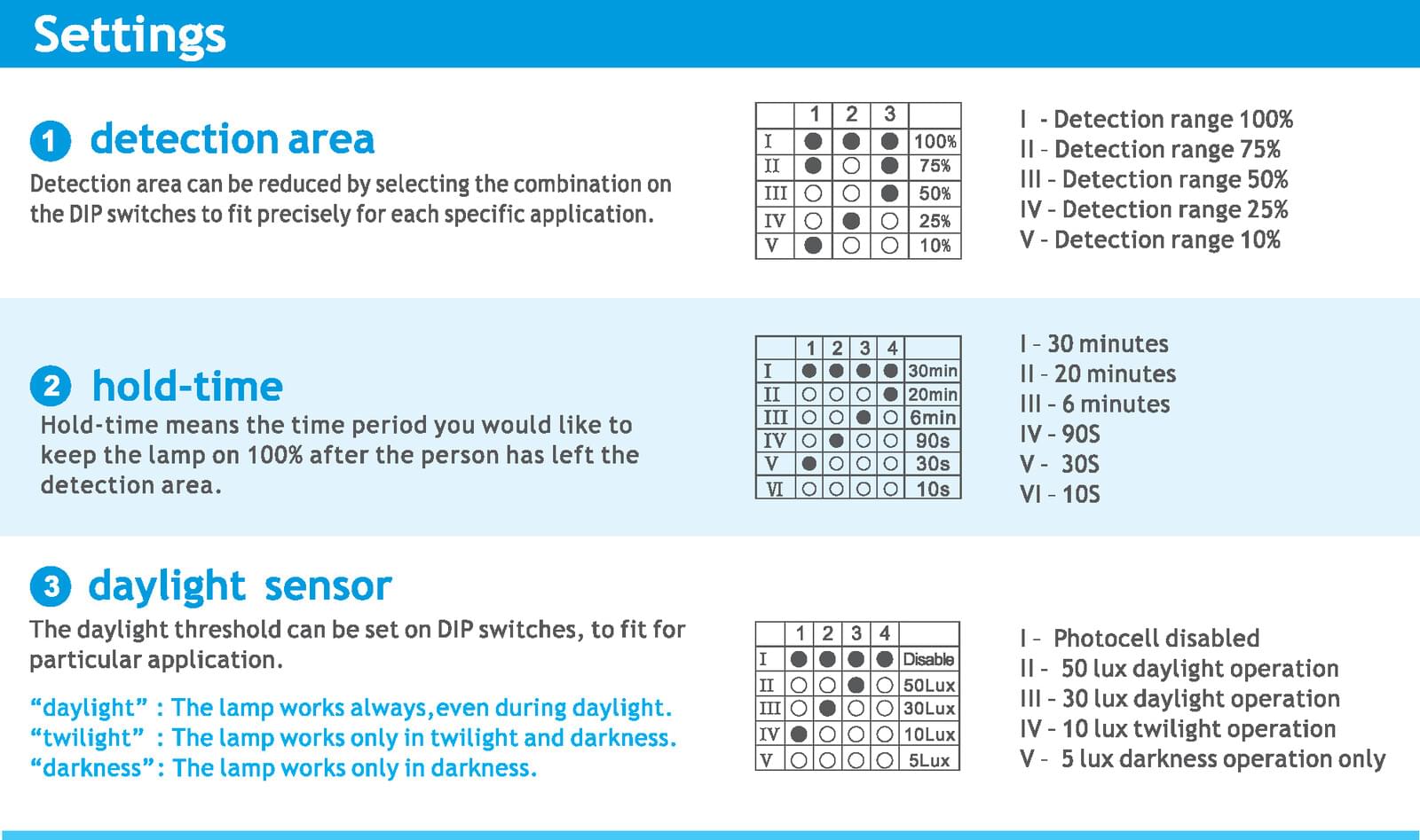

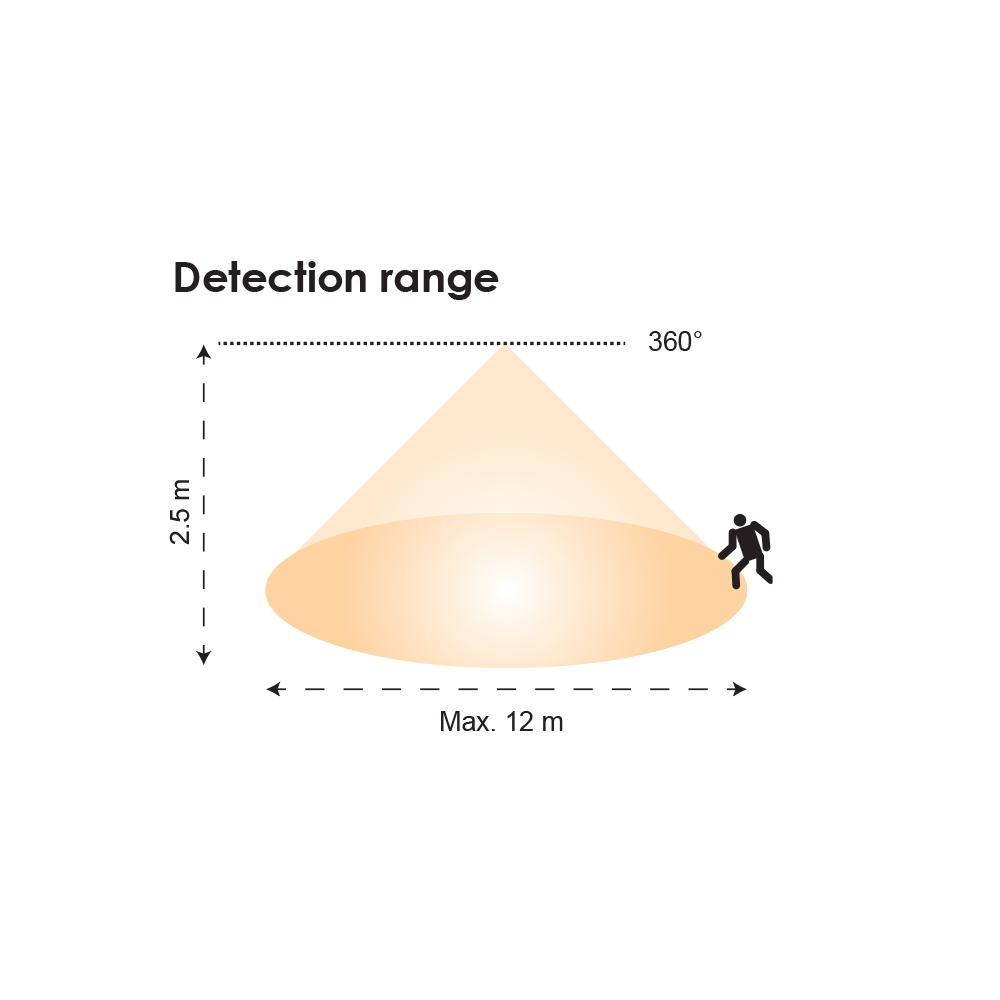

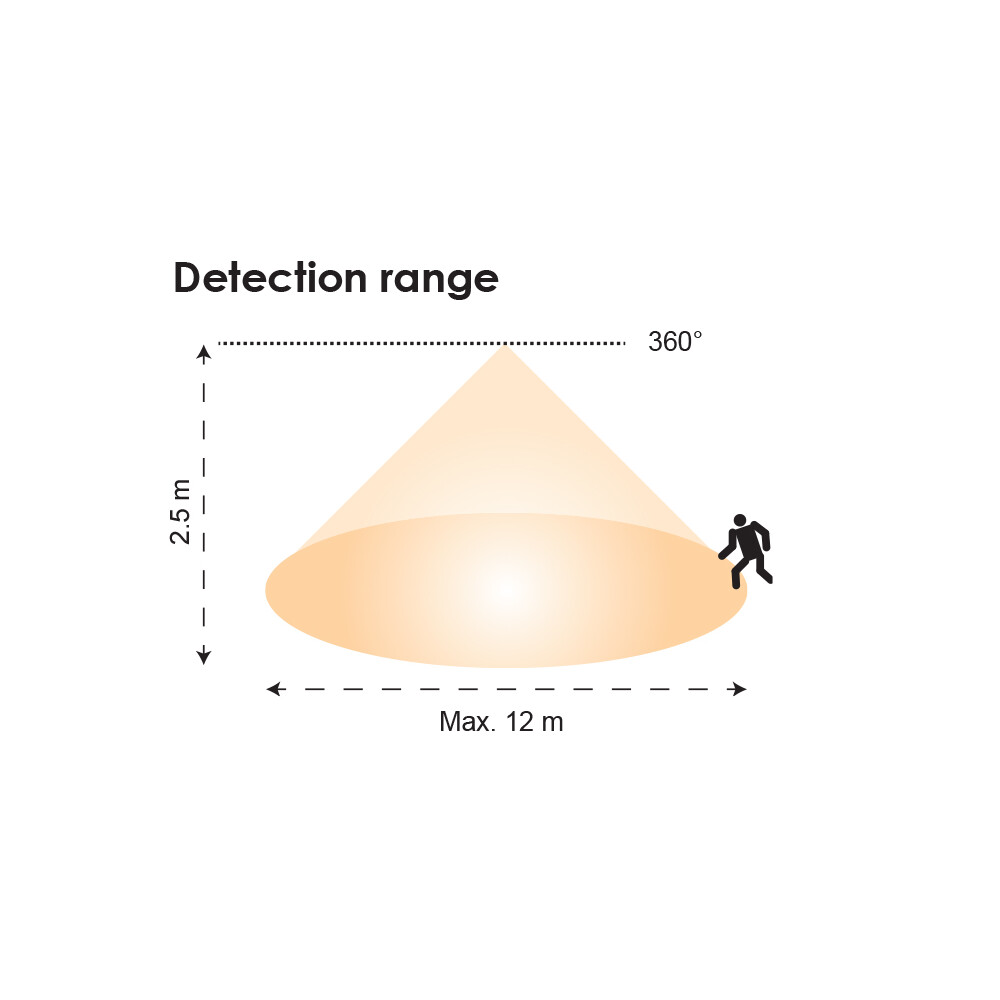

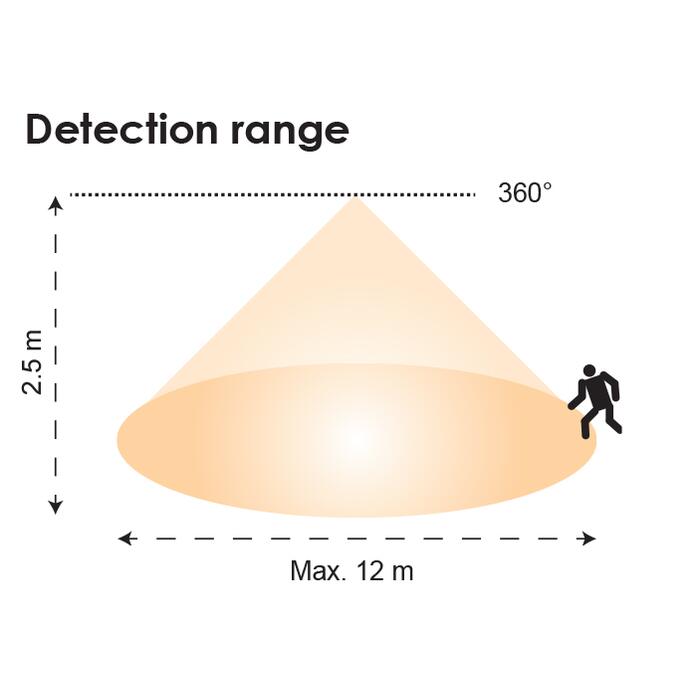

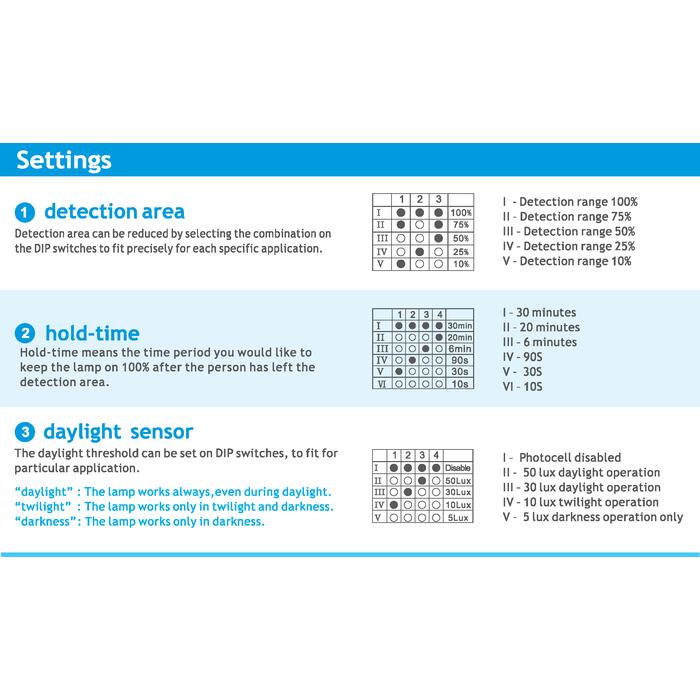

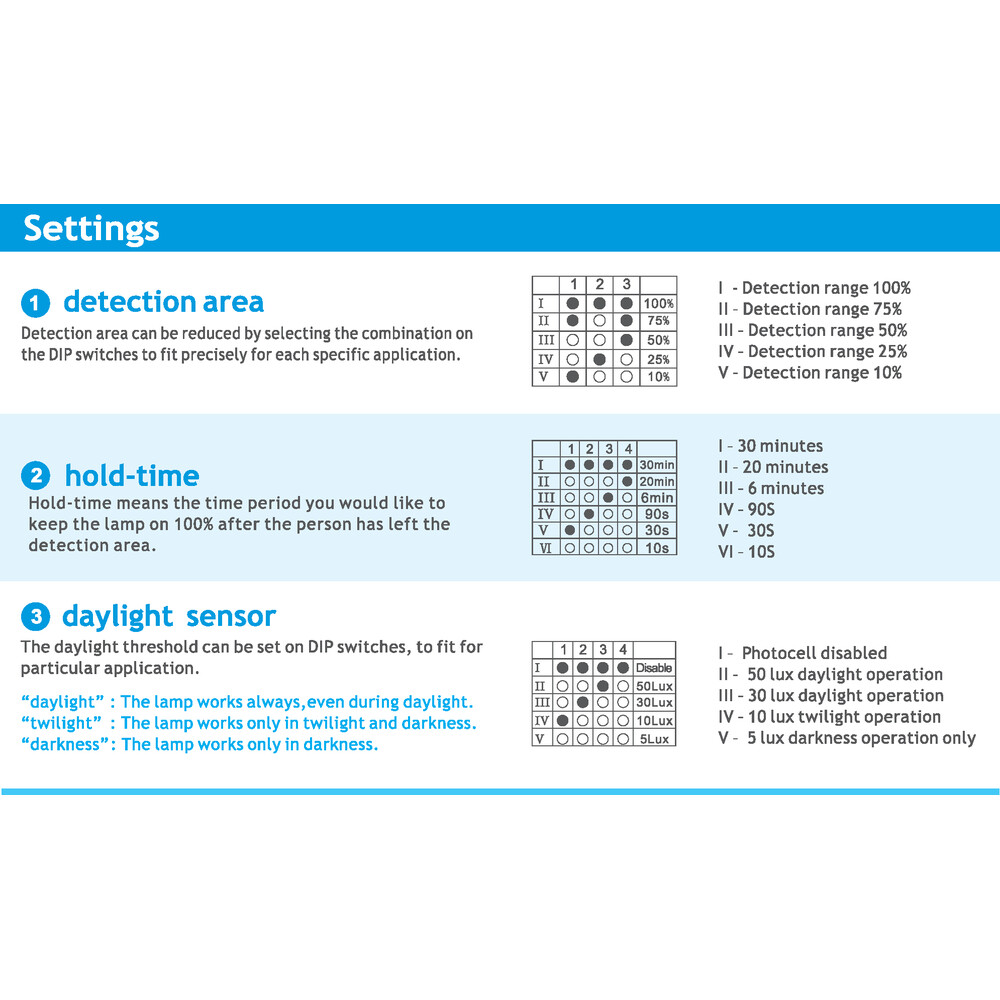

  • Detection distance Max. 12 m in diameter, detection range 25/50/75/100% adjustable

  • Detection angle 360°, Duration Time 10sec/10min adjustable.

  • Lux threshold Disable / 2lux / 5lux / 10lux / 30lux / 50lux adjustable

Performance

  • Dimmable - NO
  • In Built Sensor - YES
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SMS800 Input Voltage240 Body ColourWHITE Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
