• SMART HOME CONTROLS

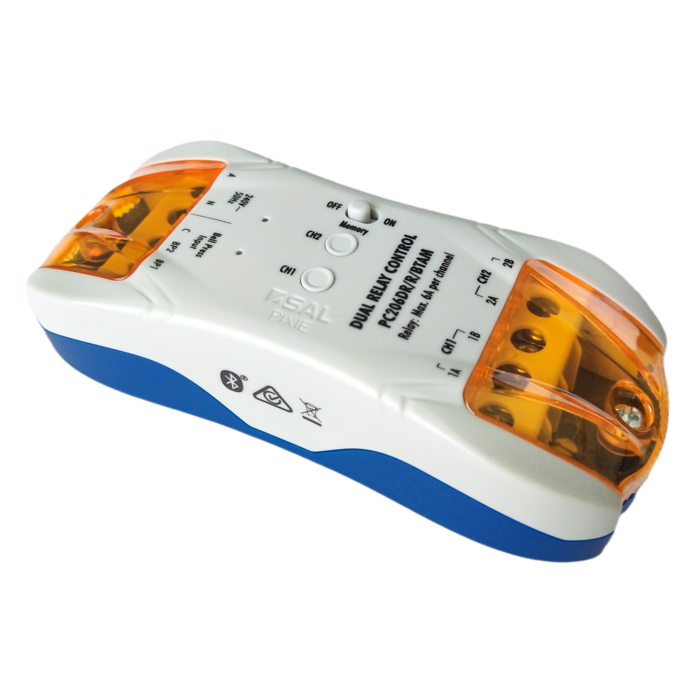

PIXIE DUAL RELAY CONTROL - PC206DR/R/BTAM

PIXIE MASTER DEVICE - Australian approved signal controlSMART HOME two separate relays to control ON / OFF

Application

Designed for high or low power switch control

Design Specifications

  • Compact design profile

  • Double insulation

  • Two channel relays, switching ON / OFF functions

  • 6A per channel.

  • No minimum load required for low power, dual LED indicators to display the individual channel operating status

  • Optional Memory function to recall prior operating status, in the event of power outage, integral CH1 and CH2 control buttons for easy commissioning.

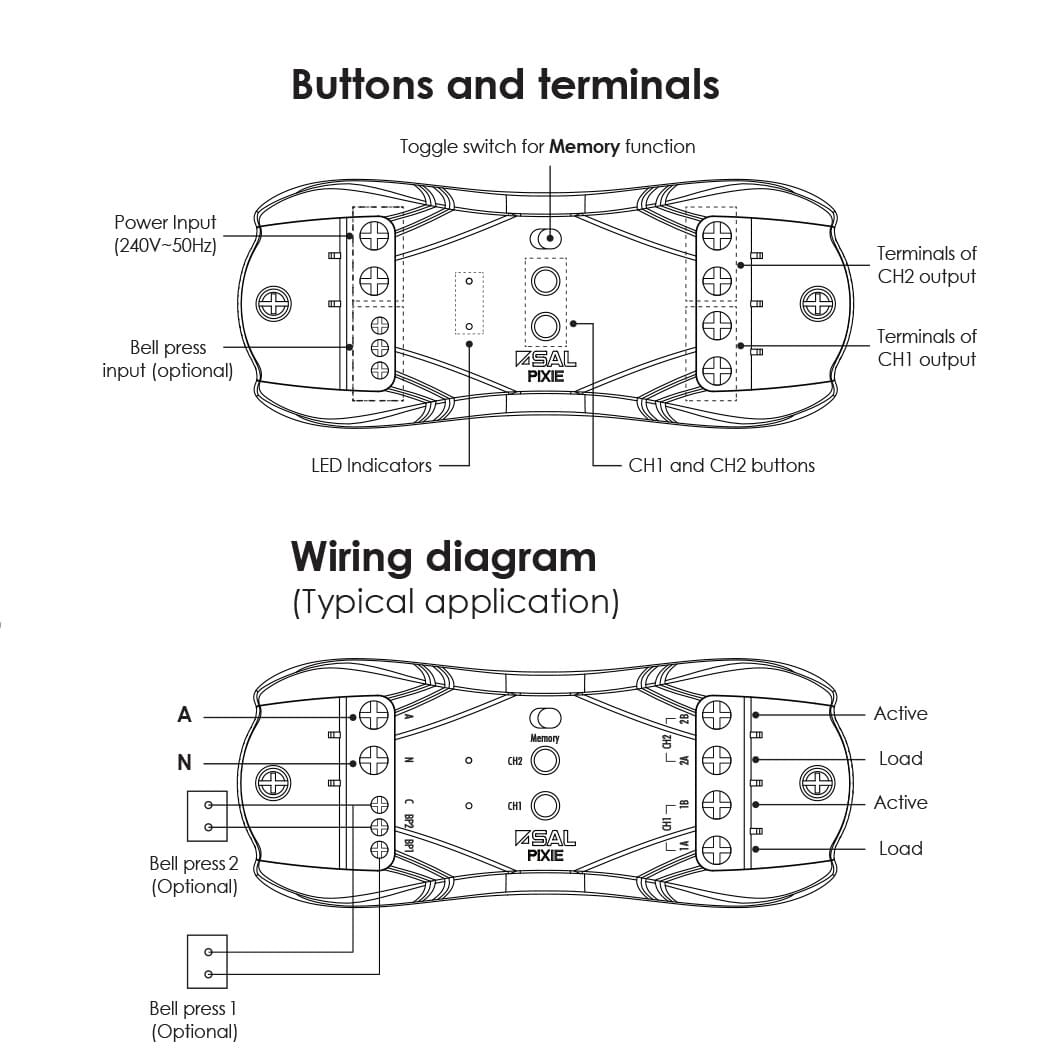

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.PC206DR/R/BTAM Input Voltage240 Body ColourWHITE Dim110(L) x 40(W) x 26(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
