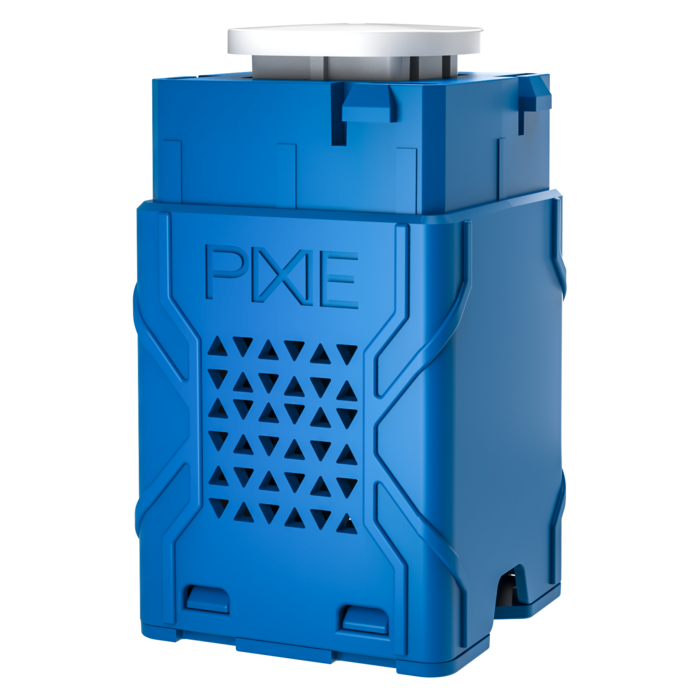

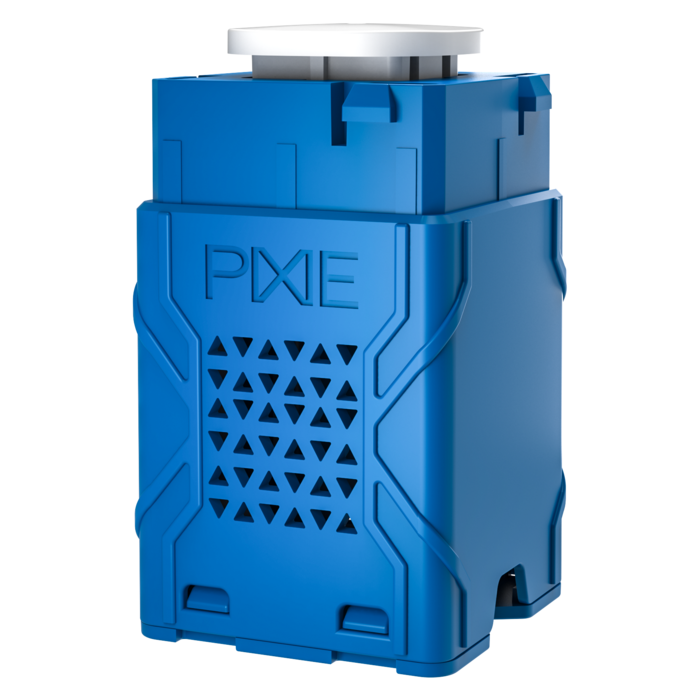

PIXIE SMART DIMMER - SDD300BTAM G3

PIXIE MASTER DEVICE - SMART HOME push button dimmer, Generation 3 with Bluetooth Mesh Technology

Application

Smart digital lighting control with Bluetooth Mesh Technology for residential and commercial spaces

Design Specifications

  • Digital push button control, with three (3) complimentary key caps provided to suit most switch plates

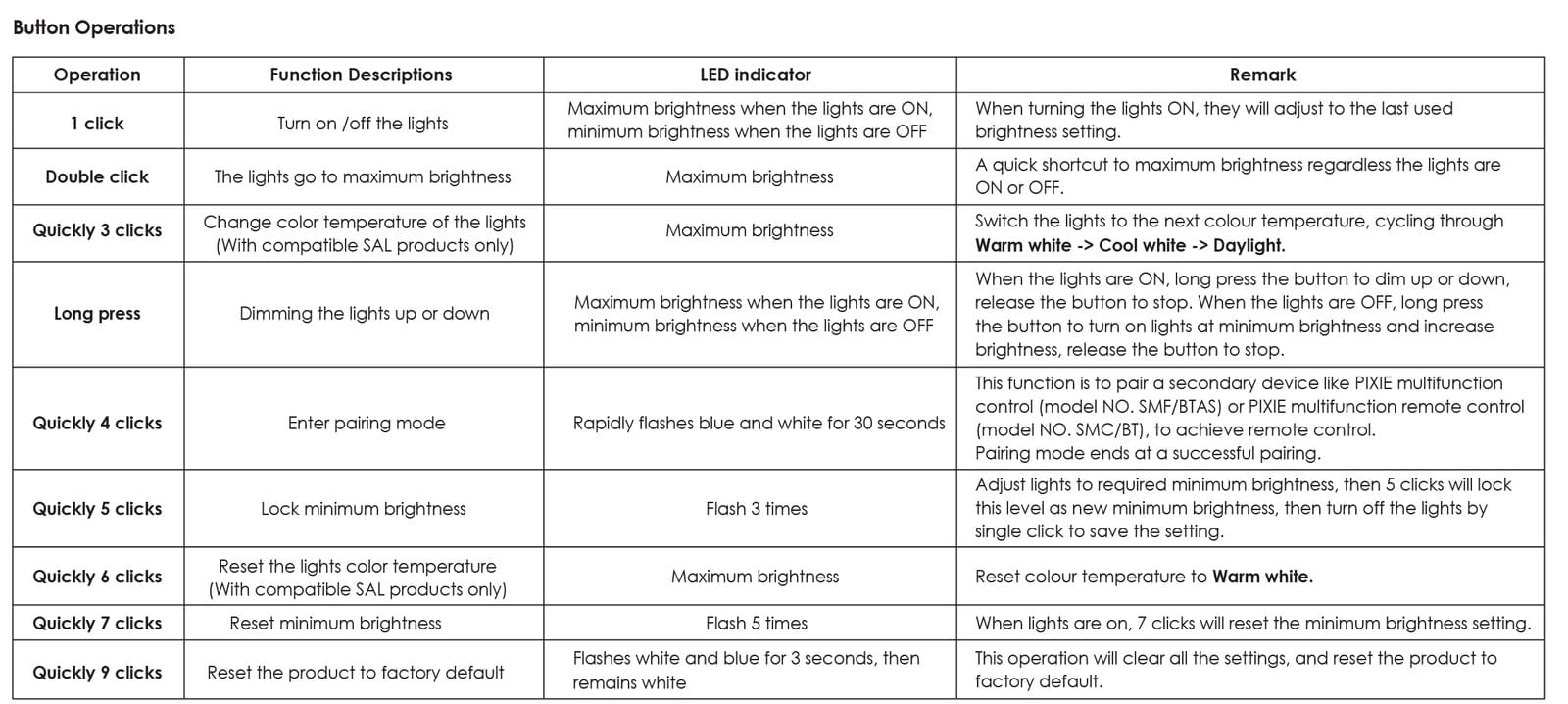

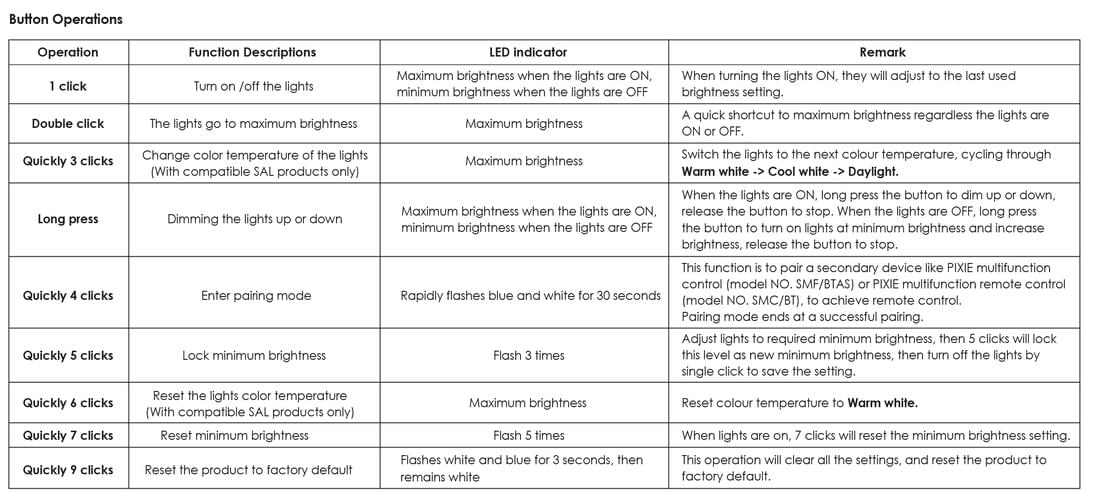

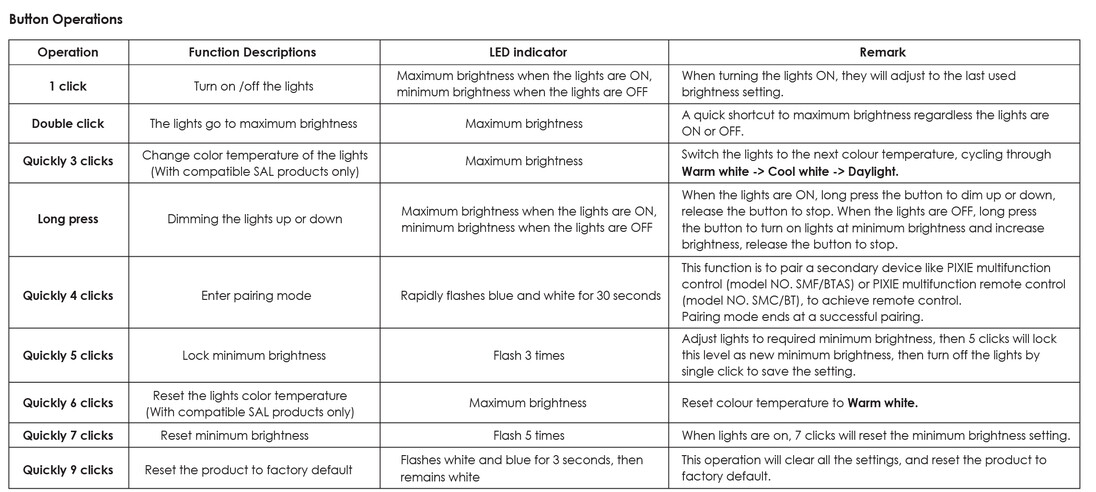

  • When used as a digital device, push on/off, hold to dim up or down, memory function, selectable minimum dim level

  • When used with the SAL PIXIE or PIXIE PLUS app, set a scene, group devices, set a schedule, dim, switch, set a timer

  • With the inclusion of the SAL PIXIE Gateway and the internet, you can control your PIXIE devices from anywhere in the world

  • Overheating, overload and full short circuit protection, maximum load 300 watt (resistive), 250VA (capacitive LED), minimum load 2 watt* . See installation sheet for multi-gang de-rating values.

  • SMART LED indicator, Trailing edge phase cutting dimming, Fits most branded switch plates. 1 to 6 gang, complies to AS/NZS 60669.2.1, typical wireless range 15 metres

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

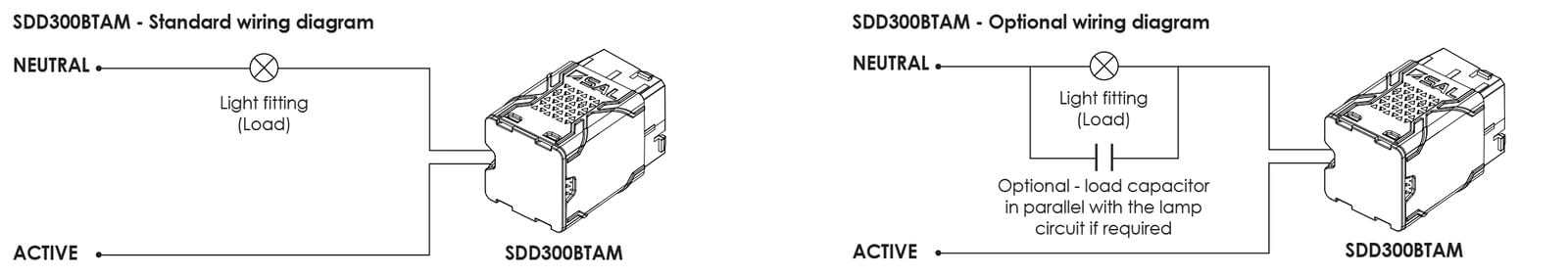

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SDD300BTAM Input Voltage240 Power300 Body ColourBLUE Dim42(L) x 24(W) x 24(H) Add to Enquiry Add Remove Remove

    *2W minimum load is subject to product capability, this load size may require the inclusion of the LOAD capacitor.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
