• SMART HOME CONTROLS

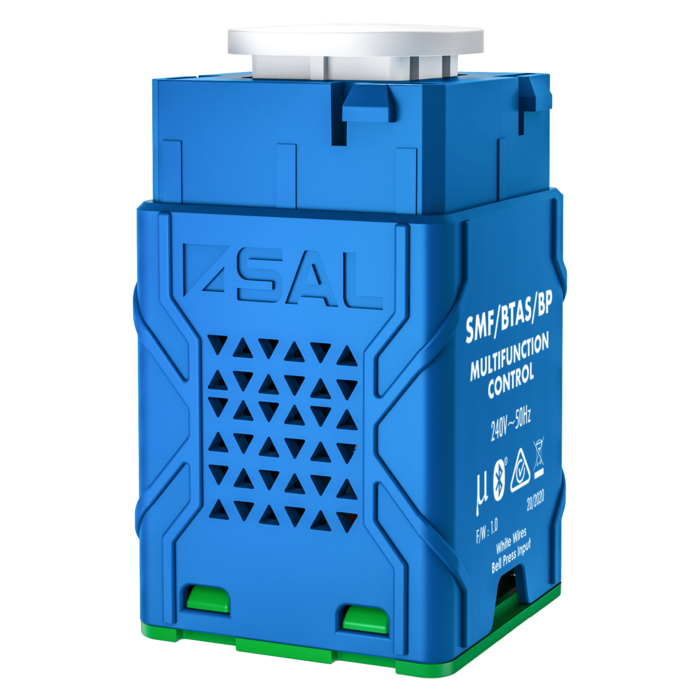

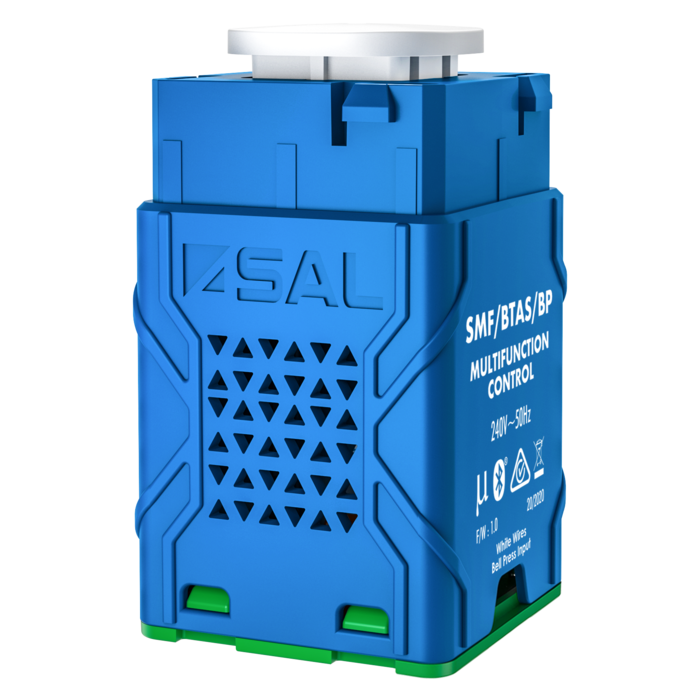

PIXIE MULTIFUNCTION CONTROL - SMF/BTAS/BP G3

PIXIE SECONDARY DEVICE - SMART HOME digital push button multifunction control, with Bell Press termination leads

Application

Ideal for residential designs, commercial interior spaces requiring multiple location device control

Design Specifications

  • SMF/BTAS/BP includes Bell Press termination leads for dry signal input. Digital push button control to enable multifunction switching or dimming control, simply with an active and neutral termination.  All devices must be paired with a PIXIE Master device once installed, for functionality.

  • Three (3) complimentary key caps provided to suit most switch plates

  • Easy to install, dim and switch with ease, two wire termination mech.

  • Switch or dimming control is achieved only in conjunction with PIXIE Master controls.

  • Fully compatible with PIXIE and PIXIE PLUS

  • Slimline design to allow 1-6 gang configurations

Performance

  • Dimmable - YES
  • Dimmer Type - PAIRED WITH PIXIE MASTER DIMMER

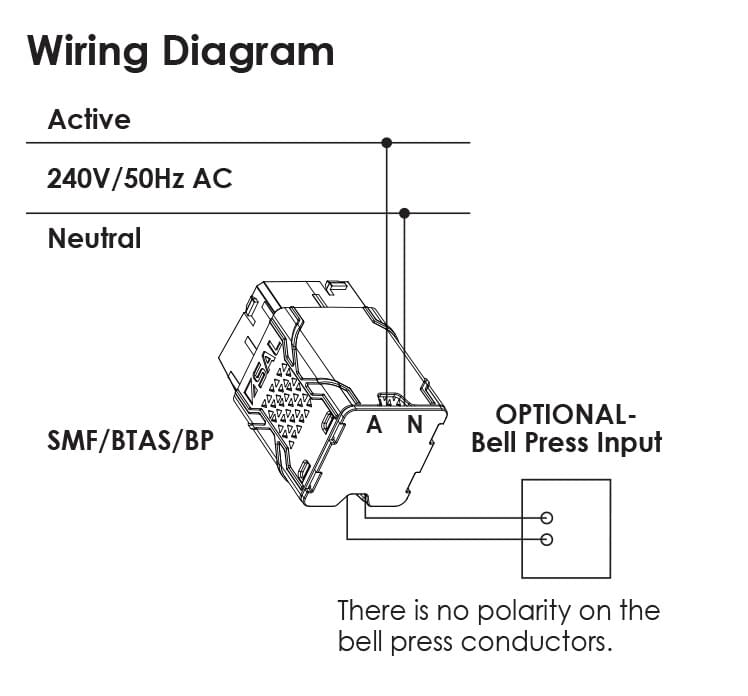

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SMF/BTAS/BP Input Voltage240 Body ColourWHITE CAP Dim42(L) x 24(W) x 24(H) Add to Enquiry Add Remove Remove
