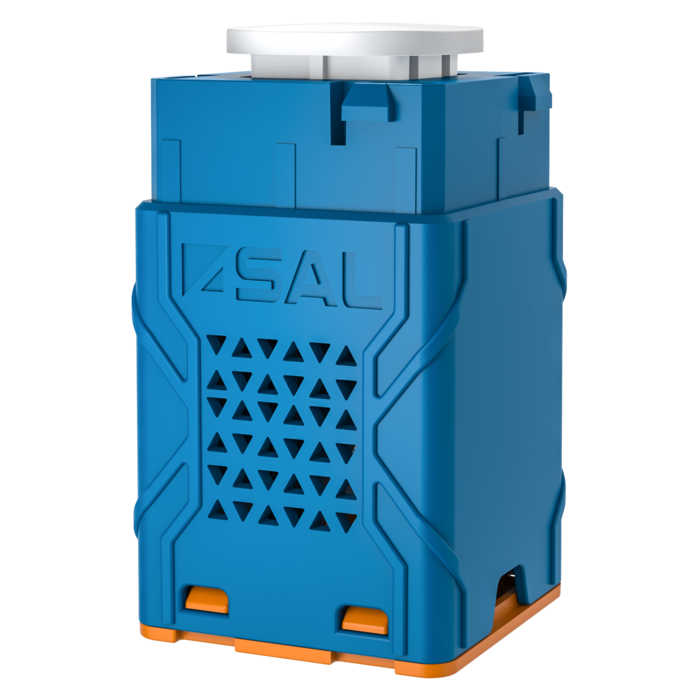

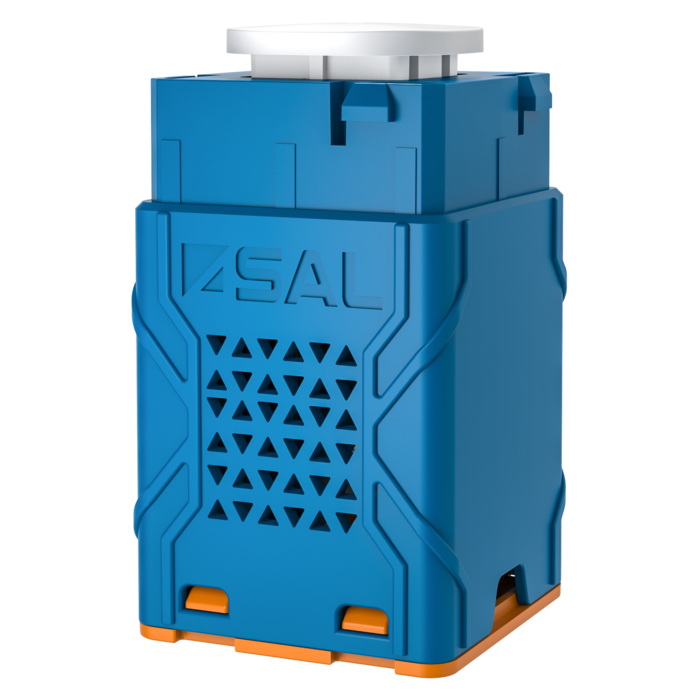

PIXIE SMART SWITCH - SWL600BTAM G3

PIXIE MASTER DEVICE- SMART HOME digital 600 watt push button switch, Generation 3

Application

Smart lighting controls with Bluetooth Mesh connectivity for residential and commercial spaces

Design Specifications

  • Easy two wire termination with fly lead termination, compliant to AS/NZS 60669.2.1 and designed with a typical wireless range of 15 metres, or further with the SAL PIXIE signal booster

  • Digital push button control with three (3) complimentary key caps provided to suit most switch plates.

  • Operating the device with the SAL PIXIE app allows the user to set a scene, group devices, set a schedule, set a timer and more!

  • Fully compatible with PIXIE PLUS, so with the inclusion of the SAL Gateway and the internet, you can control your PIXIE devices from anywhere in the world, or with compatible voice control devices.

  • Overheating, overload and full short circuit protection, maximum load 600 watt, minimum load *9 watt. For load type compatibility, including exhaust fans, please refer to installation instructions.

  • SMART LED indicator, versatile design, fitting most branded switch plates, 1 - 6 gang configurations.

Performance

  • Dimmable - NO

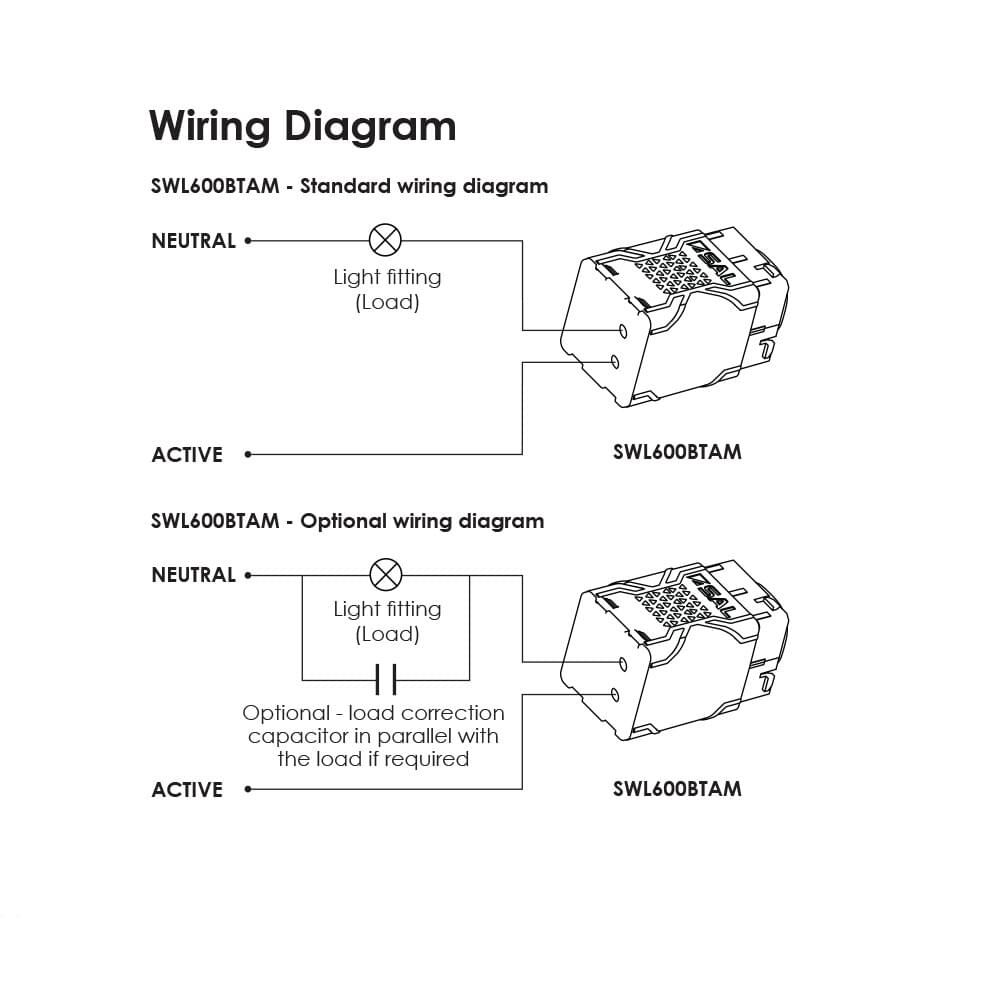

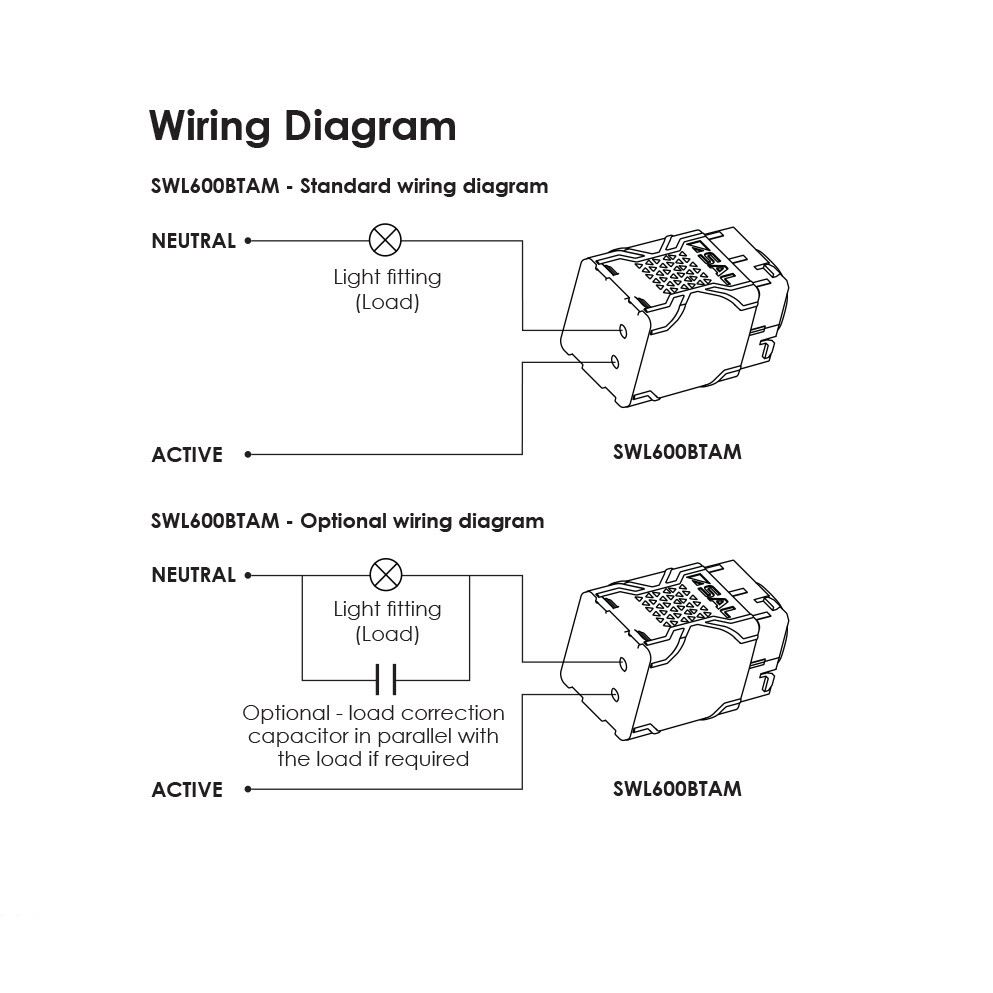

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SWL600BTAM Input Voltage240 Power600 Body ColourBLUE Dim42(L) x 24(W) x 24(H) Add to Enquiry Add Remove Remove

    *9W minimum load is subject to product capability, this size load may require the inclusion of the LOAD capacitor included in the product carton

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
